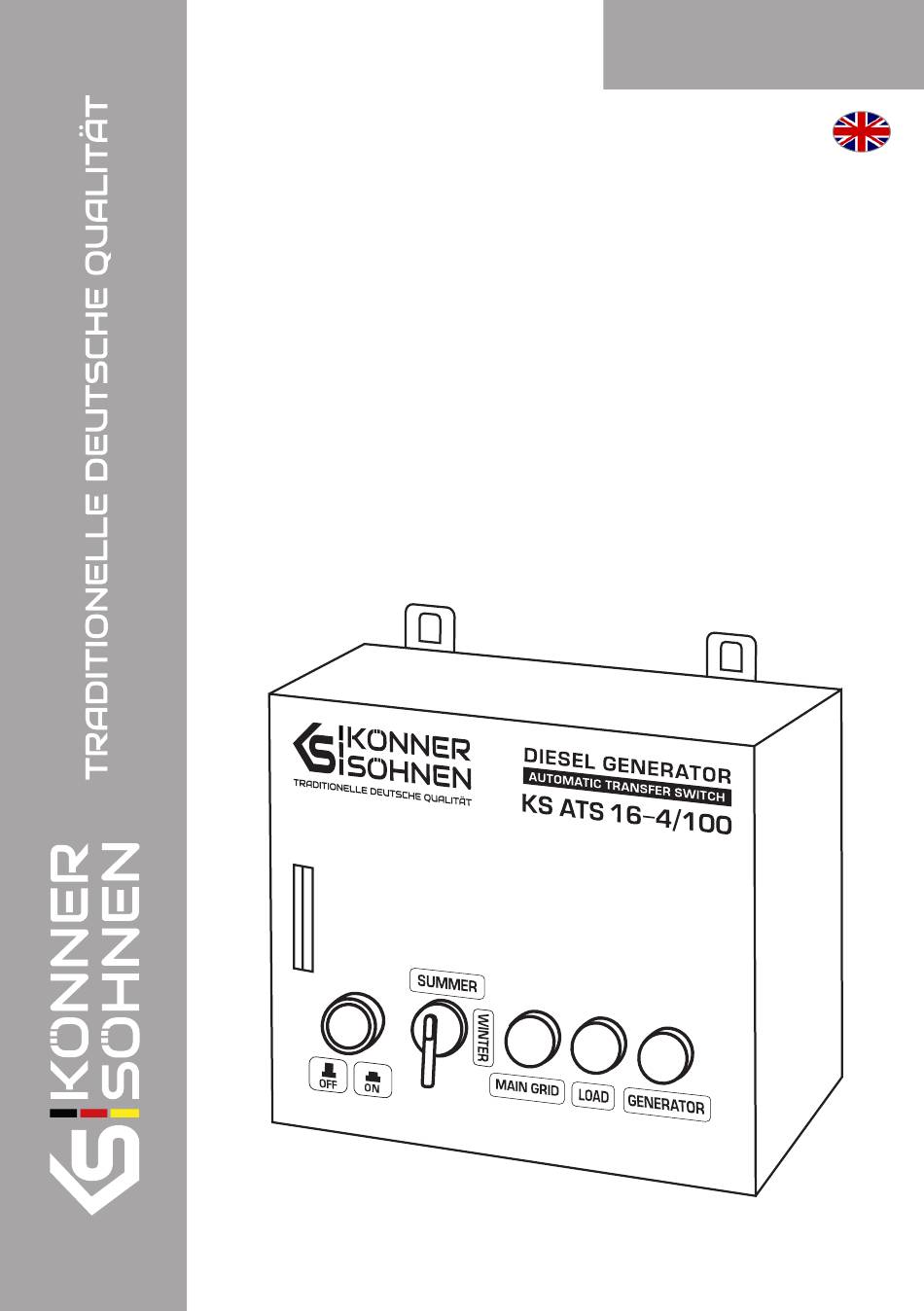

- Page 1 Manual Please, read this manual carefully before use! Automatic Transfer Switch (ATS) KS ATS 16-4/100...
- Page 2 INTRODUCTION Thank you for opting for Könner & Söhnen products. This manual contains a brief description of safety, ® setup and use. More information can be found on the official importer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the manual by scanning the QR code or on thewebsite of the official importer of Könner &...
-
Page 3: Specifications
The current strength of consumers connected to the ATS system should not exceed the maximum permissible PLEASE NOTE! current strength of the switch (100A per phase) of this model of the ATS unit. GENERAL VIEW OF THE ATS UNITS 1. ATS power switch 2. -
Page 4: Operating Procedure
OPERATING THE ATS UNIT ATS UNIT FUNCTION ATS UNIT FUNCTION The ATS unit automatically starts the generator and switches over power consumers to it when the main power supply is deenergized. Use the control cable to connect the ATS unit to the pow- er generator. -
Page 5: Wiring Diagrams
POWER SUPPLY OF THE ATS POWER SUPPLY OF THE ATS The ATS unit has a built-in 12V power supply, which is connected to the generator battery via a control cable and supports it with maintenance voltage. The ATS unit is powered by the generator battery when the main power supply fails. -
Page 6: Warranty Provisions
GENERATOR MAIN GRID Earthing screw (PE) LOAD Power cables are connected directly to the transfer switch to ensure secure contact. CONTROLLER MAIN TECHNICAL PARAMETERS KS ATS 16-4/100 Rated insulation voltage of copper bar, Ui 690V Rated impulse withstand voltage, Uimp 8 KV Rated operating voltage of copper bar, Ue AC400V... - Page 7 ANNEX konner-sohnen.com |...
- Page 8 CONTACTS Deutschland: Deutschland: Hergestellt unter Lizenz und Kontrolle der DIMAX International GmbH. Importeur und Vertreter in Deutschland: DIMAX International GmbHFlinger Broich 203, 40235 Düsseldorf, Deutschland. Produziert in VRC. innovationtrade8@gmail.com www.konner-sohnen.com/de www.konner-sohnen.com/de European Union: European Union: Manufactured under license and control of DIMAX International GmbH,Flinger Broich 203, 40235 Duesseldorf,Germany.
