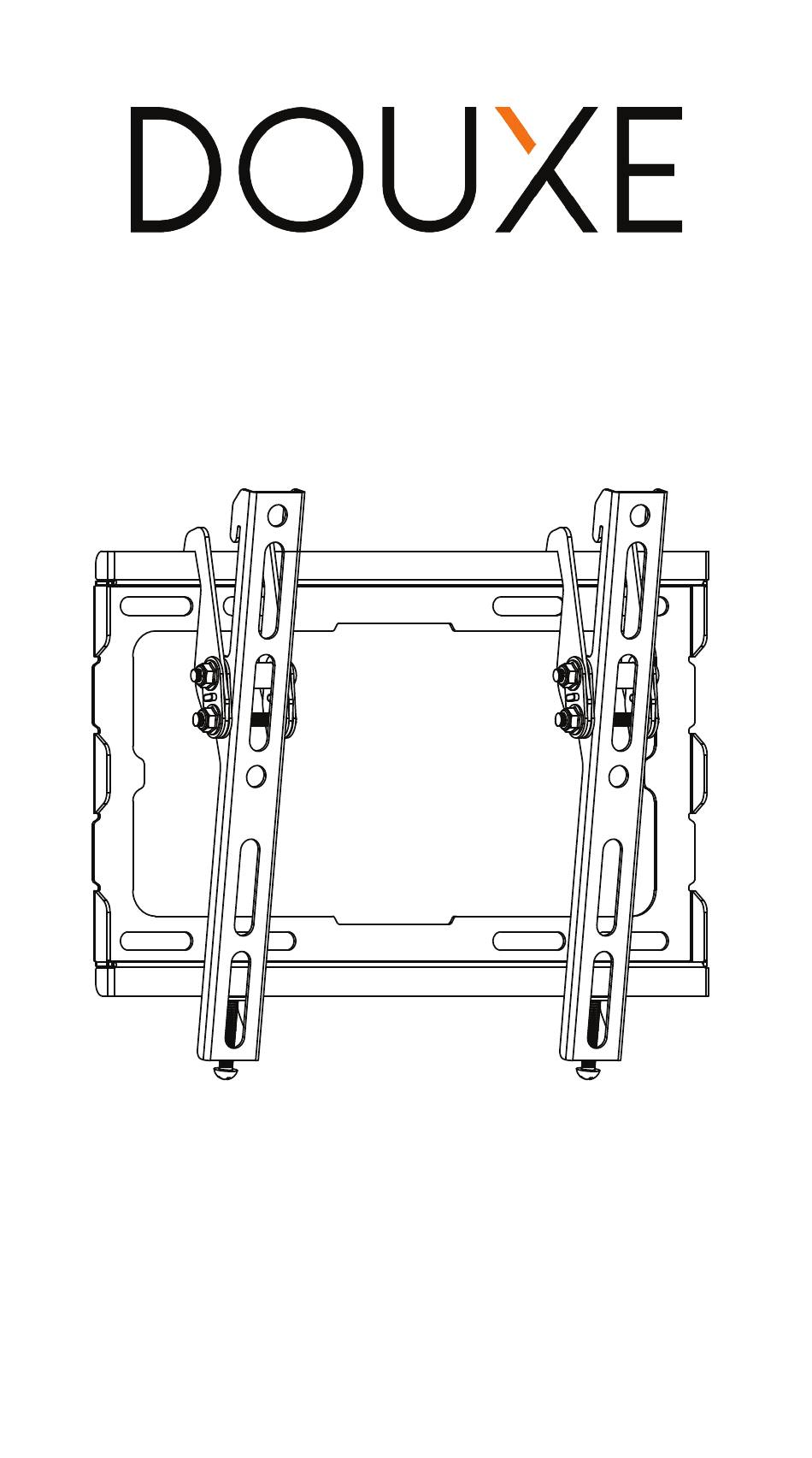

- Page 1 DTS-32T TV Wall Mount Instruction Manual...
-
Page 2: Warnings And Safety Instructions
1. Introduction Congratulations on your product purchase and thank you for choosing Douxe products. This is a sleek, low-profile design perfect for 23" - 42" TVs, offering up to 12° of tilt for optimal viewing angles. Compatible with all major TV brands using VESA mounting standards. -
Page 3: Safety Information
3. Safety Information • Please make use of proper safety equipment during installation. • To enable proper support and handling, it is recommended that two people perform this installation. • Please consult a qualified contractor or installation specialist in the case of any uncertainty or ambiguity. 4. - Page 4 M-A. M4x14 (x4) M-B. M5x14 (x14) M-C. M6x14 (x14) M-D. M8x15 (x4) M-E. D5 (x4) M-F. D8 (x4) W-A. ST6.3x55 (x4) W-B. Ø10x45 (x4) W-C. D6 (x4)
-
Page 5: Tools Required
6. Tools Required Bubble Level Pencil Eletric Drill ¼” Wooden drill bit and 3/8” concrete drill Socket Wrench Screwdriver Hammer... -
Page 6: Product Speci Cation
7. Product Speci cation... -
Page 7: Installation Instructions
8. Installation Instructions Align and tape the wall bracket template to marked locations ensuring levelness using the bubble level. Mark the four locations with a pencil and cover each mark with tape. Pre-drill the marked spots to a depth of 2.4 inches (60 mm) using a 3/8-inch (10 mm) concrete drill bit, and remove any debris from the holes. - Page 8 Insert the concrete anchors into the predrilled holes, tapping them into place with a hammer. Secure the bracket to the wall by passing the anchor screws through the washers and the mounting holes on the wall bracket, then screw them into the anchors until firmly in place.
-
Page 9: Maintenance And Cleaning
Lift the display to the wall bracket and hang it from the top hooks of the brackets. Utilize a screwdriver to securely tighten the screws located at the bottom of the display brackets. Note: Important! We recommend that two people perform this step. -
Page 10: Service And Warranty
12. Service and Warranty Douxe provides a 2-year warranty on its products. To get service during the warranty period, the product needs to be returned with a proof of purchase. Product defects must be reported within 2 years from the date of purchase. - Page 11 Douxe II Koperstraat 26 3067 GL Rotterdam The Netherlands KVK: 80934382 Contact: info@douxe.nl Website: www.douxe.net...
