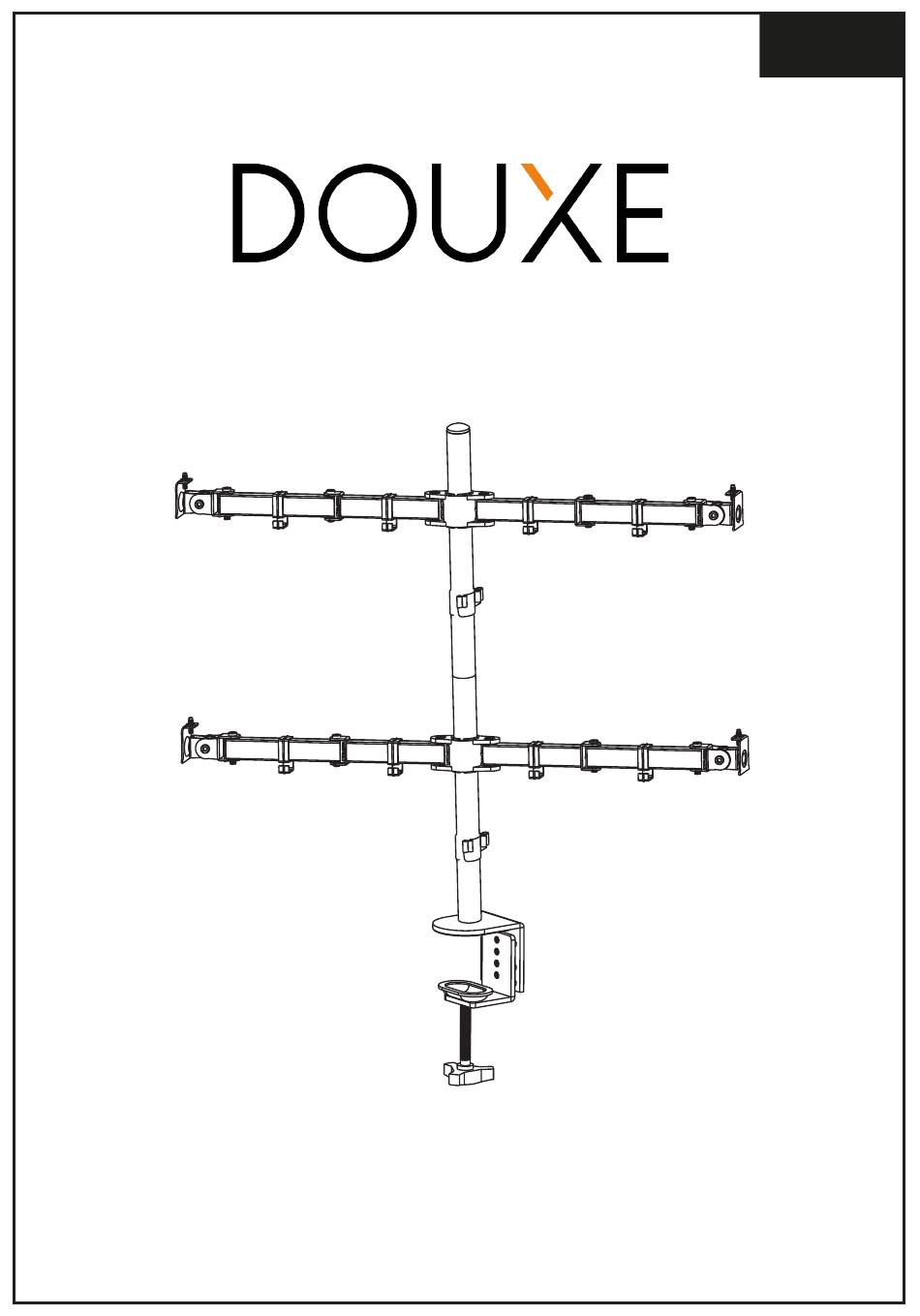

  • Page 1 English DXM4 - Monitor stand Instruction Manual...

  • Page 2: Unpacking Information

    UNPACKING INFORMATION Carefully open the carton packaging to avoid potential paper cuts. Remove the contents and lay them out for easy identification during installation. Verify that all components are present and undamaged by cross-referencing with the parts list on page 2. Do not use damaged or defective parts.
  • Page 3 Supplied Parts List ① ② ③ ④ Pole X1 Swivel Arm X1 VESA Plate X4 “C” Clamp X1 ⑤ ⑥ “C” Clamp Brace X1 Extended pole X1 M6 Nut X4 M8x12 Bolt X2 M5x16 Bolt X3 M4x30 Bolt X16 M4x12 Bolt X16 M4 Spacer x16 Wire Clip X2 Wire Clip X2...
  • Page 4 Install the Pole to the Desktop Step 1 Secure "C" Clamp Brace (5) to Pole (1) with M5x16 (C) and secure tightly using Allen Key (K). ① ⑤ ⑤ Screw Extended Pole (6) onto Pole (1) securely, ensuring a tight fit. ⑥...
  • Page 5 Align "C" Clamp (4) and "C" Clamp Brace (5) on top of each other, adjusting it to match the thickness of your desktop. There are three available positions for thickness adjustment. Secure it using two M8x12 Bolts (B) and secure them with the Allen Key (J).
  • Page 6 Install Wire Clips Step 3 Evenly attach Wire Clip (H) to Swivel Arms (2). Also, attach Wire Clip (G) to Poles (1,6). ⑥ ① Attach VESA Plate to Monitors Step 4 For flat-back monitors, directly For curved-back monitors, add attach VESA Plate (3) to the M4 Spacer (F) and then VESA monitor and secure firmly using Plate (3).
  • Page 7 Align Swivel Arm with VESA Plate Step 5 Slide the monitor onto Swivel Secure Swivel Arm (2) to VESA Arm (2), make sure Swivel Arm Plate (3) with M6 Nut (A). Make (2) aligns with VESA Plate (3) sure to Install M6 Nut (A) before rotating the monitor.
  • Page 8 SERVICE AND WARANTY Douxe provides a 2-year warranty on its products. To get service during the warranty period, the product needs to be returned with a proof of purchase. Product defects must be reported within 2 years from the date of purchase. This warranty does not cover damages caused by misuse or incorrect repair, parts subject to wear, defects that the customer was aware of at the time of purchase;...
