BigBlue B406 User Manual

80W Solar Panel
User Manual
Thank you for choosing BigBlue. Please read the instructions carefully
before use.
Introduction
BigBlue 80W solar panel is equipped with USB/Type-C/QC3.0 output ports
and accessory socket, capable of charging most of your devices, including
cell phone, tablet, in-car appliances and 12V-18V storage battery. Apart from
that, its Smart Power+ technology can intelligently identify the required
current of connected devices for optimum charging performance.
USB output
USB fast charging
USB Type-C(PD)
⑤
DC output
① ④
②
⑤
③
Operation Guidance
Step 1: Unfold the solar panel. Place it under direct sunlight and ensure it is
facing towards the sun.
Step 2: Connect electronic device to the USB output port or connect in-car
appliance to the accessory socket. The blue indicator light would be on while
charging normally; The red indicator light while charging means the output is
abnormally, there are over-current, short-circuited etc..
Warning: Always treat the monocrystalline solar panel with care. Do not drop
or scratch the product. Ensure it is kept away from sharp objects.
Specifications
Model: B406
Conversion Efficiency: ≥20%
Solar Cell: Monocrystalline
Max Power(Pmax): 80W
①
Open-Circuit Voltage(Voc): 21V
Maximum Working Voltage(Vmp):
③ ④
+
② 18V
Short-Circuit Current(Isc): 4.66A
Maximum Working Current(Imp):
Accessories
4.44A
USB Output Voltage: 4.75-5.45V

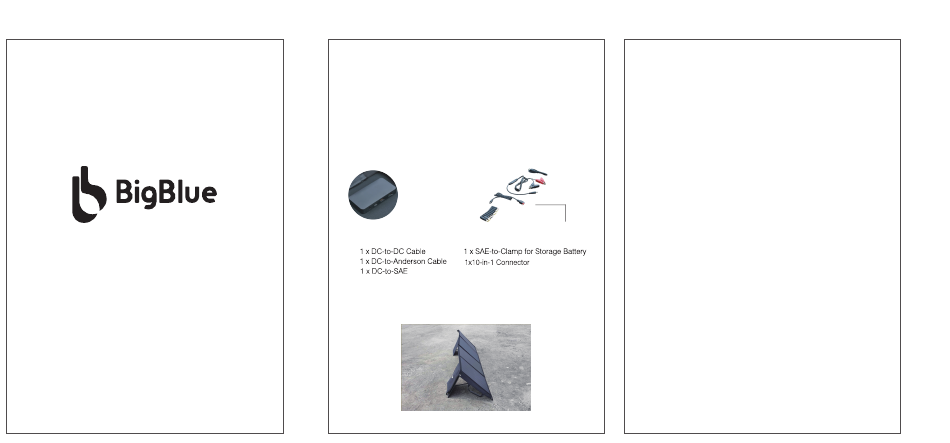

What You Get
1 x 80W Solar Panel
1 x DC-to-DC Cable
1 x DC-to-SAE
1 x SAE-to-Clamp for Storage
Battery
Contact
For any inquiries or comments concerning our products, please send an
email to support@ibigblue.com, and we will respond to you as soon as
possible.
USB Output Current: 2.4A (Max)
QC3.0 USB Output:
5V3A/9V2A/12V1.5A (Max)
DC Output Voltage: 12-18V
DC Output Current: 4.45A (Max)
Type-C Output:
5V/3A;9V/3A;12V/2.5A;15V/2A;20V/1.5A
Folded Size:416*410*40mm
Unfolded Size:1512*416*5mm
Net Weight:3.58kg (not include
accessories)
1 x DC-to-Anderson Cable
1 x 10-in-1 Connector
1 x User Manual
1 x Thank You Card
