Pasta Cooker
LPPB
MODEL:
Installation and Operation Instructions
ATTENTION: This manual contains important safety instructions which
must be strictly followed when using this equipment.
ATTENTION: These models are designed, built, and sold for
commercial use only. If these models are positioned so the public can
use the equipment, make sure that cautions, warnings, and operating
instructions are clearly posted near each unit so that anyone using the
equipment will use it correctly and not injure themselves or harm the
equipment.
Advertisement
Table of Contents
Related Manuals for Lincat LPPB
Summary of Contents for Lincat LPPB

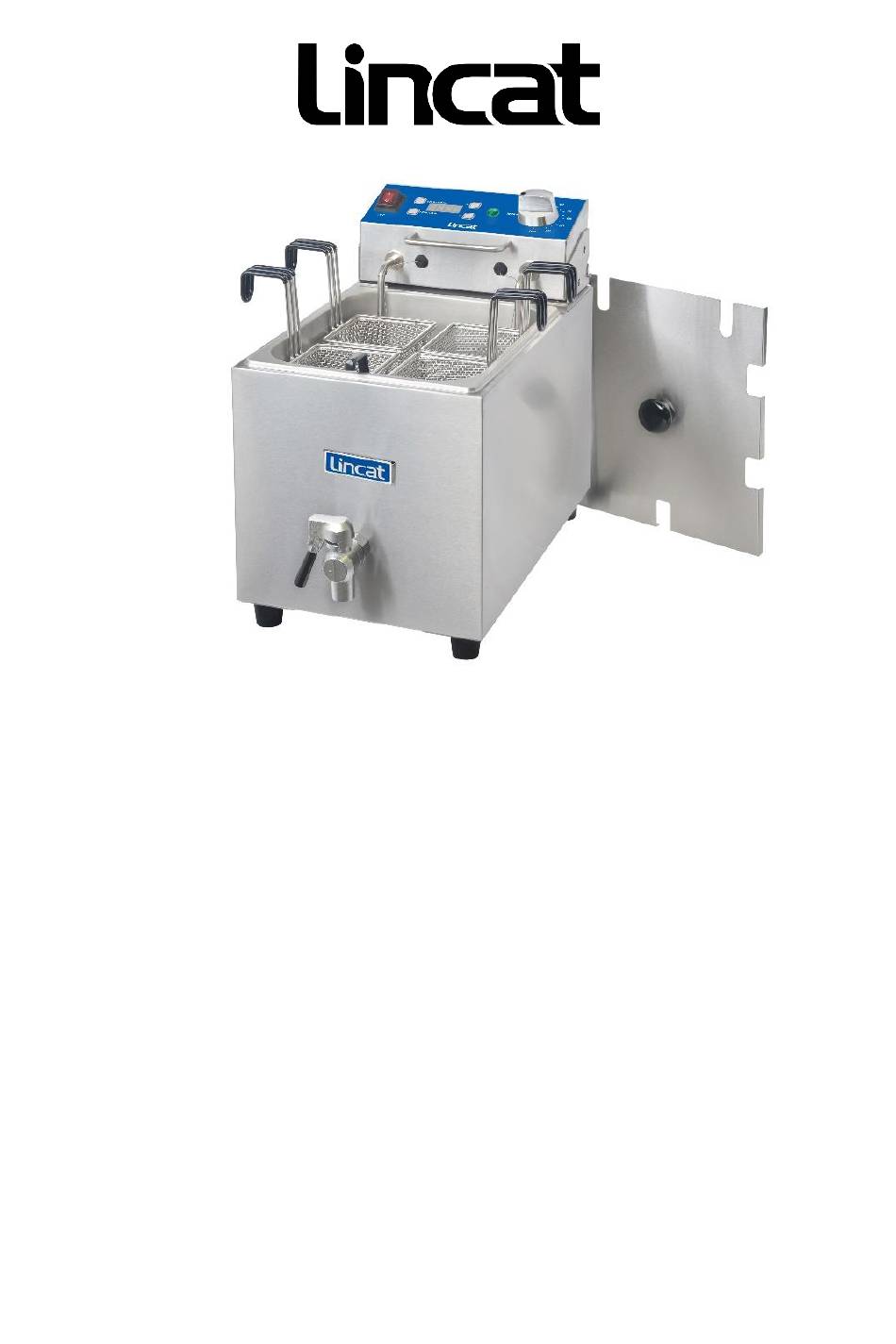

- Page 1 Pasta Cooker LPPB MODEL: Installation and Operation Instructions ATTENTION: This manual contains important safety instructions which must be strictly followed when using this equipment. ATTENTION: These models are designed, built, and sold for commercial use only. If these models are positioned so the public can...
-
Page 2: Table Of Contents
Installation and Operation Instructions Catalogue Foreword………………………………………………………… 3 Safety tips ………………………………………………………4-7 Introduction ………………………………………………………8 Specifications………………………………………………………9 Operation………………………………………………………10-12 Cleaning and maintenance …………………………………… 13 Troubleshooting ………………………………………………14-15 Explosion view and spare part list ………………………… 16-17 Compliance…………………………………………………… 17-18 Circuit diagram ……………………………………………… 19... -
Page 3: Foreword
Foreword Congratulations on your purchase of LINCAT commercial cooking equipment. LINCAT takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment. -
Page 4: Safety Tips
WARNING: A factory authorised agent should handle all maintenance and repair. Before doing any maintenance or repair, contact LINCAT. Appliances placed on the table when use, it is forbidden to put it on the floor. - Page 5 Do not remove any components or service panels on this product. The manufacturers of LINCAT products take every care to ensure that all products are safe. Steel cutting procedures used to manufacture these items result in sharp edges. These sharp edges are removed to the best of our ability;...
- Page 6 The carrier should arrange an inspection. Be certain to hold all contents and packaging material. Installation and maintenance should be performed by a qualified installer who thoroughly read, understand, and follow the instructions. If you have questions concerning the installation, operation, maintenance, or service of this product, contact LINCAT.
- Page 7 Installation and Operation Instructions Equipotential symbol: “ ” All the product of Lincat has been checked and test strictly before Delivery.
-
Page 8: Introduction
Installation and Operation Instructions Introduction Lincat Pasta cooker are mainly consists of the following seven components： *Head unit *Lid *Basket *Drain tap *Pasta cooker body *Water pan *Manual If you found missing or damaged any of parts upon receipt of the... -
Page 9: Specifications
Installation and Operation Instructions Specifications Dimensions (mm) Model Voltage(V) Power(W) Pan (L) Wide Deep Hight 220-240V LPPB 2900 50HZ... -
Page 10: Operation
Installation and Operation Instructions Operation It is the user's responsibility to ensure compliance with the codes of use and safety regulations relating to product placement, installation, electrical safety, and fire prevention. Place the appliance on a flat workbench which is more than 20cm larger than the maximum projection of the appliance. -
Page 11: Using The Timer
Installation and Operation Instructions Using the Timer The digital with audible alarm can be set from 1second to15 minutes The timer provides an audible alarm, after the set time expires, the unit will switch off. START/STOP: Press START/STOP to start timer, press again to stop. The timer will provide an audible alarm after the set time. - Page 12 Installation and Operation Instructions commence the countdown. The new program time will be automatically stored. If the unit is left without power for more than 24hrs the timer settings will revert to the factory defaults...
-
Page 13: Cleaning And Maintenance
• Check the temperature with a suitable probe thermometer; 40º C is the MAXIMUM temperature at which water should be removed. • For best performance, Lincat recommend that the appliance is cleaned after each day of operation. • Remove the head unit for ease of cleaning. -
Page 14: Troubleshooting
Installation and Operation Instructions Troubleshooting Problem Cause Remedy The appliance is not switched Check the appliance is plugged in correctly and switched on Plug and lead are damaged Call agent or qualified technician Fuse in the plug has blown Replace the plug fuse The appliance is not Power supply Check power supply... - Page 15 Installation and Operation Instructions Thermal Cut-Out Reset Lincat Pasta cookers are fitted with a Thermal Cut-Out safety feature. Should the temperature exceed safe levels the appliance will automatically cut power. To reset the appliance after a sufficient cool-down period: 1. Unscrew the cover of the Safety Cut-Out reset switch.
-
Page 16: Explosion View And Spare Part List
Installation and Operation Instructions Explosion View And Spare Part List LPPB MODLE:... -
Page 17: Compliance
Installation and Operation Instructions Pin No. Name 10208.6002 Faucet 20302.6062 20707.6078 plate 20302.6111 Transformer 10704.6268 Knob 10106.6004 Thermal cut off 20302.6187 Thermostat 20302.6137 Power cord 10107.6002 Indicator Light 10206.6055 Tube 10105.6017 Switch 10901.6065 Heating Element 10205.6046 Basket Compliance The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. - Page 18 Lincat. Every effort is made to ensure all details are correct at the time of going to the press, however, Lincat reserves the right to change specifications without notice.
-
Page 19: Circuit Diagram
Transformer 12 VAC Heating element Timer This circuit diagram has been provided to assist qualified electricians, only Lincat service agents or qualified electricians should carry out repairs if required. Do not remove any components or service panels on this product. - Page 20 Lincat, if not, the warranty may be void. ATTENTION Any parts that aren’t made by Lincat may void warranty. ATTENTION Lincat and manufacturer of Lincat keep the right to modify the product. Lincat Limited Whisby Road Lincoln LN6 3QZ United Kingdom Version A...
