Summary of Contents for Lincat Silverlink 600 Range

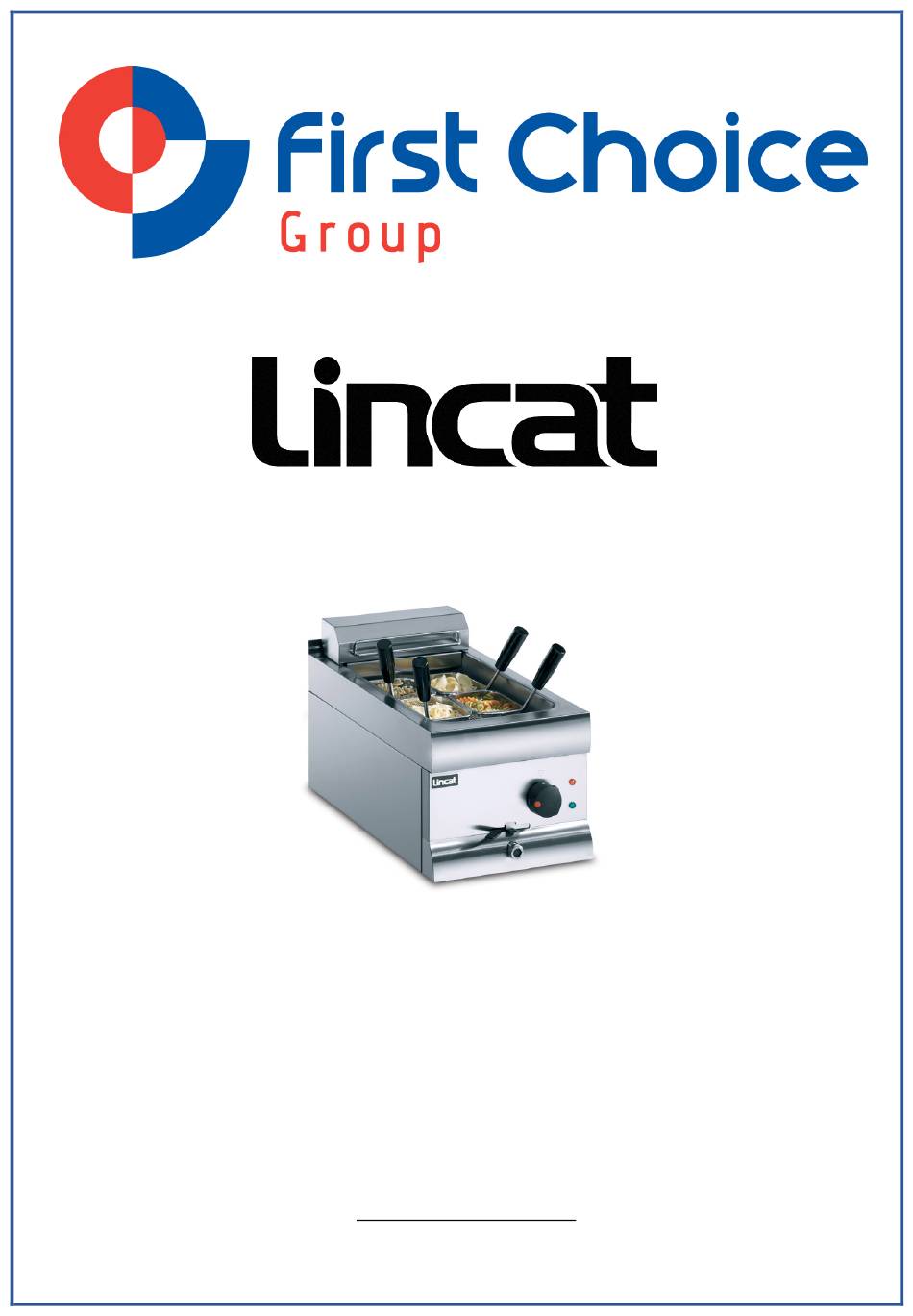

- Page 1 SPARE PARTS DIAGRAM FOR Electric Pasta Cooker Silverlink 600 Range First Choice Group Blakeney Way, Kingswood Lakeside Cannock, Staffs, WS11 8LD TEL: 01543 577778 FAX: 01543504141 Email: enquires@firstchoice-cs.co.uk Web: www.firstchoice-cs.co.uk...
- Page 2 Installation, Operating and Servicing Instructions Silverlink 600 Electric Pasta Boilers PB33, PB66 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 402 ECN 3607 Page 1 of 9...
-
Page 3: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 4: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person. - Page 5 If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57) Fit lid knob to lid.
-
Page 6: Operating Instructions
Power Ratings Model Amps PB33 13.0 PB66 2 x 3.0 2 x 13.0 OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. Before first use, clean the tank. Remove the batter plate from the tank by swivelling up from the front until the plate can be disengaged at the back and lifted clear. (Fig 2). - Page 7 Lift the elements up and back Fig 3 (A) until the stay engages behind the bracket (B). Fig 3 Clean the tank with warm water and mild detergent. Dry thoroughly. Re-position the element by gently pushing it back and disengaging the stay until the element can be lowered back into place.
-
Page 8: Cleaning
The amber neon will extinguish when the set temperature is reached, and then operate with the cycling of the element. Always keep the water level topped up with hot water. Do not overfill or allow to boil dry. After use, allow the water to cool before fitting the drain pipe to the valve and draining the tank. -
Page 9: Spare Parts List
SPARE PARTS LIST Part Number Description Used on EL269 Element FA36 Thermostat clip FE37 Foot HO114 Element lifting hook KN10 Lid knob KN182 Control knob PB33, PB66 NE42 Amber neon NE43 Green neon PL202 Mains cable SG02 Sleeved grommet SW64 Microswitch TH70 Thermostat... -
Page 10: Service Information And Guarantee
All available on serial plate Type number Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
