I N S T R U C T I O N H A N D B O O K
2 T FH 4 0 0 010A 10 01

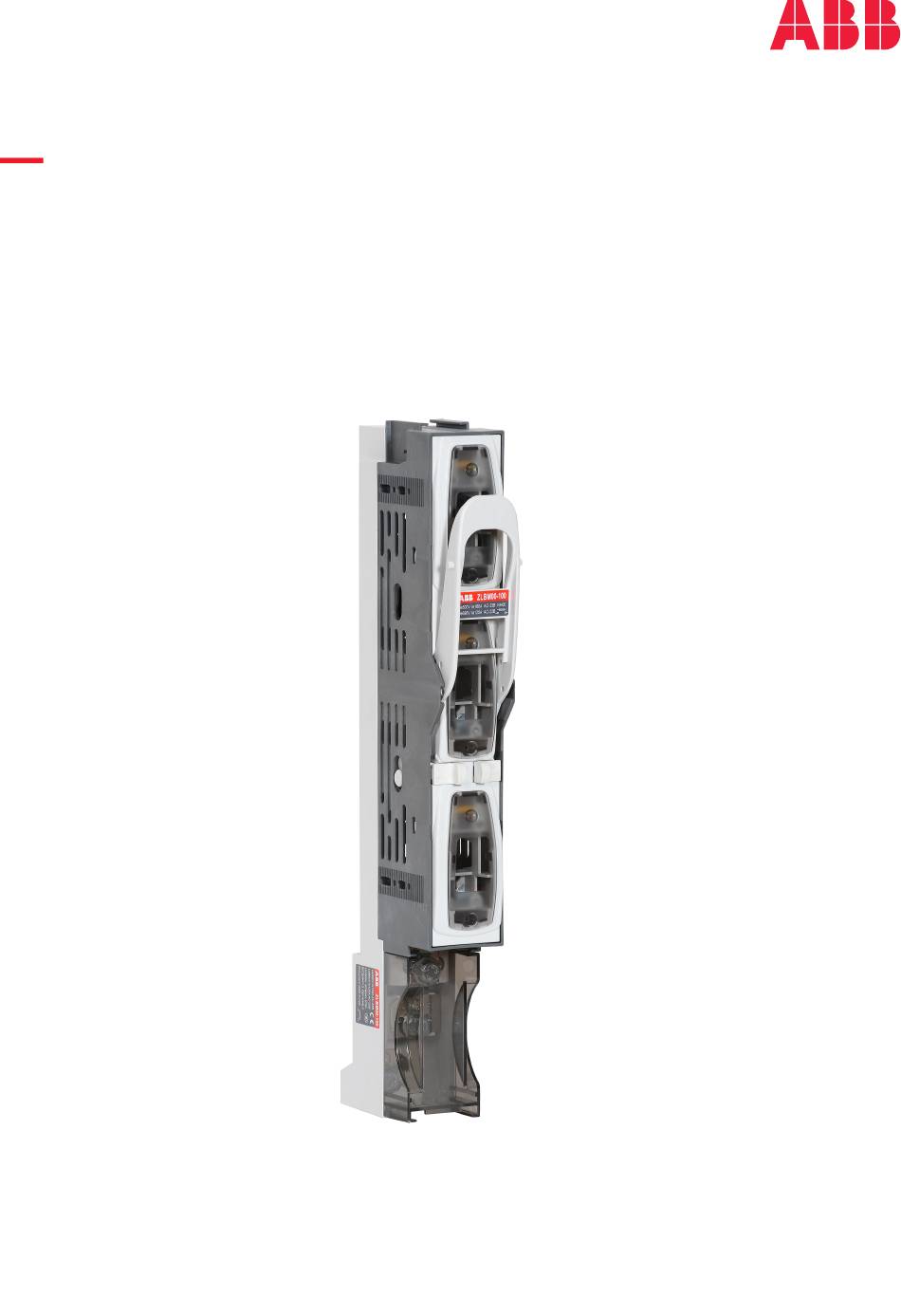

InLineII ZLBM00-100
DECOMMISSIONING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InLineII ZLBM00-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ABB InLineII ZLBM00-100

  • Page 1 I N S T R U C T I O N H A N D B O O K 2 T FH 4 0 0 010A 10 01 InLineII ZLBM00-100 DECOMMISSIONING INSTRUCTIONS...
  • Page 3: Table Of Contents

    5.3.3 Remove the front type label 5.3.4 Remove fuse holder 5.3.5 Summary of all 5.3 parts 6. Summary of all parts, available for recycling or disposaltep 7. Energy consumption for InLineII ZLBM00-100 decommissioning 8. Recycling information in accordance with the WEEE...
  • Page 4: Scope

    ABB declines any responsibility for injury to people or damage to property resulting from a failure to comply with the instructions set out in this document and with any applicable safety standard.
  • Page 5: Use Of Symbols

    D E C O M M I S S I O N I N G I N S T R U C T I O N I N L I N E I I Z L B M 0 0 - 1 0 0 —...
  • Page 6: Decommissioning Step-By-Step

    I N S T R U C T I O N H A N D B O O K — 5. Decommissioning step-by-step — 5.1 Phase 1 – Separate into main parts 5.1.1 Remove cover from the base assembly Manually move the cover to the open position. Push the two buttons located behind the handle, and then re- move the cover from the base assembly.
  • Page 7: Remove The Middle Part From Base Assembly

    D E C O M M I S S I O N I N G I N S T R U C T I O N I N L I N E I I Z L B M 0 0 - 1 0 0 Tools 5.1.3 Remove the middle part from the base assembly Use a flat-head screwdriver to lift the four pairs of clasps at the bottom and remove the middle part from the...
  • Page 8: Phase 2 - Base Assembly Separation

    I N S T R U C T I O N H A N D B O O K — 5.2 Phase 2 – Base assembly separation 5.2.1 Remove the busbar terminals Flat-head 5.2.1.1 Remove the busbar terminal L1, L2, L3 screwdriver Use a flat-head screwdriver to lift the plastic clip at the bottom, and then push the cable entry plate out by hand.
  • Page 9: Remove Technical Label

    D E C O M M I S S I O N I N G I N S T R U C T I O N I N L I N E I I Z L B M 0 0 - 1 0 0 Tools 5.2.2 Remove the technical label Use a cutter to lift a corner of the label, and then remove it by hand.
  • Page 10 I N S T R U C T I O N H A N D B O O K 5.2.4 Summary of the Phase 5.2 – Base assembly separation Summary table as below: Description Qty (pcs) Type Special separation needed Screws Metal Conical spring washer...
  • Page 11: 10 5.3 Phase 3A - Basic Cover Assembly Separation

    D E C O M M I S S I O N I N G I N S T R U C T I O N I N L I N E I I Z L B M 0 0 - 1 0 0 —...
  • Page 12: Remove Fuse Holder

    I N S T R U C T I O N H A N D B O O K Tools 5.3.4 Remove the fuse holder Remove the screws using a flat-head screwdriver, and then manually remove the plastic springs. Hexagonal screwdriver 5.3.5 Summary of the Phase 5.3 –...
  • Page 13: Summary Of All 5.3 Parts

    D E C O M M I S S I O N I N G I N S T R U C T I O N I N L I N E I I Z L B M 0 0 - 1 0 0 —...
  • Page 14: Energy Consumption For Inlineii Zlbm00-100 Decommissioning

    I N S T R U C T I O N H A N D B O O K — 7. Energy consumption for InLineII ZLBM00-100 decommissioning All listed step-by-step operations are performed manually. As a result, carbon emissions can be considered negligible. —...
  • Page 15 D E C O M M I S S I O N I N G I N S T R U C T I O N I N L I N E I I Z L B M 0 0 - 1 0 0...
  • Page 16 — Contact us ABB Oy Protection and Connection P.O. Box 622 FI-65101 Vaasa Finland abb.com/lowvoltage © Copyright 2024 ABB. All rights reserved. Specifications subject to change without notice.
