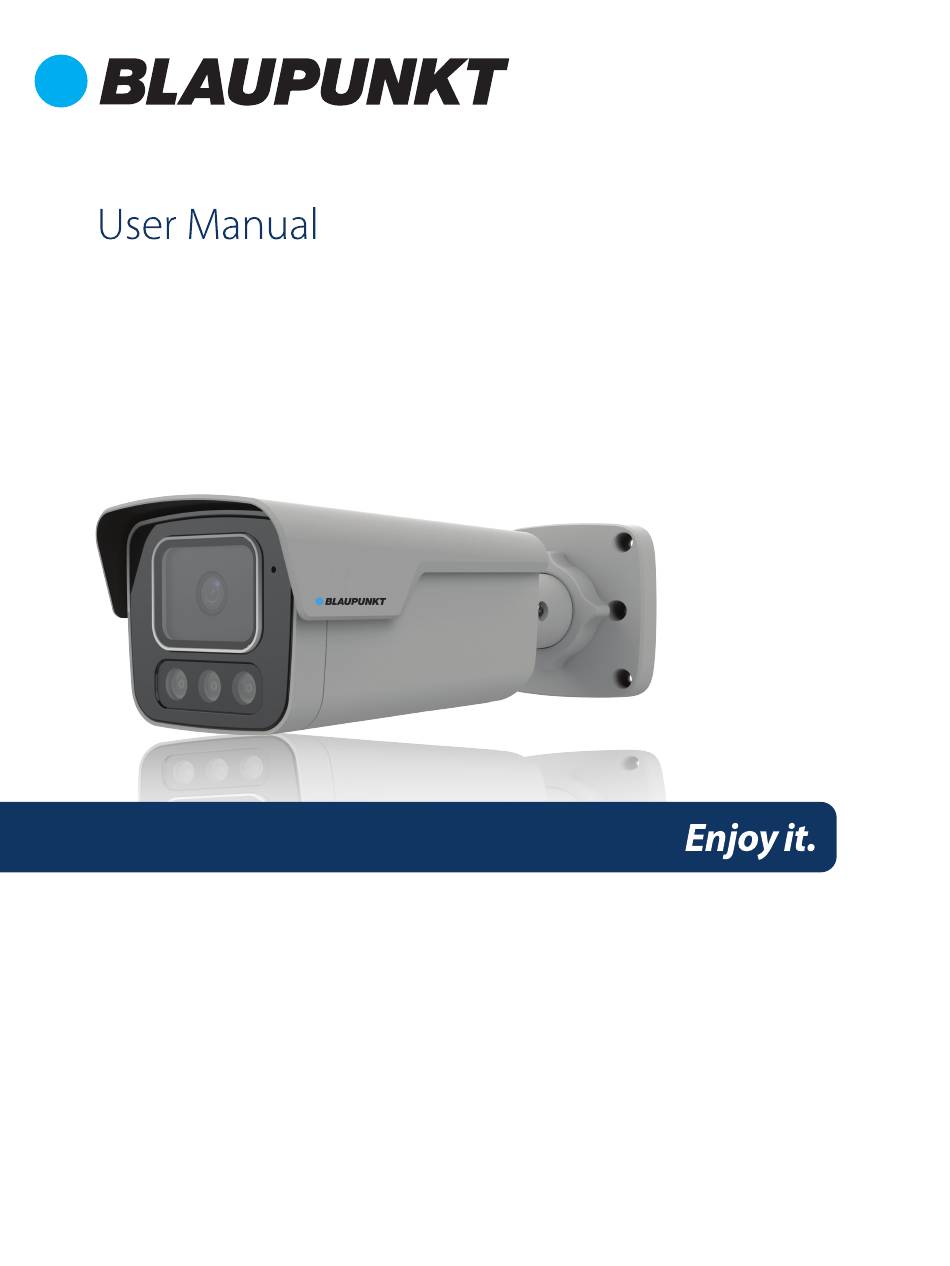

- Page 1 8MP HD Intelligent Light and Audible Warning Fixed Bullet Network Camera BP-IPC-BV802-G...
- Page 2 Waterproof Requirements Please waterproof cables in accordance with the following instruc�ons. User shall assume all responsibility for device damage caused by water due to improper waterproof measures. NOTE! Before you start, connect all the needed cables and cut off the copper wires for ...
- Page 3 3. Install the supplied waterproof components to the network cable in sequence . CAUTION! You need to mount the rubber ring onto the network cable interface first . 4. If your camera has a DC cable and you will not use it, insert the plug into the interface.
-
Page 4: Packing List
Packing List Contact your local dealer if the package is damaged or incomplete. The a�achments may vary with models, please see the actual model for details . Name Unit Camera Waterproof components （1） Screw components （2） Mount accessory （3 ） User manual Remarks: * means op�onal and supplied with certain models only. - Page 5 To protect the transparent dome cover from fric�on, scratch and stain, do not remove the protec�ve film from the cover un�l moun�ng is finished. The installa�on environment should avoid entrance and exit, reflec�ve objects like mirrors, air condi�oning outlets and heat sources. NOTE! Please install the camera in strict accordance with the site survey and commissioning guide.
- Page 6 Interface Descrip�on Interface Descrip�on Monitor Audio input Alarm input 1 Alarm input 2 Power/Grounding Fiber Audio output Network RS485 Alarm output 1 Alarm output 2 NOTE! Please refer to the latest product datasheet for detailed specifica�ons. Installa�on (Op�onal) Install SD Card NOTE! Please format the Micro SD card before use.
-
Page 7: Install The Camera
Install the Camera 4.2.1 Model 1： 1 Wall Mount 1. Use the drilling template and a 2. Knock the plas�c rivets into the Ø6-6.5mm drill bit to drill 30 holes. mm-depth holes on the wall. 3. Use screws to fix the backbox onto the wall. Note: To conceal the cables, drill a cable hole on the wall and lead the cables out from the outlet... - Page 8 4. Install the camera: (1) Hang the ring in the backbox on the hook at the bo�om of the camera to secure the camera in place. (2) Use screws to fix the camera onto the backbox. 1. Adjust monitoring direc�on: Loosen the hex fillister-head screws o 5.
- Page 9 3. Install the camera: (1) Hang the ring in the backbox on the hook at the bo�om of the camera to secure the camera in place. (2) Use screws to fix the camera onto the backbox. Note： To conceal the cables, drill a cable hole on the pole and lead the cables out from the outlet ❶...
- Page 10 4.2.2 Model 2： 1 Wall Mount NOTE! In the following method, the tail cables pass through the wall. If you do not want the cables to pass through the wall, pass the cables through the cable outlets on the camera base. 1.
- Page 11 2 Straight Arm Mount NOTE! The universal joint and the loop should be purchased separately. 1. Fasten the universal joint to the 2. Mount the loop to the pole arm, installa�on hole on the camera. then fasten the loop. Lead the Loosen two screws on the universal cables through the standing joint.
-
Page 12: Web Login
2. Install the adaptor plate: remove the moun�ng plate, and turn the adaptor plate to connect it to the moun�ng plate. In the figure below, 1 is moun�ng plate, 2 is adaptor plate. 3. Mount the device: Arrange the tail cables and lead them through the cabling hole on the camera base, insert the screws into the guide holes on the... - Page 13 NOTE! DHCP is enabled by default. If a DHCP server is deployed in the network, the IP address of your camera may be assigned dynamically, and you need to use the actual IP address to log in. Install the plug-in as prompted at your first login. Close all your browsers during ...
- Page 14 Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form by any means without prior content in wri�ng from our company (referred to as us herea�er). The product described in this manual may contain proprietary so�ware owned by our company and its possible licensors.
- Page 15 or implied, including, but not limited to, merchantability, sa�sfac�on with quality, fitness for a par�cular purpose, and noninfringement. Users must assume total responsibility and all risks for connec�ng the product to the Internet, including, but not limited to, network a�ack, hacking, and virus. We strongly recommends that users take all necessary measures to enhance the protec�on of network, device, data and personal informa�on.
- Page 16 Choose username and password discretely: Avoid using the username and password of your social media, bank, email account, etc, as the username and password of your device, in case your social media, bank and email account informa�on is leaked. ...
- Page 17 Use the recommended cordset (power cord) in accordance with the specified ra�ngs. Only use the power adapter supplied with your device. Use a mains socket outlet with a protec�ve earthing (grounding) con nec�on. Ground your device properly if the device is intended to be grounded. Ba�ery Use Cau�on ...
- Page 18 Si vous pensez que des piles ont pu être avalées ou placées à l’intérieur d’une par�e du corps, consultez immédiatement un médecin. Regulatory Compliance FCC Statements This device complies with Part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on.
