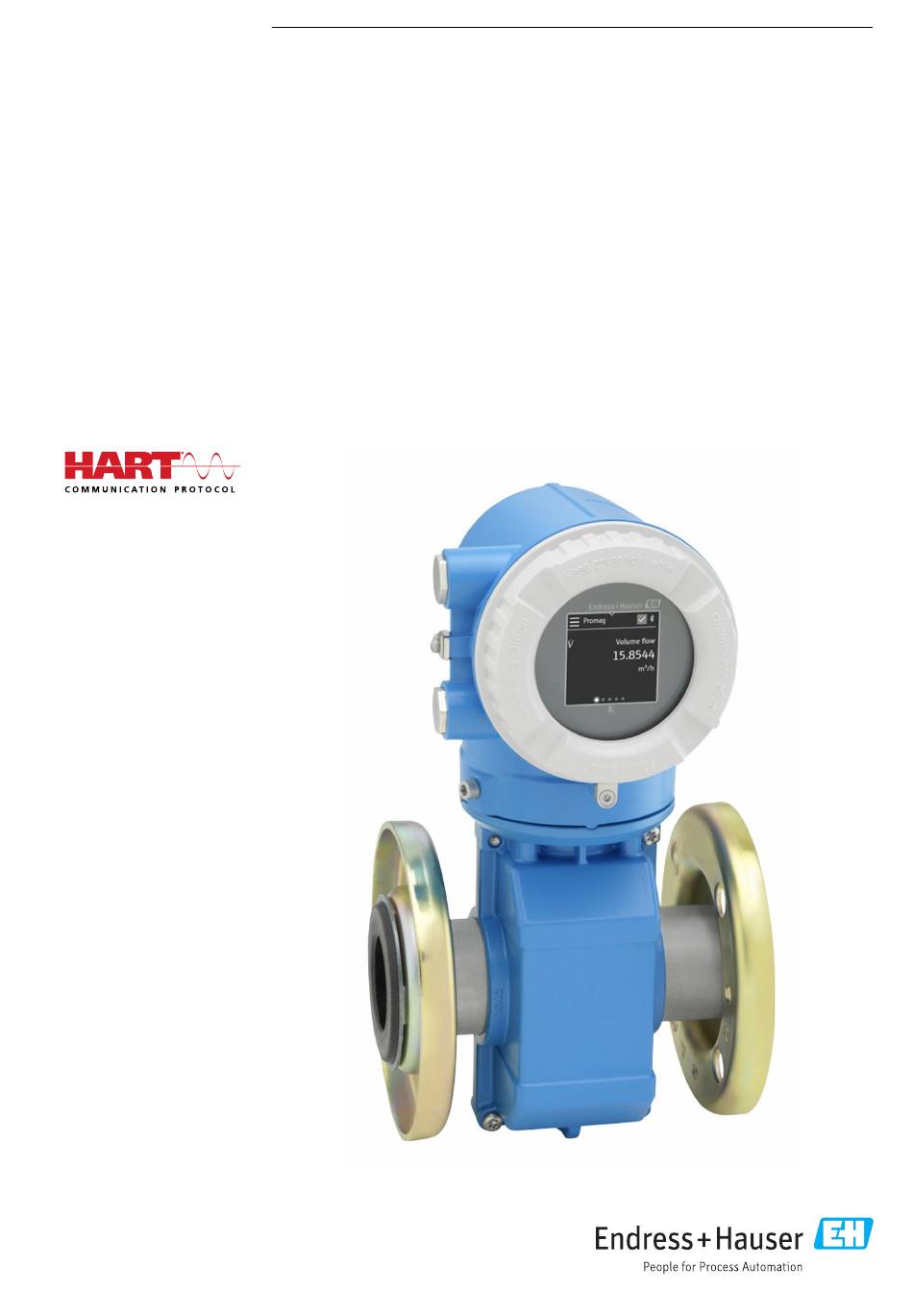

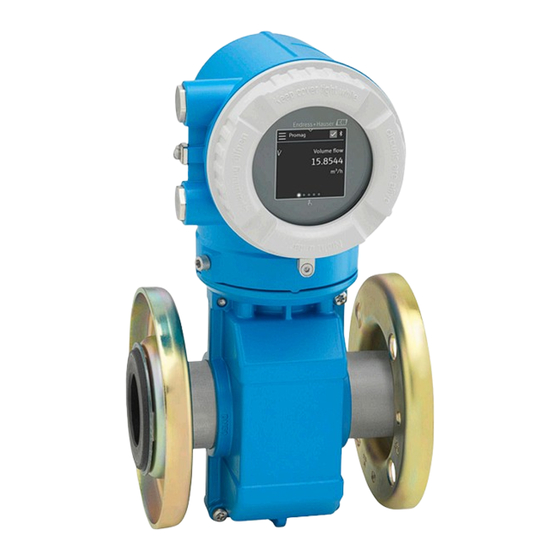

Endress+Hauser Proline Promag W 10 Operating Instructions Manual

Electromagnetic flowmeter hart

Hide thumbs

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

Quick Links

Download this manual

BA02070D/06/EN/01.21

71510513

2021-07-01

Valid as of version

01.00.zz (Device firmware)

Products

Operating Instructions

Proline Promag W 10

Electromagnetic flowmeter

HART

Solutions

Services

Table of Contents

Troubleshooting

Need help?

Do you have a question about the Proline Promag W 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser Proline Promag W 10

Page 1 Products Solutions Services BA02070D/06/EN/01.21 71510513 2021-07-01 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promag W 10 Electromagnetic flowmeter HART...
Page 3: Table Of Contents
Proline Promag W 10 HART Table of contents Table of contents About this document Commissioning Document function Post-installation check and post-connection Associated documentation check Symbols IT security Registered trademarks Device-specific IT security Switching on the device Commissioning the device Safety instructions...
Page 4 Table of contents Proline Promag W 10 HART Dimensions in US units Compact version Remote version Fixed flange Lap joint flange Accessories Accessories Device-specific accessories Communication-specific accessories Service-specific accessory System components Appendix Screw tightening torques Examples for electric terminals Index...
Page 5: About This Document
Proline Promag W 10 HART About this document 1 About this document Document function Associated documentation Symbols Registered trademarks Endress+Hauser...
Page 6: Document Function
About this document Proline Promag W 10 HART Document function These Operating Instructions provide all of the information that is required in various phases of the life cycle of the device: • Incoming acceptance and product identification • Storage and transport •...
Page 7: Symbols
Proline Promag W 10 HART About this document Symbols Warnings DANGER This symbol alerts you to an immediate dangerous situation. Failure to avoid the situation will result in a fatal or serious injury. WARNING This symbol alerts you to a potentially dangerous situation. Failure to avoid the situation may result in a fatal or serious injury.
Page 8: Explosion Protection
About this document Proline Promag W 10 HART Series of steps 1. 2. ,… Result of a step Help in the event of a problem Visual inspection Write-protected parameter Explosion protection Hazardous area Non-hazardous area Endress+Hauser...
Page 9: Registered Trademarks
Registered trademark of the FieldComm Group, Austin, USA Bluetooth® The Bluetooth word mark and Bluetooth logos are registered trademarks of Bluetooth SIG. Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...
Page 11: Safety Instructions
Proline Promag W 10 HART Safety instructions 2 Safety instructions Requirements for specialist personnel Requirements for operating personnel Incoming acceptance and transport Adhesive labels, tags and engravings Environment and process Occupational safety Installation Electrical connection Surface temperature Commissioning Modifications to the device...
Page 12 Safety instructions Proline Promag W 10 HART Requirements for specialist personnel ‣ Installation, electrical connection, commissioning, diagnostics and maintenance of the device must only be carried out by trained, specialist personnel authorized by the facility' s owner-operator. ‣ Before commencing work, the trained, specialist personnel must carefully read, understand and adhere to the Operating Instructions, additional documentation and certificates.
Page 13: Surface Temperature
‣ Only carry out modifications or repairs after consulting beforehand with an Endress+Hauser service organization. ‣ Only use original spare parts and original accessories from Endress+Hauser. ‣ Install original spare parts and original accessories according to the Installation Instructions. Endress+Hauser...
Page 15: Product Information
Proline Promag W 10 HART Product information 3 Product information Measuring principle Designated use Incoming acceptance Product identification Transport Checking the storage conditions Recycling of packaging materials Product design Firmware history Device history and compatibility Endress+Hauser...
Page 16: Incoming Acceptance
Product information Proline Promag W 10 HART Measuring principle Electromagnetic flow measurement on the basis of Faraday' s law of magnetic induction. Designated use The device is only suitable for flow measurement of liquids with a minimum conductivity of 5 µS/cm.
Page 17: Product Identification
Proline Promag W 10 HART Product information Product identification Device name The device comprises the following parts: • Proline 10 transmitter • Promag W sensor Transmitter nameplate 16 17 18 Order code: Ser. no.: Ext. ord. cd.: Date: A0042943  1...
Page 18: Sensor Nameplate
Product information Proline Promag W 10 HART Sensor nameplate Order Code: Ser.No.: Ext. ord. cd.: Material: Patents Date: A0042987  2 Example of sensor nameplate Place of manufacture Order code Serial number Extended order code Sensor test pressure Medium temperature range...
Page 19: Transport
Proline Promag W 10 HART Product information Transport Protective packaging Protective covers or protective caps are fitted on the process connections to protect against damage and dirt. Transporting in the original packaging NOTICE Original packaging is missing! Damage to the magnetic coil.
Page 20 Product information Proline Promag W 10 HART Transporting without lifting lugs DANGER Potentially life-threatening hazard from suspended loads! The device could fall. ‣ Secure the device against slipping and turning. ‣ Do not move suspended loads over people. ‣ Do not move suspended loads over unprotected areas.
Page 21: Checking The Storage Conditions
Proline Promag W 10 HART Product information Checking the storage conditions Are the protective covers or protection caps on the process  connections? Is the device in the original packaging?  Is the device protected against sunlight?  Is it guaranteed that the device is not stored outdoors? ...
Page 22: Product Design
Product information Proline Promag W 10 HART Product design Compact version The transmitter and sensor form a mechanical unit. A0043525  3 Main device components Housing cover Display module Transmitter housing Sensor Endress+Hauser...
Page 23: Remote Version
Proline Promag W 10 HART Product information Remote version The transmitter and sensor are installed in physically separate locations. A0043524  4 Main device components Housing cover Display module Transmitter housing Sensor Sensor connection housing Connecting cable consisting of coil current cable and electrode cable...
Page 24: Firmware History
Product information Proline Promag W 10 HART Firmware history List of firmware versions and changes since previous version Firmware version 01.00.zz Release date 2021-07-01 Original firmware Version of the 01.21 Operating Instructions Order code for Option 78 "Firmware version" Device history and compatibility...
Page 25: Installation
Proline Promag W 10 HART Installation 4 Installation Installation conditions Device installation Post-installation check Endress+Hauser...
Page 26: Installation Conditions
Installation Proline Promag W 10 HART Installation conditions Flow direction Install the device in the direction of flow. Note the direction of arrow on the nameplate. A0041163 Inlet runs and outlet runs Ensure straight, undisturbed inlet and outlet runs. ≥ 5 × DN ≥...
Page 27: Mounting Locations
Proline Promag W 10 HART Installation Mounting locations • Do not install the device at the highest point of the pipe. • Do not install the device upstream from a free pipe outlet in a down pipe. A0042131 A0042317 Installation near control valves Install the device in the direction of flow upstream from the control valve.
Page 28 Installation Proline Promag W 10 HART Installation near pumps NOTICE Negative pressure in the measuring pipe can damage the liner! ‣ Install the device in the direction of flow downstream from the pump. ‣ Install pulsation dampers if reciprocating, diaphragm or peristaltic pumps are used.
Page 29: Thermal Insulation
Proline Promag W 10 HART Installation Adapters Suitable adapters (double-flange reducers) can be used to install the sensor in larger-diameter pipes. The resulting higher rate of flow improves measuring accuracy with very slow-moving media. max. 8° The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders.
Page 30: Outdoor Use
Installation Proline Promag W 10 HART Magnetism and static electricity Do not install the device near magnetic fields, e.g. motors, pumps, transformers. A0042152 Outdoor use • Avoid exposure to direct sunlight. • Install in a location protected from sunlight. • Avoid direct exposure to weather conditions.
Page 31: Device Installation
• In the case of plastic pipes or pipes with an insulating liner, grounding is via ground disks. • Observe the information for the use of ground disks → Ensuring potential equalization,  44. • Ground disks can be ordered separately from Endress+Hauser → Device- specific accessories,  162. Endress+Hauser...
Page 32: Installing The Sensor
Installation Proline Promag W 10 HART Installing the sensor 1. Ensure that the direction of the arrow on the sensor matches the flow direction of the medium. 2. If using ground disks, comply with the Installation Instructions provided. 3. Observe tightening torques. Maximum or nominal screw tightening torques apply depending on the flange standard and flange size →...
Page 33 Proline Promag W 10 HART Installation NOTICE Ambient temperature too high! If the electronics overheat this can damage the transmitter housing. ‣ Do not exceed the permissible temperature range for the ambient temperature. ‣ Use a weather protection cover → Transmitter,  162.
Page 34: Post-Installation Check
Installation Proline Promag W 10 HART Post-installation check Is the device undamaged (visual inspection)?  Does the device comply with the measuring point specifications? For example: • Process temperature  • Process pressure • Ambient temperature • Measuring range Has the correct orientation been selected for the device? ...
Page 35: Electrical Connection
Proline Promag W 10 HART Electrical connection 5 Electrical connection Connection conditions Connecting cable connection Connecting the transmitter Ensuring potential equalization Removing a cable Hardware settings Post-connection check Endress+Hauser...
Page 36: Connection Conditions
Electrical connection Proline Promag W 10 HART Connection conditions Notes on the electrical connection WARNING Components carry voltage! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Have electrical connection work carried out by appropriately trained specialists only.
Page 37: Connecting Cable Connection
Proline Promag W 10 HART Electrical connection Connecting cable connection Preparing the connecting cable Coil current cable 90 (3.54)* 20 (0.8)* 160 (6.30)* 70 (2.76) 70 (2.76) 50 (1.97) 50 (1.97) 10 (0.4) 8 (0.3) 10 (0.4) 8 (0.3) A0042278 Ferrules, red 1.0 mm (0.04 in)
Page 38 Electrical connection Proline Promag W 10 HART Electrode cable 100 (3.94)* 20 (0.8)* 170 (6.7)* 80 (3.15) 80 (3.15) 17 (0.67) 50 (1.97) 50 (1.97) 18.5 (0.73) 8 (0.3) 6 (0.24) ≥1 (0.04) A0042424 Ferrules, red 1.0 mm (0.04 in) Ferrules, white 0.5 mm (0.02 in)
Page 39 Proline Promag W 10 HART Electrical connection Attaching the connecting cable Connecting cable terminal assignment E2 S2 41 42 37 36 n.c. n.c. n.c. 41 42 E1 E2 A0043474 Ground terminal, outer Transmitter housing: cable entry for coil current cable...
Page 40 Electrical connection Proline Promag W 10 HART 1. Loosen the Allen key of the securing clamp. 2. Unscrew the connection compartment cover in the counterclockwise direction. 3 mm A0044138 NOTICE If the sealing ring is missing, the housing is not sealed tight! Damage to the device.
Page 41 Proline Promag W 10 HART Electrical connection 1. Loosen the Allen key of the securing clamp. 2. Unscrew the connection compartment cover in the counterclockwise direction. NOTICE If the sealing ring is missing, the housing is not sealed tight! Damage to the device.
Page 42: Connecting The Transmitter
Electrical connection Proline Promag W 10 HART Connecting the transmitter Transmitter terminal connections A0045438 Cable entry for power supply cable: supply voltage Cable entry for signal cable Ground terminal, outer Terminal assignment The terminal assignment is documented on an adhesive label.
Page 43 Proline Promag W 10 HART Electrical connection 1. Ground the device carefully and provide potential equalization. 2. Connect protective earthing to the outer ground terminals. A0045442 3. Loosen the Allen key of the securing clamp. 4. Unscrew the housing cover in the counterclockwise direction.
Page 44: Ensuring Potential Equalization
Electrical connection Proline Promag W 10 HART 10. Strip the cable and cable ends. (0.4 11. Fit ferrules over the strands and press in place. A0041357 The terminal assignment is documented on an adhesive label. 12. Connect the protective ground (PE) to the inner ground terminal.
Page 45 Proline Promag W 10 HART Electrical connection Unlined metal pipe • Potential equalization is via the ground terminal and pipe flanges. • The medium is set to ground potential. Starting conditions: • Pipes are not sufficiently grounded. • Pipes are conductive and at the same electrical potential as the medium...
Page 46 Electrical connection Proline Promag W 10 HART The "Measurement isolated from ground" option enables the galvanic isolation of the measuring system from the device potential. This minimizes harmful equalizing currents caused by differences in potential between the medium and the device. The "Measurement isolated from ground" option is optionally available: order code for "Sensor option", option CV...
Page 47: Removing A Cable
Proline Promag W 10 HART Electrical connection Removing a cable 1. Use a flat-blade screwdriver to press down on the slot between the two terminal holes and hold. 3 (0.12) 2. Remove the cable end from the terminal. A0044725  7...
Page 48: Post-Connection Check
Electrical connection Proline Promag W 10 HART Post-connection check Only for remote version: Is the serial number on the nameplates of the connected sensor and transmitter  identical? Is the potential equalization established correctly?  Is the protective earthing established correctly? ...
Page 49: Operation
Proline Promag W 10 HART Operation 6 Operation Overview of the operating options Local operation SmartBlue App Endress+Hauser...
Page 50: Local Operation
Operation Proline Promag W 10 HART Overview of the operating options XXXXX ṁ 3.23 kg/min m /min ³ 23.0 °C A0044206 Local operation via touch screen Computer with operating tool, e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM Field Xpert SFX350 or SFX370 via Bluetooth, e.g. SmartBlue App Field Xpert SMT70 via Bluetooth, e.g.
Page 51: Operational Display
Proline Promag W 10 HART Operation Operational display During routine operation, the local display shows the operational display screen. The operational display consists of several windows which the user can toggle between. The operational display can be customized: see the description of parameters →...
Page 52 Operation Proline Promag W 10 HART Quick access and navigation XXXXX Quick links ṁ 3.23 kg/min User manag. Bluetooth Actual diag... m /min ³ 3.23 Ʃ 23.0 °C Locking stat... Lock Screen A0044208 Quick access Quick access with specific device functions •...
Page 53: Diagnostic Information
Proline Promag W 10 HART Operation Symbols Back to operational display. Guidance menu Configuration of the device Diagnostics menu Troubleshooting and control of device behavior Application menu Application-specific adjustments System menu Device management and user administration Set display language. Submenus and navigation...
Page 54: Editing View
Operation Proline Promag W 10 HART XXXXX F180 Temperature exceeded Help A0043008 Device status Diagnostic behavior with diagnostic code Short text Open the troubleshooting measures. Editing view Editor and navigation The text editor is used to enter characters. Text editor...
Page 55 Proline Promag W 10 HART Operation Numbers Special characters Date The device has a real-time clock for all log functions. The time can be configured here. 20xx yyyy A0043043 Increase date by 1. Actual value Decrease date by 1. Confirm settings.
Page 56 Operation Proline Promag W 10 HART Download Endress+Hauser SmartBlue App: • Google Playstore (Android) • iTunes Apple Shop (iOS devices) Supported functions • Configuration of the device • Access to measured values, device status and diagnostic information Endress+Hauser...
Page 57: System Integration
Proline Promag W 10 HART System integration 7 System integration Device description files Measured variables via HART protocol Endress+Hauser...
Page 58: Measured Variables Via Hart Protocol
System integration Proline Promag W 10 HART Device description files Version data Firmware version 01.00.zz • On the title page of the Operating instructions • On the transmitter nameplate → Transmitter nameplate,  17 • System → Information → Device → Firmware version Release date of firmware version 04.2021 -...
Page 59: Device Variables
Proline Promag W 10 HART System integration The assignment can be configured in the Output submenu. Navigation Application → Communication → Output • Assign PV • Assign SV • Assign TV • Assign QV Assignment and available measured variables: Description of Device Parameters →...
Page 61: Commissioning
Proline Promag W 10 HART Commissioning 8 Commissioning Post-installation check and post-connection check IT security Device-specific IT security Switching on the device Commissioning the device Endress+Hauser...
Page 62: Post-Installation Check And Post-Connection
Commissioning Proline Promag W 10 HART Post-installation check and post-connection check Before commissioning the device, make sure that the post-installation and post- connection checks have been performed: • Post-installation check → Post-installation check,  34 • Post-connection check → Post-connection check,  48...
Page 63: Switching On The Device
Proline Promag W 10 HART Commissioning General notes on the use of passwords • The access code and Bluetooth key supplied with the device must be defined during commissioning. • Follow the general rules for generating a secure password when defining and managing the access code and Bluetooth key.
Page 64: Commissioning The Device
Commissioning Proline Promag W 10 HART Commissioning the device Local operation Detailed information on local operation: → Operation,  50 1. Via the "Menu" symbol, open the main menu.  Main menu XXXXX ṁ 3.23 kg/min Guidance Diagnostics Application ³...
Page 65 Proline Promag W 10 HART Commissioning Connecting the SmartBlue App to the device 1. Enable Bluetooth on the mobile handheld terminal, tablet or smartphone. 2. Start the SmartBlue App.  A Live List shows all the devices available. 3. Select the desired device.
Page 67: Operation
Proline Promag W 10 HART Operation 9 Operation Reading the device locking status HistoROM data management Endress+Hauser...
Page 68: Reading The Device Locking Status
Operation Proline Promag W 10 HART Reading the device locking status Indicates the write protection with the highest priority that is currently active. Navigation "System" menu → Device management → Locking status Parameter overview with brief description Parameter Description User interface...
Page 69: Diagnostics And Troubleshooting
Proline Promag W 10 HART Diagnostics and troubleshooting 10 Diagnostics and troubleshooting General troubleshooting Diagnostic information via LED Diagnostic information on local display Diagnostic information in FieldCare or DeviceCare Changing the diagnostic information Overview of diagnostic information Pending diagnostic events...
Page 70: General Troubleshooting
Diagnostics and troubleshooting Proline Promag W 10 HART General troubleshooting Local display Error Possible causes Remedial action Local display dark, no output signals Supply voltage does not match that Apply the correct supply voltage. specified on the nameplate. The polarity of the supply voltage is Correct the polarity.
Page 71: Diagnostic Information Via Led
Proline Promag W 10 HART Diagnostics and troubleshooting Access and communication Error Possible causes Remedial action Not possible to write-access the Write protection is enabled. Set the write protection switch on the parameter. local display to the Off position. Current user role has limited access 1.
Page 72 Diagnostics and troubleshooting Proline Promag W 10 HART A0044231 Device status Bluetooth Status Meaning Device status (normal operation) No power supply Permanently green Device status is OK. No warning / failure / alarm Flashing red Warning is active. Permanently red Alarm is active.
Page 73: Diagnostic Information On Local Display
Proline Promag W 10 HART Diagnostics and troubleshooting Diagnostic information on local display Diagnostic message The local display alternates between displaying faults as a diagnostic message and displaying the operational display screen. XXXXX XXXXX ṁ 3.23 kg/min F180 m /min ³...
Page 74: Diagnostic Information In Fieldcare Or
Diagnostics and troubleshooting Proline Promag W 10 HART Diagnostic information The fault can be identified using the diagnostic information. The short text displays a tip about the fault. Diagnostic information Diagnostic code Diagnostic Status signal Short text number ↓ ↓...
Page 75: Changing The Diagnostic Information
Proline Promag W 10 HART Diagnostics and troubleshooting A0044454 Status area with diagnostic behavior and status signal Diagnostic code and short message Troubleshooting measures with service ID Other diagnostic events that have occurred can be opened in the Diagnostics menu as follows: •...
Page 76: Adapting The Diagnostic Behavior
Diagnostics and troubleshooting Proline Promag W 10 HART Configuration of the device as per HART 7 Specification (Condensed Status), in accordance with NAMUR NE107. Failure • A device error has occurred. • Measured value is no longer valid. Function check Device is in the service mode, e.g.
Page 77 Proline Promag W 10 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Sensor 1 short circuit 1. Check sensor cable and Warning detected sensor 2. Execute Heartbeat Verification 3.
Page 78 Diagnostics and troubleshooting Proline Promag W 10 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Firmware update 1. Update firmware of device Warning failed in module 2. Restart device 1 to n Sensor electronics 1.
Page 79: Pending Diagnostic Events
Proline Promag W 10 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Frequency output Deactivate simulation Warning simulation active frequency output Pulse output Deactivate simulation pulse Warning simulation active...
Page 80: Diagnostic List
Diagnostics and troubleshooting Proline Promag W 10 HART Diagnostic list The Diagnostic list submenu shows up to 5 currently pending diagnostic events with the related diagnostic information. If more than 5 diagnostic events are pending, the local display shows the diagnostic information with the highest priority.
Page 81 Proline Promag W 10 HART Diagnostics and troubleshooting Info number Info name I1000 --------(Device ok) I1079 Sensor changed I1089 Power on I1090 Configuration reset I1091 Configuration changed I11036 Date/time set successfully I11167 Date/time resynchronized I1137 Display module replaced I1151 History reset...
Page 82: Device Reset
Diagnostics and troubleshooting Proline Promag W 10 HART Device reset The entire configuration, or a part of the configuration, can be reset to a defined state here. Navigation path System → Device management → Device reset Options Description To delivery settings Every parameter for which a customer-specific default setting was ordered is reset to the customer-specific value.
Page 83: Maintenance
Proline Promag W 10 HART Maintenance 11 Maintenance Maintenance tasks Services Endress+Hauser...
Page 84: Maintenance Tasks
• Do not use high-pressure steam. Interior cleaning No interior cleaning is required. Services Endress+Hauser offers a wide range of services for device maintenance, e.g. recalibration, maintenance service or device tests. Endress+Hauser sales organizations can provide information about the services available.
Page 85: Disposal
Proline Promag W 10 HART Disposal 12 Disposal Removing the device Disposing of the device Endress+Hauser...
Page 86: Removing The Device
WEEE as unsorted municipal waste. • Do not dispose of devices bearing this marking as unsorted municipal waste. A0042336 Instead, return them to Endress+Hauser for disposal under the applicable conditions. • Observe applicable federal/national regulations. • Ensure proper separation and reuse of the device components.
Page 87: Technical Data
Proline Promag W 10 HART Technical data 13 Technical data Input Output Power supply Cable specification Performance characteristics Environment Process Mechanical construction Local display Certificates and approvals Application packages Endress+Hauser...
Page 88: Input
Technical data Proline Promag W 10 HART Input Measured variable Direct measured variables • Volume flow (proportional to induced voltage) • Conductivity (order code for "Sensor Option", option CX) Calculated measured variables Mass flow Operable flow range Over 1000 : 1 Measuring range Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with the specified accuracy...
Page 89 Proline Promag W 10 HART Technical data Recommended Nominal diameter Factory settings flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)
Page 90 Technical data Proline Promag W 10 HART Recommended Nominal diameter Factory settings flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)
Page 91: Output
Proline Promag W 10 HART Technical data Output Output signal Output versions Order code for 020: output; input Output version Option B • Current output 4 to 20 mA HART • Pulse/frequency/switch output Current output 4 to 20 mA HART...
Page 92 Technical data Proline Promag W 10 HART Input values • DC 10.4 to 30 V • Max. 140 mA Voltage drop • ≤ DC 2 V @ 100 mA • ≤ DC 2.5 V @ max. input current Pulse output Pulse width Configurable: 0.05 to 2 000 ms...
Page 93 Proline Promag W 10 HART Technical data Number of switching cycles Unlimited Assignable functions • Off • On • Diagnostic behavior: • Alarm • Warning • Warning and alarm • Limit value: • Off • Volume flow • Mass flow •...
Page 94: Galvanic Isolation
Technical data Proline Promag W 10 HART Signal on alarm Output behavior in the event of a device alarm (failure mode) HART Device diagnostics Device condition can be read out via HART Command 48 Current output 4 to 20 mA...
Page 95: Power Supply
Proline Promag W 10 HART Technical data Power supply Terminal assignment The terminal assignment is documented on an adhesive label. The following terminal assignment is available: Current output 4 to 20 mA HART (active) and pulse/frequency/switch output Supply voltage Output 1...
Page 96: Cable Entries
Technical data Proline Promag W 10 HART Terminals Spring terminals • Suitable for strands and strands with ferrules. • Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Cable entries • Cable gland: M20 × 1.5 for cable ⌀6 to 12 mm (0.24 to 0.47 in) •...
Page 97: Cable Specification
Proline Promag W 10 HART Technical data Cable specification Requirements for connecting cable Electrical safety As per applicable national regulations. Permitted temperature range • Observe the installation guidelines that apply in the country of installation. • The cables must be suitable for the minimum temperatures and maximum temperatures to be expected.
Page 98: Connecting Cable Requirements
Cable shield Outer jacket Preterminated connecting cables Two connecting cable versions can be ordered from Endress+Hauser for use with IP68 protection: • Cable is already connected to the sensor. • Cable is connected by the customer (incl. tools for sealing the connection compartment).
Page 99 Proline Promag W 10 HART Technical data Coil current cable Design 3×0.38 mm (20 AWG) with common, braided copper shield (⌀  9.5 mm (0.37 in)) and individual shielded cores Conductor resistance ≤ 37 Ω/km (0.011 Ω/ft) Capacitance: core/shield ≤ 120 pF/m (37 pF/ft) Cable length Depends on the medium conductivity, max.
Page 100: Performance Characteristics
Technical data Proline Promag W 10 HART Performance characteristics Reference operating conditions • Error limits based on ISO 20456:2017 • Water, typically: +15 to +45 °C (+59 to +113 °F); 0.5 to 7 bar (73 to 101 psi) • Data as indicated in the calibration protocol •...
Page 101: Influence Of Ambient Temperature
Proline Promag W 10 HART Technical data Influence of ambient temperature Current output Temperature coefficient max. 1 µA/°C Pulse/frequency output No additional effect. Is included in the accuracy. Endress+Hauser...
Page 102: Environment
Technical data Proline Promag W 10 HART Environment Ambient temperature range Transmitter –40 to +60 °C (–40 to +140 °F) Local display –20 to +60 °C (–4 to +140 °F) The readability of the display may be impaired at temperatures outside the temperature range.
Page 103: Electromagnetic Compatibility (Emc)
Proline Promag W 10 HART Technical data Vibration-resistance and shock-resistance Compact version Vibration, sinusoidal 2 to 8.4 Hz 3.5 mm peak • Following IEC 60068-2-6 8.4 to 2 000 Hz 1 g peak • 20 cycles per axis Vibration, broad-band random 10 to 200 Hz 0.003 g...
Page 104: Process
Technical data Proline Promag W 10 HART Process Medium temperature range The medium temperature range depends on the liner. Hard rubber 0 to +80 °C (+32 to +176 °F) Polyurethane –20 to +50 °C (–4 to +122 °F) PTFE • Process connection, carbon steel: –10 to +60 °C (+14 to +140 °F) •...
Page 105: Pressure-Temperature Ratings
Proline Promag W 10 HART Technical data Pressure-temperature ratings Maximum permitted medium pressure as a function of the medium temperature The data relate to all pressure bearing parts of the device. Fixed flange according to EN 1092-1 Stainless steel (–20 °C (–4 °F))
Page 106 Technical data Proline Promag W 10 HART Fixed flange according to JIS B2220 Stainless steel (–20 °C (–4 °F)) [psi] [bar] Carbon steel (–10 °C (14 °F)) [°C] -30 -20 -10 0 10 20 30 40 50 60 70 80 90 [°...
Page 107 Proline Promag W 10 HART Technical data Fixed flange according to AS 4087 Carbon steel [psi] [bar] PN 16 [°C] -30 -20 -10 0 10 20 30 40 50 60 70 80 90 [° ] F A0038128-EN Lap joint flange/lap joint flange, stamped plate according to EN 1092-1 and ASME B16.5 Stainless steel (–20 °C (–4 °F))
Page 108: Pressure Tightness
Technical data Proline Promag W 10 HART Pressure tightness Limit values for the absolute pressure depending on the liner and medium temperature PTFE Nominal diameter Absolute pressure in [mbar] ([psi]) [mm] [in] +25 °C (+77 °F) +90 °C (+194 °F)
Page 109: Mechanical Construction
Proline Promag W 10 HART Technical data Mechanical construction Weight All values refer to devices with flanges with a standard pressure rating. Weight data are guideline values. The weight may be lower than indicated depending on the pressure rating and design.
Page 110 Technical data Proline Promag W 10 HART Order code for "Design", options G ASME (Class 150), Nominal diameter EN (DIN) (PN 6) AWWA (Class D) [mm] [in] [kg] [kg] 1400 – 1 300 – – – 2 700 1600 –...
Page 111 Proline Promag W 10 HART Technical data Weight in US units All values refer to devices with flanges with a standard pressure rating. Weight data are reference values. They may be lower than indicated depending on the pressure rating and design.
Page 112 Technical data Proline Promag W 10 HART Order code for "Design", options F Nominal diameter ASME (Class 150), AWWA (Class D) [mm] [in] [lb] 2000 – 6 864 – 8 280 2200 – – – 10 577 2400 – –...
Page 113 Proline Promag W 10 HART Technical data Measuring pipe specification Nominal diameter Rating Measuring pipe internal diameter EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE AWWA AS 4087 [mm] [in] [mm] [in] [mm] [in] [mm] [in] PN 40 Class 150 –...
Page 114 Technical data Proline Promag W 10 HART Materials Transmitter housing Order code for "Housing" Option A: aluminum, AlSi10Mg, coated Window material Glass Sensor connection housing • Aluminum, AlSi10Mg, coated • Polycarbonate (in conjunction with order code for "Sensor option", options...
Page 115: Fitted Electrodes
Proline Promag W 10 HART Technical data Process connections EN 1092-1 (DIN 2501) Fixed flange • Carbon steel: • DN ≤ 300: S235JRG2, S235JR+N, P245GH, A105, E250C • DN 350 to 2 400: P245GH, S235JRG2, A105, E250C • DN 350 to 600: P245GH, S235JRG2, A105, E250C •...
Page 116 Technical data Proline Promag W 10 HART Electrodes with 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum: < 0.5 µm (19.7 µin) Endress+Hauser...
Page 117: Local Display
Proline Promag W 10 HART Technical data Local display Operating concept Operation method • Operation via local display with touch screen. • Operation via SmartBlue App. Menu structure Operator-oriented menu structure for user-specific tasks: • Diagnostics • Application • System •...
Page 118: Certificates And Approvals
Technical data Proline Promag W 10 HART Operating tools Operating tools Operating unit Interface Additional information DeviceCare SFE100 • Notebook • CDI service Innovation brochure IN01047S • PC interface • Tablet with Microsoft • Fieldbus Windows system protocol FieldCare SFE500 •...
Page 119: Application Packages
Proline Promag W 10 HART Technical data Additional approvals VDS (fire protection) Other standards and guidelines • IEC/EN 60529 Degrees of protection provided by enclosures (IP code) • IEC/EN 60068-2-6 Environmental influences: Test procedure - Test Fc: vibrate (sinusoidal) • IEC/EN 60068-2-31 Environmental influences: Test procedure - Test Ec: shocks due to rough handling, primarily for devices.
Page 120 The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the relevant order code is available from your local Endress+Hauser sales organization or on the product page of the Endress+Hauser website: www.endress.com. Heartbeat Verification + Monitoring Heartbeat Verification Availability depends on the product structure.
Page 121: Dimensions In Si Units
Proline Promag W 10 HART Dimensions in SI units 14 Dimensions in SI units Compact version DN 25 to 300 (1 to 12") DN 350 to 900 (14 to 36") DN 1000 to 2400 (40 to 90") Remote version Transmitter remote version Sensor connection housing DN 25 to 300 (1 to 12") aluminum half-shell housing...
Page 122: Compact Version
Dimensions in SI units Proline Promag W 10 HART Compact version DN 25 to 300 (1 to 12") Order code for "Housing", option A "Compact, aluminum, coated" Sensor with aluminum half-shell housing A0042708 Order code for "Design" Options D, E, H, I...
Page 123 Proline Promag W 10 HART Dimensions in SI units DN 350 to 900 (14 to 36") Order code for "Housing", option A "Compact, aluminum, coated" A0042708 Order code for "Design" Options E, F Option G [mm] [in] [mm] [mm] [mm]...
Page 124 Dimensions in SI units Proline Promag W 10 HART DN 1000 to 2400 (40 to 90") Order code for "Housing", option A "Compact, aluminum, coated" A0042708 [mm] [in] [mm] [mm] [mm] [mm] [mm] [mm] 1000 1 164 1 000 1 300 –...
Page 125: Transmitter Remote Version
Proline Promag W 10 HART Dimensions in SI units Remote version Transmitter remote version A0042715 Order code for "Housing" [mm] [mm] [mm] [mm] [mm] Option P "Remote, aluminum, coated" Depending on the cable entry used: values up to + 30 mm...
Page 126 Dimensions in SI units Proline Promag W 10 HART DN 25 to 300 (1 to 12") aluminum half-shell housing Sensor with aluminum half-shell housing. Sensor connection housing: aluminum, AlSi10Mg, coated A0041519 Order code for "Design" Options D, E, H, I...
Page 127 Proline Promag W 10 HART Dimensions in SI units DN 25 to 300 (1 to 12") fully welded housing Sensor with fully welded carbon steel housing: Order code for "Sensor option", options CA, CB, CC, CD, CE A0041519 Order code for "Design"...
Page 128 Dimensions in SI units Proline Promag W 10 HART DN 350 to 900 (14 to 36") A0041519 Order code for "Design" Options E, F Option G [mm] [in] [mm] [mm] [mm] [mm] [mm] [mm] [mm] – – – – –...
Page 129 Proline Promag W 10 HART Dimensions in SI units DN 1000 to 2400 (40 to 90") A0041519 [mm] [in] [mm] [mm] [mm] [mm] 1000 1 164 1 000 1 300 – 1 236 1 050 1 365 1200 1 392...
Page 130: Fixed Flange
Dimensions in SI units Proline Promag W 10 HART Fixed flange Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 10 • Carbon steel: order code for "Process connection", option D2K • Stainless steel: order code for "Process connection", option D2S Surface roughness: EN 1092-1 Form B1 (DIN 2526 Form C), Ra 6.3 to 12.5 µm...
Page 131 Proline Promag W 10 HART Dimensions in SI units Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 16 • Carbon steel: order code for "Process connection", option D3K • Stainless steel: order code for "Process connection", option D3S Surface roughness: EN 1092-1 Form B1 (DIN 2526 Form C), Ra 6.3 to 12.5 µm...
Page 132 Dimensions in SI units Proline Promag W 10 HART Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 25 • Carbon steel: order code for "Process connection", option D4K • Stainless steel: order code for "Process connection", option D4S Surface roughness: EN 1092-1 Form B1 (DIN 2526 Form C), Ra 6.3 to 12.5 µm...
Page 133 Proline Promag W 10 HART Dimensions in SI units Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 40 • Carbon steel: order code for "Process connection", option D5K • Stainless steel: order code for "Process connection", option D5S Surface roughness: EN 1092-1 Form B1 (DIN 2526 Form C), Ra 6.3 to 12.5 µm...
Page 134 Dimensions in SI units Proline Promag W 10 HART Flange according to ASME B16.5, Class 150 • Carbon steel: order code for "Process connection", option A1K • Stainless steel: order code for "Process connection", option A1S Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →...
Page 135 Proline Promag W 10 HART Dimensions in SI units Flange according to ASME B16.5, Class 300 • Carbon steel: order code for "Process connection", option A2K • Stainless steel: order code for "Process connection", option A2S Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →...
Page 136 Dimensions in SI units Proline Promag W 10 HART Flange according to JIS B2220, 10K • Carbon steel: order code for "Process connection", option N3K • Stainless steel: order code for "Process connection", option N3S Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →...
Page 137 Proline Promag W 10 HART Dimensions in SI units Flange according to JIS B2220, 20K • Carbon steel: order code for "Process connection", option N4K • Stainless steel: order code for "Process connection", option N4S Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →...
Page 138 Dimensions in SI units Proline Promag W 10 HART Flange according to AWWA, Class D Order code for "Process connection", option W1K Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →  113 [mm]...
Page 139 Proline Promag W 10 HART Dimensions in SI units Flange according to AS 2129, Tab. E Order code for "Process connection", option M2K Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →  113.
Page 140 Dimensions in SI units Proline Promag W 10 HART Flange according to AS 4087, PN 16 Order code for "Process connection", option M3K Surface roughness: Ra 6.3 to 12.5 µm E: Internal diameter depends on the liner →  113...
Page 141: Lap Joint Flange
Proline Promag W 10 HART Dimensions in SI units Lap joint flange Lap joint flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 10 • Carbon steel: order code for "Process connection", option D22 • Stainless steel: order code for "Process connection", option D24 Surface roughness (flange): Ra 6.3 to 12.5 µm...
Page 142 Dimensions in SI units Proline Promag W 10 HART Lap joint flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 16 • Carbon steel: order code for "Process connection", option D32 • Stainless steel: order code for "Process connection", option D34 Surface roughness (flange): Ra 6.3 to 12.5 µm...
Page 143 Proline Promag W 10 HART Dimensions in SI units Lap joint flange according to ASME B16.5, Class 150 • Carbon steel: order code for "Process connection", option A12 • Stainless steel: order code for "Process connection", option A14 Surface roughness (flange): Ra 6.3 to 12.5 µm F: Internal diameter depends on the liner →...
Page 144 Dimensions in SI units Proline Promag W 10 HART Lap joint flange, stamped plate Lap joint flange, stamped plate in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 10 • Carbon steel: order code for "Process connection", option D21 •...
Page 145: Accessories
Proline Promag W 10 HART Dimensions in SI units Accessories Protective cover A0042332 [mm] [mm] [mm] [mm] [mm] Ground disks for flanges DN 25 to 300 (1 to 12") Rating [mm] [in] [mm] [mm] [mm] [mm] [mm] [mm] 1" 87.5 77.5...
Page 146 Dimensions in SI units Proline Promag W 10 HART DN 300 to 600 (12 to 24") Rating [mm] [in] [mm] [mm] [mm] [mm] [mm] [mm] PN 25 12" JIS 10K JIS 20K PN 6 14" PN 10 PN 16 15"...
Page 147: Dimensions In Us Units
Proline Promag W 10 HART Dimensions in US units 15 Dimensions in US units Compact version DN 25 to 300 (1 to 12") DN 350 to 900 (14 to 36") DN 1000 to 2400 (40 to 90") Remote version Transmitter remote version Sensor connection housing DN 25 to 300 (1 to 12") aluminum half-shell housing...
Page 148 Dimensions in US units Proline Promag W 10 HART Compact version DN 25 to 300 (1 to 12") Order code for "Housing", option A "Compact, aluminum, coated" Sensor with aluminum half-shell housing A0042708 Order code for "Design" Options D, E, H, I...
Page 149 Proline Promag W 10 HART Dimensions in US units DN 350 to 900 (14 to 36") Order code for "Housing", option A "Compact, aluminum, coated" A0042708 Order code for "Design" Options E, F Option G [mm] [in] [in] [in] [in]...
Page 150 Dimensions in US units Proline Promag W 10 HART DN 1000 to 2400 (40 to 90") Order code for "Housing", option A "Compact, aluminum, coated" A0042708 [mm] [in] [in] [in] [in] [in] [in] [in] 1000 5.47 7.01 29.88 22.91 45.83 39.37...
Page 151: Remote Version
Proline Promag W 10 HART Dimensions in US units Remote version Transmitter remote version A0042715 Order code for "Housing" [in] [in] [in] [in] [in] Option P "Remote, aluminum, coated" 5.47 7.28 7.01 12.17 5.12 Depending on the cable entry used: values up to +1.18 in...
Page 152: Dn 25 To 300 (1 To 12") Aluminum Half-Shell Housing
Dimensions in US units Proline Promag W 10 HART DN 25 to 300 (1 to 12") aluminum half-shell housing Sensor with aluminum half-shell housing. Sensor connection housing: aluminum, AlSi10Mg, coated A0041519 Order code for "Design" Options D, E, H, I...
Page 153: Dn 25 To 300 (1 To 12") Fully Welded Housing
Proline Promag W 10 HART Dimensions in US units DN 25 to 300 (1 to 12") fully welded housing Sensor with fully welded carbon steel housing: Order code for "Sensor option", options CA, CB, CC, CD, CE A0041519 Order code for "Design"...
Page 154 Dimensions in US units Proline Promag W 10 HART DN 350 to 900 (14 to 36") A0041519 Order code for "Design" Options E, F Option G [mm] [in] [in] [in] [in] [in] [in] [in] [in] 15.55 9.65 19.29 – –...
Page 155 Proline Promag W 10 HART Dimensions in US units DN 1000 to 2400 (40 to 90") A0041519 [mm] [in] [in] [in] [in] [in] 1000 27.48 22.91 45.83 39.37 51.18 – 28.9 24.33 48.66 41.34 53.74 1200 31.97 27.4 54.8 47.24 61.42...
Page 156: Fixed Flange
Dimensions in US units Proline Promag W 10 HART Fixed flange Flange according to ASME B16.5, Class 150 • Carbon steel: order code for "Process connection", option A1K • Stainless steel: order code for "Process connection", option A1S Surface roughness: Ra 250 to 492 µin E: Internal diameter depends on the liner →...
Page 157 Proline Promag W 10 HART Dimensions in US units Flange according to AWWA, Cl. D Order code for "Process connection", option W1K Surface roughness: Ra 250 to 492 µin E: Internal diameter depends on the liner →  113 [in]...
Page 158 Dimensions in US units Proline Promag W 10 HART Lap joint flange Lap joint flange according to ASME B16.5, Class 150 • Carbon steel: order code for "Process connection", option A12 • Stainless steel: order code for "Process connection", option A14 Surface roughness (flange): Ra 248 to 492 µin...
Page 159: Accessories
Proline Promag W 10 HART Dimensions in US units Accessories Protective cover A0042332 [in] [in] [in] [in] [in] 10.12 0.47 11.02 5.51 5.51 Ground disks for flanges DN 25 to 300 (1 to 12") Rating [mm] [in] [in] [in] [in]...
Page 160 Dimensions in US units Proline Promag W 10 HART DN 300 to 600 (12 to 24") Rating [mm] [in] [in] [in] [in] [in] [in] [in] PN 25 12" JIS 10K 10.55 0.35 0.08 12.2 14.76 15.91 JIS 20K PN 6 14"...
Page 161 Proline Promag W 10 HART Accessories 16 Accessories Device-specific accessories Communication-specific accessories Service-specific accessory System components Endress+Hauser...
Page 162: Device-Specific Accessories
Accessories Proline Promag W 10 HART Device-specific accessories Transmitter Accessories Description Order number  Proline 10 transmitter Installation Instructions EA01350D 5XBBXX-*…* Protective cover Protects the device from weather exposure: 71502730  Installation Instructions EA01351D Connecting cable Can be ordered with the device.
Page 163: Communication-Specific Accessories
Intrinsically safe HART communication with FieldCare and FieldXpert  Technical Information TI00404F Commubox FXA291 Connects the Endress+Hauser devices with the CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or laptop.  Technical Information TI405C/07...
Page 164: System Components
Accessories Proline Promag W 10 HART System components Accessories Description Memograph M Graphic data manager: • Record measured values • Monitor limit values • Analyze measuring points  • Technical Information TI00133R • Operating Instructions BA00247R iTEMP Temperature transmitter: • Measure the absolute pressure and gauge pressure of gases, vapors and liquids •...
Page 165: Appendix
Proline Promag W 10 HART Appendix 17 Appendix Screw tightening torques Examples for electric terminals Endress+Hauser...
Page 166 Appendix Proline Promag W 10 HART Endress+Hauser...
Page 167: Screw Tightening Torques
Proline Promag W 10 HART Appendix Screw tightening torques General information Note the following for the screw tightening torques: • Only for lubricated threads. • Only for pipes that are free from tensile stress. • Tighten the screws uniformly and in diagonally opposite sequence.
Page 168: Max. Screw Tightening Torques For En 1092-1
Appendix Proline Promag W 10 HART Maximum screw tightening torques Max. screw tightening torques for EN 1092-1 Nominal diameter Rating Screws Flange Max. screw tightening torque [Nm] thickness [mm] [in] [bar] [mm] [mm] PTFE PN 40 4×M12 – – PN 40 4×M16...
Page 169 Proline Promag W 10 HART Appendix Nominal diameter Rating Screws Flange Max. screw tightening torque [Nm] thickness [mm] [in] [bar] [mm] [mm] PTFE PN 6 20×M24 – PN 10 20×M27 – PN 16 20×M33 – PN 25 20×M36 – PN 6 24×M24...
Page 170: Max. Screw Tightening Torques For Asme B16.5
Appendix Proline Promag W 10 HART Max. screw tightening torques for ASME B16.5 Nominal Rating Screws Max. screw tightening torque diameter [in] [psi] [in] [Nm] [lbf · ft] [Nm] [lbf · ft] Class 150 4×½ – – Class 300 4×5/8 –...
Page 171: Max. Screw Tightening Torques For As 2129, Table E
Proline Promag W 10 HART Appendix Nominal Rating Screws Max. screw tightening torque [Nm] diameter [mm] [bar] [mm] 8×M22 8×M20 12×M22 12×M20 12×M22 12×M22 12×M24 16×M22 16×M24 Max. screw tightening torques for AS 2129, Table E Nominal diameter Screws Max. screw tightening torque [Nm]...
Page 172 Appendix Proline Promag W 10 HART Nominal diameter Screws Max. screw tightening torque [Nm] [mm] [mm] 12×M24 – 12×M24 – 12×M24 – 12×M24 – 12×M24 – 16×M24 – 16×M27 – 20×M27 – 20×M30 – 20×M33 – 24×M33 – 1000 24×M33 –...
Page 173: Nominal Screw Tightening Torques For En 1092-1; Calculated According To En 1591-1:2014 For Flanges According To En 1092-1:2013
Proline Promag W 10 HART Appendix Nominal screw tightening torques Nominal screw tightening torques for EN 1092-1; calculated according to EN 1591-1:2014 for flanges according to EN 1092-1:2013 Nominal diameter Rating Screws Flange Nominal screw tightening torque thickness [Nm] [mm]...
Page 174 Appendix Proline Promag W 10 HART Nominal Rating Screws Nominal screw tightening torque diameter [Nm] [mm] [bar] [mm] 16×M30 16×M30 Endress+Hauser...
Page 175 Proline Promag W 10 HART Appendix Examples for electric terminals Current output 4 to 20 mA HART (active) 4...20 mA A0029055 Automation system with current input, e.g. PLC Cable shield Connection for HART operating devices Resistor for HART communication (≥ 250 Ω): observe max. load.
Page 176 Appendix Proline Promag W 10 HART HART input (passive) 4...20 mA A0028763  10 Connection example for HART input with a common negative (passive) Automation system with current input, e.g. PLC Active barrier for supply voltage, e.g. RN221N Cable shield Analog display unit: observe max.
Page 177 Proline Promag W 10 HART Appendix Switch output (passive) A0028760 Automation system with switch input, e.g. PLC Supply voltage Transmitter: observe input values. Endress+Hauser...
Page 178 Index Proline Promag W 10 HART Index DeviceCare ......74 FieldCare ....... 74 Adapting the diagnostic behavior .
Page 179 Proline Promag W 10 HART Index Dynamic variables ......58 Pressure Equipment Directive ....118 Pressure loss .
Page 180 Index Proline Promag W 10 HART Use in buried applications ..... 30 Installation conditions ..... 30 Vibration-resistance and shock-resistance .
Page 182 *71510513* 71510513 www.addresses.endress.com...
