TransLite TL-9248 Manual

Asi input 8-in-1 transcoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P a g e
| 1

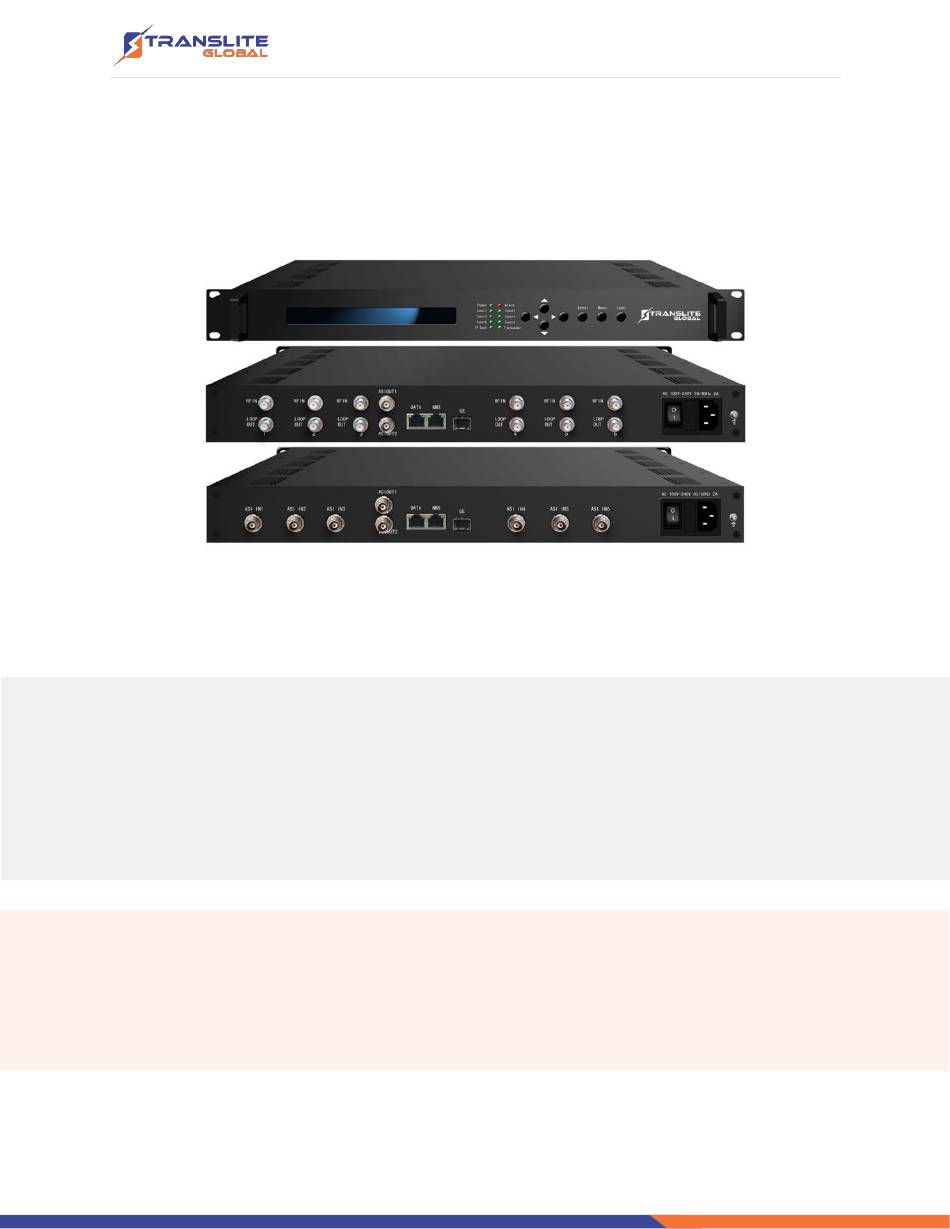

PRODUCT MODEL NUMBER:
TL-9248 ASI INPUT 8-
IN-1 TRANSCODER
ABOUT THIS
MANUAL
DISCLAIMER
No part of this document may be reproduced in any form without the written permission of the copyright
owner.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or
damage of any kind resulting from the use of this document.
COPY WARNING
This document includes some confidential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from TRANSLITE GLOBAL LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-9248 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TransLite TL-9248

Summary of Contents for TransLite TL-9248

  • Page 1 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 2: Table Of Contents

    P a g e INDEX TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ..................... 1 ......................3 RODUCT VERVIEW ........................3 EATURES ....................4 ECHNICAL PECIFICATIONS ..................... 5 NNER RINCIPLE HART .................... 6 RANSCODING XAMPLE ..................6 PPEARANCE AND ESCRIPTION CHAPTER 2 INSTALLATION GUIDE ...................

  • Page 3: Chapter 1 Introduction

    P a g e CHAPTER 1 INTRODUCTION PRODUCT OVERVIEW TL9248 is a professional bidirectional transcoder to convert video between H.264 and MPEG-2 format and also to transcode between HD and SD programs simultaneously. It is equipped with 6 Tuner inputs and an IP input to receive digital channels. After transcoding, it outputs MPTS & SPTS through the DATA port or ASI port.

  • Page 4: Technical Specifications

    P a g e TECHNICAL SPECIFICATIONS Stream In 8 MPTS/SPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface/ SFP interface 6 DVB-S2/ASTC Tuner BISS Descramble Maximum 8 programs Video 1920x1080I,1280x720P, 720x576i, 720x480i Resolution 480x576, 544x576, 640x576, 704x576 4*MPEG2 HD → 4*MPEG2/H.264 HD ; 4*MPEG2 HD →...

  • Page 5: Inner Principle Chart

    P a g e Bit Rate 32/48/64/96/128/192/224/256/320/384Kbps Stream Out 8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface 1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface System Function LCD &...

  • Page 6: Transcoding Mode Example

    P a g e TRANSCODNG MODE EXAMPLE MPEG 1 Layer 2 MPEG2 SD H.264 SD MP2/AAC/AC3 MPEG2 HD H.264 HD Passthrough APPEARANCE AND DESCRIPTION Front Panel Illustration LCD screen Power Indicator Alarm Indicator: to indicate system or connection errors Indicators Tuner 1 -- Tuner 6: to indicate the 6 Tuner IN statuses, the corresponding LED will light on when source tuner properly connected from the back panel.
  • Page 7 P a g e Navigation area: UP/ DOWN, LEFT/RIGHT keys Enter key Menu key Lock key Rear Panel Illustration 6 * RF input & loop out interfaces 2 * ASI output Ports Data port: for IP signal input & output NMS port (Network management system port) GE port (SFP port), for optical signal input &...

  • Page 8: Chapter 2 Installation Guide

    P a g e Power socket Grounding Pole CHAPTER 2 INSTALLATION GUIDE ACQUISITION CHECK When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  TL9248 Input 8-in-1 Transcoder ...

  • Page 9: Environment Requirement

    P a g e  Preparing relevant environment for installation  Installing Transcoder  Connecting signal cables  Connecting communication port (if necessary) 2.2.1 DEVICE INSTALLATION FLOWCHART Connecting Grouding Acquisition Fixing Connecting Setting Running Wire and Check Device Signal Wire Parameter Device Power...

  • Page 10: Grounding Requirement

    P a g e | 10 Relative 20%~80% sustainable 10%~90% short time Temperature Pressure 86~105KPa Installing rubber strip for sealing door-gaps and dual level Door & Window glasses for window Wall It can be covered with wallpaper, or brightness less paint. Fire alarm system and extinguisher Fire Protection Requiring device power, air-conditioning power and lighting...

  • Page 11: Device Grounding

    P a g e | 11 All the machine frames should be connected with protective copper strip. The grounding wire should be as short as possible and avoid circling. The area of the conduction between grounding wire and grounding strip should be no less than 25mm2. 2.2.5 DEVICE GROUNDING Connecting the device’s grounding rod to frame’s grounding pole with copper wire.

  • Page 12: Signal Cable Connection

    P a g e | 12 SIGNAL CABLE CONNECTION The signal connections include the connection of input signal cable and the connection of output signal cable. The details are as follows: 2.4.1 ASI CABLE OUTPUT ILLUSTRATION 2.4.2 IP & NMS CABLE ILLUSTRATION (CAT5) 2.4.3 ASI INPUT/OUTPUT INTERFACE CONNECTION...

  • Page 13: Nms Connection

    P a g e | 13 ASI output/input port. The transcoder’s ASI input/output interface and its connection are illustrated as follow: 2.4.4 DATA (GE) INPUT/OUTPUT INTERFACE CONNECTION The DATA (GE) port, located in the middle of the rear panel, is used to input/output IP (optical) signal at the same time.

  • Page 14: Chapter 3 Operation

    P a g e | 14 CHAPTER 3 OPERATION Keyboard Function Description ENTER: To activate the parameters which need modifications, or confirming the change after modification. MENU: To cancel presently entered value, resume previous setting and return to previous menu. LEFT/RIGHT: To move the “►”...

  • Page 15: Lcd Menus

    P a g e | 15 LCD MENUS LCD Menu Tree Switch On Initializing General Output Status 1.1 Port 1 (DVB-S2)/(ATSC) 1 Input Setting 1.6 Port 6 (DVB-S2)/(ATSC) 1.7.1 In Protocol 1.7 Port 7 (IP) 1.7.2 In Address 1.7.3 In Port 1.7.4 IGMP Snoop 1.7.5 Multicast 1.14 Port 14 (IP)

  • Page 16: Initial Status

    P a g e | 16 INITIAL STATUS After switching on the device, it will take a few seconds to initialize the system, and then the LCD will display the real-time output bit-rate of the 8 transcoding channels respectively. Setting Transcoder 01 Config... >>>>>>>>>>>>>>43% Serial number of transcoding Real-time output bit-rate of the related channel...

  • Page 17: Input Setting

    P a g e | 17 3.3.1 INPUT SETTING User can press UP/DOWN/LEFT/RIGHT key to turn page or specify the target item and press ENTER key to enter into the menu of Input Setting when this menu is marked with . It shows as bellow: 1.1 Port 1 (DVB-S2) 1.2 Port 2 (DVB-S2)
  • Page 18 P a g e | 18 Sat freq set 04200MHz LNB freq set 05150MHz Symbol rate 27500 Ksps LNB Voltage 22KHz Switch P.S.: The descriptions of 1.2-1.6 Port X (DVB-S2) are the same with 1.1 Port 1 (DVB-S2). Port 1 (ATSC Input) Here we take 1.1 Port 1 (ATSC) signal input as an example to illustrate tuner inputs: Enter 1.1 and users will find the page as below: (The descriptions of 1.2-1.6 Port X are the same with 1.1 Port 1)
  • Page 19 P a g e | 19 3.3.1.2 PORT 7 (IP Input) Here we take 1.7 Port 7 (IP) as an example to illustrate IP inputs: 1.7.1 In Protocol 1.7.2 In Address 1.7.3 IP Port 1.7.4 IGMP Snoop 1.7.5 Multicast In submenus 1.7.1-1.7.5, users can configure the IP input parameters to receive the IP programs.

  • Page 20: Output Setting

    P a g e | 20 3.3.2 OUTPUT SETTING TL9248 transcoder supports IP output in the form of both MPTS (Multiple Programs Transport Stream) and SPTS (Single Program Transport Stream). Output Setting containing 2.1- 2.9 is to configure the MPTS and SPTS parameters and 2.10 is to configure BISS Config. Submenus are displayed as shown below: 2.1 MPTS Output 2.2 SPTS Output 1...
  • Page 21 P a g e | 21 2.1.1 MPTS Protocol [UDP] TRP/RTSP 2.1.2 MPTS IP 224.002.002.002 2.1.3 MPTS Port 01001 2.1.4 MPTS Enable [ON] This option ‘ON’, it will filter output null packet. 2.1.5 MPTS Filter [ON] This option ‘ON’, it will recovery output PCR. 2.1.6 MPTS PCR REC [ON] 3.3.2.2...
  • Page 22 P a g e | 22 The processed programs can also be output in the form of SPTS (Single Program Transport Stream). User can set the parameters of the SPTS under submenu 2.2-2.9. There are all together 8 channels of SPTS as TL9248 can maximally transcode 8 programs simultaneously. 2.2.1SPTS Protocol 2.2.2 SPTS IP 2.2.3 SPTS Port...
  • Page 23 P a g e | 23 This option ‘ON’, it will recovery output PCR. 2.2.6 SPTS PCR REC [ON] This option ‘ON’, it will separate output PCR firstly 2.2.7 SPTS PCR SEP [ON] P.S.: The descriptions of 2.3-2.8 are the same with 2.2. 3.3.2.3 BISS CONFIGURATION BISS: Basic Interoperable Scrambling System...

  • Page 24: Network Setting

    P a g e | 24 BISS Mode/Select ID/SW Data/Input ID/ESW Data Users need to input keys to descramble programs as per the BISS scrambling side which usually is DVB-S/S2 modulator. The descrambling principle is as following chart: Modulating Side (BISS Receiving Side (BISS DESCR) Digit (0x---- SCR)

  • Page 25: Saving Configuration

    P a g e | 25 3.3 Gateway 192.168.002.001 3.4 MAC Address 00727476787A NOTE: The MAC address is defaulted by the factory setting, and it’s unique. 3.5 Reset Password ►Yes 3.6 Web Manage Port 00080 3.3.4 SAVING CONFIGURATION User can choose to save the current configuration parameters to the device. 4.1 Saving Configuration * No Saving, please wait:...

  • Page 26: Loading Configuration

    P a g e | 26 3.3.5 LOADING CONFIGURATION 5.1 Saved Config 5.2 Default Config Loading, please wait: >>>>>>>>>>>>>>> User can restore the device into the last saved configuration by choosing the menu 5.1 “Saved Config”, or restore the device into factory configuration by choosing the menu 5.2 “Default Config”.

  • Page 27: Web Nms Operation

    P a g e | 27 CHAPTER 4 WEB NMS OPERATION Besides using LCD and navigation buttons to configure system parameters, user can also control and set the device with computer by connecting the device to computer through NMS Port—Web Management Page, where users can parse programs input from different channels, operate multiplexing, modify program information and so on.

  • Page 28: Operation

    P a g e | 28 OPERATION When we confirm the login, it displays the WELCOME interface as Figure-2. User can click any item here to enter the corresponding interface to check information or set the parameters. Real-time output bit rate of corresponding output channel.
  • Page 29 P a g e | 29 Select one channel to view and setup the parameters of corresponding channel. For example, when we select one channel and click , it launches an interface as below: CH01-CH06 Tuner Channels Choose different mode CH07-CH14 IP Channels : To make the current parameters shown in the web interface activate.
  • Page 30 P a g e | 30 “1” indicates ASI Input Channels & the count of Programs: programs in this channel There are 6 DVB-S2 channels in this area. Press “Parse” button to get the programs “1” following carried in each channel. the arrow indicates the source...
  • Page 31 P a g e | 31 Choose one target program from any input channel and click this button to transfer it to the right box to output. User can transfer maximum 8 programs to output. Click this button to trigger a script which prompts to specify an output channel among 1-8. Each output channel can only carry one program.
  • Page 32 P a g e | 32 Check target video format and set PID here Check source audio format and PID display Each output channel can carry max audios out with only 1 audio can be transcoded and the other Users need to input keys audio passthrough, or to descramble program Filter...
  • Page 33 P a g e | 33 Output Click “Output” from the menu to trigger the screen as Figure-6. This interface is divided into 3 parts with the first part for configuring ASI output, while the rest 2 part for configuring IP output. ASI output: This device supports signal output through ASI ports in the form of one MPTS or one SPTS, and the stream is a mirror of the IP output stream.
  • Page 34 P a g e | 34 Figure-7 Select one channel to view and setup the parameters of corresponding channel. For example, when we select one channel and click , it launches an interface as below: CH01-CH06 Tuner Channels Choose different mode CH07-CH14 IP Channels...
  • Page 35 P a g e | 35 : To make the current parameters shown in the web interface activate. In this way, the configuration can only be saved temporarily and system will restore the last saved configuration if the device reboots. Mux (Multiplex) Click “Mux”...
  • Page 36 P a g e | 36 Click “Parse” to refresh the program list of the selected channel (Tuner). For example: Time limitation to parse the input programs Choose one target program from any input channel and click this button to transfer it to the right box to output.
  • Page 37 P a g e | 37 Program Modify/Transcoding Settings/BISS Descrambling: : The information of multiplexed program can be modified with this button. Click the program to be modified in the output section to trigger a dialog box as below where also to complete the audio/video out mode settings and BISS descrambling settings.
  • Page 38 P a g e | 38 Output channel selection area System automatically indentifies the formats Figure-9 as per signal source. To configure the target formats/values. Make sure the audio bit-rate and resolution no greater than the source values. Closed Caption switch Output Click “Output”...
  • Page 39 P a g e | 39 Figure-10 Network When user clicks “Network”, it will display the screen as Figure-11. Here user can change the device network configuration as needed. Figure-11 Save Restore From the menu on left side of the webpage, clicking “Save Restore”, it will display the screen as Figure-12 where to save or restore your configurations...
  • Page 40 P a g e | 40 Figure-12 Save Configration– To save the parameter after you change it. NOTE: New configuration will replace the old one. Please backup the current configuration before loading a file. Wrong file may cause failure of device. Factory Set –...
  • Page 41 P a g e | 41 Figure-14 Password When user clicks “Password”, it will display the password screen as Figure-15. Here user can change the Username and Password for login to the device. After putting the current and new Username and Password, click Apply” to save the configuration.

  • Page 42: Chapter 5 Troubleshooting

    TROUBLESHOOTING TRANSLITE’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All TRANSLITE products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by TRANSLITE.

  • Page 43: Chapter 6 Packing List

    P a g e | 43 CHAPTER 6 PACKING LIST  TL9248 Transcoder  User Manual  RF cables  ASI cables  Power Cord CHAPTER 7 APPLICATION...
  • Page 44 P a g e | 44...
