PRODUCT MODEL NUMBER:
TL-A1000 LIVE
STREAMING TRANSCODER
ABOUT THIS
MANUAL
DISCLAIMER
No part of this document may be reproduced in any form without the written permission of the copyright
owner.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or
damage of any kind resulting from the use of this document.
COPY WARNING
This document includes some confidential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from TRANSLITE GLOBAL LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-A1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TransLite TL-A1000

Summary of Contents for TransLite TL-A1000

  • Page 1 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. TRANSLITE GLOBAL LLC shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 2: Table Of Contents

    P a g e INDEX TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ........................3 1.1 PRODUCT OVERVIEW........................3 1.2 KEY FEATURES........................... 3 1.3 SPECIFICATIONS ..........................6 1.4 PRINCIPLE CHART ..........................7 1.5 APPEARANCE AND DESCRIPTION ...................... 8 CHAPTER 2 INSTALLATION GUIDE ......................

  • Page 3: Chapter 1 Introduction

    INTRODUCTION PRODUCT OVERVIEW TL-A1000 is embedded with a powerful processing module that achieves real time transcoding of video and audio signals with low bit rate and high-quality transcoding. This solution being cost-effective meets demand for video on any screen. The system allows for viewing in a low- latency manner.
  • Page 4 P a g e ➢ Flow Control Methods: Supports a variety of flow control modes - according to different needs to adjust the range of code stream bandwidth: CBR, ABR, and VBR. In CBR mode, the change range of code stream can be controlled within 2%. For VBR, the fluctuation range of 5% to 100% can be set.
  • Page 5 P a g e ➢ Support N+1, N+M redundant backup: N+1 or N+M network management system realizes automatic 1+1 and N+M redundancy protection switch for equipment failure. Redundancy switch scheme includes input backup switch, device redundancy switch and device output. ➢...

  • Page 6: Specifications

    P a g e SPECIFICATIONS Hardware Supermicro 6018U-TR4+-OTO-30 (Customized) Video Specifications MPEG-2: 300Kbps ~ 50Mbps Video Compression H.264: 300Kbps ~ 50Mbps and bitrate H.265: 300Kbps ~ 50Mbps 576P – 720 x 576 (CPU & GPU) 720P – 1280 x 720 (CPU & GPU) 1080P –...

  • Page 7: Principle Chart

    P a g e Input and Output Parameters Input Streaming HTTP | HLS | RTMP | UDP | RTP | RTSP Media Protocol Output Streaming HTTP | HLS | RTMP | UDP | RTP | RTSP Media Protocol Input Encapsulation MP4, 3GP, FLV, ASF, RM, TS, MPTS, SPTS Protocol Output...

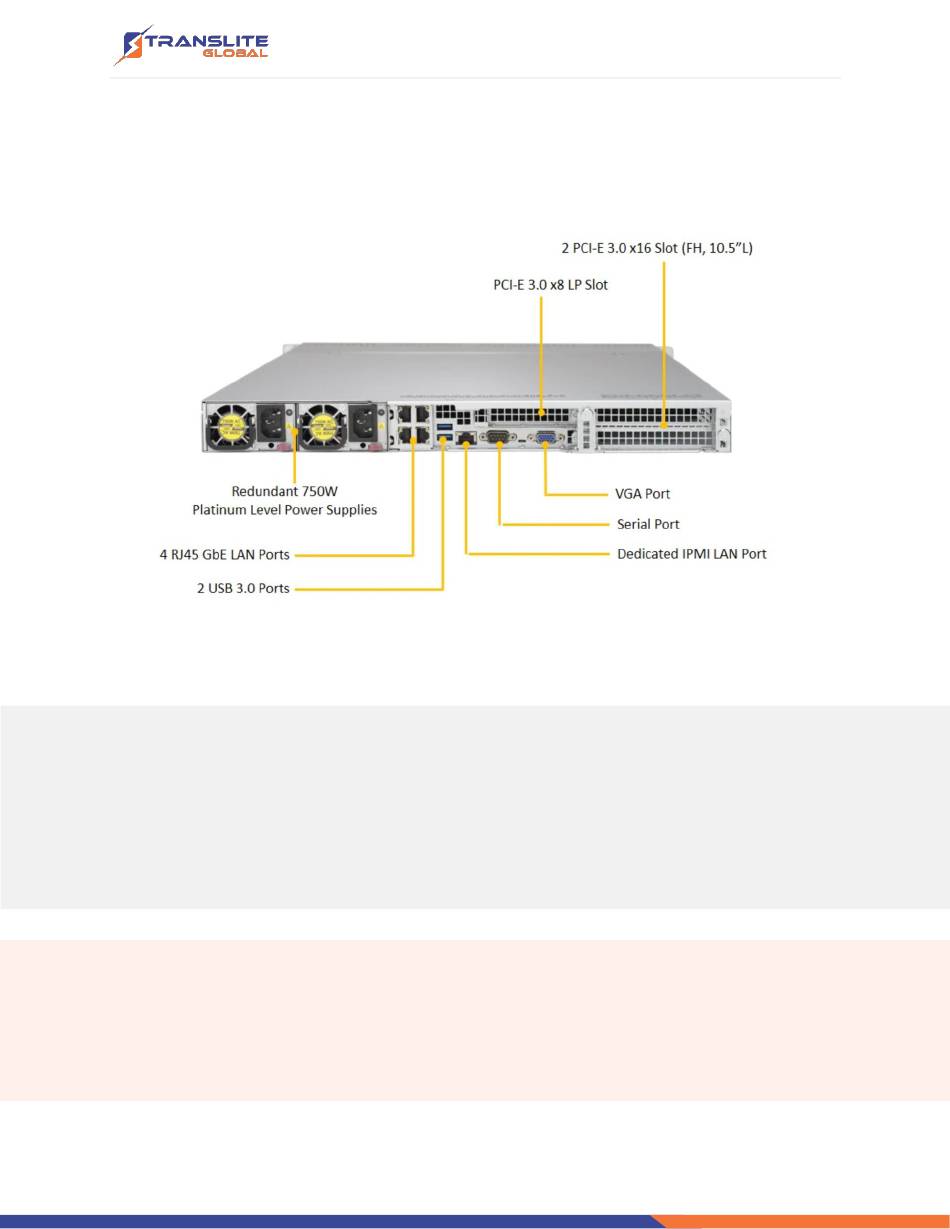

  • Page 8: Appearance And Description

    P a g e Pair with Translite Global’s Large Screen Monitoring System: (TSA-M3600) APPEARANCE AND DESCRIPTION...

  • Page 9: Chapter 2 Installation Guide

    When user installs the device, please follow the steps below: ➢ Checking the possible device missing or damage during the transportation ➢ Preparing the relevant and correct environment for installation ➢ Installing TL-A1000 Live Streaming Transcoder ➢ Connecting communication port (if it is necessary)

  • Page 10: Device's Installation Flowchart

    P a g e | 10 DEVICE’S INSTALLATION FLOWCHART ENVIRONMENT REQUIREMENT Item Requirement When user installs machine frame array in one machine hall, Machine Hall the distance between 2 rows of machine frames should be Space 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 11: Grounding Requirement

    P a g e | 11 GROUNDING REQUIREMENT ➢ All function modules’ good grounding designs are the basis of reliability and stability of devices. Also, they are the most important guarantee of lightning arresting and interference rejection. Therefore, the system must follow this rule. ➢...

  • Page 12: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to TL-A1000 Live Streaming Transcoder, user should set the power switch to “OFF”. SIGNAL CABLE CONNECTION Before operating, user should connect all devices requiring cables.

  • Page 13: Login

    P a g e | 13 LOGIN When accessing the management system page, enter your user name and password Default Username: admin Default Password: 123...

  • Page 14: Chapter 4 Device Management

    P a g e | 14 CHAPTER 4 DEVICE MANAGEMENT HOST MANAGEMENT The Host Management option allows you to centrally manage multiple hosts if required and is used if the user needs to add and manage multiple hosts or need to troubleshoot. Otherwise, the general user does not need to operate this interface.
  • Page 15 P a g e | 15 4.1.1 ADD NEW HOST...
  • Page 16 P a g e | 16 Click on the Add Host button to enter the "Host Management/Create" interface Host name: Required, can be customized. Management IP: Required, fill in the real IP address of the host to be managed Input binding: Optional, you can fill in the bound network port of the input source, for example, the machine has two network ports eth0 and eth1 and you need to get the signal source from eth0, then you can fill in eth0 here.

  • Page 17: Capture Management

    P a g e | 17 CAPTURE MANAGEMENT For ordinary users, this option generally does not need to be modified. If the machine is equipped with an SDI capture card device, the information of the corresponding capture card will be listed in the address interface as shown below Click the "Modify"...

  • Page 18: Channel Management

    P a g e | 18 Host: The host is the machine corresponding to the capture card Type: Capture card Parameters: These are parameters of the acquisition card loaded by the system in a standard format and do not need to be modified. CHANNEL MANAGEMENT The Channel Management tab lets you to add the stream channel by specifying the Channel name, Protocol type, the source and the deinterlace option.

  • Page 19: Parameter Template

    P a g e | 19 Channel name: Fill in as desired. Protocol type: The default is generally a default protocol. Source setting: Enter the address information of the media source. Generally, the media source provider will provide the detailed information of the source address. Just paste the source address here The supported media source formats are: RTMP, RTSP, HLS, HTTP, UDP, FILE, etc.
  • Page 20 P a g e | 20 The system generally provides several commonly used templates by default. Users can click the "+ Create New Parameter” to create a new parameter to define the custom template you need The required Video, Audio and Advanced settings can be specified. Encode format: Supports h263, h264, h265, mpeg4, mpeg2, transparent etc., where transparent is transparent transmission, that is, the video source is not transcoded.
  • Page 21 P a g e | 21 Bit rate control: ABR (Average BitRate, average bit rate), VBR (Variable BitRate, dynamic bit rate), NearCBR (Near Constant BitRate, near constant bit rate), CBR (Costant BitRate, constant bit rate) Bit rate (Kbps): Video encoding bit rate. Keep Resolution: If the checkbox after "Keep Resolution"...
  • Page 22 P a g e | 22 Audio Channel: The default is Auto, the system will automatically obtain the first channel of the audio source. Audio track: The default is 0, the system will automatically select, supports three optional audio tracks Bit rate: Audio transcoding bit rate;...

  • Page 23: Alarm Logs

    P a g e | 23 ALARM LOGS The Alarm Logs shows the list of alarm notifications received for all the channels along with the Notification level, timestamp and the current state.

  • Page 24: Chapter 5 Task Management

    P a g e | 24 CHAPTER 5 TASK MANAGEMENT The Task Management tab contains the details of the task associated with each channel. This tab is used to create new task for each channel, start or stop the task related to a channel and view the notifications that arises for each task related to a channel.
  • Page 25 P a g e | 25 Once the channels are enabled under ‘Channels Mgmt’, tasks can be created for those channels to link the required profiles to each channel. Click on ‘Create Task’ for the required channel. Choose the required template that was earlier created under Parameter Template. This is indicated in the screenshot below.
  • Page 26 P a g e | 26 An example of the output address filling specification is as follows: o TS Unicast: 192.168.1.100:6666 Multicast: 223.0.0.1:5555 o TS over HTTP Output address: 192.168.1.100:8000/live Channel name: stream o HLS over http Output address: 192.168.1.100:8000/live Channel name: stream o RTP Output address: 192.168.1.100...
  • Page 27 P a g e | 27 Click on Expert/Advance for further settings.
  • Page 28 P a g e | 28 Note: The ‘Channel name’ under Storage tab should be unique for each task/profile of the channel. Likewise, the required number of tasks can be created for each channel. In the below given screenshot, 3 tasks with 3 different parameter templates are created...
  • Page 29 P a g e | 29 For each task, the below actions can be performed: Start; Modify Parameter; Delete; Notification Clicking on ‘Start’ for a particular task further expands and gives below options for that task as indicated below ➢ Stop ➢...
  • Page 30 P a g e | 30 After the tasks for the channels are created, the status of these tasks can be viewed by clicking on ‘Condition Monitoring’ icon as indicated in the below screenshot. When all tasks under a channel are not started, the condition monitoring icon in front of the channel is grey.

  • Page 31: Chapter 6 System Management

    P a g e | 31 CHAPTER 6 SYSTEM MANAGEMENT NETWORK SETTINGS You can configure the network card information of the device. Click the "Network Settings" button in the main menu on the left to enter the network settings page Under the Network Settings tab, the IP Address mode, IPV4 Address, Subnet Mask, Gateway and DNS values area to be specified for each of the ethernet ports.

  • Page 32: User Controls

    P a g e | 32 USER CONTROLS The User control tab allows you to create new users and assigning a specific set of user rights to that user. The user can be classified as either ‘Admin’ or ‘Ordinary user’ or ‘System Management’...
  • Page 33 P a g e | 33 STOP_INP →Stop Input STOP_DEC → Stop Decoding STOP_ENC → Stop Encoding STOP_SND → Stop Sending STOP_WRI → Stop Writing BACKUPSWITCH → Backup Switch The Alarm switch options can be chosen among Email Alarm, SMS Alarm and Page alert...

  • Page 34: Tlog

    P a g e | 34 TLOG The Tlog tab maintains system logs along with the username, IP and timestamp details. PASSWORD SETTINGS Passwords can be managed and changed under the Password Settings tab...

  • Page 35: Chapter 7 Troubleshooting

    CHAPTER 7 TROUBLESHOOTING All Translite Global products have been passed the testing and inspection before shipping out from factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by TRANSLITE. To prevent potential hazard, please strictly follow the operation conditions.

  • Page 36: Chapter 8 Applications
