Comfee CPC80116MBMS User Manual

Comfee CPC80116MBMS User Manual

16-in-1 programmable electric pressure cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
16-in-1
Programmable
Electric Pressure
Cooker
User Manual
CPC80116MBMS
IMPORTANT NOTE: Please read the manual carefully before
operating your product. Retain it for future reference.
(Picture are for reference only, atual product may differ from
picture shown)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPC80116MBMS and is the answer not in the manual?

Questions and answers

Related Manuals for Comfee CPC80116MBMS

Summary of Contents for Comfee CPC80116MBMS

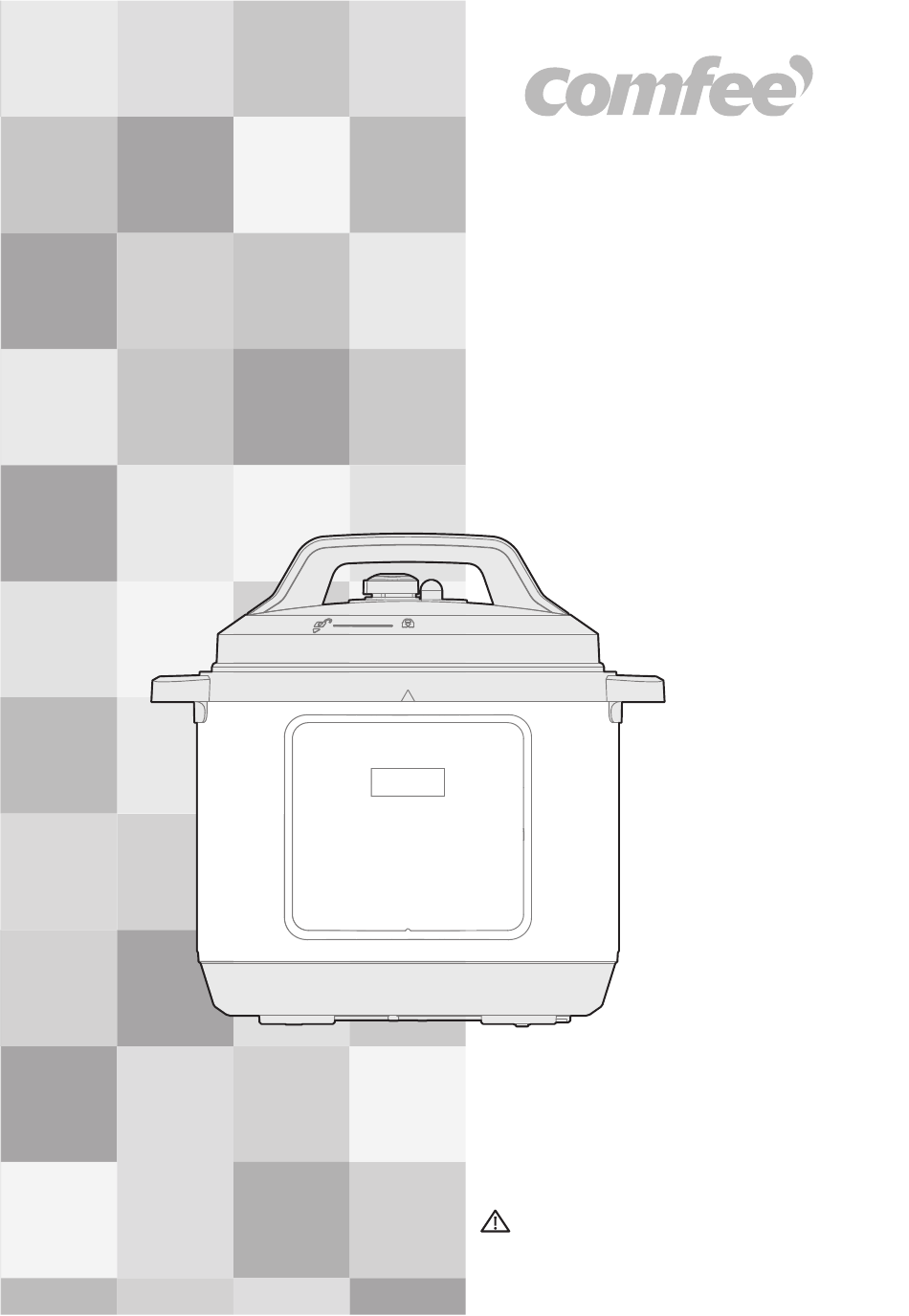

  • Page 1 16-in-1 Programmable Electric Pressure Cooker User Manual CPC80116MBMS IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference. (Picture are for reference only, atual product may differ from picture shown)

  • Page 2: Table Of Contents

    CONTENT IMPORTANT SAFEGUARDS SPECIFICATIONS COMPONENTS QUICK START GUIDE • Re OPERATION INSTRUCTIONS • For CLEANING AND MAINTENANCE TROUBLESHOOTING • Do • Ne • Clo • Ele • The • Be • Do • Do • Do...

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS CAUTION • READ ALL INSTRUCTIONS. carefully and save all the instructions. • Do not touch hot surfaces. Only use side handles or dditional protection, we recommend the use knobs for carrying or moving. power outlet with a rated current of 10A. To •...
  • Page 4 CAUTION • Do not use appliance for anything other than intended use. • This appliance cooks under pressure. Improper use may result in scalding injury. Make certain unit is properly closed before operating. Please see the “Getting Started” section. • Do not fill the appliance over 2/3 full. When cooking foods that expand during cooking such as rice or dried vegetables, do not fill the appliance over 1/2 full.
  • Page 5 • CAUTION：Risk of Electric Shock. Cook only in removable container. • This appliance is not intended for deep frying foods. “This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way.

  • Page 6: Specifications

    SPECIFICATIONS Rated Keep Warm Rated Cooking Pot Model Capacity Pressure Voltage Temperature Power Diameter CPC80116MBMS 8 Quart 120V~ 60Hz 1200W 9.45" 80kPa 167° F~203° F Spoon Soup Scoop User Steam Condensation Measuring Manual Rack Trivet Accessories...

  • Page 7: Components

    COMPONENTS Component Name Exhaust opening Pressure Release Valve Float Valve Lid Handle Sealing Ring Float Valve Stop Anti-Clog Cover Cooking pot Body Handles Control Panel Main body NOTE All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

  • Page 8: Quick Start Guide

    QUICK START GUIDE Product Structure Tips 1. Please move the product with the handle of the cooker body; 2. Please remove the water from the housing cover with cloth. NOTE 1. Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side of the exhaust valve and the exhaust valve and float valve of the lid with brush and cloth at least once a month.
  • Page 9 QUICK START GUIDE Disassemble and install the seal ring 1. Please do not pull the seal ring, otherwise, the distorted seal ring may influence the seal and pressure effect. 2. Do not use the damaged seal ring, please replace it at the autho rized repair office.
  • Page 10 QUICK START GUIDE Disassemble and install the water box 1.The water box sits at the back of the appliance base and catches any overflow from the condensation rim. It should be installed before cooking, then emptied and rinsed out after each use.

  • Page 11: Prepare For Cooking

    QUICK START GUIDE Prepare for Cooking 1. Opening the lid correctly • Hold the handle of lid, turn it anticlockwise for about 30° till the lid at unlock state, and then lift the lid. Unlock State 2. Check if the parts and accessories of lid are well installed •...
  • Page 12 QUICK START GUIDE 4. Put the Cooking Pot into the cooker • Wipe to clean the external surface of Cooking Pot, foreign object and water are not allowed on the inner surface of electric pressure cooker; • Turn the Cooking Pot to left and right to ensure good contact with the heating plate.

  • Page 13: General Function

    QUICK START GUIDE 6. Put the exhaust valve well • When working, please turn the exhaust valve to the sealing place, which means the electric pressure cooker keeps at sealing state; • For manual exhaust, please turn the exhaust valve handle to the exhaust place, the electric pressure cooker keeps at the exhaust state;...
  • Page 14 QUICK START GUIDE Safely Open the Lid 1. Cut off power supply or remove the power plug 2. Exhaust method A. Quickly open the lid (For non-fluid foods) Turn the exhaust valve to the exhaust place for exhausting, Some unit by pressing steam release button “...

  • Page 15: Operation Instructions

    OPERATION INSTRUCTIONS Operation Part Display Screen Keep Warm Button Start Cancel Button “+” Button “-” Button Menu Function Panel Function Function Operation Guidelines During function setting or delay timer setting, press " " to start heating or delay timer. During heating or delay timer "...
  • Page 16 Function Operation Guidelines In the standby mode, press the " " key, the " " key light will be on, and the display screen will display the default time and the default medium gear. At this time, you can press the " "...
  • Page 17 Function Operation Guidelines In the standby mode, press the " " key, the " " key light will be on, and the display screen will display the default temperature. At this time, press the " " key to switch the temperature or time display.
  • Page 18 COOKING MODES Default Time Time Range Default Temperature Cooking Mode Level Temperature Range Delay Time Range Auto Keep Warm Time Or Pressure High 0:45 80Kpa Pressure Cook Medium 0:40 00:01~04:00 0:10-24:00 0:10 High 3:00 Soup/Broth Medium 80Kpa 0:40 00:01~04:00 0:10-24:00 0:10 High 0:45...

  • Page 19: Cleaning And Maintenance

    CLEANING AND MAINTENANCE • Clean after each use. • Before cleaning and maintenance, please unplug the power cord and wait until the entire pressure cooker cools. • To clean the interior of the pressure cooker body, remove the lid and cooking pot.

  • Page 20: Safety Precautions

    Safety Precautions To avoid personal injury and property loss, be sure to observe the following safety precautions. • Meanings of the marks: General Disassemble Wet hands Means Forbid Forbidden Forbidden “Forbidden” Contact Spray Water items Forbidden Forbidden Means Remove the Must be “Mandatory”...
  • Page 21 WARNING A socket shall be used alone • A socket of more than 10A rated current with grounding wire shall be used alone; • If shared with other electrical appliances, the socket may cause abnormal heat and result in fire. It is strictly prohibited to use other lid •...
  • Page 22 WARNING Modification is prohibited • Modification or repair by non-professionals is prohibited. • Violation may cause a fire or electric shock. • Repair or replacement of parts shall be made in a designated service center. Products may not be immersed or sprin- kled in water •...
  • Page 23 CAUTION Never pull the plug with a wet hand • To avoid electric shock. When pulling the plug, you must pinch the plug • When pulling the plug, you must pinch the plug; • Do not pull the power cord, otherwise it will damage the cord, causing electric shock and short circuit.
  • Page 24 CAUTION The total amount of food and water can not exceed Max scale • The total amount of food and water can not exceed Max scale, otherwise food may be cooked unfamiliar, or cause malfunction. Do not use a pot other than the dedicated pot •...

  • Page 25: Clean After Use

    Safety Precautions • Periodically clean the cooker and remove oil and dirt if it is stored on the table. • Put the electric pressure cooker 30cm away from other kitchen appliances. Clean After Use 1. Clean after each use. 2. Before cleaning and maintenance, please unplug the power cord until the product cools.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.
  • Page 27 Problem Reason Solution Solution • Too little food and • Add water and food water in Cooking Pot. according to the recipe. Float valve unable to rise • Send to the service • Steam leaks from the center for repair. lid or exhaust valve.
  • Page 28 SERVICE AND SUPPORT 1 YEAR LIMITED WARRANTY g after use. g after use. after use. after use. remove plug from power outlet. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be h reduced h reduced ith reduced...
