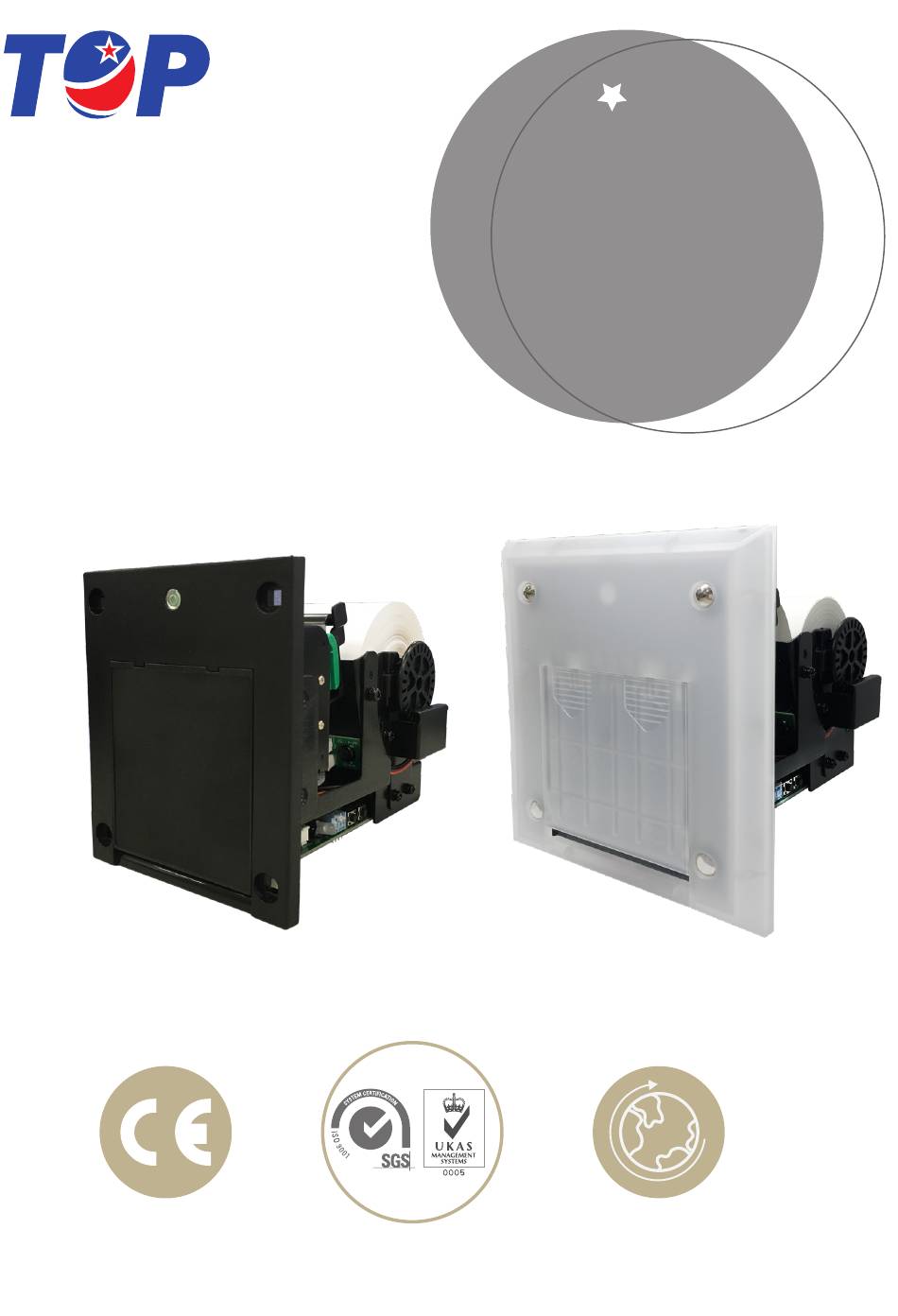

- Page 1 T G P58 s e ir e s Printer Installation Guide T han k y ou f or c h oos ing TO P VME .
-
Page 3: Table Of Contents
C o n t e n t s 1. Introduction ....................1 1-1. Overview ....................1 1-2. Features ....................1 2. Specification ....................2 2-1. General ....................2 2-2. Cutter .....................2 2-3. Thermal Print head ................2 3. Dimension .....................3 3-1. TGP58 Dimension ................3 3-2. TGP58-L Dimension ................4 4. - Page 4 7-6. Upload text ...................11 7-7. Clear diary .....................11 7-8. Cut the paper ..................11 7-9. Direct Print format graphics ............11 7-10. Print format text directly ...............11 7-11. Print Score Reports .................12 7-12. Print diary ...................12 7-13. Retrieve Software Version ............12 7-14. Read machine status ..............12...
-
Page 6: Introduction
TGP58 series 1. Introduction 1-1. Overview TGP58 system with built-in clock , local time can be set before shipment, mark the time on the printed document. Provide users with one-day and summary reports, free to choose to delete, the document has a typesetting function, users can easily download or design document formats, trademarks, etc.The document format is stored via TGP58 for future use. -
Page 7: Specification
Printer 2. Specification 2-1. General Power Source 12V DC (10.8~13.2V DC) Input/Output level HI : 12V LO : 0V DC Roll Width 56 ± 0.5 mm Installation Indoor TGP58 Standby：0.12A / 1.44W Operation：2.1A / 25.2W Maximum：2.5A / 30W Power Consumption TGP58-L Standby：0.23A / 2.76W Operation：... -
Page 8: Dimension
TGP58 series 3. Dimension 3-1. TGP58 Dimension Unit : mm [ inch ]... -
Page 9: Tgp58-L Dimension
Printer 3-2. TGP58-L Dimension 84.10 3.311 75.20 2.961 19.30 0.760 6.30 0.248 82.00 3.228 12.00 0.472 70.20 2.764 120.20 4.732 151.30 5.957 Unit : mm [ inch ]... -
Page 10: The Hardware Setup
TGP58 series 4. The hardware setup 4-1. Connection Setting Please read the table below for information on connectors : CN1: Game board POG interface cable, use standard network cable T-568B (optional). CN2 Serial Interface PIN 1- GND PIN 5- RESET PIN 2- X PIN 6- VCC (+5V DC) PIN 3- PGD... - Page 11 Printer WEL-RU082-K PLUSE MODE COLOR FEATURES SIGNAL +12VC Black Brown Coin PULSE Orange Note PULSE Yellow Payout PULSE Green Blue Error Low active HOPPER MODE COLOR FEATURES SIGNAL +12VC Black Brown Coin PULSE Orange Note PULSE Yellow HOPPER SSR Low active Green HOPPER SW PULSE...
- Page 12 TGP58 series WEL-R7U06 PIN NO COLOR PIN DEFINE PIN1 BLUE PIN NO PIN DEFINE PIN2 PIN6 WHITE PIN3 PIN7 BLACK PIN5 PIN8 PURPLE...
-
Page 13: Led And Dip Switch Setting
Printer 4-2. LED and DIP Switch Setting A.Bezel LED：Normal - LED light，Error - LED is off TGP58 TGP58-L B. Status light：Normal : LED is green ; Error : LED is red . -
Page 14: Setting Step
TGP58 series 4-3. Setting Step A. Connect the power cord to the PCBA signal J5 B. Will roll in accordance with the direction of the grating mounted to the machine roll groove . C. RS-232 interface or bill format setting : The RS232 cable connects CN2 computer terminals and printer's COM port. -
Page 15: Roll Installation Guide
Printer 6. Roll Installation Guide 1. The new paper roll into the clockwise direction. Bottom of scroll 2. The printer lever pushed clockwise. -
Page 16: Rs232 Command Format
TGP58 series 7. RS232 Command Format 7-1.Transmission Specification Transmission Method Full Duplex Transmission Transmission Speed 38400 Baud Rate Synchronizing Method Asynchronous Method Start bit 1, Data bit 8, Parity bit Data Format none, Stop bit 1 7-2. Reading the date and time Byte1 Byte2 7-3. -
Page 17: Typeset Print Function
Printer Return code : 48bytes Data received correctly All data reception is completed 7-5. Typeset print function Byte1 Byte2 Byte3~ Byte32 Data *Parameters1：Byte3,Byte5,Byte7~~~~~~~,Byte31 Information Content Blank lines Character2 Trademark Character3 Two-dimensional code Character4 Fraction Character5 date Character6 Barcode Character7 character1 Character8 *Parameters1：Byte4,Byte6,Byte8~~~~~~~,Byte32 Information Content If the parameter 1 is a trademark of a two-dimensional code, date or... - Page 18 TGP58 series 7-6. Upload text Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Byte9 Data1 Data2 Data3 Data4 Data5 Data6 Data7 Byte Byte Byte Byte Byte Byte Byte Byte Byte10 11~34 35~58 59~82 83~106 107~130 131~154 155~178 179~202 Data Data Data Data Data...
-
Page 19: Read Firmware Version
Printer Font size (width x height) Mode = B1h Mode = B2h Mode = B3h Mode = B4h Mode = B5h Mode = B6h 7-11. Print Score Reports example Byte1 Byte2 Printer will respond with 06h, indicating reception success. 7-12. Print diary Byte1 Byte2 Printer will respond with 06h, indicating reception success. - Page 21 Taiwan Top Vending Machine Electronics Co., Ltd. NO.11, Anzhong St., Luzhu Dist., Taoyuan City338, Taiwan, (R.O.C.) Phone : +886-3-3115969．Fax : +886-3-3115970 E-mail : sales@topvme.com.tw Website : www.topvme.com...
- Page 24 Top Vending Machine Electronics Co., Ltd. w w w .topv me .co m...
