INSTRUCTION MANUAL
BWM-7/R
BWM-7/R-2
BELGIAN WAFFLE MAKERS
This manual contains importatant information regarding your Adcraft unit. Please read this
manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with
regular maintenance guidelines outlined in this manual may void the warranty.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BWM-7/R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Adcraft BWM-7/R

Summary of Contents for Adcraft BWM-7/R

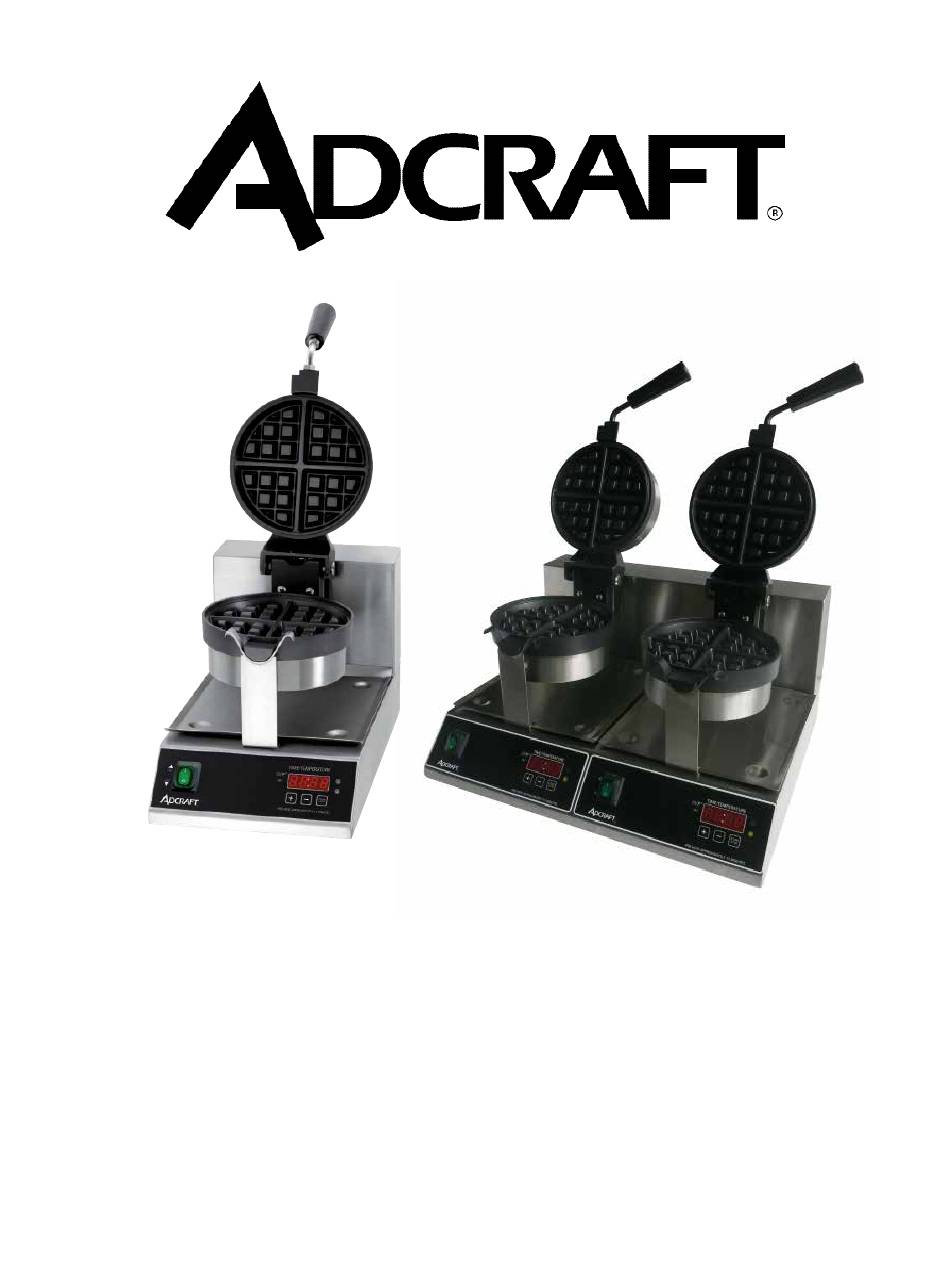

  • Page 1 BWM-7/R-2 BELGIAN WAFFLE MAKERS This manual contains importatant information regarding your Adcraft unit. Please read this manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
  • Page 2 WARNINGS • Do not touch any hot surfaces • Plug only into a 3-hole grounded electrical outlet of the appropriate voltage • Do not immerse unit, cord or plug in liquid at any time • Unplug cord from outlet when not in use and before cleaning •...

  • Page 3: Making Waffles

    MAKING WAFFLES Turn the unit on and pre-heat for 15 minutes with the waffle grids closed. To make waffles follow these instructions: 1. Spray or brush on releasing agent. 2. Lift the top lid, pour in the mix and close. Allow waffle batter to sit for 10 seconds. 3.
  • Page 4 Wiring Diagram for the Waffle Makers HEATING ELEMENT POWER CORD EARTH LINE Relay TERMINAL PROBE TRANSFORMER HEATING ELEMENT CIRCUIT PANEL POWER SWITCH LN/AC 115V/50~60Hz 1.2kW/10.5A June 2017...
  • Page 5 Parts Diagram and Replacement Parts for the Single Waffle Maker June 2017...
  • Page 6 Back Board Replacement Parts for the Single Waffle Maker Socket Screw Collision Bead Bracket for Collision Bead Spacing Board BWM-7/R - Belgian Waffle Maker 7" Round BWM-7/R - Belgian Waffle Maker 7" Round Spacing Pin Diagram Number Description Diagram Number...
  • Page 7 Parts Diagram and Replacement Parts for the Double Waffle Maker June 2017...
  • Page 8 Spacing board Spacing pin Angle spacing sleeve Replacement Parts for the Double Waffle Maker Bearing bracket Socket screw Cross screw BWM-7/R-2 - Belgian Waffle Maker - Double Round 7” Back board Diagram No. Description Diagram No. Description Upper rotating arm...

  • Page 9: Year Limited Warranty

    1-YEAR LIMITED WARRANTY Admiral Craft Equipment Corp. (the “Company”) warrants this product (the “Product”) will be free from failures in material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the Product is operated and maintained in conformity with the Owner’s Manual. This Limited Warranty is non-transferable.

This manual is also suitable for:

Bwm-7/r-2
