I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
6
I
NSTRUCTIONS

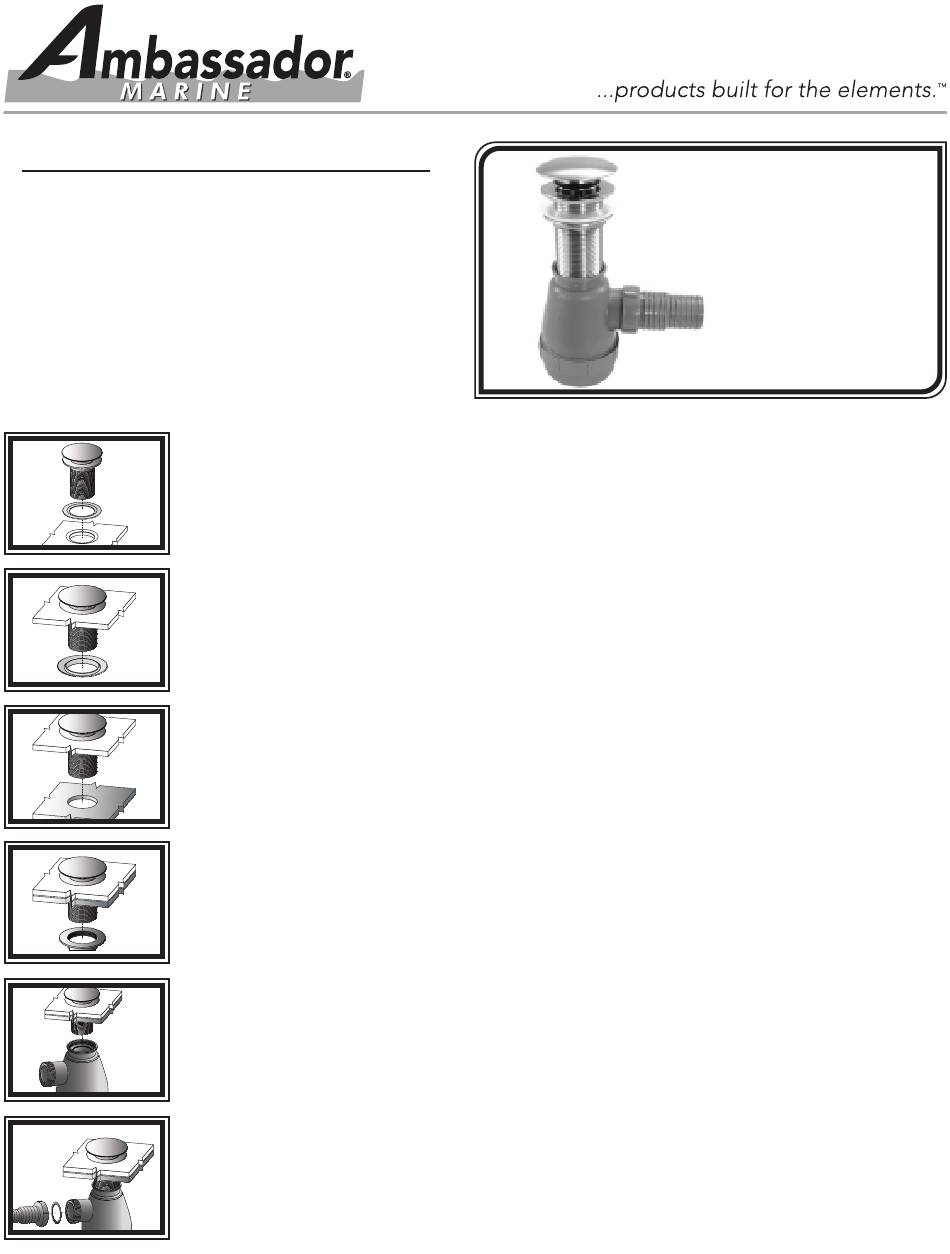

1) Set the touch body assembly with the thin gasket in the drain hole in the sink. NOTE: The
thin gasket is supplied for your convenience, however, we recommend using plumber's putty (not
included) instead of the gasket. Do not use both the gasket and plumber's putty.
2) From under the sink, slide the thick rubber gasket up onto the threaded touch body assembly
and snug against the bottom of the sink.
3) Set the sink with the drain assembly and thick rubber gasket into the counter top with the
drain going through the hole in the counter top. OPTIONAL- If you are using the optional
Mounting Base ring, slide it onto the threaded touch body assembly between the gasket and the
counter top.
4) Screw the lock nut onto the touch body assembly , but do not tighten completely.
5) Ensure the trap cup is tightly screwed onto the trap body with the rubber gaskets inside the
connection. Screw the trap body with the rubber gasket installed onto the threaded touch body
securely. Make sure the side port of the trap body is pointed in the desired direction for
connecting the waste line, rotate complete assembly if needed. Tighten lock nut, securing the
sink and drain assembly to the counter top.
6) Securely screw the hose barb onto the side port of the trap body, ensuring the rubber gasket
is properly seating inside the head of the hose barb. Slide 1 1/4" or 1 1/2" ID hose all the way
onto the hose barb. Secure hose with a stainless steel hose clamp (not included).
V03-0709-CP
V03-0709-CP-R
1
/
3
4
Touch / Trap Drain Kit
1
1
/
" & 1
1
/
" Hose Barb
4
2
Chrome
(OEM)
(Retail)
" Drain
