Summary of Contents for Ashland 950XL2

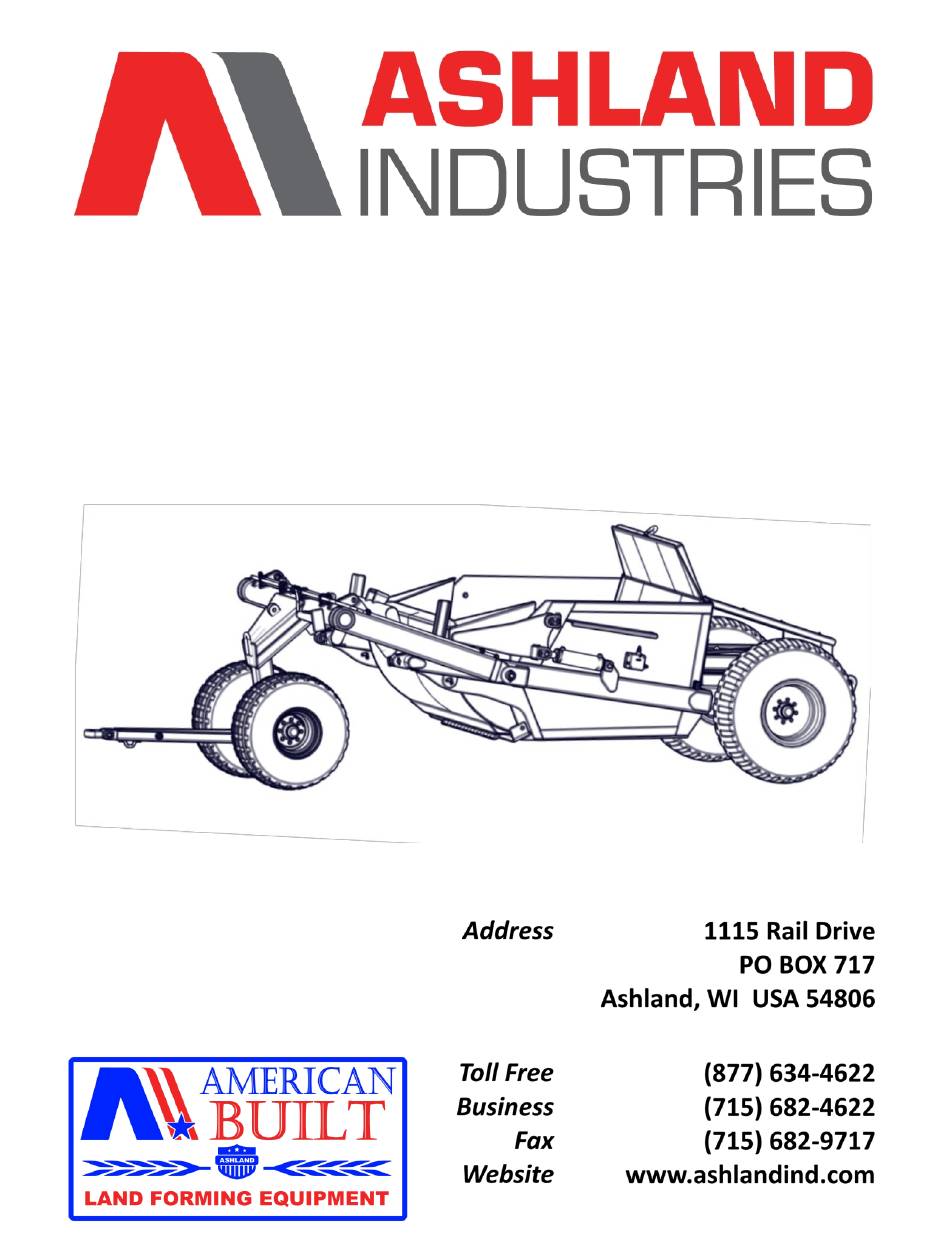

- Page 1 Parts Manual 950XL2 WG-950-003 3-22 26281+ PH: 715-682-4622 www.ashlandind.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Scraper Specifications Assembly Bowl Rear Wheel Assembly Pushoff Apron Front Section Ball/Socket Assembly Pole Front Wheel Assembly Lift Cylinder Apron Cylinder Pushoff Cylinder Transport Locks Hydraulic Lines Hydraulic Tube Clamps Manifold Decals Operation & Maintenance Safety Guidelines Tire Inflation &... -
Page 3: Introduction
Parts section drop-down. If you have questions, please feel free to call or email us. You can visit us on-line at www.ashlandind.com. Ashland Industries hours of operation are 8:00 a.m. to 5:00 p.m. CST. We can be reached toll free at: 877-634-4622. -
Page 4: Scraper Specifications
Scraper Specifications Capacity, Struck 7.5 Cubic Yards Capacity, Heaped 9.5 Cubic Yards Overall Dimensions: Length 276-1/2 Inches Width 100 Inches Height 81 Inches Apron Clearance 55 Inches Weight: Empty 8,100 Pounds Cutting Width 87-1/2 Inches Depth of Cut 8 Inches Depth of Spread 0 –... -
Page 5: Assembly
Assembly Item Part Number Description 701007 Bowl 702007 Pushoff 703004 Apron 704025 Front Section 705009 Pole PH: 715-682-4622 www.ashlandind.com... -
Page 6: Bowl
Bowl Item Part Number Description A8029A Blade: Corner 3/4" x 6" x 15-1/4" Right (4 Bolts Required) A8031A Blade: Corner 3/4" x 6" x 15-1/4" Left (4 Bolts Required) A8030 Blade: Center 3/4" x 8" x 54" Straight (6 Bolts Required) 4 –... -
Page 7: Rear Wheel Assembly
Rear Wheel Assembly Item Part Number Description A8020 Seal: Grease A9061 Bearing: Cone, Inner A8022 Bearing: Cup, Inner A125320 Stud: Wheel 5/8"-18 x 2-1/2" A125319 Hub: 8-hole A8024 Bearing: Cup, Outer A8025 Bearing: Cone, Outer A125321 Nut: Wheel 5/8"-18 A8027 Washer: Spindle 1-1/4"... -
Page 8: Pushoff
Pushoff Item Part Number Description 123214-22 Guard: Dirt Shield AFB-00015 HHCS: 1/2"-13 x 1-1/2" AFW-00009 Washer: 1/2" Flat AFW-00030 Washer: 1/2" Split Lock AFN-00011 Nut: 1/2"-13 A125021 Grease Line: 54" Ass'y. A125020 Grease Line: 32" Ass'y. A10008 Pin: 1-5/8" x 1-9/16" Long to 1-1/4" Shoulder A123306 Roller: Tapered Flange AFN-00024... -
Page 9: Apron
Apron Item Part Number Description A123343 Bushing: Spring 1-1/2" x 2" w/ Grease Hole A123362 Pin: 1-1/2" x 4-1/2" w/ Tab Head AFB-00015 HHCS: 1/2"-13 x 1-1/2" A123351 Bushing: Pin Keeper w/ Flange 600993 Pin: 1-1/2" x 4-5/8" w/ Tab Head PH: 715-682-4622 www.ashlandind.com... -
Page 10: Front Section
Front Section Item Part Number Description 601209 Socket Ass'y: 4-1/2" machined top w/ plate OPT-00001 Jack: Top Wind A123215-43 Pin: 1-1/8" x 6-3/8" w/ Square Head A125006 Pin: 1/4" x 2-1/2" Wire Snapper A8056 Pin: 1-3/4" x 7-3/4" AFB-00113 HHCS: 1/2"-13 x 3-1/2" AFN-00011 Nut: 1/2"-13 PH: 715-682-4622... -
Page 11: Ball/Socket Assembly
Ball/Socket Assembly Item Part Number Description 601233 Ball Ass'y: 4-1/2" w/ Retaining Ring AFB-00181 HHCS: 5/8"-18 x 2-1/2" AFW-00031 Washer: 5/8" Split Lock 503905 Shim: 8-Hole Spacer AFB-00005 HHCS: 3/4"-10 x 2-1/2" AFW-00002 Washer: 3/4" Split Lock PH: 715-682-4622 www.ashlandind.com... -
Page 12: Pole
Pole Item Part Number Description 601233 Ball Ass'y: 4-1/2" w/ Retaining Ring AFB-00005 HHCS: 3/4"-10 x 2-1/2" AFW-00002 Washer: 3/4" Split Lock A9062 MUST WELD - Spindle 3-1/2" Diameter A10033A Hitch: Single Lip 600053 Pin: 1-1/2" x 7-5/8" 500433 Nut: 1-1/2"-12 Nylon Insert Jam A030168-3A MUST WELD - Hitch: Swivel Yoke Ass'y A030568-1... -
Page 13: Front Wheel Assembly
Front Wheel Assembly Item Part Number Description A8020 Seal: Grease A9061 Bearing: Cone, Inner A8022 Bearing: Cup, Inner A125320 Stud: Wheel 5/8"-18 x 2-1/2" A125319 Hub: 8-hole A8024 Bearing: Cup, Outer A8025 Bearing: Cone, Outer A125321 Nut: Wheel 5/8"-18 A8027 Washer: Spindle 1-1/4"... -
Page 14: Lift Cylinder
Lift Cylinder – 400833 Item Part Number Description 400833 Cylinder: 4" x 16" A123215-43 Pin: 1-1/8" x 6-3/8" w/ Square Head 202368P Barrel: for 4” x 16” Cylinder 301981P Rod: 1-1/2” 400899P Piston: Ass’y. 4” x 1-3/8” 501010P Head: Ass’y. 4” x 1-1/2” Seal Kit 432709P Seal: Kit for 400833 PH: 715-682-4622... -
Page 15: Apron Cylinder
Apron Cylinder – 400832 Item Part Number Description 400832 Cylinder: 4" x 13" A123363 Pin: 1-1/2" x 3-3/4" w/ Square Head A123362 Pin: 1-1/2" x 4-1/2" w/ Tab Head AFW-00016 Washer: 1-1/2" A123351 Bushing: Pin Keeper w/ Flange AFB-00015 HHCS: 1/2"-13 x 1-1/2" 202436P Barrel: for 4”... -
Page 16: Pushoff Cylinder
Pushoff Cylinder – 400323 Item Part Number Description 202005P Barrel: for 4” x 50” Cylinder 311819P Rod: 2-1/2" 411158P Piston: Ass’y. 4" x 1-1/4" 511282P Head: Ass’y. 4" x 2-1/2" Seal Kit 432233P Kit: Seal for 400323 A9024 Pin: 1-1/4” x 4-3/4“ w/ 2 Cotter Pin Holes A8062 Pin: 1-1/4"... -
Page 17: Transport Locks
Transport Locks Item Part Number Description A030672-33 Lock: Transport A125006 Pin: 1/4" x 2-1/2" Wire Snapper 600121 Lock: Apron Pin PH: 715-682-4622 www.ashlandind.com... -
Page 18: Hydraulic Lines
Hydraulic Lines Item Part Number Description A155-H21 Tube Ass'y: Right Rear, Connected to Relief Valve A125060 Tube Ass'y: Right Side to Rear Center A125063 Tube Ass'y: Left & Right Front Section A125064 Tube Ass'y: Left & Right Front Section A125182 Tube Ass'y: Rear, Wrap Around A125183 Tube Ass'y: Left Rear to Rear Center... -
Page 19: Hydraulic Tube Clamps
Hydraulic Tube Clamps Each Tube Clamp is sold as a complete assembly. PH: 715-682-4622 www.ashlandind.com... -
Page 20: Manifold
Manifold: A125174 (950XL2 – 175XL2) Setting the Apron and Pushoff Valve The manifold block containing the Pushoff sequence valve cartridge and Apron counterbalance valve cartridge is used to control two hydraulic circuits with one hydraulic remote. When the tractor hydraulic remote is activated, oil flows first to the Apron cylinders until they are fully extended. -
Page 21: Decals
Decals Safety Decals Model Decals 750464 Decal: High Pressure ADS-00055 Decal: 950XL2 Badge ADS-00011 Decal: Pinch Point ADS-00061 Decal: 25.75 x 6” ADS-00019 Decal: Grease Daily ADS-00064 Decal: “AI” 5.5 x 3.5” ADS-00030 Decal: Turning ADS-00065 Decal: “AI” 11.5 x 7”... -
Page 22: Operation & Maintenance
Operation & Maintenance Your Ashland scraper is a durable piece of equipment and with proper care will yield many years of trouble-free operation. However, the life of your scraper can be severely shortened by poor maintenance. You must follow consistent maintenance practices and use superior quality grease and hydraulic oil (compatible with the power unit’s hydraulic system) to... - Page 23 Operation & Maintenance Scraper damage can occur if: 1. The scraper is running over the haul road with the bowl fully raised. On scrapers that have factory installed nitrogen over hydraulic accumulators, the lift cylinders should be lowered 3 to 4 inches to allow the cushioned ride to work properly. 2.
- Page 24 Operation & Maintenance Transport the scraper safely: 1. Always empty the scraper. 2. Clean all material from the exterior of the scraper. 3. Make sure all road rules are followed. 4. Use proper lighting and flagging. 5. Lower scraper bowl to provide just enough clearance over obstacles. 6.
-
Page 25: Safety Guidelines
Safety Guidelines Safety Signal Words: Please note the use of signal words such as DANGER, WARNING, and CAUTION paired with the safety messages on your scraper. The appropriate signal word for each safety message has been selected using the following guidelines: •... -
Page 26: Tire Inflation & Torque Chart
Model Front Tire Size @ 6mph Rear Tire Size @ 6mph 950XL2 16.5L-16.1 10Ply 16.9-24 8Ply NOTE: ALWAYS CONSULT THE TIRE MANUFACTURER FOR RECOMMENDED OPERATING TIRE PRESSURE (PSI). TRAVEL SPEED, GROUND MATERIAL, LOADED WEIGHT, CLIMATE CONDITIONS, ETC. SIGNIFICANTLY EFFECT THE RECOMMENDED TIRE PRESSURE. -
Page 27: Tire Service
Tire Service The task of servicing tires and wheels can be extremely dangerous and should be performed by trained personnel only, using the correct tools and following best- practice. Do not attempt to mount, demount, or inflate a tire if you do not have the proper equipment and experience to perform the job. -
Page 28: Hub Service
The bearings within the hubs of the scraper are fully greased with an EP Rated ISO 220 NLGI #2 Lithium Complex blue grease at the factory. Ashland uses a special bearing grease packer to ensure the bearing is effectively and evenly lubricated. Generous amounts of additional grease are added on both sides of the bearing prior to install within the hub. -
Page 29: Troubleshooting
Troubleshooting With proper care and maintenance, your Ashland Scraper will give many years of reliable service. When a situation arises where the earthmover performance is not satisfactory, this section will give some pointers on finding and correcting the problem. Grease zerk will not take grease: Grease zerk plugged. -
Page 30: Warranty Statement
This warranty is applicable only for the normal service life expectancy of the product or components, not to exceed one year from the date of delivery of the new Ashland Industries product to the original purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first. - Page 31 • Warranty Labor Reimbursement for labor expense to the dealer is made by payment of the established hourly shop rate. • Repair times will be reviewed by Ashland Industries and may be adjusted to average repair time required by other dealers to make similar repairs. Labor is not paid on the warranty associated with repair parts purchased by the retail customer that are used on a product that is not currently in warranty time frame.
-
Page 32: Service Bulletins
30 day period. In these cases, the dealer must notify Ashland Industries in writing of the extenuating circumstance and advise that the continued use of the product will not enlarge the warranty claim. -
Page 33: Owner Registration
30 days from the date of failure to Ashland Industries, Inc. routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid.
