LB1370
USER
MANUAL
EN
User Manual
Washing Machine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LB1370 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electrolux LB1370

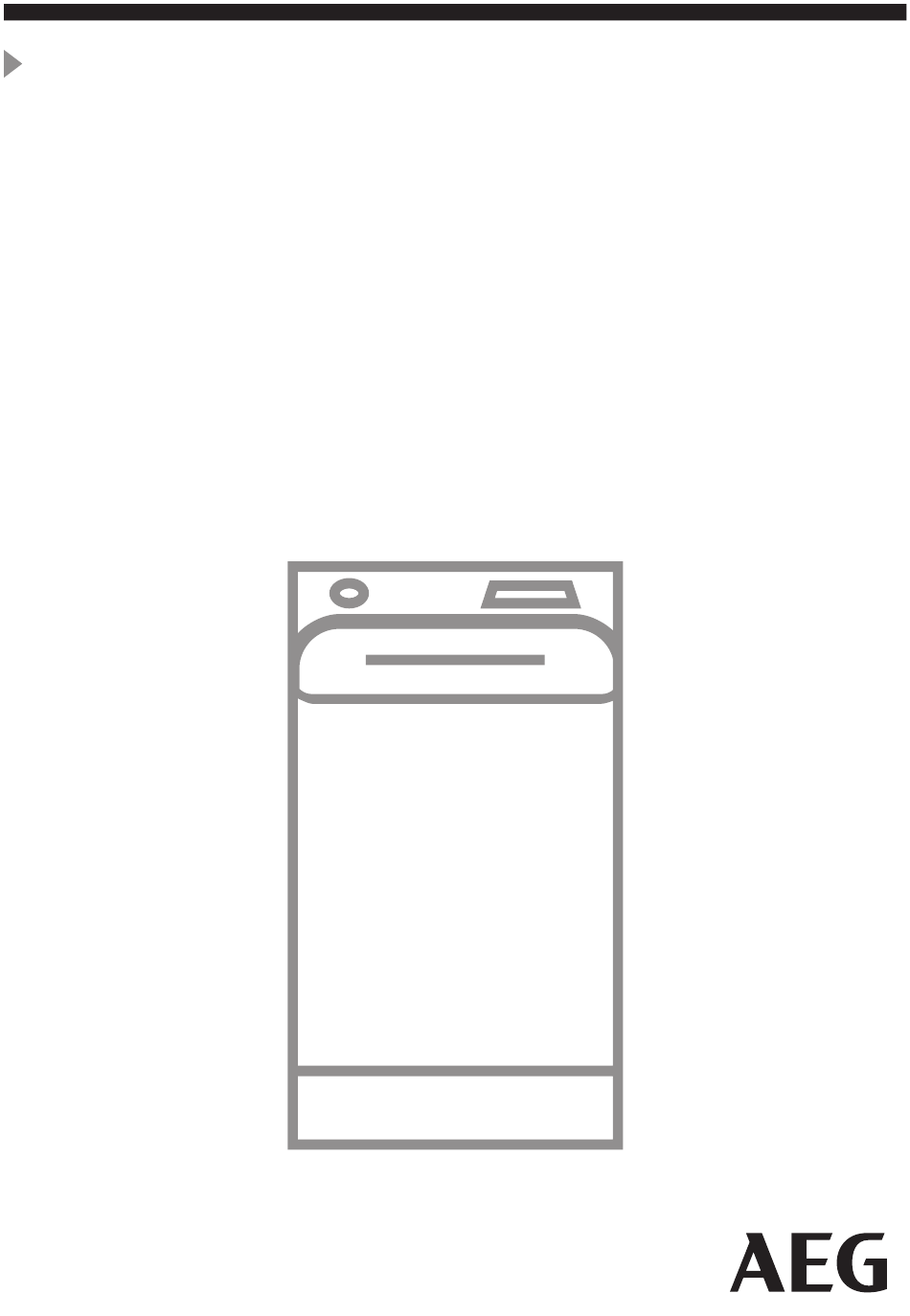

  • Page 1 LB1370 User Manual Washing Machine USER MANUAL...
  • Page 2: Table Of Contents

    www.aeg.com CONTENTS 1. SAFETY INFORMATION..................3 2. SAFETY INSTRUCTIONS..................4 3. PRODUCT DESCRIPTION...................6 4. TECHNICAL DATA....................8 5. INSTALLATION.....................8 6. CONTROL PANEL....................11 7. DIAL AND BUTTONS..................12 8. PROGRAMMES....................14 9. SETTINGS......................19 10. BEFORE FIRST USE..................19 11. DAILY USE....................... 20 12.
  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4: Safety Instructions

    www.aeg.com This appliance is intended to be used in household • and similar applications such as: staff kitchen areas in shops, offices and other – working environments; by clients in hotels, motels, bed & breakfast and – other residential type environments; areas for communal use in blocks of flats or in –...
  • Page 5: Electrical Connection

    ENGLISH future they must be reattached to lock • Make sure not to cause damage to the drum to prevent an internal the mains plug and to the mains damage. cable. Should the mains cable need to • Always take care when moving the be replaced, this must be carried out appliance as it is heavy.
  • Page 6: Product Description

    www.aeg.com • Do not put flammable products or hinge and seals, other seals, door items that are wet with flammable locking assembly, plastic peripherals products in, near or on the appliance. such as detergent dispensers. Please • Do not wash fabrics which are heavily note that some of these spare parts soiled with oil, grease or other greasy are only available to professional...
  • Page 7: Appliance Overview

    ENGLISH 3.2 Appliance overview 9 10 Control panel Drain hose Mains cable Lid push handle Transit bolts Drain pump filter Hose support Feet for levelling the appliance Rating plate Inlet hose Information for register product. The rating plate reports the model name The info label reports the model name (A), (A) , product number (B), electrical product number (B ) and serial number (C).
  • Page 8: Technical Data

    www.aeg.com 4. TECHNICAL DATA Dimension Width/ Height/ Total depth 39,7 cm /90,8 cm /59,9 cm Electrical connection Voltage 230 V Overall power 2200 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles and IPX4 moisture ensured by the protective cover, except where the low voltage equipment has no protection against mois‐...
  • Page 9: The Inlet Hose

    ENGLISH We recommend that you keep the packaging and the transit bolts for any transport of the appliance. Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates. WARNING! Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.
  • Page 10: Water Drainage

    www.aeg.com 5.3 Water drainage min.600 mm max.1000 mm The drain hose should stay at a height of no less than 600 mm and not more than 1000 mm. You can extend the drain hose to maximum 4000 mm. Contact the authorised service centre for the other drain hose and the extension.
  • Page 11: Control Panel

    ENGLISH 6. CONTROL PANEL 6.1 Control panel description Programme dial Spin reduction options touch button Display • No Spin option Delay Start touch button • Rinse Hold option Time Manager touch button • Night option Start/Pause touch button On/Off push button Soft Plus touch button Temperature touch button Extra Rinse touch button...
  • Page 12: Multilingual Badges

    www.aeg.com Lid locked indicator. Delay start indicator. The digital indicator can show: • Programme duration (e. g. • Delay time (e. g. • Cycle end ( • Warning code (e.g. Time Manager bars level indicator. Drum clean indicator. Child safety lock indicator. Add garments indicator.
  • Page 13: Permanent Extra Rinse

    ENGLISH available. In some programmes the 7.3 Temperature rinses are performed with more water. When you select a washing programme, If you touch the Start/Pause the appliance automatically proposes a button, the appliance performs only default temperature. the draining phase. The indicator Cold = cold water.
  • Page 14: Delay Start

    www.aeg.com The corresponding indicator above the a quick cycle for a full load of lightly touch button illuminates and also stays soiled garments. permanently on during next cycles until this option is deactivated. very quick cycle for a smaller lightly soiled load (max.
  • Page 15 ENGLISH Programme Reference Maxi‐ Programme description Default tem‐ spin speed (Type of load and level of soiling) perature Spin load Temperature speed range range [rpm ] 1300 rpm 7 kg White cotton and coloured cotton. Normal and Cottons (1300 - heavy soil.
  • Page 16 www.aeg.com Programme Reference Maxi‐ Programme description Default tem‐ spin speed (Type of load and level of soiling) perature Spin load Temperature speed range range [rpm ] 1000 rpm 1 kg Machine washable wool, hand washable wool Wool (1000- 800) and other fabrics with «hand washing» care 40 °C symbol 40 °C - Cold...
  • Page 17 ENGLISH Programme Reference Maxi‐ Programme description Default tem‐ spin speed (Type of load and level of soiling) perature Spin load Temperature speed range range [rpm ] 800 rpm 3 kg Special programme for Denim clothing with Denim (1000 - delicate washing phase to minimize colour 30 °C 800) fading and marks.
  • Page 18 www.aeg.com Programme ■ ■ ■ ■ ■ ■ Sport ■ ■ ■ ■ ■ Outdoor ■ ■ ■ ■ ■ ■ ■ Denim Suitable detergents for washing programmes Universal Liquid Uni‐ Liquid for Delicates Programme Special versal coloureds woollens powder Eco 40-60 ▲...
  • Page 19: Settings

    ENGLISH 8.2 Woolmark Wool Care - Blue The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manu‐...
  • Page 20: Daily Use

    www.aeg.com 11. DAILY USE 11.3 Detergent WARNING! compartments. Using Refer to Safety chapters. detergent and additives 11.1 Activating the appliance 1. Measure out specified detergents and the fabric conditioner. 1. Connect the mains plug to the mains socket. 2. Put the detergent and the fabric 2.
  • Page 21: Liquid Or Powder Detergent

    ENGLISH Detergent compartment for Flap for powder or liquid detergent. washing phase. The marks MAX are the maximum 11.4 Liquid or powder levels of the quantity of detergent detergent (powder or liquid). Compartment for liquid additives (fabric conditioner, starch). The mark is the maximum level for the quantity liquid additives.
  • Page 22: Cancelling The Delay Start After The Countdown Has Started

    www.aeg.com 11.8 The SensiCare System The drain pump can operate load detection shortly before the appliance fills water. After touching the Start/Pause button: 11.7 Starting a programme with the delay start 1. The SensiCare System starts estimating the weight of the load to calculate the real programme 1.
  • Page 23: End Of The Programme

    ENGLISH If the SensiCare System has The lid unlocks and the indicator completed and the water goes off. filling has already started, 1. Press button On/Off to deactivate the the new programme starts appliance. without repeating the After five minutes from the end of the SensiCare System.
  • Page 24: Stand-By Option

    www.aeg.com The display shows the end of the last 4. Press the On/Off button for a few programme. seconds to deactivate the appliance. Turn the programme dial to set a new cycle. 11.14 Stand-by option If the dial is rotated to the "Reset" The Stand-by function automatically position , the appliance automatically...
  • Page 25: Stubborn Stains

    ENGLISH 12.2 Stubborn stains • unsatisfactory washing results, • the wash load to turn grey, For some stains, water and detergent is • greasy clothes, not sufficient. • mould in the appliance. We recommend that you pre-treat these Excessive detergent may cause: stains before you put the items in the •...
  • Page 26: Care And Cleaning

    www.aeg.com 13. CARE AND CLEANING and the valve filter' paragraphs. If WARNING! necessary, please contact the Authorised Refer to Safety chapters. Service Centre. 13.1 Periodic cleaning 13.3 External cleaning schedule Clean the appliance with mild soap and warm water only. Fully dry all the Periodic cleaning helps to extend the surfaces.
  • Page 27: Cleaning The Drum

    ENGLISH 13.6 Cleaning the drum 3. Add a small quantity of powder detergent into the empty drum, in Regularly examine the drum to prevent order to rinse out any left residues. unwanted deposits. Occasionally, at the end of a Rust deposits in the drum may occur due cycle the display may show to rusting foreign body in the washing or the icon...
  • Page 28: Cleaning The Drain Filter

    www.aeg.com 13.10 Cleaning the drain filter Always keep a rag nearby to dry up any water spillages when removing Regularly check the drain pump filter and the filter. make sure that it is clean. Clean the drain pump if: • The appliance does not drain the water.
  • Page 29: Emergency Drain

    ENGLISH 13.11 Emergency drain 1. Disconnect the mains plug from the mains socket. If the appliance cannot drain the water, 2. Close the water tap. carry out the same procedure, described 3. Put the two ends of the inlet hose in in 'Cleaning the drain pump' paragraph.
  • Page 30 www.aeg.com • Make sure that the sink spigot is not clogged. • Make sure that the drain hose has no kinks or bends. The appliance does • Make sure that the drain filter is not clogged. Clean the filter, if not drain the water.
  • Page 31 ENGLISH Problem Possible solution • Make sure that the couplings of the water hoses are tight and there is not water leakages. There is water on the • Make sure that the water inlet hose and the drain hose have floor.
  • Page 32: Consumption Values

    www.aeg.com 15. CONSUMPTION VALUES 15.1 Introduction See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
  • Page 33 ENGLISH Eco 40-60 pro‐ Litres h:mm °C gramme Quarter load 0.400 2:40 1251 1) Maximum spin speed. Power consumption in different modes Off (W) Stand-by (W) Delay start (W) 0.48 0.48 4.00 Time to Off/Standby mode is 15 minutes maximum. 15.4 Common programmes These values are indicative only.
  • Page 34: Quick Guide

    www.aeg.com 16. QUICK GUIDE 16.1 Daily use Connect the mains plug to the mains 2. Set the desired options (1) by means socket. of the corresponding touch buttons. To start the programme, touch the Open the water tap. Start/Pause (2) button. Load the laundry.
  • Page 35: Guarantee

    ENGLISH Programmes Load Product description Delicate fabrics such as acrylics, viscose, pol‐ Delicates 2 kg yester items. Cotton and synthetic lightly soiled items or Rapid 14min 2 kg once worn items. All fabrics, except woollens and very delicate Rinse 7 kg fabrics.
  • Page 36: Environmental Concerns

    www.aeg.com Point of Service Morgenstrasse 131 3018 Bern Langgasse 10 9008 St. Gallen Am Mattenhof 4a/b 6010 Kriens Schlossstrasse 1 4133 Pratteln Comercialstrasse 19 7000 Chur Spare parts service Industriestrasse 10, guarantee covers the costs of materials, 5506 Mägenwil, Tel. 0848 848 111 labour and travel.
  • Page 40 www.aeg.com/shop...
