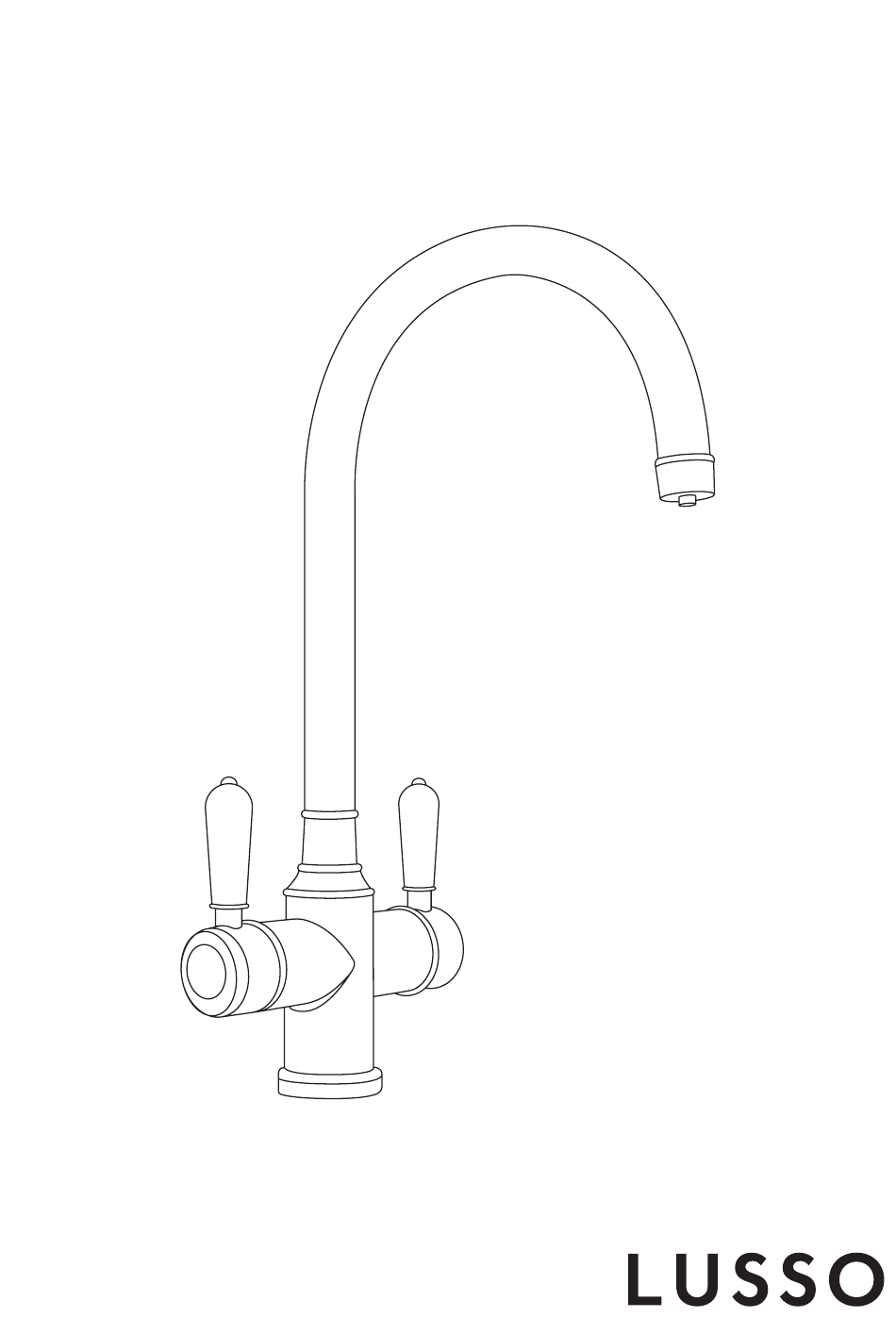

- Page 1 FILTRATA FIL6 0 0 4-IN -1 B O I L I NG WAT ER TAP INSTA LL AT I O N AN D CAR E G UID E Please retain for future reference...
- Page 3 INTRODUCTION Thank you for purchasing the Filtrata 4-in-1 Boiling Water Tap. We’re excited for you to save space, time and water with its optimal design, and enjoy the convenience of having hot, cold, filtered and boiling water available in an instant. Please read this guide carefully before installing, using and cleaning your Filtrata, and retain it for future reference.
-
Page 4: Product Kit
PRODUCT KIT Your Filtrata 4-in-1 Boiling Water Tap conforms to CE regulations, and is provided in three boxes: Lusso Filtrata 4 in 1 Tap (Code: FIL600) Lusso Filtrata Boiler (Code: FIL402-2.4L) Lusso Filtrata Filter Kit (Code: FIL401-CAR) Lusso Filtrata Tap... -
Page 6: Technical Specification
TECHNICAL SPECIFICATION Product Type Kitchen Taps Main Construction Material Brass; ABS Mount Type Deck Lever Type 1 Hot and Cold Water Lever, 1 Boiled and Filtered Water Lever. Connection Inlet G ½” BSP Flexi Tails Number of Tap Holes Tank Capacity 2.4 Litres Temperature Settings 6 Setting;... -
Page 7: Before Installation
BEFORE INSTALLATION Please note that the Filtrata must be installed by a qualified electrician and plumber to avoid invalidating your product guarantee. Prior to installation, please ensure that you’ve received all the listed parts and check that all the parts are free from damage - parts reported as damaged after installation will not be replaced. -
Page 8: Installation Steps
INSTALLATION STEPS Feed the hot, cold and boiling hoses through baseplate (D) and base seal (E), then through the pre-drilled 35-40mm hole. Next, put the tap in position in the 35-40mm hole. Working inside the cabinet, slide the tap stabilising ring (G), tap locking seal (H) and tap fixing plate (I) over the hoses and the two brass threads coming from the tap. - Page 9 Installation Guide COLD T-PIECE -L FILTER...
- Page 10 Installation Guide COLD FILTER...
- Page 11 Installation Guide CABINET HANDLE FOR HANDLE FOR WORKTOP STEAMING & COLD/HOT WATER FILTERED WATER SILVER INLET HOSE FOR FILTERED QUICK CONNECTOR WATER SUPPLY TRANSPARENT RUBBER HOSE FOR BOILING WATER SUPPLY QUICK COLD CONNECTOR WATER IN WATER OUT T-PIECE TEMPERATURE ADJUSTMENT SWITCH BOILER FILTER...
- Page 12 USING THE FILTRATA TAP Get instant access to the water of your choice with the Filtrata’s easy-to-use design - just follow the markings on the lever: Hot and cold water For standard hot and cold tap water, push the right-hand lever to the right, then pull it towards you for hot water and push it backwards for cold water.
- Page 13 COLD WATER BOILING FILTERED WATER...
- Page 14 OPERATING THE FILTRATA BOILER To turn the boiler on or off, tap the on/off button once to switch the boiler on and tap it again to turn it off. To set the water temperature, tap the temperature button to scroll through different temperature settings.
- Page 15 Temperature Control On/Off Confirm Temperature Temperature Display Filter Indicator Heating Indicator Set Temperature Indicator Heating Display...
-
Page 16: Care Instructions
Filtrata filter is changed every 6 months to protect the tank from limescale build up. In hard water areas the filter may need to be replaced more often. Replacement filters are available at www.lusso.com To activate your guarantee visit lusso.com CHANGING THE FILTER 1. -
Page 17: Troubleshooting
TROUBLESHOOTING If your Filtrata tap isn’t working correctly, please check the table below for guidance on how to resolve potential issues. If the problem persists, our team is on hand to help - please contact us on 020 3370 4057. CAUSE REMEDY No boiling water. - Page 18 TROUBLESHOOTING CONTINUED FAULT CAUSE REMEDY Water is not hot. The boiler is unplugged. Make sure the appliance is plugged in and the display is lit. Make sure the circuit breaker and fuse are working correctly. Ensure the boiler is The boiler is not plugged in and turned switched on.
- Page 19 Flexible hoses kinked Ensure pipes are not or blocked. twisted or restricting flow. Boiler blocked. Contact Lusso on: 020 3370 4057. If you need any further guidance, our Customer Service team is on hand to help - call 020 3370 4057.
- Page 20 FIND OUT MORE Customer Care: 020 3370 4057 International: +44 20 3370 4057...
