User Manual
Radiant Cooktop
Models MEC5430
& MEC5536
I YrAG
"]
403 WEST FOURTH STREET, NORTH • NEWTON, IA 50208,.,._
IMPORTANT-
SAVE FOR THE LOCAL ELECTRICAL
INSPECTOR'S
USE
IMPORTANT:
Installation should be performed only by an authorized
Maytag Service Contractor or other qualified
installer. Read safety precautions in the Use & Care Manual before using this appliance.
(Dimensions shown in both inches and centimeters)
FOUR-ELEMENT
RADIANT
COOKTOPS
DIMENSIONS
inches
cm
A
29-1/16
+ 1/16
74.0 + 0.2
B
20-3/8
+ 1/16
51.9 +0.2
C
2-1/8 min.
5.4
D
4-1/8 min. clear
10.5
E
29-15/16
76.0
F
21
53.3
G
3-3/4
9.5
NOTE: "D" is clearance needed for unit depth measure down from top of countertop.
Typical for all units.

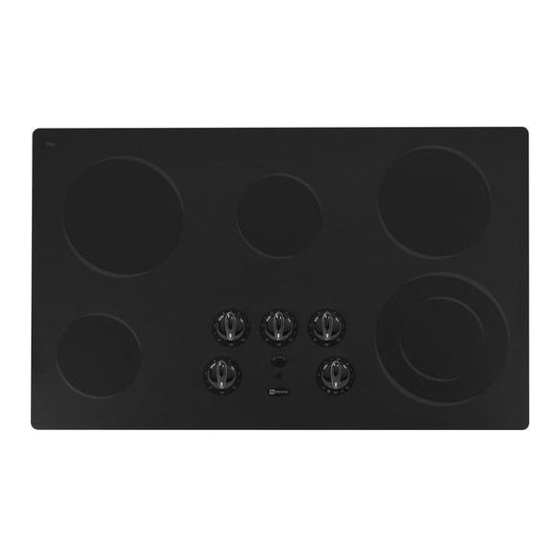

FIVE-ELEMENT
RADIANT
COOKTOPS
DIMENSIONS
inches
cm
A
34-9/16
+ 1/16
87.9 + 0.2
B
20-3/8
+ 1/16
51.9 +0.2
C
2-1/8 min.
5.4
D
4-1/8 min. clear
10.5
E
35-5/16
89.7
F
21
53.3
G
3-3/4
9.5
UNITS PROVIDED WITH 1/2" (1.3 cm) I.D. FLEXIBLE CABLE 48" (121.9 cm) LONG WITH 6" (15.2 cm) WIRE LEADS
AT END, FURNISHED AND INSTALLED BY MANUFACTURER
(CONNECT TO 240/120 VOLT ELECTRICAL SERVICE).
INSTRUCTIONS
TO INSTALLER:
* Side Clearance
- unit may be safely installed as near as 0" (0 cm) from a side wall if space limitations requires.
Notice
To Installer:
Leave these instructions
with the appliance.
Notice
To Consumer:
Retain these instructions
for future reference.
8101 P478-60
(09-02-00)
