5A20N

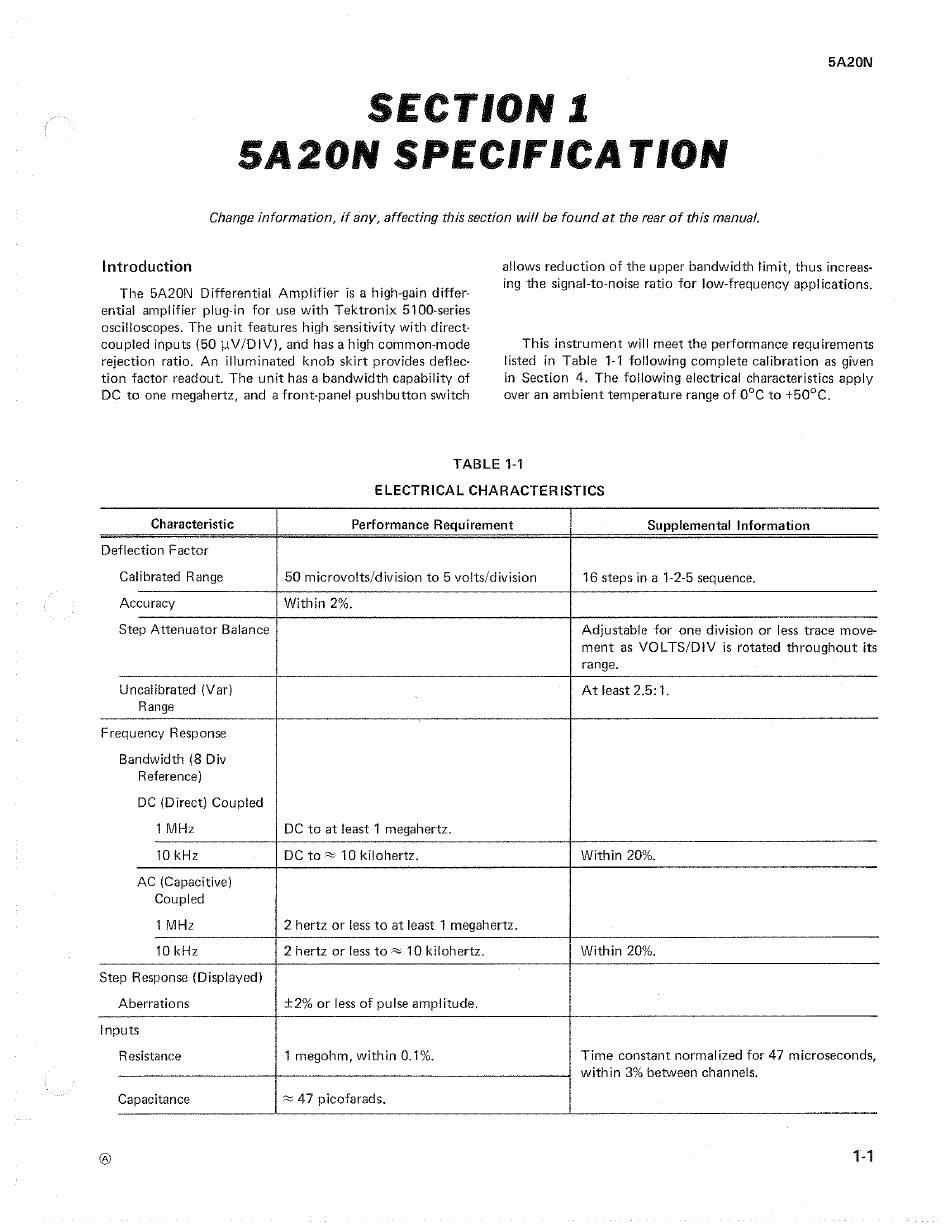

SECTION 1
5A20N SPECIFICATION
Change information, if any, affecting this section will be found at the rear of this manual.
The 5A20N Differential Amplifier is a high-gain differ-
ential amplifier plug-in for use with Tektronix 5100-series
oscilloscopes. The unit features high sensitivity with direct-
coupled inputs (50 :.V/DIV}, arid has a high common-mode
rejection ratio. An illuminated knob skirt provides deflec-
tion factor readout. The unit has a bandwidth capability of
DC to one megahertz, and a front-pane! pushbutton switch
allows reduction of the upper bandwidth limit, thus increas-
ing the signal-to-noise ratio for low-frequency applications,
This instrument will meet the performance requirements
listed in Table 1-1 following complete calibration as given
in Section 4. The following electrical characteristics apply
over an ambient temperature range of O°C to +50°C,
TABLE 1-1
ELECTRICAL CHARACTERISTICS
Performance Requirement
Supplemental Information
Deflection Factor
Calibrated Range 50 microvolts/division to 5 volts/division
16 steps in a 1-2-5 sequence,
Accuracy Within 2%.
Step Attenuator Balance Adjustable for one division or less trace move-
ment as VOLTS/DIV is rotated throughout its
Uncalibrated (Var) At feast 2.5:1,
Range
Frequency Response
Bandwidth (8 Div
Reference}
DC (Direct) Coupled
1 MHz DC to at feast 1 megahertz.
10 kHz DC to © 10 kilohertz. Within 20%,
Coupled
1 MHz 2 hertz or less to at least 1 megahertz.
10 kHz 2 hertz or less to ~ 10 kilohertz. Within 20%.
Step Response (Displayed)
Aberrations £2% or less of pulse amplitude,
Resistance 41 megohm, within 0.1%.
Time constant normalized for 47 microseconds,
within 3% between channels.
Capacitance w 47 picofarads.
1-1
