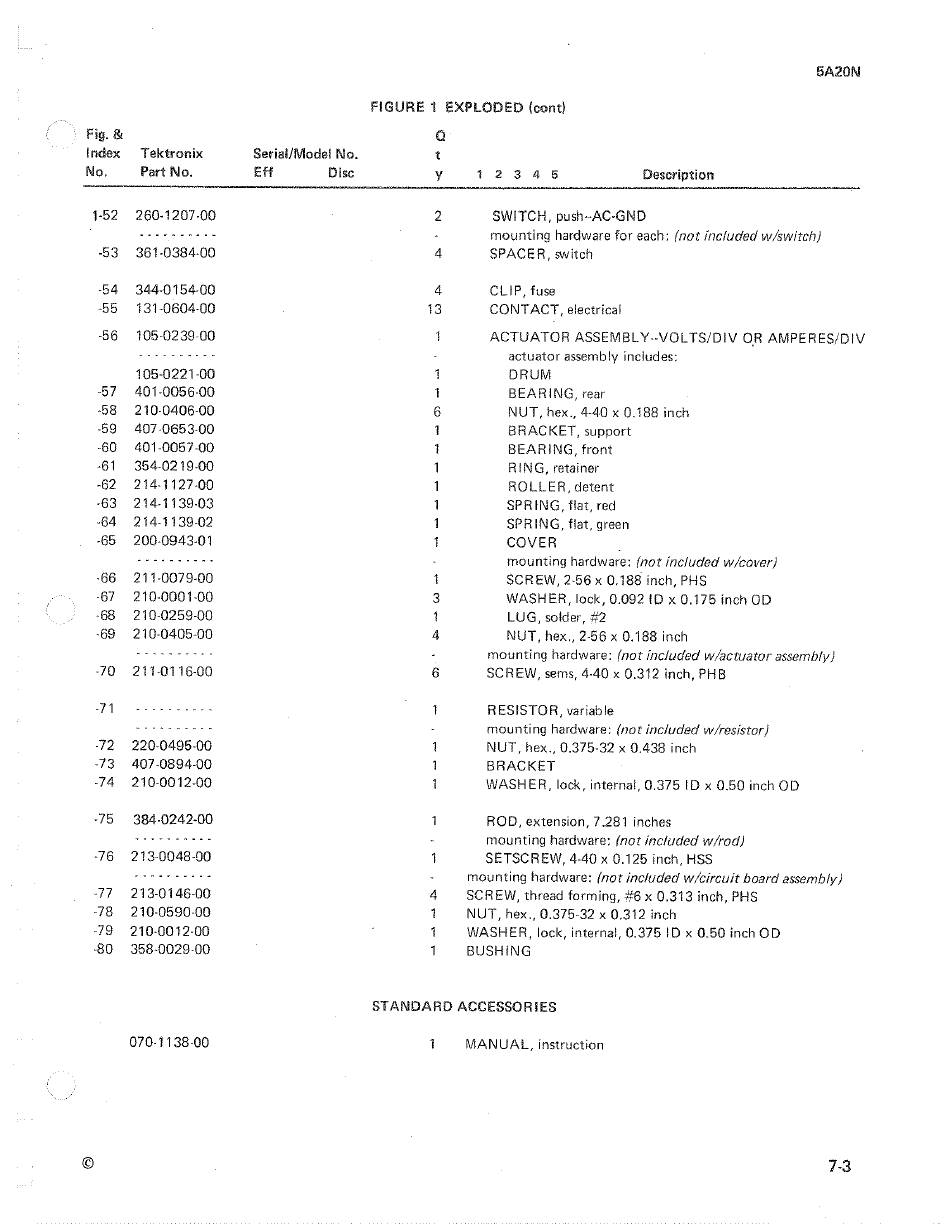

Tektronix 5A20N Instruction Manual page 41

5A20N
4-62 260-1207-00 2 SWITCH, push--AC-GND
pete ee - mounting hardware for each: (not included w/switch})
63 361-0384-00 4 SPACER, switch
-B4 344-0154-00 4 CLIP, fuse
-65 131-0604-00 13 CONTACT, electrical
verte - actuator assembly includes:
105-0221-00 1 DRUM
-57 401-0056-00 i BEARING, rear
-60 401-0057-00 1 BEARING, front
-61 364-0219-00 1 RING, retainer
62 214-1127-00 1 ROLLER, detent
63 214-1139-03 1 SPRING, flat, red
64 214-1139-02 1 SPRING, flat, green
-68 210-0259-00 1 LUG, solder, #2
-78 210-0012-06 1 WASHER, lock, internal, 0.375 ID x 0.50 inch OD
© 7-3
