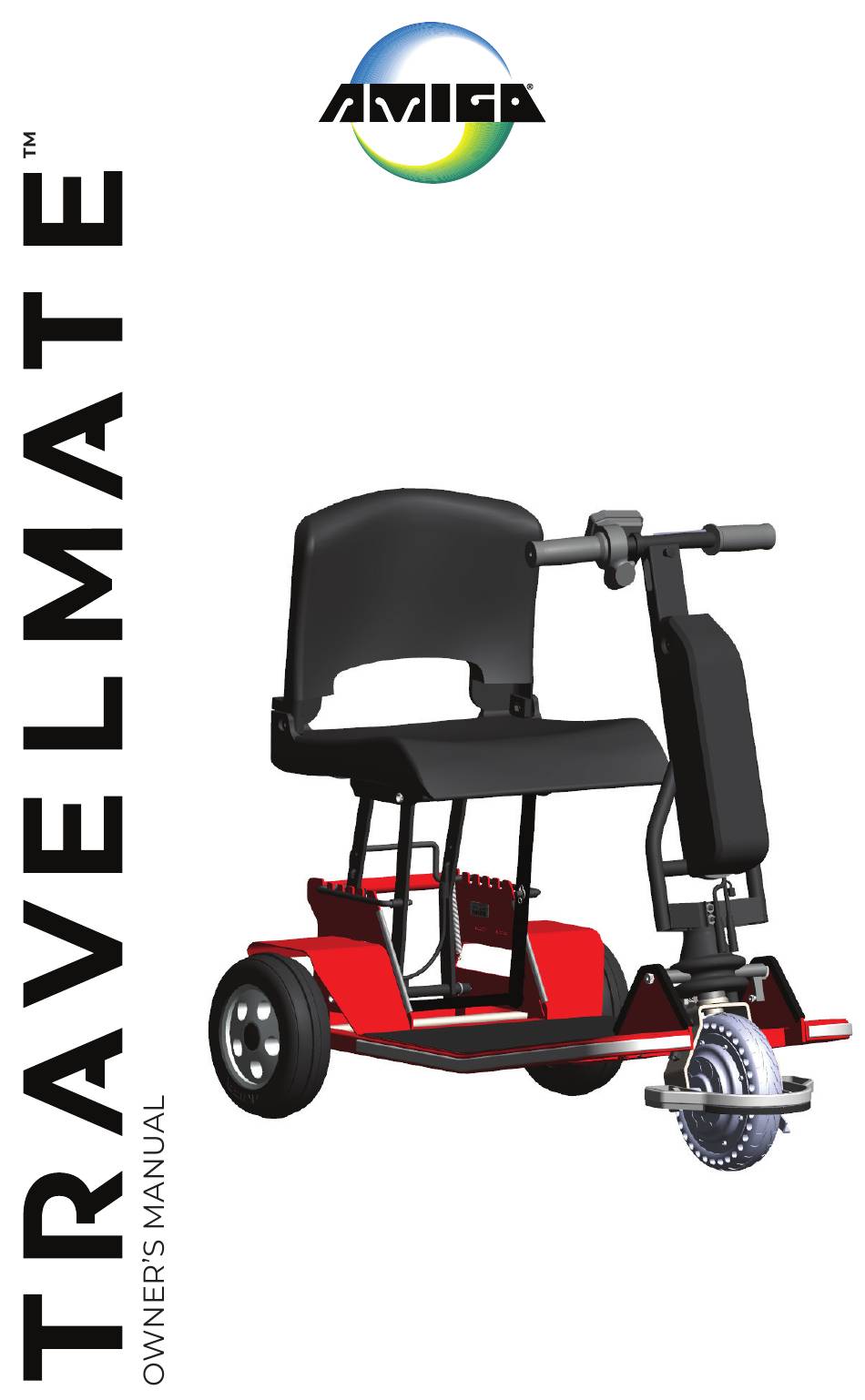

Amiga TRAVELMATE Owner's Manual

Hide thumbs Also See for TRAVELMATE:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRAVELMATE and is the answer not in the manual?

Questions and answers

Related Manuals for Amiga TRAVELMATE

Summary of Contents for Amiga TRAVELMATE

  • Page 2: Safety First

    SAFETY FIRST For your convenience and understanding, signal words are defined below: WARNING Warning is used to indicate the presence of a hazard, which can cause severe personal injury, death or substantial property damage if the warning is ignored. CAUTION Caution is used to indicate the presence of a hazard, which will or can cause personal injury or property damage if the caution is ignored.
  • Page 3 SPECS Drive system Front hub motor Platform Steel Weight capacity 250 lbs (114 kg) Speed Variable 0-4.5 mph* (0-7.24 kph) Batteries Lithium-ion 24-volt 10 amp Mileage 8 miles* (12.8 km) Charger Offboard, 24V charger Seat Folding Front tire 8.5” Flat-free (21.59 cm) Rear tire 9”...

  • Page 4: Safety Guidelines

    SAFETY GUIDELINES Use the following guidelines for the safe operation and use of your Amigo. Should you have any questions about the safe operation of your vehicle, please contact Amigo. If you are in doubt about your ability to operate your Amigo, consult your personal physician.
  • Page 5 SAFETY GUIDELINES CONT. DO NOT • Do not exceed the maximum weight capacity of 250 pounds (113 kg). Exceeding the weight capacity voids your warranty and may result in personal injury and damage to your Amigo. Amigo Mobility will not be responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 6 Carefully open the box 2. Remove the battery from the box and set aside 3. Lift the TravelMate out of the box and onto the floor 4. Unhook the retaining cord from the peg on the handle 5. Lift the TravelMate tiller handle up until you hear a click 6.
  • Page 7 D. Carefully guide the handle bar down until it rests against the folded seat E. Wrap the retaining band around the small peg on the handle to keep the TravelMate shut.
  • Page 8 3. Drive switch 7. Battery key lock 4. On / Off key switch 8. Retaining band peg For forward momentum: While the TravelMate is at a complete stop, depress on the drive switch (3) and twist down on the throttle grip (5).
  • Page 9 Push too fast (PTF) safety feature: PTF helps prevent “run-away” situations, while in freewheel mode. The faster the TravelMate is pushed in any direction, the more resistance is felt. CAUTION Turn key switch “off” when getting on or off the TravelMate.

  • Page 10: Battery Information

    It is highly encouraged to charge the battery whenever it is not in use, as the TravelMate has a built in overcharge protection feature. It is a common misconception that a battery should be deeply discharged before recharging –...
  • Page 11 CHARGING THE TRAVELMATE Park the TravelMate near a wall outlet and turn it off. Connect the charge cord to the left side of the battery (A), then plug into the wall outlet (B). The charge cord can be left connected to the batteries after full charge without harming the batteries.
  • Page 12 CLEANING THE TRAVELMATE Tires: The tires should be cleaned with a gentle cleaner and a damp cloth. Don’t use solvents on tires as they cause tire material to break down or become too soft. Platform: The platform of the Amigo is constructed of aluminum and coated with a durable automotive type finish.
  • Page 13 MAINTAINING THE TRAVELMATE Daily • Charge batteries at the end of every day when the Amigo is used. Charge the batteries until fully charged to ensure proper battery operation. Monthly: • Inspect batteries for any cracks or damage of any kind.

  • Page 14: Electromagnetic Interference

    ELECTROMAGNETIC INTERFERENCE WARNING Radio wave sources may affect power-operated vehicle (POV) control. Follow the warnings listed below to minimize your risk to EMI. The driving performance of your Amigo can be influenced by electromagnetic fields, such as those emitted by cell phones and other devices.
  • Page 15 ELECTROMAGNETIC INTERFERENCE CONT. cellular telephones and other personal communication devices. Note: Some cellular devices transmit signals while they are ON, even when not in use. 2. Medium-range mobile transceivers, such as those used in police cars, fire trucks and taxis - usually have the antenna mounted on the outside of the vehicle.
  • Page 16 Improving Lives Through Mobility ® Amigo Mobility 6693 Dixie Highway, Bridgeport, MI 48722 1-989-777-0910 info@myamigo.com myamigo.com 0223-R3...
