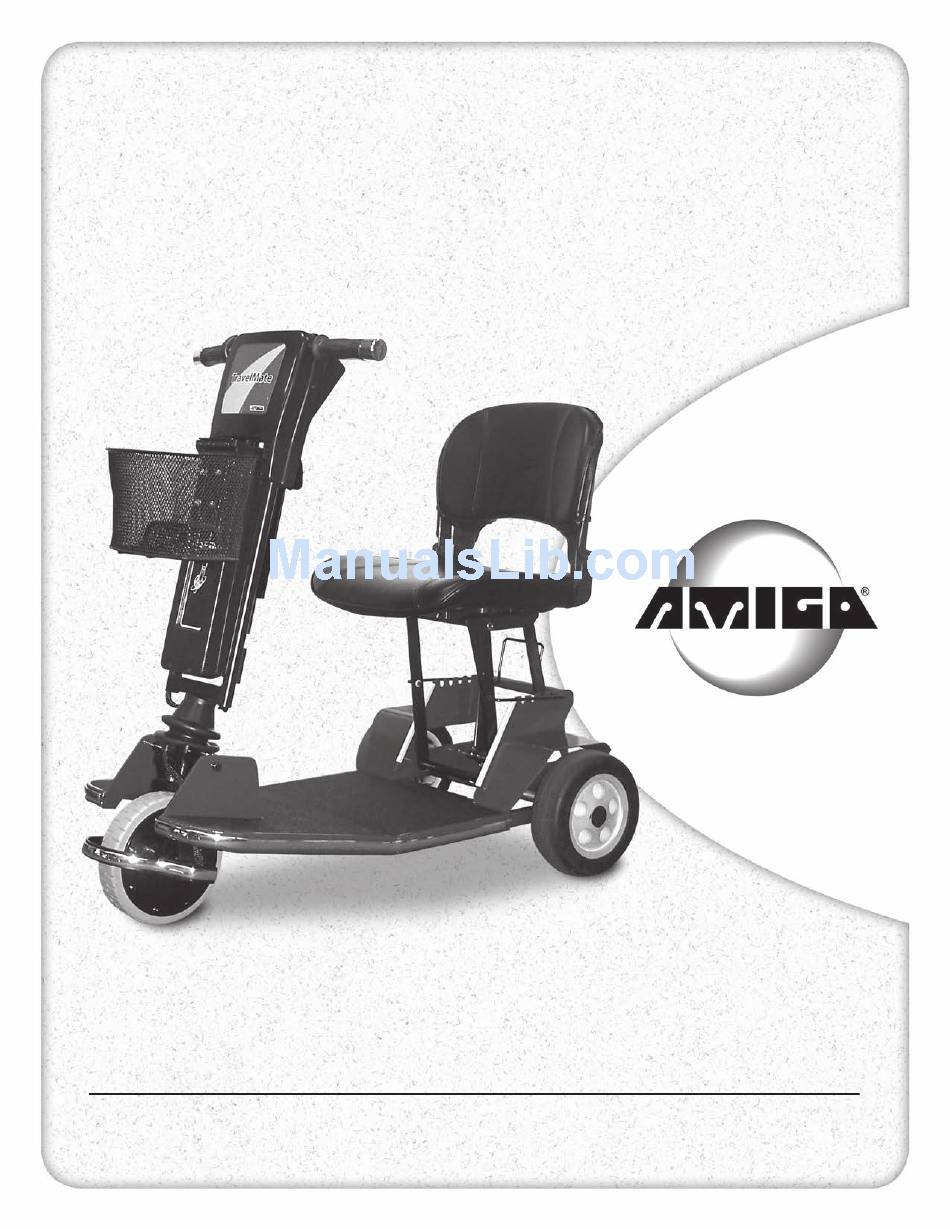

- Page 1 TRAVELMATE™ III Owner Operational Manual Serial Number: Purchase Date: Read This Manual Before Operating...
-
Page 2: Table Of Contents
Table of CoNTeNTS A new industry began in 1968 when Amigo Safety first revolutionized mobility for people with walking limitations. Amigo Power Operated Vehicles (POVs) Location of Controls quickly became a household name for their ease of operation and maneuverability. Ever since our first Identification of Parts creation, Amigo Company has worked hard to bring comfort, freedom and satisfaction to our many... -
Page 3: Safety First
SAfETy fIRST For your convenience and understanding, signal words are defined below: WArnIng IS USED TO InDICATE ThE PrESEnCE OF A hAzArD, WhICh CAn CAUSE SEVErE PErSOnAL InjUrY, DEATh Or SUBSTAnTIAL PrOPErTY DAMAgE IF ThE WArnIng IS IgnOrED. CAUTIOn IS USED TO InDICATE ThE PrESEnCE OF A hAzArD WhICh WILL Or CAn CAUSE MInOr PErSOnAL InjUrY Or PrOPErTY DAMAgE IF ThE WArnIng IS IgnOrED. -
Page 4: Location Of Controls
• Do not operate your Amigo near stairs, steps, curbs or terraces where you might accidentally drop a wheel off the edge. • Do not operate your Amigo on streets or other areas with vehicular traffic. • Do not use the tiller to assist in transferring. • Do not lift rear section of platform by holding the rear wheel. • Do not expose your Amigo to spray-on cleaning solutions and excessive moisture such as spraying it with a garden hose, shower or leaving it uncovered in heavy rain. AMI is not responsible for any damage or injury incurred due to the improper or unsafe use of the POV. AMI specifically disclaims responsibility for any bodily injury or property damage that may occur during any use, which does not comply with applicable federal, state or local laws or ordinances. -
Page 5: Folding/Unfolding Your Amigo
foLdIng/UnfoLdIng yoUR AMIgo Folding IMPoRTAnT- Remove key before folding Amigo! 1. remove basket. (Figure 1) 2. Unplug battery connection using black battery power connector handle. Firmly grip handle and lift straight up to unplug. note: Lifting on the end of the handle only will not unplug the battery connection. 3. -
Page 6: Operating Your Amigo
Amigo is able to be pushed easily, but again, for only a few feet and the cycle repeats itself. If it is necessary to push the TravelMate III for an extended distance, unplug the battery connector, remove the battery case and wait 30 seconds to bypass the PTF feature. -
Page 7: Safety Warnings
Any straps should be secured to non-removable parts of the Amigo (i.e. platform). Even when strapped down, Amigos should not be used as seats in private or public transporting vehicles. To transport your Amigo TravelMate III: IMPORTANT - Remove key before folding Amigo! 1. -
Page 8: Battery Information
BATTERy InfoRMATIon And chARgIng InSTRUcTIonS battery Information For maximum range and life, it is recommended to fully charge the batteries before using. Extended charging is good for the batteries and will not overcharge them. Amigos have an overcharge protection feature so that the batteries can be charged anytime the Amigo is not being used. -
Page 9: Battery Storage
Charger Standard Precautions • Refer to these instructions frequently. • Each time you use your charger, read and follow instructions exactly. Working in the vicinity of a battery is dangerous. Batteries generate explosive gases during normal battery operation. • Never smoke or allow an open flame in the vicinity of the battery. • use charger for charging a lead acid battery or lithium battery pack only. it is not intended to supply power to an extra-low-voltage electrical system or to charge dry cell batteries. • Do not operate charger in a closed-in area or restrict ventilation in any way. • A spark near the battery may cause explosion. To reduce risk of spark: • Prevent external damage to AC and DC cords. • When connecting charger, connect DC charging cord to the battery charge plug before connecting charger AC cord to electrical outlet. -
Page 10: Cleaning Instructions
cLEAnIng InSTRUcTIonS Tires: The tires should be cleaned with ordinary kitchen-type cleaners and a damp cloth. Don’t use solvents on tires as they cause tire material to break down or become too soft. Platform: The platform of the Amigo is constructed of aluminum and coated with a durable automotive type finish. Use cool water with mild soap to remove dirt and oils. Do not spray the entire vehicle with water. This will damage the electrical parts. - Page 11 Battery Maintenance VrLA (Valve regulated Lead Acid) deep cycle or optional lithium-ion batteries are used for operating your Amigo. They are maintenance-free and are transportable on aircraft, buses, trains, etc. as there is no danger of spillage.By following the charger and battery procedures, you can expect extended battery life.
-
Page 12: Troubleshooting/Diagnostic Codes
ASIc MPc dIAgnoSTIc codES The Amigo is equipped with an ASIC MPC. This controller has a built-in diagnostic feature that will cause the diagnostic light LEDs (located on either side of the battery gauge) to flash a numeric code indicating service issues and to aid in diagnoses. When indicating a service problem, the diagnostic light LEDs will flash, hesitate for a moment, and then flash again. -
Page 13: Electromagnetic Interference
ELEcTRoMAgnETIc InTERfEREncE rADIO WAVE SOUrCES MAY AFFECT POWErED MOBILE VEhICLE COnTrOL. electromagnetic Interference (eMI) from Radio Wave Sources Powered vehicles may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EMI) emitted from sources such as radio stations, TV stations, amateur radio (hAM) transmitters, two-way radios and cellular phones. -
Page 14: Wiring Diagram
WIRIng dIAgRAM ThrOTTLE EnCLOSUrE FWD/rVS FWD/rVS ThrOTTLE POT SWITCh SWITCh DISPLAY 11553 11540 hOrn COnTrOLLEr MODULAr COnn. 11539 MODULAr COnn. BATTErY CASE BATT+ BATTErY BATTErY 12VDC 12VDC 10144 C.B. ChArgEr PLUg ShUnT 11520 VEhICLE BATTErY SOcKET PLUg 11535 ChArgEr MOTOr 1-800-248-9131/ 989-777-0910... -
Page 15: Exploded View
ExPLodEd VIEW 11568 10122 11507 9676 11549 STAnDArD 6699 10134 11569 11517 10151 7773 7441 11311 2315 11508 7600 9720 3623 10123 11504 11505 11592 11501 10346 11502 11557 11511.20 11534 11503 11553 11292TMg3 11519 10346 11337 11510 1254 11518 11481.20 10144 11506... -
Page 16: Parts List
PARTS LIST TravelMate III #580003 – May 1, 2011 to Present Part # Description Qty/unit Part # Description Qty/unit 11508 Latch, Seat Adjusting 1040 Ring, Retaining 5/8 OD Shaft 11509 Mat, Standard 1069 Washer, Shim, 5/8 ID x 7/8 OD x .016 Thick... -
Page 17: Warranty
WARRAnTy TravelMate III Product Warranty Effective May 1, 2011 Amigo Mobility International, Inc. (AMI) warranties the original completed unit it manufactures to the original purchaser. Structural components including platform, frame and seat post, have a two (2) year warranty against defects in materials and workmanship. - Page 18 noTES...
- Page 19 noTES...
- Page 20 H1322011 AMIgo MoBILITy InTERnATIonAL, Inc. Improving Lives Through Mobility® 6693 Dixie highway, Bridgeport, MI 48722-9725 Service: 800-248-9131 or 989-777-0910 • Fax: 800-334-7274 • www.myamigo.com © 2012 Amigo mobility international, inc. Amigo® is a trademark of Amigo mobility international, inc • 0412-11659RevA...
