Sealey MIG200i Instructions Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear a
instruction welding mask
manual
Arc rays can burn Breathing welding fumes
eyes and injure can be hazardous to your
skin health
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following: You must check all
‰
electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other connectors
for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual
Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is
not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your
Sealey stockist. You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and
the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
Ensure that the insulation of all cables on the appliance is safe before connecting it to the power supply.
9
Ensure that cables are always protected against short circuit and overload.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that none are loose.
9
Ensure that the voltage marked on the appliance matches the power supply to be used.
9
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Have any faulty item repaired or replaced immediately by a qualified
8
electrician.
1.1.3. We recommend connection to a supply with a type C breaker. If in doubt you must contact a qualified electrician to ensure that a suitably
rated supply is available.
WARNING! Be very cautious if using a petrol or diesel generator. The generator must be stable with regard to frequency (Hz), voltage
‰
and wave form. The output must be higher than the power (kVA) of the inverter. The generator must also be self regulating. If any A.M.
feature is not respected the working of the regulation card may be affected. Use of a generator without a regulator may be dangerous
and will invalidate your inverter warranty.
1.2. GENERAL SAFETY
1.2.1. OPERATOR SAFETY
Operators must receive adequate training before using the inverter.
9
Remove ill fitting clothing, remove ties, watches, rings and other loose jewellery and contain long hair.
9
DO NOT operate the inverter while under the influence of drugs, alcohol or intoxicating medication, or if tired.
8
Stand correctly keeping a good footing and balance, ensure that the floor is not slippery and wear non-slip shoes.
9
Keep unauthorised persons away from the work area. Any persons working within the area must wear the same protective items.
9
Avoid oily greasy clothing. A spark may ignite them.
9
DO NOT touch the work piece close to the weld as it will be very hot. Allow to cool.
8
DO NOT touch the electrode holder immediately after use. Allow the electrode holder to cool.
8
Wear safety welding gauntlets.
9
WARNING! DO NOT place the welding power source on a tilted plane as this may lead to the unit toppling over.
‰
The output is rated at an ambient temperature of 20°C and the welding time may be reduced at higher temperatures.
9
Risk of electric shock: Electric shock from welding electrode can kill. DO NOT weld in the rain or snow. Wear dry insulating gloves.
9
DO NOT touch electrode with bare hands. DO NOT wear wet or damaged gloves. Protect yourself from electric shock by insulating
8
yourself from workpiece. DO NOT open the equipment enclosure.
Use genuine parts and accessories only. Unapproved parts may be dangerous and will invalidate the warranty.
9
© Jack Sealey Limited

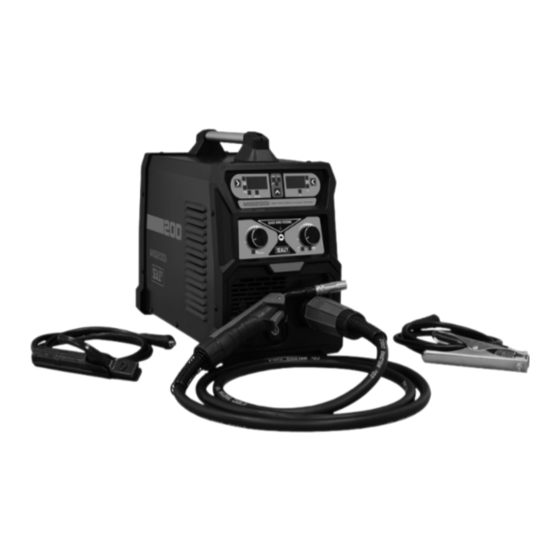

MIG/TIG & MMA (ARC/STICK) INVERTER
WELDER 200A
MODEL NO:
Wear Wear safety
protective footwear
gloves
Original Language Version
MIG200i
Wear Electrical Hot surfaces
protective shock hazard
clothing
Do not use in Welding sparks
the vicinity of a can cause
pacemaker explosions or fire
MIG200i Issue 1 10/10/24
