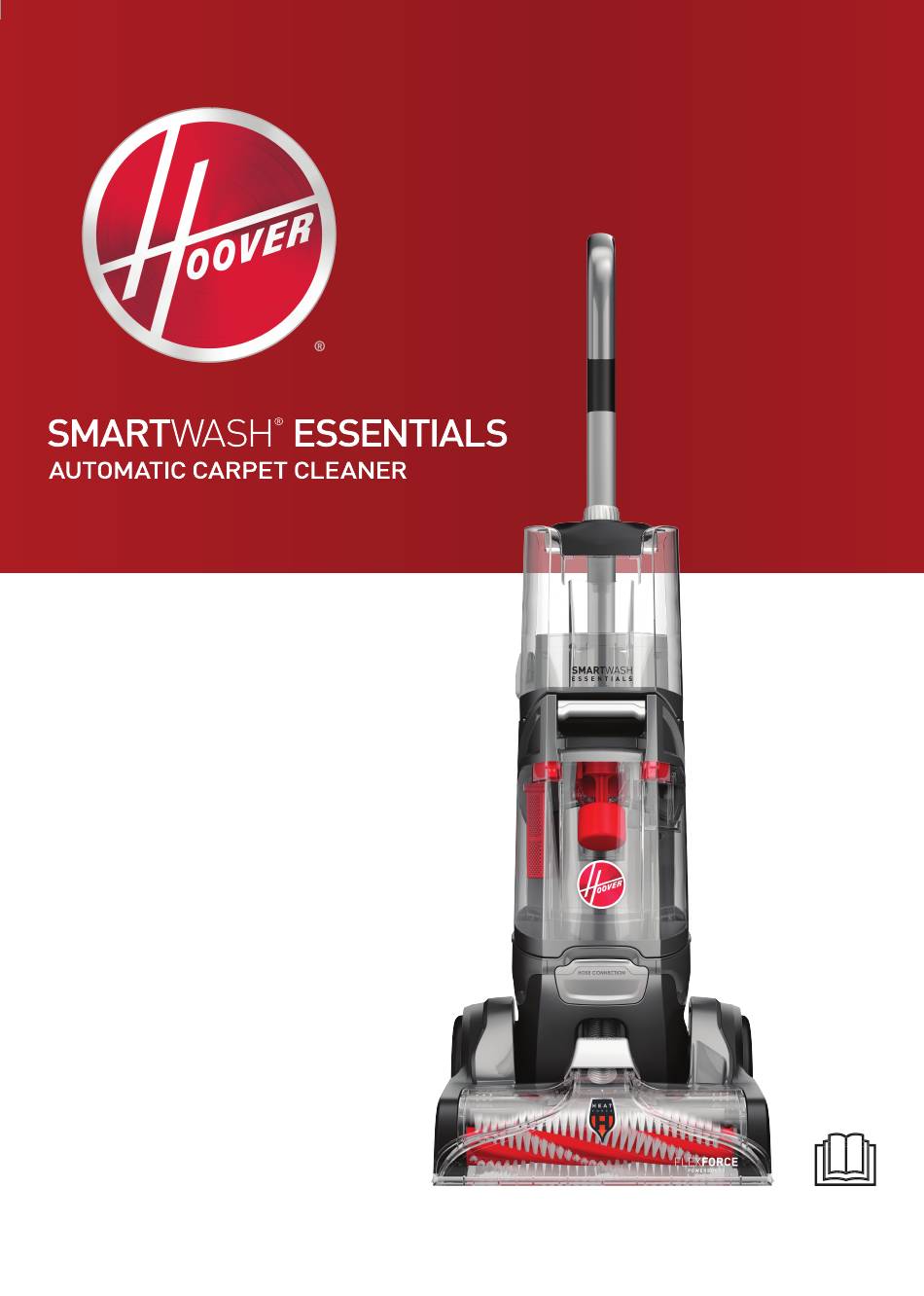

- Page 1 USER GUIDE FACSCW23L...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION This machine is intended for household use only and NOT for commercial or industrial use. PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY AS INSTRUCTED IN THIS GUIDE. WARNING! When using an electrical product, basic precautions should always be followed to avoid electric shock, fire, and/or serious injury, including the following: •... - Page 3 Always check the floor head is free from damage, dirt and debris before using. • To reduce the risk of fire and electric shock, due to internal component damage, use only Hoover cleaning solutions intended for use with this appliance. ®...
- Page 4 Should this occur, unplug the machine from the electrical outlet and turn off the switch. Allow the machine to cool for approximately one (1) hour before reusing. • Hoover recommends the use of a Residual Current Device rating of 30mA or less. support.vax.co.uk...
-
Page 5: General Information
GENERAL INFORMATION Technical FACSCW23L Specifications Product Description Hoover Smartwash Essentials Automatic Carpet Cleaner Wattage 1200W Voltage 200-240V~50Hz Product Weight 7.88kg Clean Water Tank Capacity 3.8L Dirty Water Tank Capacity 2.1L Cord Length Subject to technical change without notice. Description of Symbols... -
Page 6: Machine Overview
MACHINE OVERVIEW HANDLE LED DISPLAY ON/OFF PEDAL CLEAN WATER TANK CORD HOOK STORAGE BAG FILTER CORD WRAP 2.4M HOSE UPHOLSTERY TOOL DIRTY WATER TANK CARRY HANDLE TRIAL SOLUTION HOSE CONNECTION HANDLE RELEASE PEDAL (HIDDEN) FLEXFORCE POWERBRUSH NOZZLE IMAGES ARE ILLUSTRATIVE ONLY AND NOT TO SCALE. support.vax.co.uk... - Page 7 To avoid damage to wood floors underneath area rugs or carpet, place waterproof material (such as plastic) underneath them before cleaning. • For best results, pretreat stains with a HOOVER pre-treatment solution to help loosen and ® remove even the most stubborn stains.
-
Page 8: Getting Started
Fully assemble product prior to use. When using the machine, basic safety precautions should always be observed. Take care not to oversaturate flooring. Continue using dry strokes until little water is visibly passing through the nozzle. For best results, HOOVER ®... -
Page 9: Operation
Handle Release Pedal to recline the amount of water and cleaning solution. cleaner to cleaning position. NOTE: For best results, Hoover ® recommends rinsing the carpet with clean water only. This will remove residual carpet cleaning solution from your carpets. - Page 10 OPERATION CAUTION: ALWAYS SWITCH OFF THE MACHINE BEFORE CONNECTING OR DISCONNECTING HOSE. ATTACHING THE HOSE Open Hose Connection Port. Insert hose end by inserting FIRMLY into Hose Solution Port. REMOVING THE HOSE Press button on end of hose and pull to Close the Hose Port Door back into remove hose and solution connection place.
- Page 11 PLACE CLEANER ON STAIRS OR FURNITURE, AS IT MAY RESULT IN INJURY OR DAMAGE. Fill Clean Water Tank with clean water Pre-spray the area by pressing the Squeeze the trigger on the forward and Hoover solution according to trigger on the hose to release stroke and release the trigger on the ®...
-
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE ALWAYS SWITCH OFF AND UNPLUG THE CLEANER BEFORE PERFORMING ANY MAINTENANCE OR TROUBLESHOOTING. HOW TO EMPTY THE DIRTY WATER TANK IMPORTANT: Empty the Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction. - Page 13 CLEANING AND MAINTENANCE HOW TO REMOVE & CLEAN THE BRUSH ROLL WARNING! Risk of personal injury – brush roll may suddenly restart – switch off and unplug cleaner before cleaning or servicing. Grab Side A and pull up to remove. To prevent possible leaking, remove With handle in upright position, lift up Clean Water Tank and Dirty Water Tank.
- Page 14 CLEANING AND MAINTENANCE HOW TO REPLACE THE BRUSH ROLL WARNING! Risk of personal injury – brush roll may suddenly restart – switch off and unplug cleaner before cleaning or servicing. At an angle, align side B on the brush to Press Tab A down until brush snaps in the drive gear.
-
Page 15: Troubleshooting
TROUBLESHOOTING ALWAYS SWITCH OFF AND UNPLUG THE CLEANER BEFORE PERFORMING ANY MAINTENANCE OR TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Cleaner won’t run 1. Not firmly plugged in 1. Plug unit in firmly. 2. No voltage in wall plug 2. Check fuse or breaker in home. 3. - Page 16 HOOVER.COM.AU HOOVER.CO.NZ...
