Sono Miniflex 2.0 Installation Manual

Advertisement

Quick Links

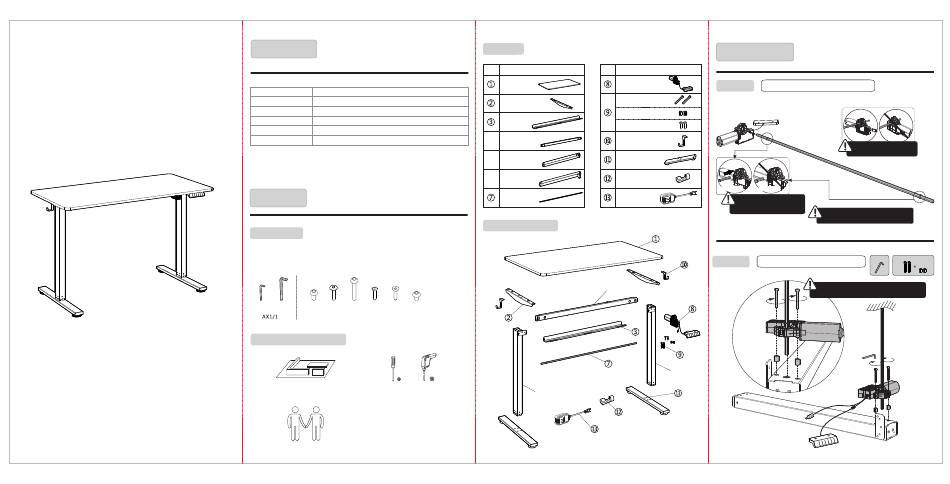

Miniflex 2.0
Installation guide
< The pictures below are for reference only, please refer to the actual product. >
Please read this product manual carefully before use, and keep it properly.
Technical Data
2
Column stage
70KG(With hook, hook load capacity 5KG)
Max. Load Capacity
15mm/s
Max. Speed
Lowest Height
735mm
1180mm
Highest Height
1200mmx600mmx16mm
Tabletop Size
Product List
Accessory List
Note: The line drawings below are for reference only and may differ slightly from the physical product in some
cases. Please refer to the actual product for accuracy. If any tools are missing or there are problems with
installation, please contact customer service.
2.5x2.5
4x4
Bx4
Cx4
Dx8
Gx3
Ex10
Fx4
Preparation before installation
Or
Install on carpet to prevent scratches.
Bring your own pistol drill.
Need two or more people to cooperate together.
部件清单
Part List
No.
Part
No.
Part
Motor
Tabletop x1
(with handset) x1
Motor screw x2
Bracket x2
Motor shaft sleeve x2
Baffle x 1
Handset screw x2
Crossbeam x 1
Hook x2
Right column x 1
Pedestal x2
Left column x 1
Cable Clip x4
Transmission
AC power
Rod x1
cable x1
Installation Instruction
Installation Steps
STEP1
Insert the transmission rod into the motor
Insert
The
The
longer end
shorter end
During installation, make sure to
insert the longer end of the
transmission rod into the motor.
Please note that the lengths of the
transmission rod's two ends are not equal.
STEP2
Assemble the motor and the right column
When inserting the transmission rod into the column,
please make sure not to rotate it more than 60 . °
When installing, pay attention
to the orientation of the motor.
A
x1
x2/2
4x4
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Miniflex 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sono Miniflex 2.0

  • Page 1 部件清单 Technical Data Part List Installation Steps Part Part Miniflex 2.0 Motor Tabletop x1 STEP1 Insert the transmission rod into the motor (with handset) x1 Column stage 70KG(With hook, hook load capacity 5KG) Motor screw x2 Max. Load Capacity Bracket x2...
  • Page 2 STEP3 Assemble the motor and the left column STEP5 Install the bracket STEP7 Install the Tabletop STEP9 Install the Baffle 2.5x2.5 Self-prepared The installation sequence for the screws is When inserting the transmission rod into the column, please make sure not to rotate it more than 60 . ° When installing, make sure to leave a gap between the baffle and the motor.
  • Page 3 STEP11 Connect the cables ● Adjusting Collision Sensitivity (Optional) ● Troubleshooting Connect the power supply after Instructions for using and setting up the handset completing the cable connection a.There are four gears in total. When the lifting Four preset Display Tabletop screen lift...
  • Page 4 Attention 1.Power supply: AC100V-240V, frequency 50/60Hz. 2.Operating environment: Indoor, 0-40°. 3.Before cleaning, make sure to unplug the power cord. Use a slightly damp cloth to wipe away surface dust, taking care not to let water drip into the internal components or damage the connection wires.
