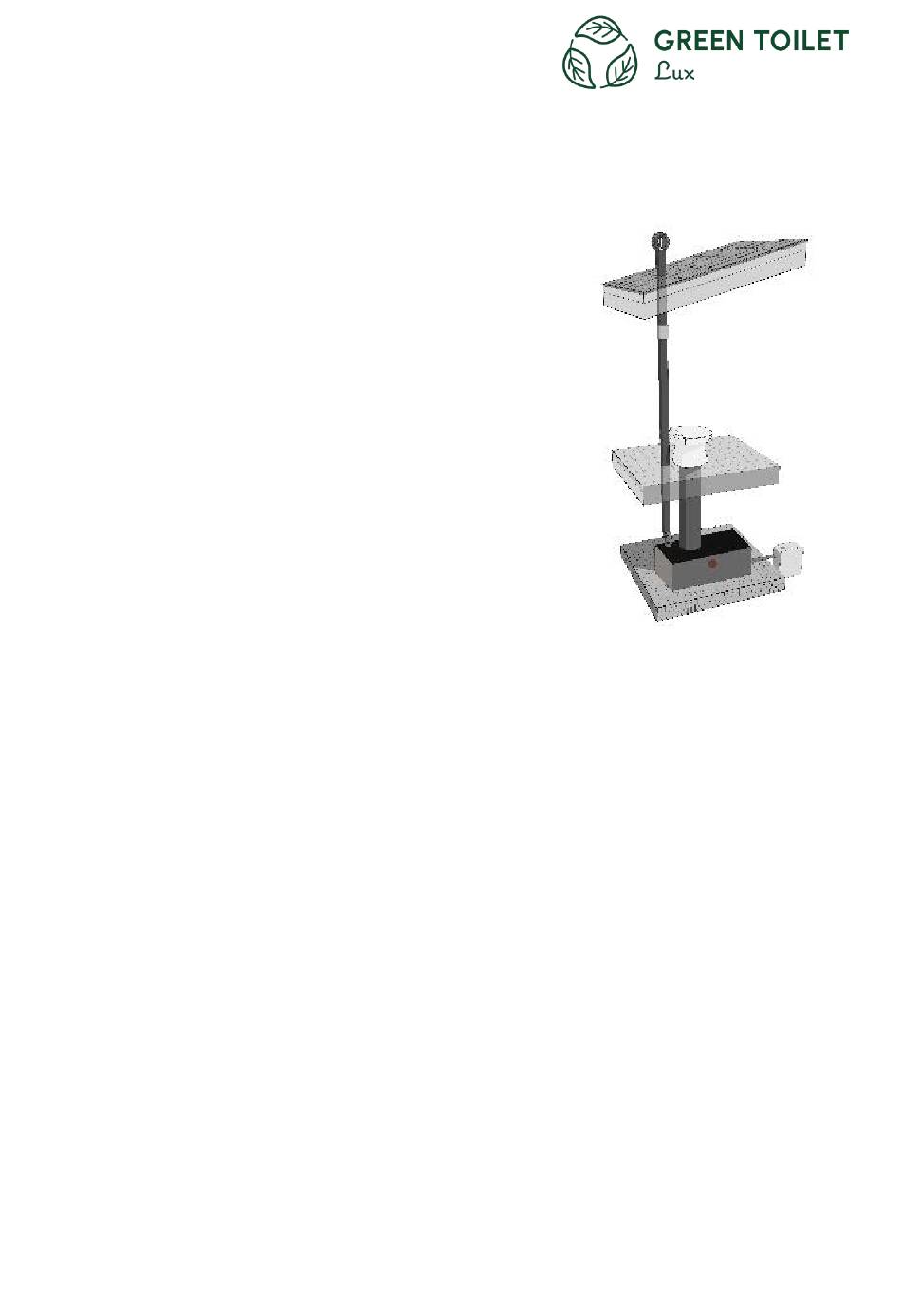

GREEN TOILET Lux Cassette Instructions For The Installation And Use

Indoor dry toilet

Download this manual

GREEN TOILET LUX CASSETTE

Instructions for the installation and use of the Green Toilet Lux Cassette Indoor Dry Toilet

CONTENTS OF DELIVERY

• Green Toilet cassette composter (120 or 150

liters)

• Green Toilet porcelain seat, non-separating or

separating, with seat cover

• Electrical fan with stepless speed control (with

reducers to 75 mm pipe)

• Ventilation pipes 3 x 70 cm (diameter 75 mm)

• 1 x 100 cm flexible pipe

• 2 ventilation pipe brackets

• 2 ventilation pipe connectors

• Ventilation pipe cap

• Waste chute pipe, diameter 200 mm, length

50 cm (longer/shorter if needed)

• 150 cm liquid hose

• Leachate collection canister

• Plug for liquid hose outlet

• Screw set

• Dry material package

Green Toilet Lux Cassette is an indoor dry toilet designed for locations with limited space beneath

the floor, where installing a large composting container is not feasible. The cassette tank requires

only about 40 cm of space below the floor, making it suitable for many tight spaces.

INSTALLATION

The installation of the cassette version follows the same procedure for the seat and waste chute as

other Green Toilet Lux models (installation and user manual included). You can follow the standard

instructions, but here are a few specific notes regarding the installation of the cassette composter.

Meripalo Oy – Pikkuvihreä - sales@pikkuvihrea.fi - 02-242 1089 - www.pikkuvihrea.fi

Need help?

Do you have a question about the Lux Cassette and is the answer not in the manual?

Page 1 • Screw set • Dry material package Green Toilet Lux Cassette is an indoor dry toilet designed for locations with limited space beneath the floor, where installing a large composting container is not feasible. The cassette tank requires only about 40 cm of space below the floor, making it suitable for many tight spaces.
Page 2 The waste chute should be installed so that it extends as little as possible into the composter lid, only about 1 cm. This allows for easy maintenance by simply lifting the lid slightly. The location for the waste chute pipe has been pre-drilled in the lid (200 mm) according to the drawing below.
Page 3 You can always contact Pikkuvihreä if you need additional installation guidance. USAGE The initial setup and basic use of the toilet are the same as with other Green Toilet models (see the Green Toilet LUX user manual included in the delivery).
