This product is only suitable for well insulated spaces or occasional use.
1.
Important Safety Information
 Must be supplied with 220V-240V~,50-60Hz.
 This appliance must be grounded.
 The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local law and regulations.
 Improper connection of the equipment-grounding conductor can result in the risk of an
electric shock.
 Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly grounded. Do not modify the plug provided with the appliance. If it
does not fit the outlet, please consult with a qualified electrician for advice.
 Follow all the safety precautions listed below for safety and to reduce the risk of injury or
electrical shock.

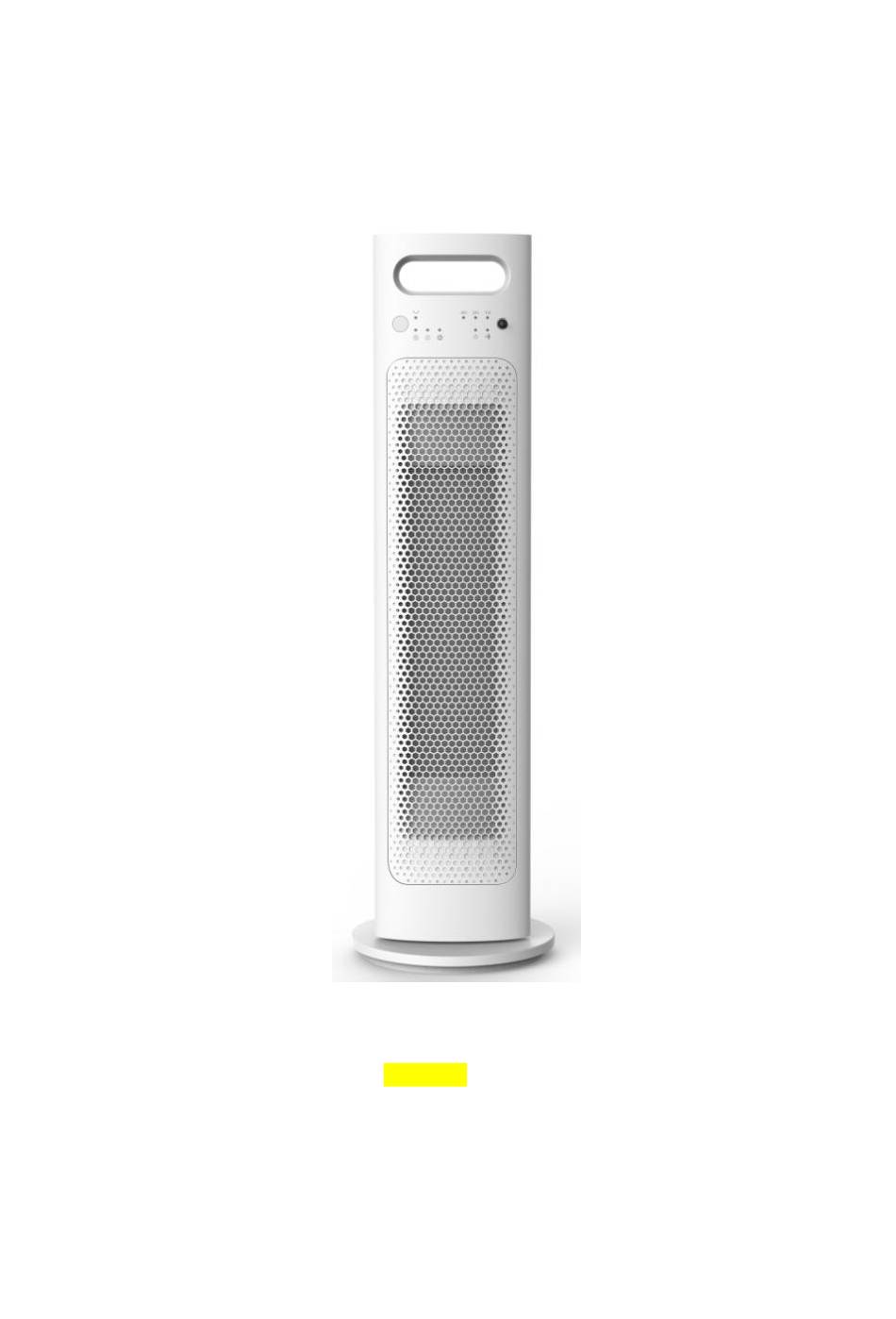

Ceramic Heater
DF-HT5363P, DF-HT5369P
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF-HT5363P and is the answer not in the manual?

Questions and answers

Related Manuals for EQUATION DF-HT5363P

Summary of Contents for EQUATION DF-HT5363P

  • Page 1 Ceramic Heater DF-HT5363P, DF-HT5369P User Manual This product is only suitable for well insulated spaces or occasional use. Important Safety Information  Must be supplied with 220V-240V~,50-60Hz.  This appliance must be grounded.  The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local law and regulations.
  • Page 2  Read all the instructions carefully before using this appliance and keep them for future reference.  Retain the manual. If you pass the product on to a third party, make sure to include this manual.  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 3 appliance. Close supervision is necessary when this is used near children.  Do not touch hot surface when in use.  Do not share the same circuit receptacle with others appliances, otherwise may have burn hazard.  Do not use extension cord. ...
  • Page 4 Control Panel LED display Body sensor Remote receiver Grill Base Front cover Back cover Power Switch  Control panel and display panel  Remote controller C. Product operation instructio 1. After connected to power supply and switch on the power, you will hear a "BiBi" sound, the machine enters to Standby Mode.
  • Page 5 a) PTC: Low Power, LED lights up. b) Swing: Stop. c) Timer: no setting, LED off. d) Display Panel: LED off. e) Temperature setting: automatically set to 25℃. f) Fan: Works 3. Press button to set the mode, the mode is changed in sequence: Low Power, High Power, Fan.
  • Page 6 press button to set the temperature on a range of 14℃、18℃、22℃、26℃ b) Previous set temperature will not change when enter into setting mode unless you press button to reset the temperature,. c) If you don't set the temperature in 5 seconds or you press other buttons except , the display panel will exit the temperature setting and will show setting temperature immediately.
  • Page 7 D. Safety warning and matters needing attention In order to avoid the danger of wrongdoing and more convenient to use the machine, in the form of graphic below several points for attention are presented. Under the condition of the familiar with graphic content below, read the product instruction manual. Symbolic meaning ●...
  • Page 8 ● Do not stick sticks, metal or other object ●Do not use pesticide or other flammable into the outlet, otherwise it will cause electric spray around the product. Because it will shock or even damage the heater. damage the heater and lead to electric shock.
  • Page 9 The filter grille can continue to used after there is no water on it. (5) When storage, the heater should be firstly cold, dried, and packaged in dry and ventilated place. E. Technology Parameters Model NO. DF-HT5363P, DF-HT5369P Voltage 220-240 V～...
  • Page 10 2500 W for D-HT5363P 2000 W for D-HT5369P Noise level. ≤50 dB Dimension(L*W*H) L245mm×W245mm×H686mm Executive Standard EN/IEC 60335-1, EN/IEC 60335-2-30 Information requirment for the electric local space heaters (DF-HT5363P) Model identifier(s): Item Symbol Value Unit Item Unit Type of heat input, for electric storage...
  • Page 11 with black bulb sensor Contact details Refer to Applicant Name / Address Commission Regulation (EC) No 1275/2008 Requirement Mode Ecodesign requirements, from 7 January 2013 Result -Remark Verdict Off mode Power consumption in ‘off mode’: Power consumption of equipment in any off-mode condition shall not exceed 0.50 W Standby mode Power consumption in ‘standby mode(s)’: The...
  • Page 12 Seasonal space heating energy efficiency Description Value Seasonal space heating energy efficiency in active mode-η S,on For electric local space heaters-η 100% The electric to primary energy conversion coefficient-CC correction factor accounting for a positive contribution to the seasonal space heating energy efficiency of electric storage local space heaters due to adjusted contributions for options for heat storage and output;...
