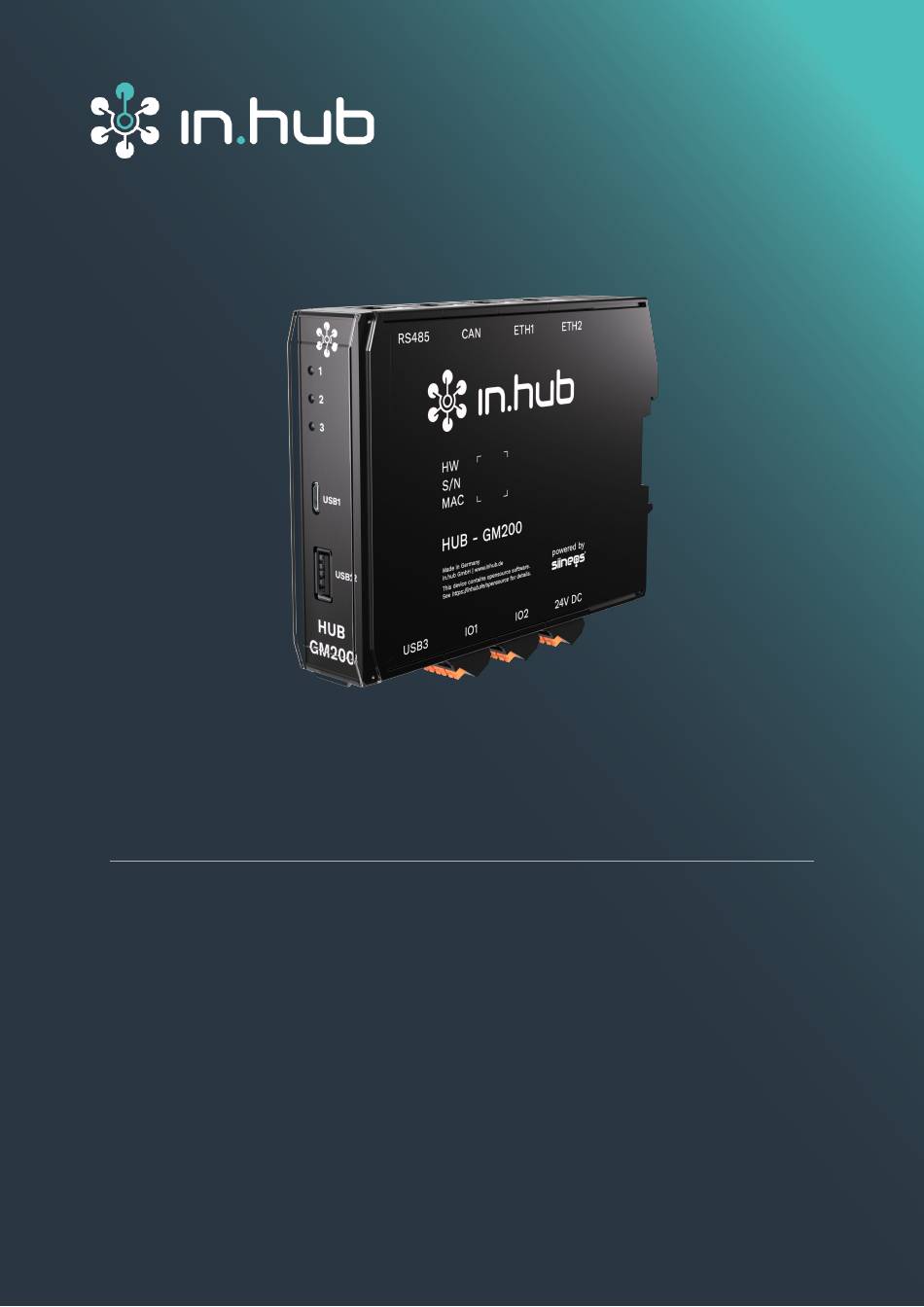

- Page 1 HUB-GM200 Operating Instructions Valid with SIINEOS version 2.8.2 Document version 1.2 | Publication date: 17. February 2025...
-
Page 2: Table Of Contents
4.1. Connecting a power-supply unit ..................15 5. First steps with SIINEOS ...................... 16 5.1. Connecting HUB-GM200 with the PC ................16 5.2. Logging on to SIINEOS ....................17 5.2.1. When logging on to SIINEOS for the first time ............17 5.2.2. -
Page 3: Legal Information
NOTE Notes give you tips, recommendations and useful information on specific ac- tions and issues. A tip gives you tips, tricks and recommendations from in.hub that have proven to be helpful in handling the products. Qualified personnel The product associated with this documentation may only be handled by personnel quali- fied for the respective task. - Page 4 General knowledge in the field of automation technology is recommended. Intended use in.hub products may only be used for the applications specified in the corresponding tech- nical documentation. If third-party products and components are used, they must be recommended or approved by in.hub.
-
Page 5: General Information
• User Manual for the IoT (Internet of Things) operating system SIINEOS 1.3. Intended use The HUB-GM200 is intended exclusively for use in the industrial sector and is used for monitoring machines, systems and processes. Process data can be recorded, processed, controlled and analysed using the connection options provided. -
Page 6: General Product Information
General product information 2. General product information The HUB-GM200 IoT gateway has a variety of interfaces to connect sensors and actuators directly to the gateway. With in.hub’s own operating system SIINEOS, you can fulfil a wide range of operational requirements and integrate the gateway flexibly and with ease. -
Page 7: Hardware - Design And Interfaces
General product information 2.3. Hardware – design and interfaces Side views and front view of the HUB-GM200 including interfaces Device-specific information is stored in a barcode: HW: Hardware revision S/N: in.hub internal serial number MAC: Hardware address of the Ethernet interface... -
Page 8: Usbs
USB port of your connected device is too low. No additional USB devices can be operated via the other USB connections when power is supplied via the USB 1 connection. This is only possible with a 24 V supply. Operating Instructions HUB-GM200... -
Page 9: Pin Assignment Of Digital And Analogue Interfaces Io1 And Io2
– or – a digital output D/IO5 D/IO6 Digital input or output 2.3.3. Power supply The gateway is supplied by a 24 V power-supply unit. Please see the chapter Connecting a power-supply unit [15]. Pin assignment of the power-supply interface Operating Instructions HUB-GM200... -
Page 10: Led Display
General product information 2.3.4. LED display The three bicolour (red/green) LEDs on the front of the device indicate the following status: LEDs on the front of the HUB-GM200 Device status Function freely configurable in SIINEOS Function freely configurable in SIINEOS | LED for device identification... -
Page 11: Pin Assignment Of The Can Interface
NOTE: Pin 8 for the power supply must be activated in the software. NOTE: Voltage at pin 8 = voltage of the power supply unit minus 0.5 V. The technical parameters of the CAN interface can be found in the chapter CAN interface specification [28]. Operating Instructions HUB-GM200... -
Page 12: Pin Assignment For The Rs485 Interface
NOTE: Voltage at pin 7 = voltage of the power supply unit minus 0.5 V. Ground / 0 V The technical parameters of the RS485 interface can be found in the chapter RS485 inter- face specification [28]. Operating Instructions HUB-GM200... -
Page 13: Assembly
Assembly 3. Assembly The HUB-GM200 must be mounted on a DIN EN 60715 (35 mm) mounting rail. Observe the applicable safety and accident prevention regulations for specific areas of application, such as the Machinery Directive. • Always work with the supply voltage switched off. -
Page 14: Dismantling The Device
Assembly HUB-GM200 as master gateway with a HUB-EN200 as an extension 3.3. Dismantling the device Make sure that the system’s power supply is disconnected. Use a screwdriver to pull the mounting foot (metal clamping device) downwards and remove the module from the DIN rail. -
Page 15: Installation
Schematic diagram of the power supply When the operating voltage is correctly applied, the status LEDs on the front of the module light up – depending on the configuration – and signal the booting (start-up) of the SIINEOS system software. Operating Instructions HUB-GM200... -
Page 16: First Steps With Siineos
5.1. Connecting HUB-GM200 with the PC Use a Micro-USB cable to connect your PC with the HUB-GM200. In most cases, the USB connection provides enough power to operate the HUB-GM200 without having to connect an extra power supply. NOTE Under certain circumstances, the power supply may not be sufficient, e.g. -
Page 17: Logging On To Siineos
5.2.2. If you have already set up SIINEOS In your browser, enter the individual IP network address that you have configured. Log on with your user data and click on Log in. The SIINEOS Management Console will open. Operating Instructions HUB-GM200... -
Page 18: Checking The Siineos Version
GM200 or the HUB-EN200 • The light version without Docker containers with a smaller file size for the HUB-IO100 When the download is complete, go to the System page in SIINEOS and select Updates. System > Updates Operating Instructions HUB-GM200... -
Page 19: Managing Licences
Once the licence period has expired, you can either continue working with the currently installed version of SIINEOS or you can purchase another licence from in.hub to benefit from the further development and product improvement of SIINEOS. - Page 20 Click on Add. The License activation page opens: License activation Copy the name of the voucher you received from in.hub into the Voucher field. Click on Next. The information stored in the voucher, such as the term, product and validity, etc., will be displayed.
-
Page 21: Adding A Licence File To Siineos
This will not delete the licence file itself, but only remove it from the list. NOTE Make sure that the system time of your device and your current local time are synchronized. Otherwise, the licence-file upload may fail. Operating Instructions HUB-GM200... -
Page 22: Setting Up Connected Devices And Communication Protocols
PDF. The cause may lie in a setting on the device, e.g. in the Firewall or in the network settings. Check whether the problem has already been discussed in the community at https://community.inhub.de/. If not, please feel free to ask a question yourself. Operating Instructions HUB-GM200... -
Page 23: Technical Data
Plastic (polyamide), black, flammability class UL 94 Protection class IP20 Dimensions 139 mm × 100 mm × 25 mm Weight 181 g Ambient conditions Values Temperature range Storage: –40°C to 85°C Operation: 0°C to 50°C Humidity Storage: 10% to 95% RH, non-condensing Operating Instructions HUB-GM200... - Page 24 TOSIBOX®: Secure connectivity between the IoT de- vices I/O interfaces to third-party sys- S7 PLC client: Connector for the Siemens® S7 con- tems/devices troller Sensirion SPS30: Temperature and humidity sensor TBEN-S1-8DIP: TBEN module from TURCK® TBEN-S2-4AI: TBEN module from TURCK® Operating Instructions HUB-GM200...
-
Page 25: Specification Of Inputs And Outputs
Configuration of DIO as a digital Values output Power supply From 24 V Conformity EN61131-2 nominal current 0.1 A Max. output current Typ. 120 mA Switching interval ≥50 ms* Voltage drop to 24 V Max. 1 V Protective functions Overload protection Reverse-current protection Circuit diagram** Operating Instructions HUB-GM200... - Page 26 Permissible input voltage range –3 to 30 V Protective functions Overload protection: in 20 mA mode, the current is limited to 22–30 mA Circuit diagram** *Only if processor is not busy **The hash (#) in the circuit diagram indicates the overload protection. Operating Instructions HUB-GM200...
-
Page 27: Usb Interface Specifications
Max. power output for USB2 and 2.5 W (500 mA) with 24 V supply USB3 Support for Full, high and low speed (480, 12 and 1.5 Mbit/s) Circuit diagram* *The hash (#) in the circuit diagram indicates the overload protection. Operating Instructions HUB-GM200... -
Page 28: Can Interface Specification
7.5. Backplane bus specification Backplane bus Values Voltage on the backplane bus Voltage of the power supply unit minus 0.5 V Communication Via Modbus RTU Max. number of extension mod- ules if device acts as master gate- Protective functions Overload protection Operating Instructions HUB-GM200... -
Page 29: Schematic Diagram
Technical data 7.6. Schematic diagram Dimensions of the HUB-GM200 in mm Operating Instructions HUB-GM200... - Page 30 This document is provided in electronic form in the download portal of in.hub. Printed versions or copies not explicitly provided by in.hub are considered uncontrolled. The original language of this document is German. Made in Germany. Service & Support: service@inhub.de https://community.inhub.de/...
