Summary of Contents for Optim PLUS 3630

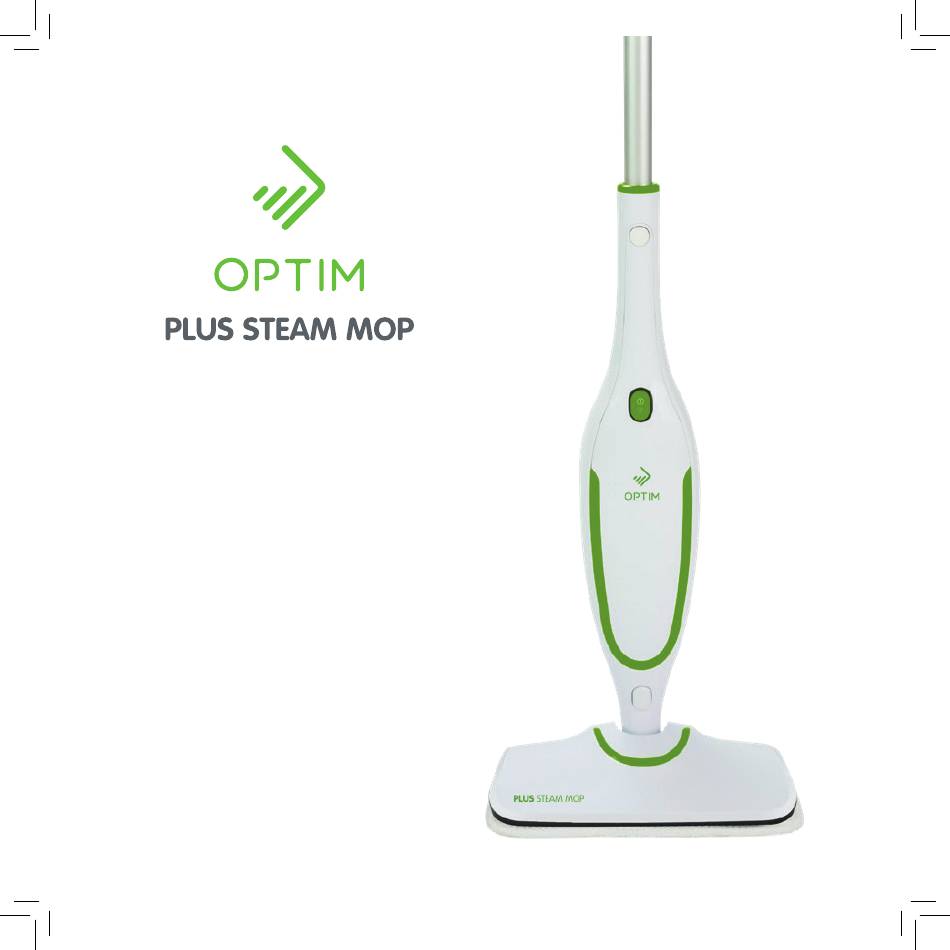

  • Page 1 Lightweight Ready to Use in 25 Seconds Cleans & Sanitisers...
  • Page 3 3630 PLUS STEAM MOP Congratulations on the purchase of your new Optim steam mop. There are many useful features built into your steam mop. We recommend that you carefully read this instruction manual for the best results. Features: Handle Cable Storage Hook...

  • Page 4: Before You Begin

    Before you Clean, Test First Your Optim steam mop is designed to clean hard flooring such as ceramic tile, vinyl, laminate, marble, stone and sealed hard wood floors. Use of your steam mop on waxed or some unwaxed floors may result in a diminished gloss.

  • Page 5: Safety Precautions And Warnings

    Safety Precautions & Warnings IMPORTANT! Always switch off the wall outlet, cleaner and remove the plug from the electricity power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label.
  • Page 6 17. Do not leave the appliance unattended Use distilled/purified water if the tap water in when it is connected to a power supply or an the water in your area is very hard. electrical outlet. 23. Damage caused by improper use of steam on 18.
  • Page 7 Assembly WARNING! Always switch off the cleaner before fitting or removing accessories. Insert the handle to the rod and ensure that it clicks into place. Insert the handle into the main body. Press firmly until it clicks into place. Insert the main body into the steam mop head and ensure it clicks into place.
  • Page 8 Instructions for Use WARNING! Do not add any cleaning solution, detergent, vinegar or bleach into the water tank. This will cause damage to the steam mop. Do not use hot or boiling water to fill the water tank. WARNING! Disconnect the power plug from the power supply before filling the water tank.
  • Page 9 NOTE: Always sweep or vacuum the floor to remove any loose dirt or debris prior to cleaning with the steam mop. IMPORTANT: Do not use the cleaner without a mop pad attached. Plug the power plug into the power supply and ensure that the power cable is secured into the cable hook.
  • Page 10 Instructions for Use (continued) As soon as steam appears from the steam mop head the cleaner is ready for use. Recline the cleaner by placing your foot onto the floor head and lowering the main body towards the floor. Then slowly pass over surface to be cleaned.

  • Page 11: Maintenance

    Maintenance IMPORTANT! Always unplug the power plug from the power supply before performing any maintenance. WARNING! Allow the steam mop to fully cool down before performing any maintenance or troubleshooting checks. Remove the water tank by pressing the Water Tank Release Button.
  • Page 12 Maintenance (continued) NOTE: Do not use bleach or fabric softener when washing the mop pad. Removing & Cleaning the Mop Pad Step on exposed section on the back of microfibre pad. Lift the steam mop away from microfibre pad. The mop pad can be washed in a washing machine with a mild detergent at a maximum temperature of 40°C.
  • Page 13 Using a Descaler IMPORTANT! Tap water contains minerals that can build up in your steam mop. Regular use of a descaling solution will remove this build up and restore the efficiency of your steam mop. We recommend that the descaling solution is used every 3 months to enhance the performance of your steam mop.

  • Page 14: Troubleshooting

    Troubleshooting Problems and solutions Please contact Godfreys Commercial Customer Support on 131 929 to find your local spare parts provider. Fault Solution - Check the steamer is plugged in The steamer will not switch on. - Plug the steamer to different socket - Check the hard water filter is assembled The steamer will not produce the steam.

  • Page 15: Spare Parts

    Spare Parts Part Part Number Water Tank 33151825 Mop Pads 2pk 31400158 Descaling Solution 1 Litre 61101464...
  • Page 16 Your Optim Plue Steam Mop is not fit to be used as an Optim Plue Steam Mop with be at claimant’s cost.
