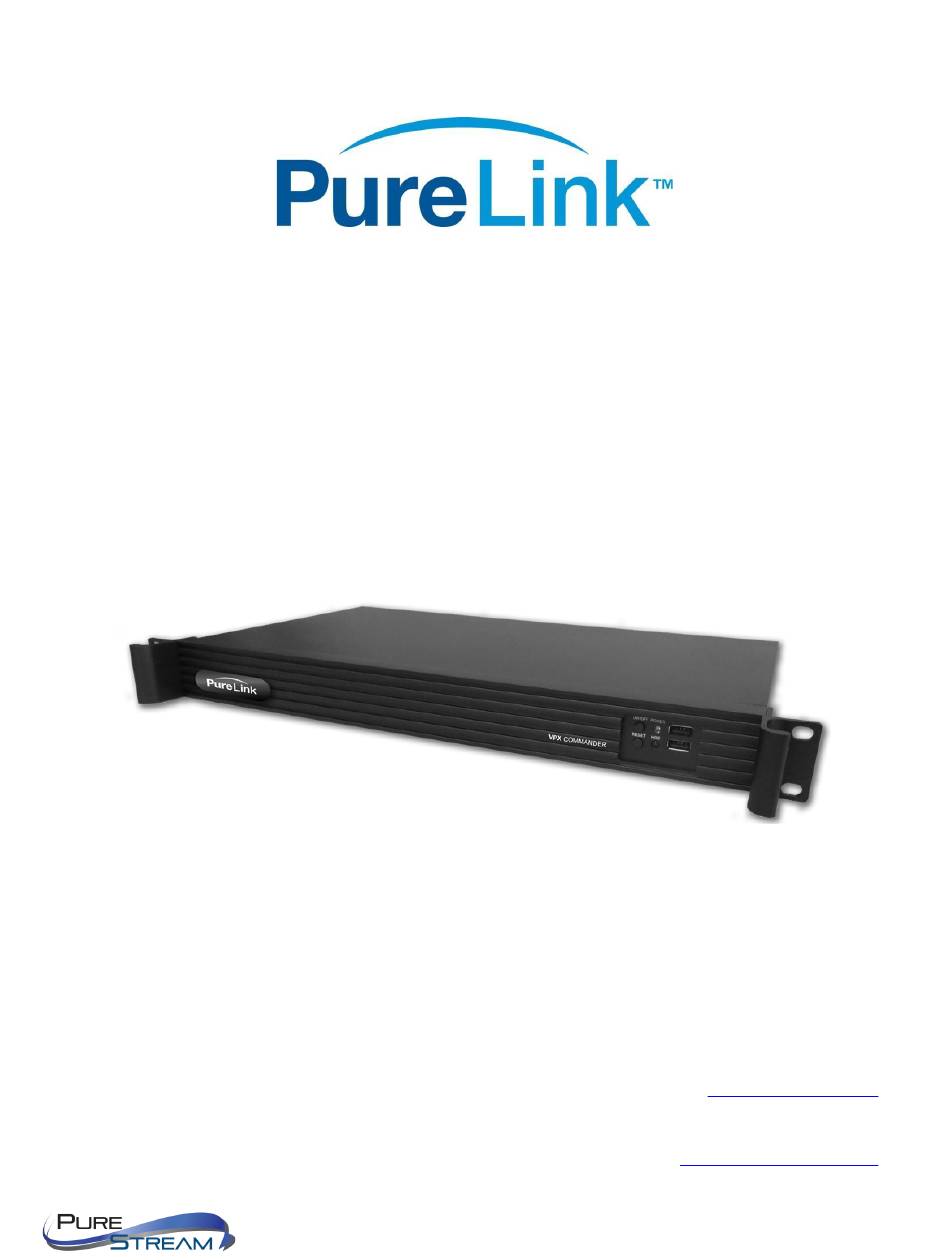

VPX COMMANDER
Video Over IP VPX Software Manager
Appliance
USER MANUAL
PureLink™
220-10 State Route 208
Fair Lawn, NJ 07410 USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com.
VPX COMMANDER - USER MANUAL
VERSION 2.0
Advertisement
Table of Contents
Related Manuals for PureLink VPX Commander
Summary of Contents for PureLink VPX Commander
- Page 1 USER MANUAL PureLink™ 220-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com. VPX COMMANDER - USER MANUAL VERSION 2.0...
-
Page 2: Table Of Contents
Optional Accessories..........................3 Product Description............................4 Front Panel ..............................4 Rear Panel..............................5 ..................................5 ..................................5 Connecting to the VPX COMMANDER to the Network.................6 Windows 8.1 and Windows 10 Computer LAN Port Setup..............6 Network switch requirements........................9 Network switch recommendations......................9 Installation..............................10 Connections..............................10 Power..............................10... -
Page 3: What's In The Box
● VIP-NET Media Hub purpose built for video over ip network switches Product Description The VPX Commander is an enterprise grade network appliance platform for PureLink’s VPX Video Over IP Management software. The VPX Commander and VPX allow complete setup of the VIP200, VIP300 and VIP-400 series of encoder and decoder endpoints, anywhere from a small 2x1 switch to many endpoints in a single domain. -
Page 4: Front Panel
4. USB 2.0 (x2) Rear Panel 1. 115-240 VAC inlet (Red switch must be set to correct incoming voltage) 2. PSU fan 3. USB 2.0 (2x) 4. HDMI output 5. SATA 6. VGA output 7. RS-232 VPX COMMANDER - USER MANUAL VERSION 2.0... -
Page 5: Connecting To The Vpx Commander To The Network
9. USB 2.0 (2x) 10. Audio IO Connecting to the VPX COMMANDER to the Network The VPX Commander IP address can be configured in the Windows Network port settings page. Windows 8.1 and Windows 10 Computer LAN Port Setup Opening Network Page Option 1: Right Click on the taskbar icon that looks like a signal strength indicator. - Page 6 When you are in the Change Adapter Settings page as shown below, select the LAN port that you will use to communicate with the VIP system. For this example, we will select the middle listing, Qualcomm Atheros LAN Adapter. Double click on the listing. The properties page will open as shown below. VPX COMMANDER - USER MANUAL VERSION 2.0...
- Page 7 Note: Do not deselect the checkbox or change the selections of any other properties in the menu. When the window changes to the Properties page for the Internet Protocol Version 4, enter the same IP subnet as the VIP-T300H-Usystem. (VIP-T300H-Udefault address is 192.168.1.180) VPX COMMANDER - USER MANUAL VERSION 2.0...
-
Page 8: Network Switch Requirements
The VIP-NET line of network switches are all either L2+ or L3 switches depending on the model, and support CAT and Fiber transport. You may use the VPX COMMANDER with other network switches that are 1G, and support IGMP V2, Fast Leave, and Jumbo Frame. -
Page 9: Installation
The VPX COMMANDER supports standard category RJ45 connectivity. It is recommended to use CAT5 cabling to ensure best performance. Video The VPX COMMANDER provides HDMI output to a standard computer monitor that supports up to 1920x1080P60. The VPX Commander provides Q.4 USB 2.0 ports. -
Page 10: Diagnostic Leds
Diagnostic LEDs The front panel provides two LEDs: ● Power ● Hard Drive Activity The LAN ports on the rear of the VPX Commander include two LEDs. RJ45 LED RJ45 LED Status Description LINK Ethernet connected Green LED Flash Data transmission... -
Page 11: Vpx Management Software
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its... - Page 12 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
