Summary of Contents for PureLink iCON-10W

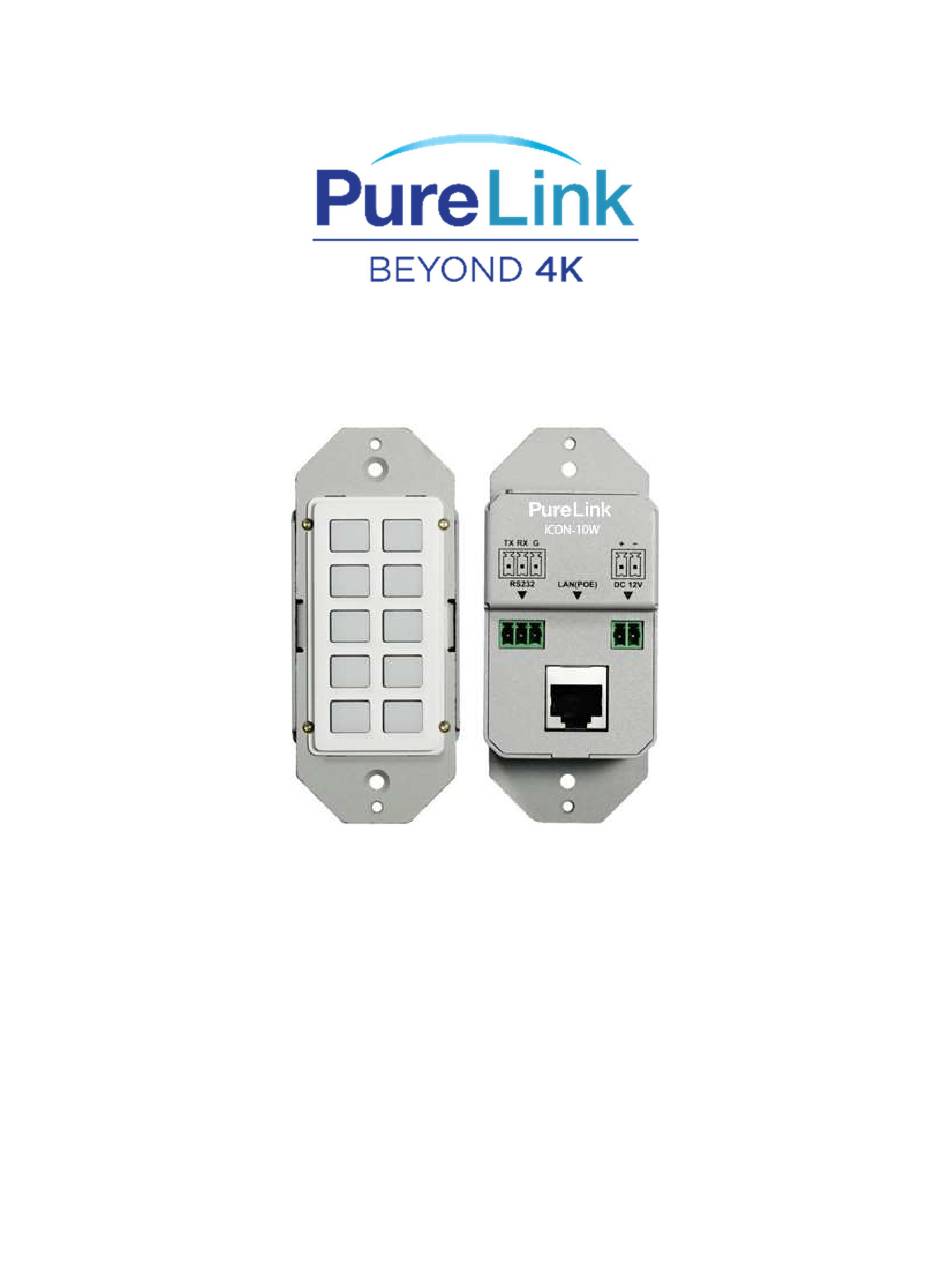

- Page 1 PureLink iCON-10W 10 Button Controller User Manual V1.1 iCON-10W 10 Button Controller With built in web UI programming interface...
-
Page 2: Table Of Contents
PureLink iCON-10W 10 Button Controller User Manual V1.0 Contents Overview ............................... 3 Features ................................ 3 Specifications ..............................4 Front and Rear View ............................. 4 Installation ..............................5 Programming ..............................5 Reset to factory default........................6 Programming interface ..........................7 Key Settings ............................... -
Page 3: Overview
The iCON-10W 10 button controller provides extremely easy programming via the built-in web UI programming interface. Control up to 10 devices through LAN and RS232. Macros allow up to six commands per button. The iCON-10W can be powered over PoE 802.3af, or with the included power adapter. -
Page 4: Specifications
PureLink iCON-10W 10 Button Controller User Manual V1.0 Specifications Technical Front panel 10 x Buttons(silicone soft buttons) Back panel 1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) -
Page 5: Installation
10 Button Controller User Manual V1.0 Installation The iCON-10W can be powered from a network switch or PoE injector that satisfies the 802.3af PoE standard. Alternately, the iCON-10W also accepts 12 VDC power at the rear panel Phoenix connector with the supplied AC adapter. -
Page 6: Reset To Factory Default
PureLink iCON-10W 10 Button Controller User Manual V1.0 Using your device’s browser, access the built-in web page of the iCON-10W. Username ‘admin’ Password ‘admin’ Reset to factory default. Press the two lowest buttons on the keypad until all of the button backlights blink 3 times. -
Page 7: Programming Interface
PureLink iCON-10W 10 Button Controller User Manual V1.0 Programming interface Key Settings Prerequisite: Device settings and Command settings Displays graphical interface of front panel. Here you can: View commands assigned to each button when hovering over key: Assigning commands to a button ... - Page 8 PureLink iCON-10W 10 Button Controller User Manual V1.0 o To assign a command, you must first select the device you want to send the command to. Click the Edit button; this will open the Device List popup window. o Select a device; this will open a popup window to select commands available for that...
- Page 9 PureLink iCON-10W 10 Button Controller User Manual V1.0...
-
Page 10: Command Settings
PureLink iCON-10W 10 Button Controller User Manual V1.0 Command Settings Prerequisite: Device Settings This section allows you to enter up to 10 commands for a device. Keep in mind you can create a device more than once if you need more than 10 commands for that device. -
Page 11: Device Settings
PureLink iCON-10W 10 Button Controller User Manual V1.0 Device Settings Allows you to enter up to ten controllable devices and set up their communication parameters. To Add a device, select the ‘Edit’ button. A popup window will appear allowing you to enter the name of the device, and the communication parameters. -
Page 12: Group Settings
PureLink iCON-10W 10 Button Controller User Manual V1.0 Group Settings This function allows you to set the behavior of button LEDs in groups and individually There are the LED behaviors: Independent/Reserve: default behavior. Works for individual buttons. o LED flashes twice with any button press o Note: as this is the default behavior, you do not have to assign buttons this functionality unless you want it clearly defined in the web UI. -
Page 13: Network Settings
PureLink iCON-10W 10 Button Controller User Manual V1.0 Network Settings Allows settings of the network parameters for the iCON-10W. Reset to factory default. Press the two lowest buttons on the keypad until all of the button backlights blink 3 times. -
Page 14: System Settings
PureLink iCON-10W 10 Button Controller User Manual V1.0 System Settings Allows settings of the following system parameters: Username and Password Language Setting o English or Chinese UI timeout o Between 5 to 60 minutes, in ten-minute increments. -
Page 15: Preconfiguration Services
PureLink iCON-10W 10 Button Controller User Manual V1.0 Preconfiguration Services PureLink provides preconfiguration services for the iCON-10W when used with a PureLink product, such as Media Axis, PureMedia, PureStream, HDTools products, and more. Please contact sales@purelinkav.com or 201-488-3232, or try our Live Chat at www.purelinkav.com...
