Kemper FK-5 PRO Installation Instructions Manual

Break tank station
Hide thumbs Also See for FK-5 PRO:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 4

Quick Links

Download this manual
DE
Montageanleitung
FK-5 PRO Sicherheitstrennstation
Fig. 369 30 | 369 31
EN
Installation instructions

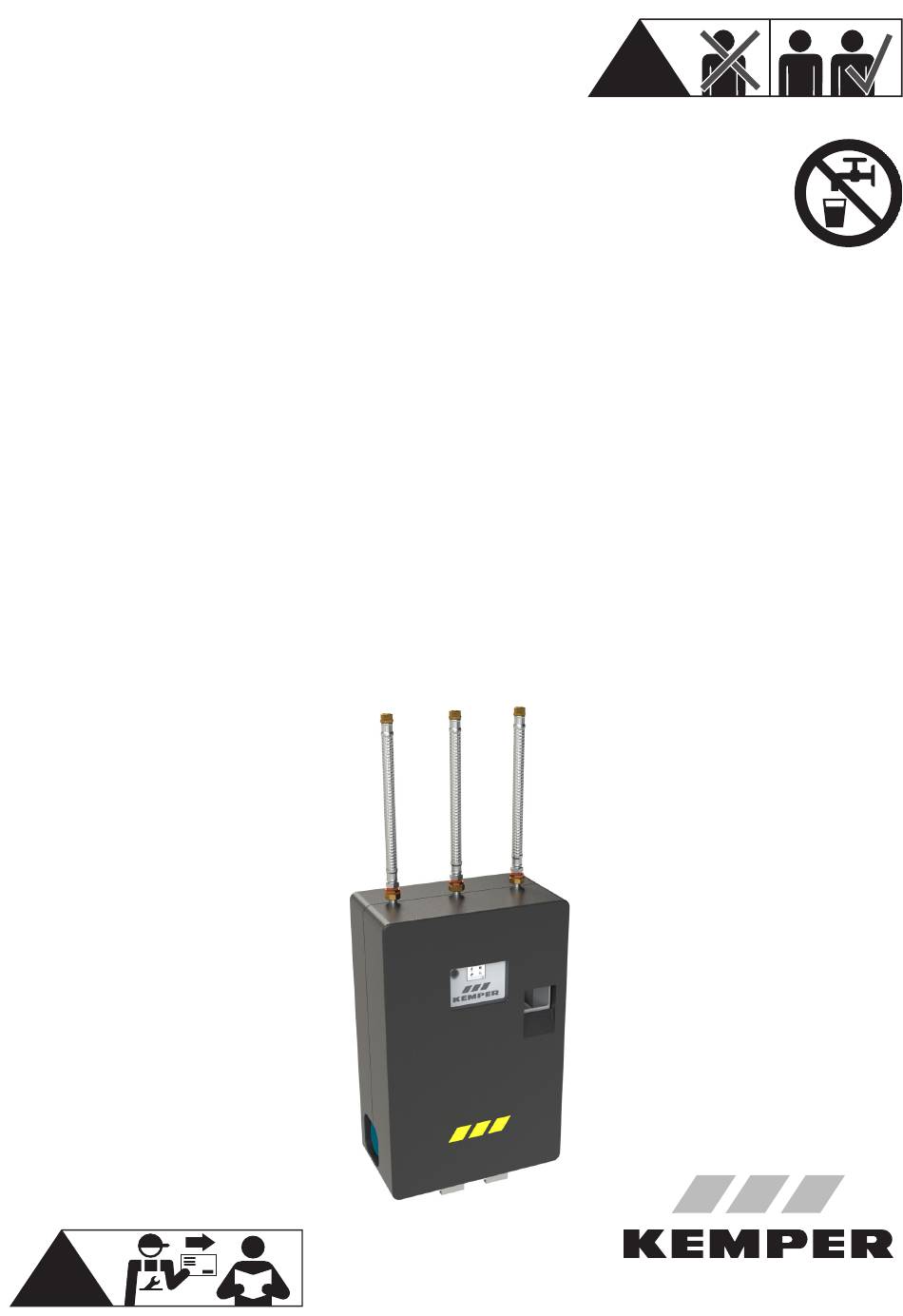

FK-5 PRO Break Tank Station
Fig. 369 30 | 369 31
FR
Instructions de montage
FK-5 PRO Station de séparation de sécurité
Fig. 369 30 | 369 31
IT
Istruzioni per il montaggio
FK-5 PRO Stazione di separazione di sicurezza
Fig. 369 30 | 369 31
NL
Installatiehandleiding
FK-5 PRO Beveiligingstoestel
Fig. 369 30 | 369 31
DA
Monteringsvejledning
FK-5 PRO Sikkerheds-frakoblingsstation
Fig. 369 30 | 369 31
!
!
