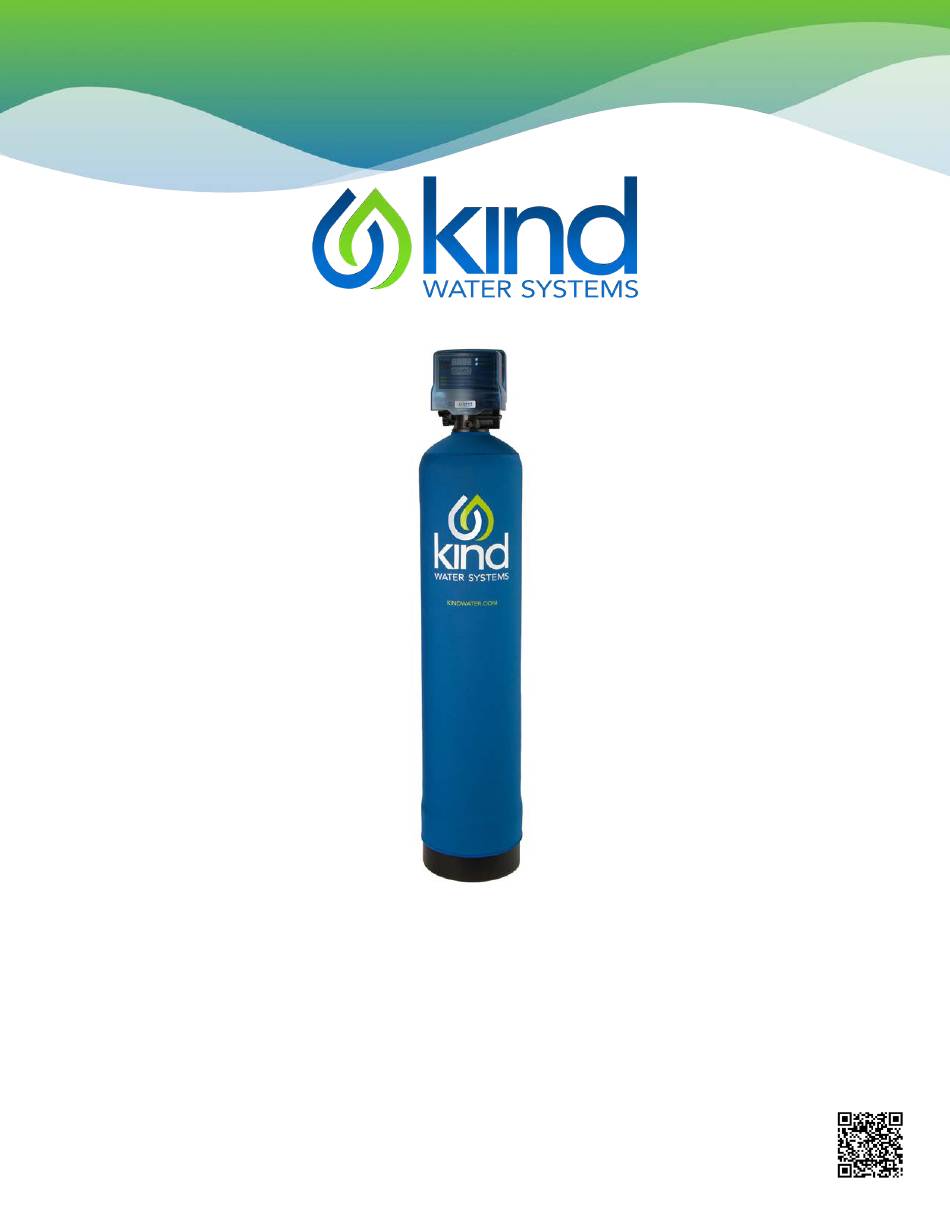

- Page 1 Smart Metered Backwashing Carbon Installation / Operation Manual Model #: S-500 kindwater.com KIND WATER Have questions? Call us: 888-614-5559 EDUCATION S-500-REV-D-FE25...
- Page 2 Items Included Tank & Jacket Bypass Valve Drain Line 90-degree 1” Low Voltage Hose Clamp NPT Fittings Power Cord Low Voltage Power Cord Extention...
- Page 3 Please comply with all applicable plumbing codes Protect from FREEZING TEMPERATURES Please read the entire Installation/Operating Manual and Instruction before installation. This Installation/Operating Manual must stay with the unit. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
-
Page 4: Installation Requirements
What Is a Backwashing Carbon Filter and What Does It Do? The Kind Water Smart Metered Backwashing Carbon Filter is a water treatment system designed to cleanse the water supply for an entire household. The filter passes water through a tank filled with catalytic carbon media. As... - Page 5 HOT WATER COLD WATER CITY WATER INLET WATER METER PRESSURE RELIEF VALVE (To drain) S-500 WATER PRESSURE HEATER TANK RELIEF VALVE MUST BE INSTALLED PUMP WELL INLET Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
- Page 6 Bypass Assembly Description Bypass (included with all units) 1” NPT Elbow Set (included with all units) Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
-
Page 7: Installation Procedure
Elbows or other fittings must be kept at a bare minimum. Where the drain line is elevated above the control valve or exceeds 20 feet in NOTE length, 3/4” I.D. drain line tubing should be used. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •... -
Page 8: Electrical Connection
Start a regeneration by pressing and holding the set change button for 3 seconds. • The display may show zeros or a 1, repeat holding the set change button to initiate. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •... - Page 9 • If the valve you want to connect to doesn’t show up, or there is a problem connecting to a device you can press the “Scan for Devices” button or the Kind Water logo at any time to refresh the list and start the process over.
-
Page 10: Set Up Utilizing Bluetooth App
We do not recommend changing Advanced Settings unless you have a good understanding of the system. From the Advanced Settings, all items in GREEN with a “set” button can be changed. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •... - Page 11 Set time of day. Set a.m. or p.m. Set regeneration day override if other than (3) days is desired. Set regeneration time, if other than 12:00 a.m. is desired. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
- Page 12 3. Default setting is 6 days for filters. To Exit Main Menu, press the Menu/Enter button. If no buttons are pressed for 60 seconds, the Main Menu will be exited automatically. NOTE Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
-
Page 13: Normal Operation
No other system will be affected. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •... - Page 14 Fast Cycle is not necessary unless desired to manually step through each cycle step. (Repeat until valve returns to the home display) Filters Default (Min) Step 1 Backwash Step 2 Rest Step 3 Rapid Rinse Step 4 Not Used Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
-
Page 15: General Care And Cleaning
• Use only mild soap and warm water to clean exterior of the unit. Never use harsh, abrasive cleaners. • Protect the water filter and drain line from freezing. • Reset time for daylight saving time periods. • Replace 9-volt battery once a year. Kind Water Systems - Smart Metered Backwashing Carbon Filter, Installation and Operation •...
