To download the digital version of this instruction manual and to check other available languages scan the following QR code. Para descargar la versión digital de este manual de instrucciones y consultar otros idiomas disponibles, escanee el siguiente código QR. Para baixar a versão digital deste manual de instruções e verificar outros idiomas disponíveis, escaneie o seguinte código QR.
The proper installation and maintenance of all our products is the responsibility of the user unless you have asked 4B to perform these tasks.
Page 5
Correct installation of the product is important for safety and performance. If you have not asked 4B to perform the installation of the unit on your behalf, it is critical for the safety of your operation and those who may perform work on your operation that you select a qualified and competent electrical installer to undertake the installation.
Page 6
If you have questions or comments about the operation of your 4B product or require it to be serviced, please contact 4B (contact options are on the back cover of this manual). Please have available product part numbers, serial numbers, and approximate date of installation.

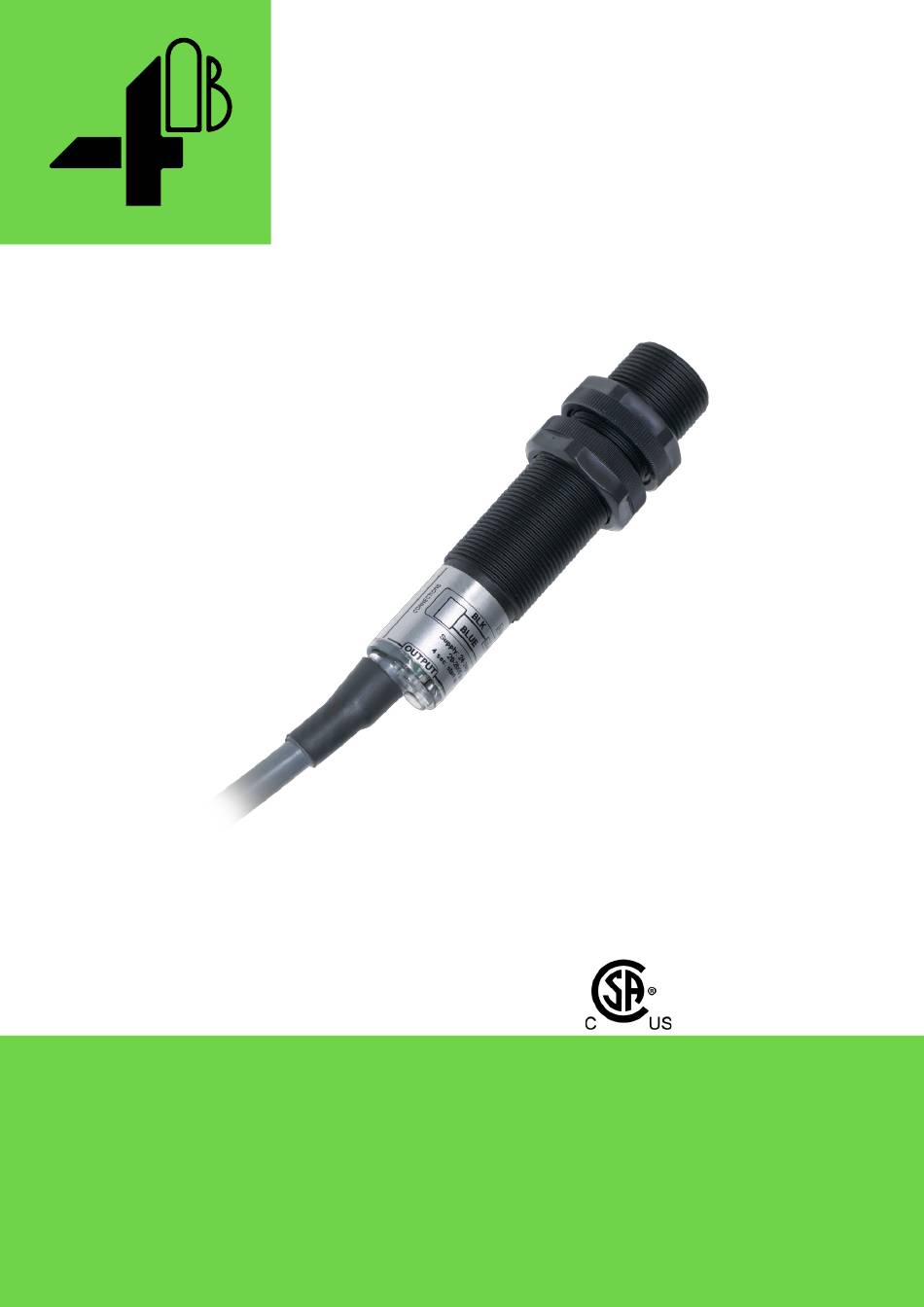

PRODUCT OVERVIEW The P100 Proxswitch is an 18 mm inductive sensor designed to detect shaft speed, shaft position, gate position, or object presence. The P100 Proxswitch is a limit switch style proximity sensor, which works on the damped oscillator principle. No contact is made between the sensor and the object being monitored.
SPECIFICATIONS P1001V10C P1002V10C Supply Voltage 24 to 240 VDC / 24 to 240 VAC 50/60 Hz Output Switching Capacity 100mA Maximum Output State Output Energized (On) Output De-Energized (Off) with No Target with No Target Maximum Input Speed 200 Hz Leakage Current <...
APPROVALS P1001V10C, P1002V10C CSA Class II Division 1 Groups E, F and G (USA and Canada) ATEX Versions Available (Europe) Master Contract Number – 186886 DIMENSIONS 2-1/4” [57 mm] STANDARD WIRING DIAGRAM All wiring must be in accordance with local and national electrical codes and should be undertaken by an experienced and qualified electrician.
Page 10
Do not wire the P100 directly to a motor starting coil due to the 100 mA maximum current capacity. It is not recommended to wire the P100 in series with other sensors. Black (N / 0V) Black (N / 0V) LOAD Supply Supply...
INSTALLATION Fasten the P100 Proxswitch to a suitable mounting bracket with guard, such as 4B’s Whirligig® universal shaft sensor mount, with the nose of the switch within the sensing range of the target, as shown below – Ferrous Target - 5/16” (8 mm) Max.
TESTING AND MAINTENANCE 1. Check that the unit is correctly installed (see standard wiring diagram). 2. Check that the distance between the target, stud or bolt head and sensing face of P100 is within the minimum distance specified. 3. Start up machine. 4.
100 mA. Slide a screwdriver blade across the face of the sensor, the input LED should flicker. If not, contact 4B. If the input LED does flicker, move the front face of the sensor closer to the target and check the target size as specified under “INSTALLATION”.
PARTS AND ACCESSORIES Whirligig - Shaft Sensor Mount The Whirligig is a fully guarded target for easy mounting of motion sensors. It is a universal shaft sensor mount suitable for all industry standard cylindrical or DIN style inductive sensors. The Whirligig is available with 1, 2, 4 or 8 pulse targets, and attaches to the machines shaft by a 1/2 in.
(1) year after date of purchase from 4B. Any product determined by 4B at its sole discretion to be defective in material or workmanship and returned to a 4B branch or authorized service location, as 4B designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at 4B’s option.
