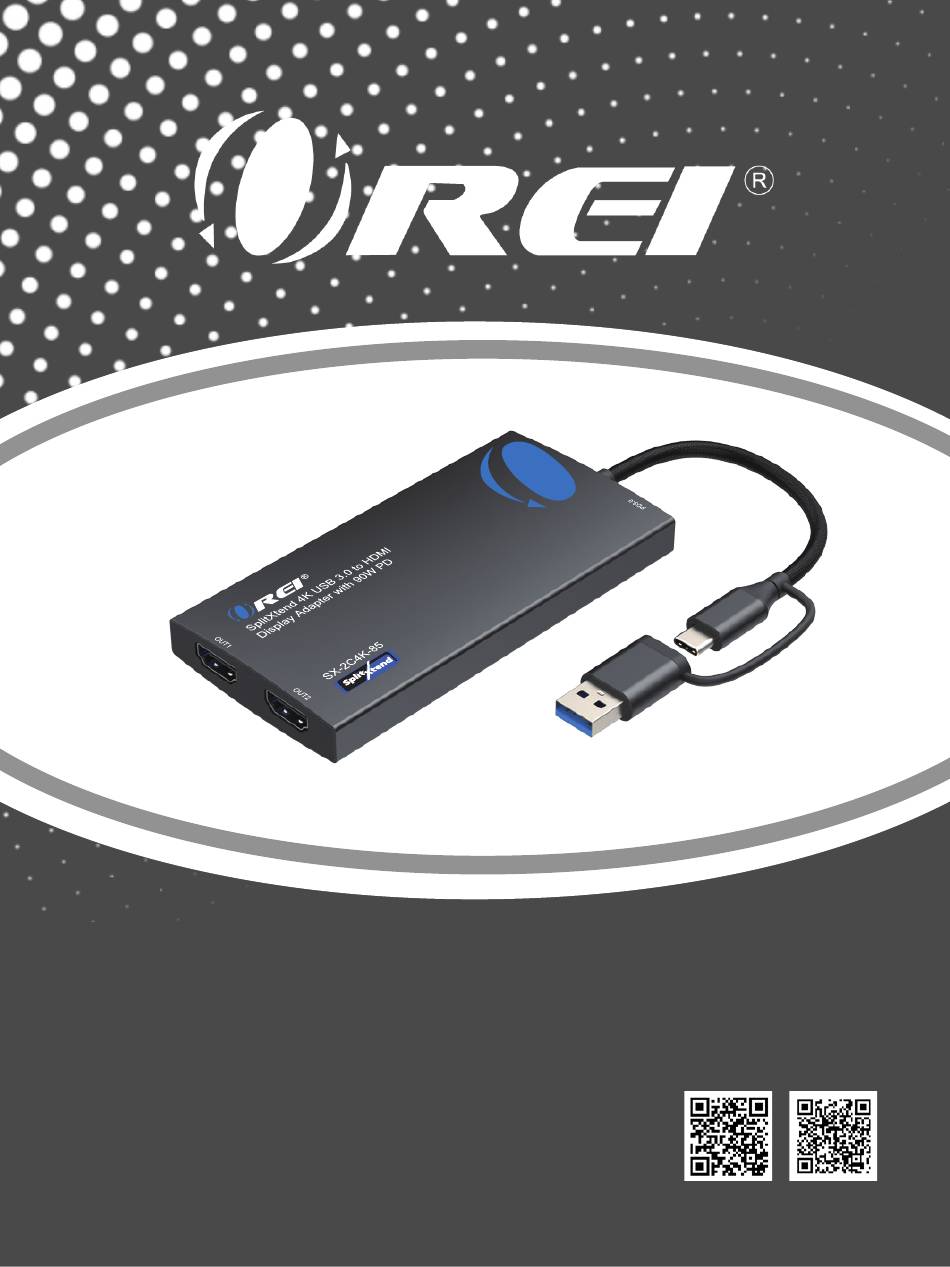

- Page 1 SX-2C4K-85 Follow us on Youtube SplitXtend 4K USB 3.0 to HDMI and Facebook Display Adapter with 90W PD US E R M ANUA L www.orei.com page 1...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions Introduction Features Package Contents Supported Resolutions Driver Installation Display Mode Setting Specifications Operation Control & Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. -
Page 3: Registration Page
OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 5 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily. -
Page 4: Safety Instructions
Safety Instructions Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manu- al for future reference: •To prevent electric shock, do not attempt to open the product. •Only qualified personnel should perform any repairs or main- tenance. -
Page 5: Introduction
Introduction The SplitXtend SX-2C4K-85 is a USB A or C to HDMI adapter that lets you connect 2 displays to your laptop, enabling screen extension or duplication to boost productivity. It supports video resolutions up to 4K@60Hz and is compliant with USB 3.2 Gen 1 and Thunderbolt 3/4 ports. The adapter includes a USB C port with 90W PD for charging your laptop. -
Page 6: Features
Features & Package Contents 1. USB 3.0 compliant 2. 2 HDMI outputs supporting 4K@60Hz resolution 3. Mirror or Extend displays for multitasking 4. PD3.0 90W fast charging to charge your laptop while using it 5. Compatible with USB 3.1 Gen 1 and Thunderbolt 3/4 ports 6. -
Page 7: Supported Resolutions
Supported Resolutions Supported Resolutions OS/Ports OUT1/2 Port 4096x2160@60Hz 3840x2160@60Hz 2048x1152@60Hz 1920x1440@60Hz 1920x1080@60Hz 1280x1024@60Hz Windows 1280x800@60Hz 1280x720@60Hz 1024x768@60Hz 800x600@60Hz 4096x2160@60Hz 3840x2160@60Hz 3008x1692@60Hz 2720x1536@60Hz 2560x2048@60Hz 2560x1440@60Hz 2304x1728@60Hz 2048x1536@60Hz 2048x1152@60Hz 2048x1080@60Hz 1920x1440@60Hz 1920x1080@60Hz 1600x1200@60Hz 1600x900@60Hz 1504x846@60Hz Mac OS 1360x768@60Hz 1344x1008@60Hz 1344x756@60Hz 1280x1024@60Hz 1280x960@60Hz 1280x720@60Hz 1152x864@60Hz 1024x768@60Hz... -
Page 8: Driver Installation
Driver Installation Visit this link to download the drivers for your OS: https://www.synaptics.com/products/displaylink-graphics/downloads page 08 Page 08... - Page 9 Driver Installation For Windows 1. Unzip the driver file and double click to open the “.exe” file, and then click “Yes”. Note: If a security prompt pop-up appears, click “INSTALL” or “Run Anyway” Page 09...
- Page 10 Driver Installation 2. Once the driver installation wizard starts, click “INSTALL” Page 10...
- Page 11 Driver Installation 3. After installation, click “Finish” to restart the computer page 11 Page 11...
- Page 12 Driver Installation For MacOS 1. Open the dmg file 2. Click Displaylink Software installer.pkg page 12 Page 12...
- Page 13 Driver Installation 3. Click on Continue page 13 Page 13...
- Page 14 Driver Installation 4. Click on Continue page 14 Page 14...
- Page 15 Driver Installation 5. Once the drivers are installed, you would get a prompt asking you to enable screen recording function. NOTE: The device will not record your screen and store or send data anywhere. It just says “screen recording” but it is not actually recording your screen.
-
Page 16: Display Mode Setting
Display Mode Setting For Windows 1. Right click anywhere on the desktop and click “Display settings” page 16 Page 16... - Page 17 Display Mode Setting 2. On the “Display” settings, click each of the display windows to set the needed resolution or change other settings. You can also arrange the dis- plays based on their actual placement here. Page 17...
- Page 18 Display Mode Setting 3. On the bottom right corner would be a dropdown with various settings to extend or duplicate the select display. Select Extend to this display option to extend the display. page 18 Page 18...
- Page 19 Display Mode Setting For MacOS 1. Left click the Apple icon and select “System Preferences” Page 19...
- Page 20 Display Mode Setting 2. Click on “Displays” page 20 Page 20...
- Page 21 Display Mode Setting 2. On the “Display” page, click each of the display window to set its position or mirror or extend the displays Page 21...
- Page 22 Display Mode Setting 3. In the “Displays” settings choose each connected display to set the resolu- tion and mode Note • Please note that MacOS devices do not support rotation mode, but M1/M2 Macs support clamshell mode. • To use this adapter, your USB-C™/USB3.0 equipped device must support USB 3.0 data transmission.
-
Page 23: Specifications
Specifications Technical HDMI Compliance HDMI 2.0 Video Bandwidth 6Gbps per channel (18Gbps all channels) Video Resolution 4K@60Hz Color Space 4:4:4/4:2:0 Color Depth 8/10/12 bit Audio Formats LPCM Not supported Contact discharge (±4KV), air discharge (±8kv),lmple- ESD Protection mentation of the standard: IEC61000-4-2 Connection Input 1 ×... - Page 24 Specifications Mechanical Housing Aluminium Alloy + ABS Color Black L: 125.5mm / 4.94in Dimensions W: 63.3mm / 2.49in H: 13.5mm / 0.53in Weight 110g / 3.88oz Power Supply FCC, CE, RoHS Power Consumption Operation 0°C ~ 60°C / 32°F ~ 140°F Temperature Storage Temperature -10℃to 70℃...
-
Page 25: Operation Control & Functions
Operation Control & Functions SplitXtend 4K USB 3.0 to HDMI Display Adapter with 90W PD SX-2C4K-85 Name Function Description USB3.0 Connect to the USB A port on a Laptop USB C Connect to the USB C port on a Laptop PD3.0 USB C port with PD 3.0 90W charging support OUT1/2... -
Page 26: Application Example
Application Example 1.Mirror Mode 4K HDMI Cable 4K HDMI Cable Laptop 2.Extend Mode 4K HDMI Cable 4K HDMI Cable Laptop Page 26... -
Page 27: Faqs & Troubleshooting
Check if the adapter is selected as the audio output in the settings Still have some questions? Please feel free to contact us at: info@orei.com. OR Fill out the form on the ‘Contact Us’ page on the website. Our team will be more than happy to help you. - Page 28 SplitXtend 4K USB 3.0 to HDMI Display Adapter with 90W PD SX-2C4K-85 www.orei.com © 2024 page 28...
