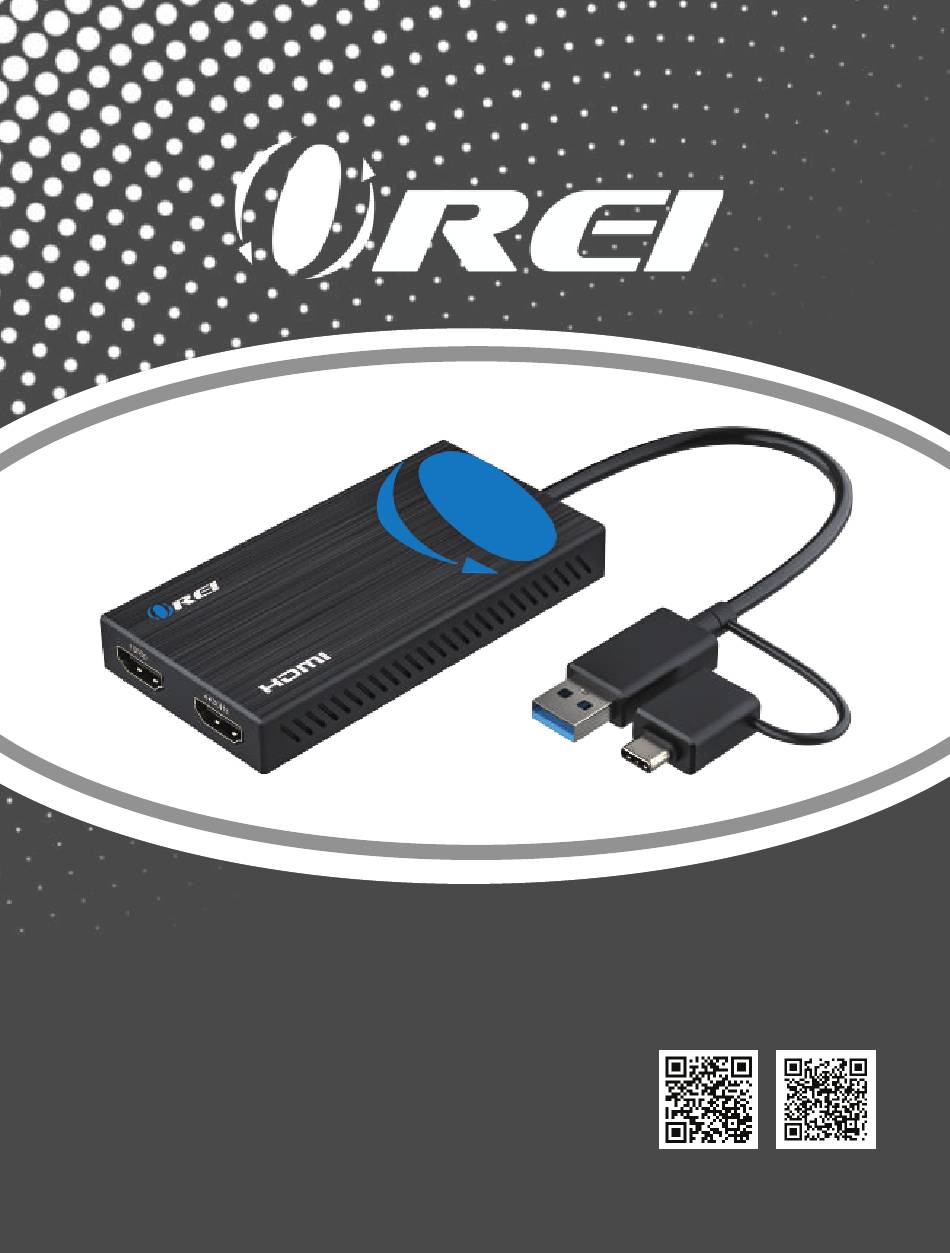

- Page 1 USB3.0 (USB-A or USB-C) to Dual HDMI Adapter Supports Follow us on Youtube and Facebook 4K@30Hz+1080P@60Hz for Windows and Mac OS U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions Driver Installation Introduction Display Mode Setting Features Support Resolution Package Contents Specifications Operation Controls and Functions Troubleshooting Common Issues System Requirements Connection Diagram Resolutions Thank you for purchasing this product For optimum performance and safety, please read these instructions care-fully before connecting, operating or adjusting this product. - Page 3 Call, email or chat with us now. OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |...
-
Page 4: Safety Instructions
Safety Instructions Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: 1. To prevent electric shock, do not attempt to open the product. 2. Only quali ed personnel should perform any repairs or maintenance. 3. -
Page 5: Introduction
Introduction The USB 3.0 to HDMI Dual Display Adapter, which connects USB-A or USB-C to two HDMI displays. This adapter is designed to support Mirror/Extend/Rotate/Clamshell modes and can display up to 4K@30Hz and 1080p@60Hz. This adapter allows you to extend or duplicate your Laptop or computer screen to two displays adding accesibility and convenience to your setup. -
Page 6: Features
Features 1. Dual display output, supporting one display at 4K@30Hz and another at 1080p@60Hz. 2. Supports video decoding in multiple formats, including H.264, H.263, MP4, MP2, DivX, AVS, JPEG, and more. 3. Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports. 4. -
Page 7: Operation Controls And Functions
Operation controls and functions USB-C Male Adapter: Connect to the USB-C port of Laptop/Notebook with USB3.0 Data Output USB3.0 Port: Connect to the USB 3.0 Data Port of the PC/ Laptop/ Notebook/USB 3.0 Hub 4K30Hz: Connect to HDMI Display to Output Resolution up to 4K@30Hz Max 1080p: Connect to HDMI Display to Output Resolution up to 1080p Max... -
Page 8: System Requirements
System Requirements To ensure proper installation and operation of this product, please ensure that your system meets the following requirements: 1. Windows 7/8/8.1/10 and above or Mac OS 10.10.x and above. 2. CPU Processor: Core i5 and above. 3. RAM: 4GB and above. 4. -
Page 9: Driver Installation
Driver Installation Enter the website: www.siliconmotion.com>Products>Graphics-Display-SoCs> Dowloads>Drivers, and download the correct driver zip le as follow: page 09... - Page 10 Driver Installation 1. Unzip the driver le, and double click to open the “.exe” le, and then click “INSTALL”. Note: If a security prompt pop-up appears, click “INSTALL”. page 10...
- Page 11 Driver Installation 2. After installation, click “REBOOT” to restart the computer. page 11...
-
Page 12: Display Mode Setting
Display Mode Setting For Windows 1. Right click the blank space on the desktop and select “Display settings”. page 12... - Page 13 Display Mode Setting 2. At the “Display” area, click each of the display icons to set the needed resolution or other settings. page 13...
- Page 14 Display Mode Setting 3. Scroll down to “multi display settings” and select the desired mode in the drop-down list. page 14...
- Page 15 Display Mode Setting For Mac OS 1. Left click the apple icon and select “System Preferences”, and click “Displays”. page 15...
- Page 16 Display Mode Setting 2. At the “Display” area, click each of the display icons to set the location or change to mirror or extend mode. page 16...
- Page 17 Display Mode Setting 3. Click “Display Setting”, and choose each connected display to set correct resolution and mode. Note : 1. Please note that Mac-based devices do not support rotation mode, but M1/M2 Mac supports clamshell mode while Intel Mac does not. 2.
-
Page 18: Support Resolution
Support Resolution 1080p Port 4K Port 1920x1080@60Hz 3840x2160@30Hz 1680x1050@60Hz 2560x1440@60Hz 1600x1200@60Hz 1920x1080@60Hz 1600x900@60Hz 1680x1050@60Hz 1440x1050@60Hz 1600x1200@60Hz 1440x900@60Hz 1600x900@60Hz 1280x1024@60Hz 1440x1050@60Hz Windows 1280x800@60Hz 1440x900@60Hz 1280x720@60Hz 1280x1024@60Hz 1152x864@60Hz 1280x800@60Hz 1024x768@60Hz 1280x720@60Hz 800x600@60Hz 1152x864@60Hz 720x480@60Hz 1024x768@60Hz 640x480@60Hz 800x600@60Hz 720x480@60Hz 640x480@60Hz 1920x1080@60Hz 3840x2160@30Hz 1920x1080@30Hz 2560x1440@60Hz 1600x900@60Hz 1920x1080@60Hz... - Page 19 Speci cation Input Ports USB-C Male or USB 3.0 Male x 1 Output Ports HDMI x 2 Data Transmission Rate (Max) 5Gbps Data Transmission Standard USB 3.0 ( USB 3.1 GEN 1) Windows 7/8.1/10/11 and above Mac OS 10.10.x and above Android 7.1 and above Compatible OS ( Android devices only support mirroring mode with resolutions up to 1080P)
-
Page 20: Troubleshooting Common Issues
Troubleshooting Common Issues Q: My USB 3.0 to HDMI Dual Display Adapter is not working. What should I do? A: First, please check the following: 1. Ensure that your device's USB port has a current output of 900mA or more. If not, try a di erent port. - Page 21 Troubleshooting Common Issues Q: The adapter is not displaying video on my second monitor. How can I x this? A: Please check the following items: 1. Ensure that your HDMI cable and adapter are securely connected. 2. Verify that your video source is compatible with the adapter. 3.
-
Page 22: Connection Diagram
Connection Diagram 1. Mirror Mode HDMI Cable HDTV HDMI Cable HDTV Laptop 2. Extend Mode HDMI Cable HDTV HDMI Cable HDTV Laptop The Adopted Trademarks HDMI, HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. - Page 23 USB3.0 (USB-A or USB-C) to Dual HDMI Adapter Supports 4K@30Hz+1080P@60Hz for Windows and Mac OS www.orei.com © 2023...
