RDL D BTN21 Series Quick Start Manual

Model D SERIES-BTN21
Bluetooth Audio
®
Dante Network Interface

Bluetooth Audio Input for Dante or AES67 Networked System

Bluetooth Stereo or Mono Sum Feeds Two Network Channels

Return Audio Talk Channel from Dante Network to Bluetooth Connected Device

Intuitive Single Button Bluetooth Pairing with LED Status Indication

Bluetooth Functions are Controllable in RDL CONSOLE Software

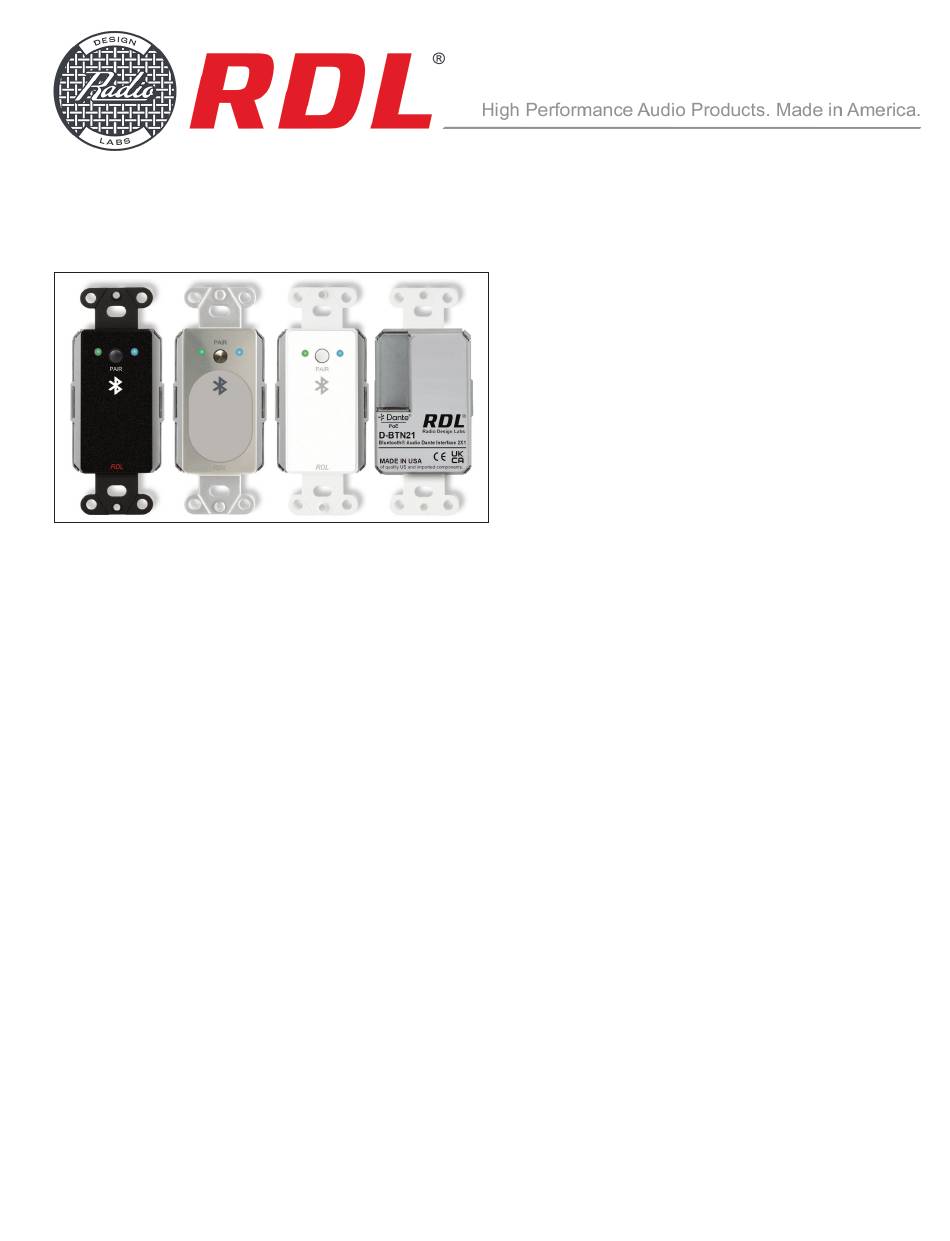

APPLICATION: The D SERIES-BTN21 modules are Dante networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio.
The modules are configurable using RDL CONSOLE software and are controllable by compatible remote controls or software. The module
multicasts Bluetooth media data and module function status for use with RDL CONSOLE software, compatible RDL remote controls and other
compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may
be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device
through the Bluetooth interface enabling full duplex communication.
Compatible RDL remote controls may be configured to control from one to eight D SERIES-BTN21 modules. Controllable Bluetooth functions
include pairing or un-pairing, media source track selection (play, pause, next track, last track) and level adjustment from the originating
Bluetooth device. Remote controls equipped with a screen may display the track title and artist.
The installer can customize the module Bluetooth name using RDL CONSOLE software. Additional settings include the LED dim intensity and
the timeout to dim the LEDs. The default timeout is 30 seconds.
The D-BTN21 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back
boxes with 60 mm distance screw hole mounting centers. The D-BTN21 is PoE powered and is available in multiple finishes with optional
customized graphics.
High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.
RDL
• •
659 6th St. Prescott, AZ., USA 86301

Bluetooth Functions are Controllable using Compatible RDL Remote Controls

Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level

Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices

Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software

Module is PoE Powered
• •
