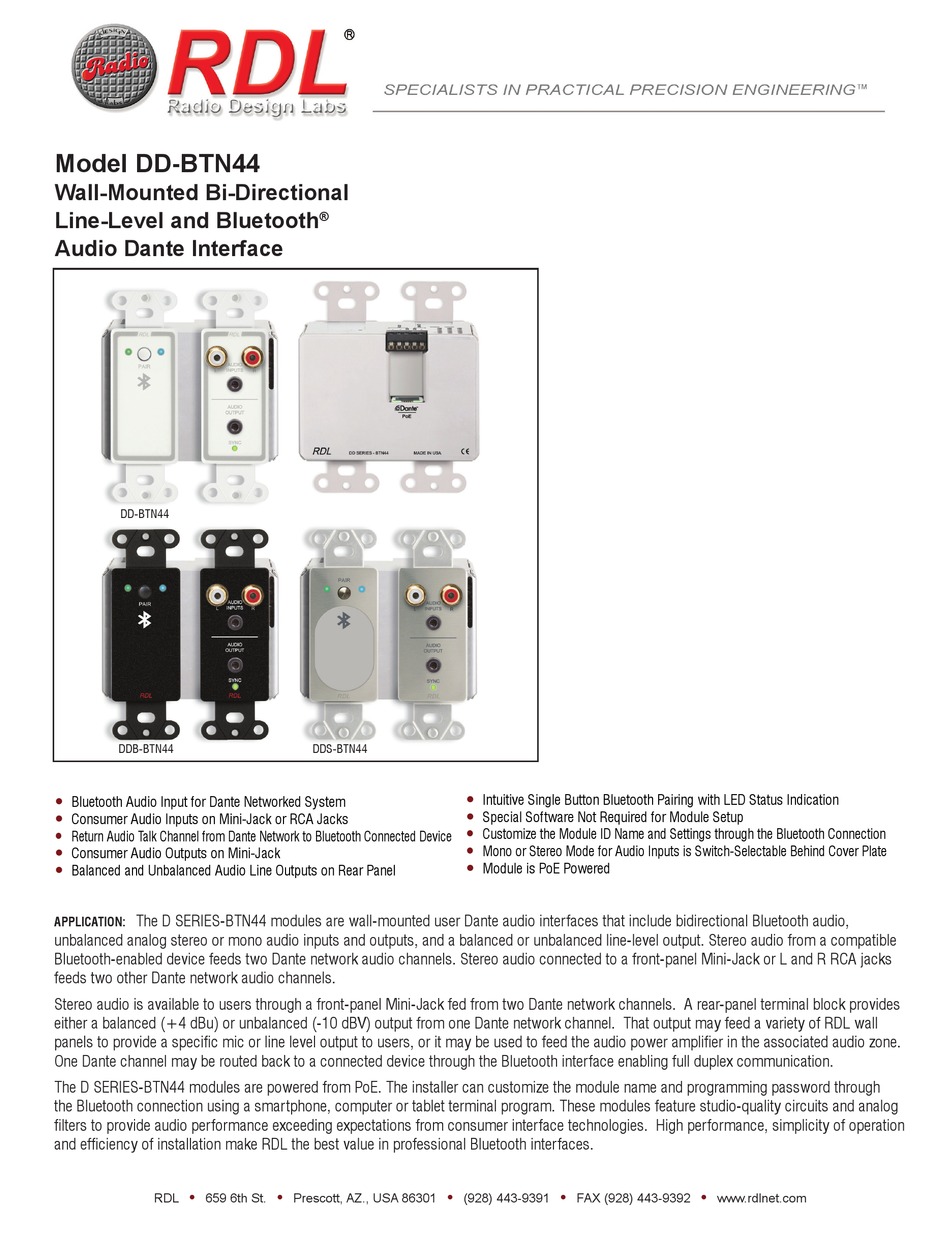

RDL DD-BTN44 Installation & Operation

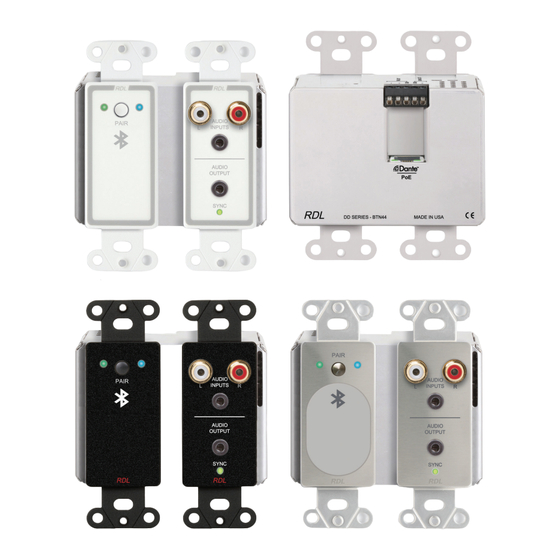

Model DD-BTN44
Wall-Mounted Bi-Directional
Line-Level and Bluetooth
Audio Dante Interface
DD-BTN44
DDB-BTN44
y Bluetooth Audio Input for Dante Networked System
y Consumer Audio Inputs on Mini-Jack or RCA Jacks
y Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
Consumer Audio Outputs on Mini-Jack
y
y Balanced and Unbalanced Audio Line Outputs on Rear Panel
The D SERIES-BTN44 modules are wall-mounted user Dante audio interfaces that include bidirectional Bluetooth audio,
APPLICATION:
unbalanced analog stereo or mono audio inputs and outputs, and a balanced or unbalanced line-level output. Stereo audio from a compatible
Bluetooth-enabled device feeds two Dante network audio channels. Stereo audio connected to a front-panel Mini-Jack or L and R RCA jacks
feeds two other Dante network audio channels.
Stereo audio is available to users through a front-panel Mini-Jack fed from two Dante network channels. A rear-panel terminal block provides
either a balanced (+4 dBu) or unbalanced (-10 dBV) output from one Dante network channel. That output may feed a variety of RDL wall
panels to provide a specific mic or line level output to users, or it may be used to feed the audio power amplifier in the associated audio zone.
One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.
The D SERIES-BTN44 modules are powered from PoE. The installer can customize the module name and programming password through
the Bluetooth connection using a smartphone, computer or tablet terminal program. These modules feature studio-quality circuits and analog
filters to provide audio performance exceeding expectations from consumer interface technologies. High performance, simplicity of operation
and efficiency of installation make RDL the best value in professional Bluetooth interfaces.
•
RDL 659 6th St.
®
DDS-BTN44
• •
Prescott, AZ., USA 86301
y Intuitive Single Button Bluetooth Pairing with LED Status Indication
Special Software Not Required for Module Setup
y
y Customize the Module ID Name and Settings through the Bluetooth Connection
Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
y
y Module is PoE Powered
•
(928) 443-9391 FAX (928) 443-9392
•
www.rdlnet.com
