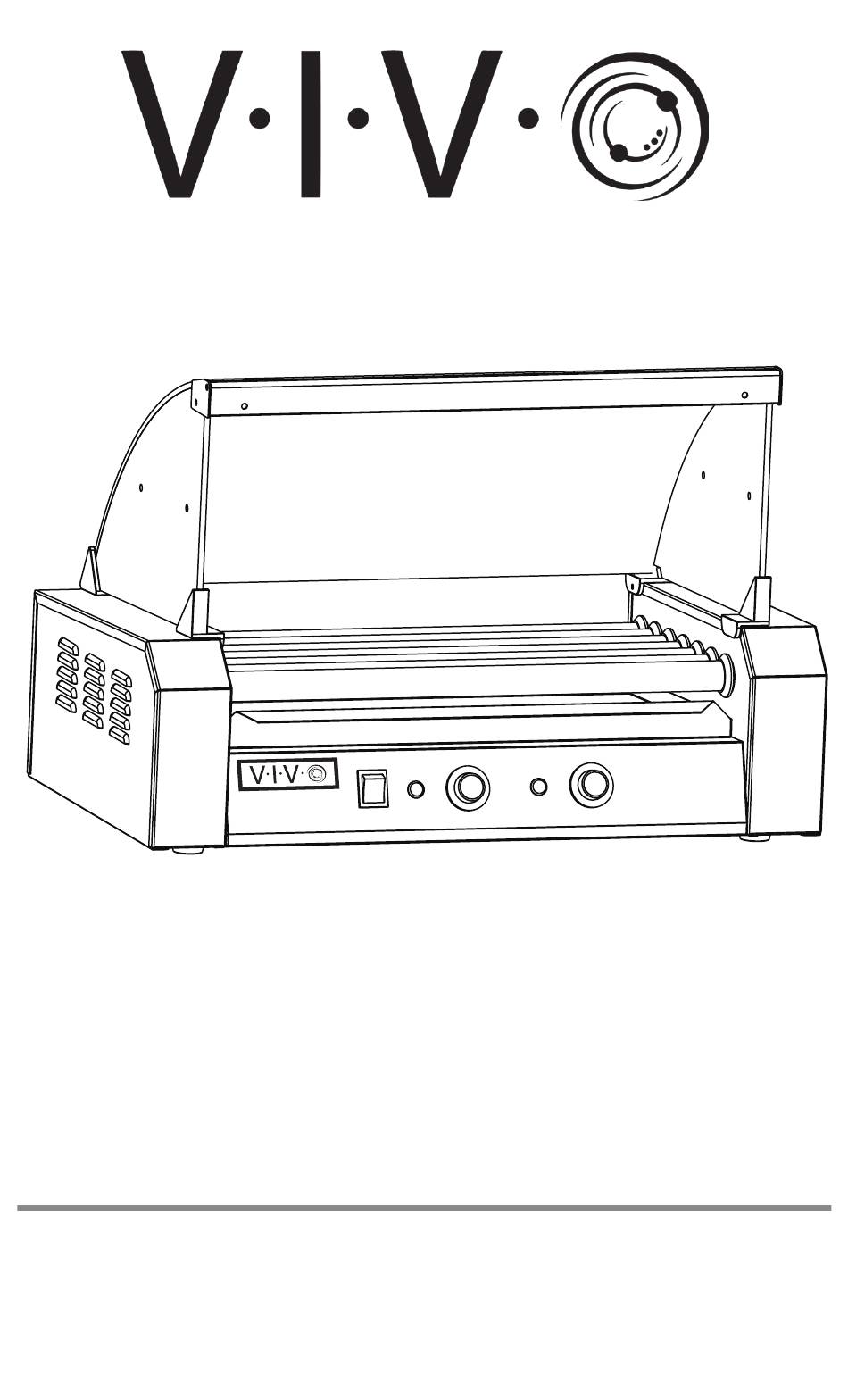

- Page 1 Seven Roller Electric Hot Dog Machine with Sanitation Hood HOTDG-V207 Operating Manual...
-
Page 2: Please Read
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement. - Page 3 Warning Failure to read the following warnings may result in personal injury or property damage: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. WARNING: DO NOT USE DETERGENT TO CLEAN ANY REMAINING RESIDUE WILL POLLUTE THE HOT DOGS. WARNING: HOT SURFACES THIS PRODUCT IS CAPABLE OF REACHING VERY HIGH TEMPERATURES.
- Page 4 Overview Glass Sanitation Cover Protective shield for potential contaminants. Rollers Heated cylinders that spin to heat the hot dogs evenly. Power Switch Turns the power on or off. Front Heat Indicator Lights when the heat of the front four rollers is increasing. Turns off when the set temperature is reached.
-
Page 5: Package Contents
Package Contents A (x1) B (x2) C (x2) D (x2) Hot Dog Roller Front Glass Rear Glass Side Glass Mount Mount Panel E (x1) H (x1) F (x1) G (x1) Top Glass Tongs Glass Trim Power Cable Panel I (x1) Drip Tray Included Hardware &... -
Page 6: Assembly Steps
Assembly Steps STEP 1 Add a small amount of vegetable oil on both ends of the rollers on Hot Dog Roller (A). This will allow the rollers to spin smoothly. Avoid using non-stick sprays. STEP 2 Remove the four preinstalled screws from the top of the Hot Dog Roller (A) and use the screws to attach the Front and Rear Glass Mounts (B,C) as shown using a Phillips screwdriver. - Page 7 STEP 3 Insert Side Glass Panels (D) into the Front and Rear Glass Mounts (B,C) as shown. Place Top Glass Panel (E) onto the Side Glass Panels (D).
- Page 8 STEP 4 Place Glass Trim (F) on top of Top Glass Panel (E) making sure the holes on both sides line up. Attach Glass Trim (F) using M4x10mm Screws (S-A) and M4 Cap Nuts (S-B). Tighten using a Phillips screwdriver and a 7mm Wrench.
- Page 9 STEP 5 Plug Power Cable (G) into Hot Dog Roller (A) and flip the Power Switch to the ON position. Insert Drip Tray (I) into Hot Dog Roller (A). Use the temperature dials to control the rollers to the desired temperature. To avoid injury, use Tongs (H).
- Page 10 Mainenance WARNING: ROLLERS WILL BE HOT Allow hot surfaces to cool before handling to prevent personal injury. Cleaning To maintain product appearance and longevity of service, clean equipment after each use. DO NOT IMMERSE IN WATER Immersing the machine in water may cause product damage. 1.
-
Page 11: Product Specifications
Product Specifications Model HOTDG-V207 Material Stainless Steel Heating Power 900W Electric Voltage 110V Frequency 60 Hz Temperature Scope 32°F - 482°F Roller Quantity... - Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
