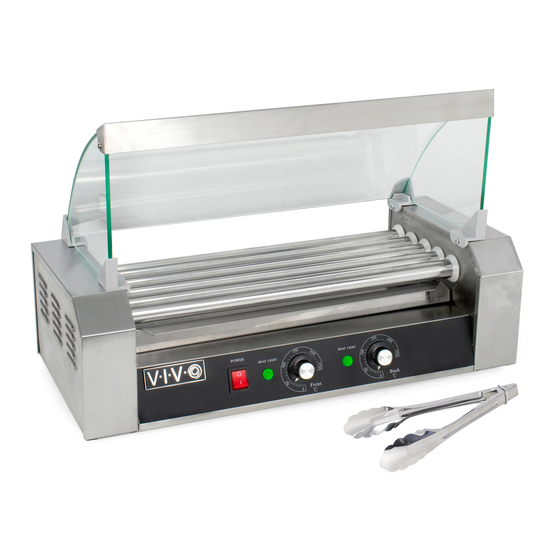

Five Roller Electric Hot Dog Machine
with Sanitation Hood
Instruction Manual
SKU: HOTDG-V205
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/hotdg-v205
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo HOTDG-V205
Summary of Contents for Vivo HOTDG-V205
- Page 1 Five Roller Electric Hot Dog Machine with Sanitation Hood Instruction Manual SKU: HOTDG-V205 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/hotdg-v205 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING: IMPORTANT SAFETY INFORMATION READ AND FOLLOW ALL SAFETY REQUIREMENTS KEEP THIS MANUAL IN A SAFE AND DRY PLACE FOR FUTURE REFERENCE If you do not understand these directions, or if you have any doubts about the safety of the product, please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
-
Page 3: Electrical Data
WARNING: ELECTRICAL SHOCK HAZARD. • KEEP WATER AND OTHER LIQUIDS AWAY FROM ENTERING INSIDE EQUIPMENT. FAILURE TO DO SO MAY RESULT IN A SHORT CIRCUIT OR AN ELECTRICAL SHOCK • DO NOT USE EQUIPMENT IF POWER CORD IS DAMAGED OR HAS BEEN MODIFIED. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS MODEL HOTDG-V205 MATERIAL STAINLESS STEEL DIMENSION 580 x 255 x 170mm HEATING POWER 700 W ELECTRIC VOLTAGE 110 V FREQUENCY 60 Hz TEMPERATURE SCOPE 32°F - 482°F ROLLER QUANTITY PACKAGE CONTENTS C (x2) A (x1) B (x2) E (x1) -
Page 5: Product Structure
PRODUCT STRUCTURE TOOLS NEEDED Glass Sanitation Cover Phillips Screwdriver Rollers Drip Tray Back Heat Front Heat Indicator Indicator Power Switch Back Temperature Front Temperature Control Control STEP 1 Add a small amount of vegetable oil on both ends of the rollers on Hot Dog Roller (A). This will allow the rollers to spin smoothly. - Page 6 STEP 2 Remove the four screws, two on each side, from the top inner area of the Hot Dog Roller (A). Place the Front Glass Mounts (B) and Rear Glass Mounts (C) onto the machine and reinsert the screw without tightening completely.
- Page 7 STEP 4 Insert Top Glass Panel (E) into Rear Glass Mounts (C). STEP 5 Place Glass Trim (F) on top of Top Glass Panel (E) making sure the holes on either end line up with the holes in the top corners of Side Glass Panels (D). Secure Glass Trim (F) using M4x10 Screws (S-A) and M4 Cap Nuts (S-B).
- Page 8 STEP 6 Plug Power Cable (G) into Hot Dog Roller (A) and flip the power switch to the ON position. STEP 7 Insert Drip Tray (I) into Hot Dog Roller (A). Turn temperature control to desired temperature setting for the front and/or back rollers. The heating indicator light will turn on while preheating and will turn off once heat reaches desired temperature setting.
-
Page 9: Care And Maintenance
CARE & MAINTENANCE CLEANING TO MAINTAIN PRODUCT APPEARANCE AND LONGEVITY OF SERVICE, CLEAN EQUIPMENT AFTER EACH USE. CAUTION: ROLLERS WILL BE HOT. Allow hot surfaces to cool before handling to prevent burning skin. 1. Make sure power is off before cleaning rollers. 2. - Page 10 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
