Lufkin Well Manager 2.0 User Manual

Rod pump controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

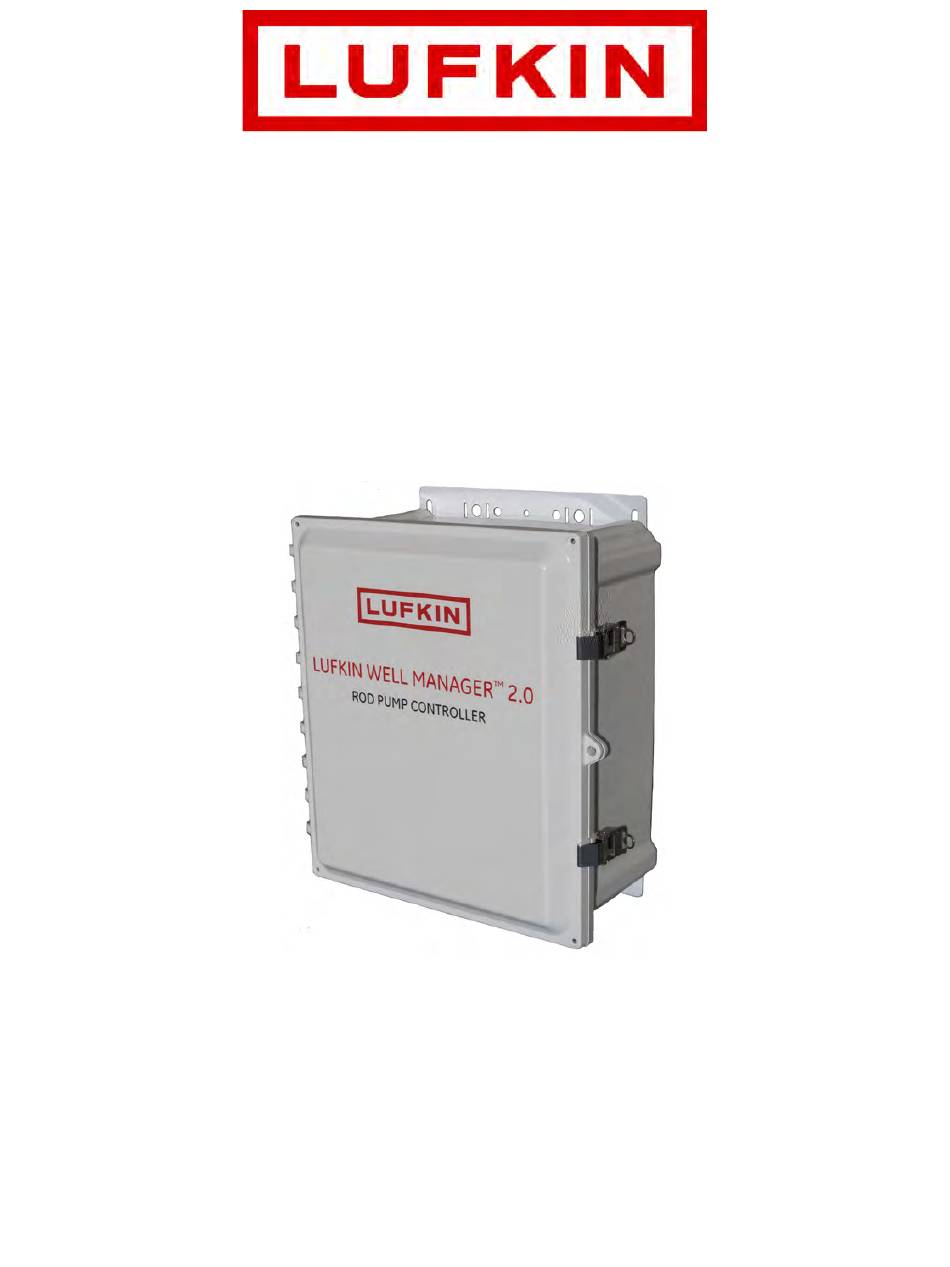

Lufkin Well Manager™ 2.0
Part # 099.0081
Document # 2000300330, Rev. E
Rod Pump Controller
User Manual
Lufkin Automation
811 Willow Oak Drive
Missouri City, Texas 77489
Tel: 281-495-1100
Fax: 281-495-6333
www.lufkin.com
November 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Well Manager 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lufkin Well Manager 2.0

  • Page 1 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Lufkin Automation 811 Willow Oak Drive Missouri City, Texas 77489 Tel: 281-495-1100 Fax: 281-495-6333 www.lufkin.com Part # 099.0081 Document # 2000300330, Rev. E November 2020...
  • Page 2 This page is intentionally blank.

  • Page 3: Table Of Contents

    Table of Contents Section 1: General Information Manual Overview ..................1-3 Notes, Cautions, and Warnings..............1-3 Notes ..........................1-3 Cautions..........................1-3 Warnings..........................1-3 Illustrations and Photographs..............1-4 Safety Guidelines..................1-4 Technical Support ..................1-5 Section 2: System Overview Section Overview..................2-3 System Description ..................2-3 Operation Modes.......................2-4 Communication Protocol ....................2-6 Operator Interface..................
  • Page 4 Site Selection ....................4-3 Installing the Mounting Post ..............4-4 Required Tools........................4-4 Installation Procedure ......................4-4 Installing the Lufkin Well Manager 2.0 Controller ........4-5 Required Tools........................4-5 Recommended Wiring Specifications................4-5 Installation Procedure ......................4-7 Installing Motor Control Relay and Optional Relays....... 4-9 Tools Required........................4-9...
  • Page 5 Section 5: Quick Start Feature Section Overview..................5-3 Parameter Programming................5-3 Starting the Quick Start Procedure............5-4 Operational Limits 1 ................... 5-5 Operational Limits 2 ................... 5-9 Operational Limits 3 ................. 5-11 Operational Limits 4 ................. 5-13 Load and Position Configuration ............5-15 Prime Mover Configuration..............
  • Page 6 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Resetting Alarms ......................7-8 Reset Event Log........................7-9 Unit Preferences ..................7-10 Manage Users ................... 7-12 Add User ..........................7-14 Remove User ........................7-15 Edit User ..........................7-16 Edit Administrator Functions ..................7-17 Enable/Disable Users .....................7-18 Diagnostics ....................7-19 Communication Diagnostics ..................7-19...
  • Page 7 VSD Communication ......................8-63 Zenith Downhole Gauge....................8-64 Function Block Variable Configuration ..........8-65 Function Block Variable Command ................8-66 Function Block Variable Alarm..................8-67 Function Block Variable Status ..................8-68 Function Block Variable Configuration ................8-69 AGA Configuration ................... 8-71 AGA Parameter .......................8-72 NX-19 Parameter ......................8-73 Temperature/Pressure....................8-73 Section 9: Status Screens Section Overview..................
  • Page 8 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Section 10: Dynagraph Screens Section Overview..................10-3 Dynagraph Screen..................10-3 Surface Card ........................10-3 Downhole Card .......................10-8 Both Cards ........................10-9 Historical Dynagraph Cards ..............10-10 Malfunction Cards ......................10-10 Stored Cards .........................10-12 Pump Up Cards ......................10-13 Start Cards ........................10-14...
  • Page 9 Load Cell and Cable......................13-6 Digital Position Signal Inputs ..................13-7 Diagnostics ....................13-8 Outputs from the LWM 2.0 Controller............. 13-8 Appendix A: Pump Intake Pressure and Lufkin Well Test Theory Appendix Overview ..................A-3 Overview of PIP and LWT ................A-3 Theory of PIP Calculated from Downhole Card ........A-3 Theory of LWT Calculated from a Downhole Card ........A-7...
  • Page 10 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Expansion Board Pseudo Digital Input Status............A-21 Expansion Board Pulse Status..................A-22 Expansion Board Health Status ................... A-24 Historical Data ..................A-24 viii November 2020...

  • Page 11: Section 1: General Information

    Section 1: General Information Manual Overview....................1-3 Notes, Cautions, and Warnings ..............1-3 Illustrations and Photographs ................ 1-4 Safety Guidelines ..................... 1-4 Technical Support.................... 1-5 Document # 2000300330, Rev. E...
  • Page 12 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 13: Manual Overview

    General Information Manual Overview This manual provides a complete description of the Lufkin Well Manager 2.0 system and the steps required for installing, wiring, and configuring this system. Notes, Cautions, and Warnings Notes, cautions, and warnings are used throughout this manual to provide readers with additional information, and to advise the reader to take specific action to protect personnel from potential injury or lethal conditions.

  • Page 14: Illustrations And Photographs

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Illustrations and Photographs The illustrations and photographs in this manual provide graphical examples of equipment and software screens. These examples are not intended to represent every possible situation and will vary in appearance to the actual equipment and screens.

  • Page 15: Technical Support

    Before leaving the location, return all wellhead equipment to normal operating positions. Technical Support Assistance is available when needed from Lufkin Automation Technical Support Services at (281) 495-1100, Monday through Friday, between 8:00 A.M. and 5:00 P.M., Central Standard Time.
  • Page 16 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual November 2020...
  • Page 17 Section 2: System Overview Section Overview ..................... 2-3 System Description..................2-3 Operation Modes........................2-4 Communication Protocol ....................2-6 Operator Interface .................... 2-7 Keypad ..........................2-7 LCD Display ..........................2-8 Control Parameter Programming ..................2-10 Mobile Display Options ................. 2-11 Laptop Computers ......................2-11 Smartphones and Tablets ....................2-16 Internal System Components ...............
  • Page 18 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 19: Section 2: System Overview

    System Description The Lufkin Well Manager™ 2.0 rod pump controller is a pre-programmed device mounted at the wellsite that gathers, processes, stores, and analyzes either analog data obtained from load and position transducers or digital data obtained from motor RPM and crank arm sensors. This...

  • Page 20: Operation Modes

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Operation Modes The LWM 2.0 controller has three rod pump control operation modes: • Host: The controller starts and stops the pumping unit based on a user command. This mode is primarily intended for use with a SCADA system. A Host Mode Off global command can be issued by the SCADA program to shut down specific wells and keep them shut down until the operator decides to re-start them.
  • Page 21 System Overview Pump Off Control Actions When a pumped off condition is detected, the LWM 2.0 controller is capable of cycling off the well as needed. Downtime can be programmed by the operator based on experience or production tests. Load and Position Input Options The LWM 2.0 controller is designed to accept load and position data from a number of input devices.

  • Page 22: Communication Protocol

    Communication Protocol The LWM 2.0 RPC uses Modbus-based communications protocol, and also offers the advantages of the Extended Lufkin Automation Modbus (ELAM) protocol for SCADA software packages that goes beyond the limitations of conventional Modbus. All of the configuration, status, and historical data available at the local keypad interface are also available via data telemetry link to SCADA software.

  • Page 23: Operator Interface

    System Overview Operator Interface Several parameters need to be defined to program the LWM 2.0. Programming is done through the local operator interface, which consists of a full-function LCD graphics display and 32-key keypad. This operator interface is menu-driven. Screen Function Buttons Screen...

  • Page 24: Lcd Display

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Keypad Functions (Continued) Item Function This button is not used in this release. MENU Displays the Main Menu screen. This button displays help messages associated with the active screen. (These will be available in a later release.)

  • Page 25: Status Information

    System Overview Status Information The following system status information is displayed at the top of every screen: • Current date and time • Current well state of the controller Note: Refer to “Well State Descriptions” on page 12-4 for more information about each well state.

  • Page 26: Language Selection

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Language Selection The LWM 2.0 screens can be displayed in three different languages: • English • Chinese • Spanish To change the screen language, use the left or right arrow keys to select the desired language and then press <ENTER>.

  • Page 27: Mobile Display Options

    System Overview Mobile Display Options The LWM 2.0 controller provides options for viewing controller data on other devices such as laptop computers, smartphones, or tablets. Instructions for connecting these devices are discussed below. Laptop Computers Laptop computers can connect to the LWM 2.0 controller using an Ethernet cable or Wi-Fi. Once connected, the user can view and make changes to the controller screens with a compatible Internet browser.
  • Page 28 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Connecting Two Laptops through Ethernet The LWM 2.0 controller has additional Ethernet ports available on the communication gateway module inside the enclosure. These ports can be used for connecting two laptop computers to the controller.
  • Page 29 System Overview Figure 2-7. Network and Sharing Center Window 3. The Ethernet connection to the controller will be labeled as Unidentified Network. Click the Local Area Connection link next to this label to display the Local Area Connection Status window shown in Figure 2-8. Figure 2-8.
  • Page 30 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 2-9. Local Area Connection Properties Window 5. In the Local Area Connection Properties window, click Internet Protocol Version 4 (TCP/ IPv4) and then click Properties. Figure 2-10. Internet Protocol Version 4 (TCP/IPv4) Properties Window 6.
  • Page 31 System Overview Connecting a Laptop Computer through Wi-Fi To connect a laptop computer using Wi-Fi, perform the following steps: Note: These instructions assume that the laptop computer is using a Windows 7 operating system or later. 1. Click the network symbol in the lower right corner of the computer screen as shown below. Network Symbol Figure 2-11.

  • Page 32: Smartphones And Tablets

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 2-13. Network Security Key Pop-Up Window The network connection is established after a few seconds. 4. Open an Internet browser window and type 192.168.102.15/index.php into the location field. (This is the default Wi-Fi IP address of the controller.) The controller’s Main Menu screen should appear as shown in Figure 2-5 on page 2-11.

  • Page 33: Internal System Components

    System Overview Internal System Components The internal system components in the LWM 2.0 controller are as follows: • Communication Gateway Module • Controller Module • HMI Module • Remote communication device (optional) • Power Supply • Terminal Blocks Figure 2-14 shows the location of these components. Remote Communication Device (optional) HMI Module...

  • Page 34: Communication Gateway

    One RS485 serial port • Built-in Wi-Fi router • Remote communication device (Not available in this release.) Refer to the CCGA Communication Gateway Instructions for GE Lufkin document (GE Document # GEK-SA-1045) for details on this module. 2-18 November 2020...

  • Page 35: Controller Module

    System Overview Controller Module The controller module is a GE Mark* VIe UCPA controller platform (GE Part # IS420UCPAH2A-A) that runs the control logic functions for the pumping system. This module has both integral I/O capabilities and can communicate with external I/O packs through a simplex I/O network. The UCPA controller is mounted on the back panel inside the LWM 2.0 enclosure.

  • Page 36: Hmi Module

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • D4 – Indicates a malfunction error in the pumping system. • D5 – Indicates the HOA switch is in Hand position. • D6 – Indicates the HOA switch is in Auto position.

  • Page 37: Digital Transducers

    System Overview Digital Transducers The LWM 2.0 controller is designed to work with input signals for polished rod load and surface stroke position. The polished rod load cell and Hall-Effect transducer combination is preferred for downhole percent fillage control and in-depth analysis of the pump cards when accurate surface dynagraph data needs to be obtained.
  • Page 38 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 2-22 November 2020...

  • Page 39: Section 3: Technical Specifications

    Section 3: Technical Specifications Section Overview ..................... 3-3 Enclosure......................3-3 Environmental Operating Range ..............3-3 Power Requirements ..................3-3 Communication Gateway and HMI ..............3-4 Mark VIe GP Controller with Local I/O............3-5 Certifications ....................3-6 Document # 2000300330, Rev. E...
  • Page 40 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 41: Section Overview

    Technical Specifications Section Overview This section lists all the technical specifications for the Lufkin Well Manager Field Controller. Enclosure The enclosure specifications are listed below: Enclosure Type: NEMA4X polycarbon or steel enclosure, hinged door with lockable hasp. Height: 16.63 inch (42.2 cm) Width: 13.41 inch (34.1 cm)

  • Page 42: Communication Gateway And Hmi

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Communication Gateway and HMI Processor TI AM3354 32-bit ARM processor, 600MHz Memory 512MB DDR3 RAM 1GB on-board flash Temperature/Humidity Rating -40°C to +70°C, 5 TO 95% non-conductive Battery backup Battery backup for RTC, 6 yrs...

  • Page 43: Mark Vie Gp Controller With Local I/O

    Technical Specifications Mark VIe GP Controller with Local I/O Processor Freescale 3308 processor, 332 MHz, (BPPC based controller) Memory 64 MB RAM 256 MB on-board flash 32 KB NVRAM Temperature/Humidity Rating -40° C to +70° C, 5 TO 95% non-conductive Connectivity 2 Ethernet ports, 10/100 Mbps, Enet1 for UDH, Enet2 for IONet IO expansion...

  • Page 44: Certifications

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Certifications The following certifications are current as of November, 2015: • Conforms to UL STD 508A certified to CSA STD C22.2 No. 14 (Certified by Intertek/ETL C/US under Right to Mark 3188006) •...
  • Page 45 Site Selection....................4-3 Installing the Mounting Post ................4-4 Required Tools ........................4-4 Installation Procedure ......................4-4 Installing the Lufkin Well Manager 2.0 Controller......... 4-5 Required Tools ........................4-5 Recommended Wiring Specifications................4-5 Installation Procedure ......................4-7 Installing Motor Control Relay and Optional Relays ........4-9 Tools Required ........................4-9...
  • Page 46 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 47: Section 4: Installation And Wiring

    Installation and Wiring Section Overview The Lufkin Well Manager 2.0 system is typically installed inside the power unit enclosure supplied by Lufkin Automation. In case the system requires a separate installation (such as a retrofit), this section provides installation instructions for the Lufkin Well Manager 2.0 system.

  • Page 48: Installing The Mounting Post

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Make sure there is a clear radio signal path from the well to the base radio location. The Yagi antenna for the controller should not point directly at the pumping unit structure.

  • Page 49: Installing The Lufkin Well Manager 2.0 Controller

    Installing the Lufkin Well Manager 2.0 Controller The Lufkin Well Manager 2.0 controller can be used as a stand-alone unit or with an optional radio or wire line interface board as part of a SCADA system. The optional radio or wire line interface board is used to communicate with a master terminal unit (MTU).
  • Page 50 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Recommended Wire Types Minimum Number of Signal Type Shield Comments Wire Size Conductors Separate 16 AWG, Power from signal 600VAC rated wires #2 stranded, Keep short Earth Ground 600VAC rated as possible...

  • Page 51: Installation Procedure

    Hall Effect cables and strip the insulation to expose the stranded wire. Installation Procedure Follow the steps below to install the Lufkin Well Manager 2.0 controller. Refer to the mounting diagram on the next page when performing this procedure.

  • Page 53: Installing Motor Control Relay And Optional Relays

    LWM 2.0 RPC. Contact a Lufkin Automation representative for assistance selecting a control relay. Lufkin Automation also offers a factory-installed start alert kit (Part No. 530.4453) that provides a pre-wired audible beeper alarm. Use the installation procedure below to install the control relay(s) from Lufkin Automation.

  • Page 54: Installing The Polished Rod Load Cell

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 2. Lock out the master disconnect so that no one can turn on the power. 3. Open the starter panel. 4. Measure the incoming power legs with a voltmeter to verify that the power is off.

  • Page 55: Installation Procedure

    Installation and Wiring Installation Procedure Follow the steps below to properly install the PRLC. 1. Stop the pumping unit on the downstroke. 2. Create a space between the carrier bar and the polished rod clamp for placing the load cell by stacking out the rod string on the wellhead (i.e., temporarily set the rod string on the wellhead).
  • Page 56 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 7. Remove the pony rod or collar from the top of the polished rod. 8. Slide the spherical washer set down over the polished rod and position it on top of the carrier bar.

  • Page 57: Installing The Motor Rpm Hall-Effect Transducer

    This will work for the majority of installations. The installation technician may need to be innovative on some locations. Contact a Lufkin Automation representative if problems occur. Extra T-brackets are available if needed.
  • Page 58 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 4. Install the motor transducer bracket on a motor housing bolt. Select a housing bolt that will easily allow the transducer to align with the magnet. 5. Assemble and adjust the T-bracket linkage so that the magnet passes approximately 1/8 inch from the transducer.

  • Page 59: Installing The Crank Arm Hall-Effect Transducer

    Installation and Wiring Installing the Crank Arm Hall-Effect Transducer The crank transducer must be precisely installed to sense the leading edge of the magnet at bottom dead-center of the stroke. An error in this measurement will result in a shift in polished rod positions, which will cause distortions in the surface and downhole pump cards and errors in the diagnostic calculations.
  • Page 60 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 4-5. Crank/Pitman Alignment at Bottom Dead-Center If one person is involved in the installation, this procedure can be done in steps by allowing the cranks to rotate a small amount, then set the brake and observe the alignment.
  • Page 61 Installation and Wiring Figure 4-6. Bar Magnet Mounted on Back of Crank Arm • Round magnet (see Figure 4-7) – Attach a round magnet (mounted in holder) to the slow speed shaft of the gearbox with a stainless steel hose clamp, similar to the motor transducer assembly.

  • Page 62: Power Wiring

    System Grounding Proper earth grounding of the Lufkin Well Manager 2.0 system is critical to minimize transient voltages that can damage the control system electronics and to prevent high frequency noise from interfering with the signal inputs.
  • Page 63 All signal cable shields should be terminated at the hinge mount screw on the controller front panel where the green ground wire is connected. For additional information about system grounding, ask your Lufkin Automation representative for a copy of Technical Bulletin TB -07-1019: Recommended Grounding Practices for Lufkin.

  • Page 64: Signal Wiring

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Signal Wiring Typical system signal wiring includes running and terminating the cables for the load cell and for the two Hall-Effect transducers. Optional transmitters to monitor other wellhead process variables, such as tubing pressure and/or casing pressure can also be included.

  • Page 65: Load Cell Cable

    Installation and Wiring Load Cell Cable The load cell cable leads must be terminated at terminals 1 – 4 on the controller module. See Figure 4-11. Terminals 1 – 4 Figure 4-11. Terminals for Load Cell Cable Connection Hall-Effect Transducer Cables Terminals work better with leads that are not “tinned”...

  • Page 66: Relay Wiring

    Refer to the wiring diagram on the next page for guidelines on wiring a motor relay and optional fault relays. Wiring Diagram Refer to the wiring diagram on the next page for typical Lufkin Well Manager 2.0 system installations. 4-22...
  • Page 68 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 4-24 November 2020...
  • Page 69 Section 5: Quick Start Feature Section Overview ..................... 5-3 Parameter Programming ................. 5-3 Starting the Quick Start Procedure ..............5-4 Operational Limits 1..................5-5 Operational Limits 2..................5-9 Operational Limits 3..................5-11 Operational Limits 4..................5-13 Load and Position Configuration ..............5-15 Prime Mover Configuration ................
  • Page 70 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 71: Section 5: Quick Start Feature

    These parameters use values that are designed to work for most pumping unit systems. This section covers the use of the Quick Start feature to program the RPC parameters of the Lufkin Well Manager 2.0 RPC. For information about programming VSD parameters, contact your local Lufkin Automation representative.

  • Page 72: Starting The Quick Start Procedure

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Starting the Quick Start Procedure Note: Make sure the pumping unit is operational before starting the Quick Start procedure. From the Main Menu screen, press the Quick Start button to start the Quick Setup procedure.

  • Page 73: Operational Limits 1

    Quick Start Feature Operational Limits 1 The Operational Limits 1 screen is the first screen displayed. The contents of this screen are discussed below. Figure 5-3. Quick Start: Operational Limits 1 Screen The following parameters are configured on this screen: •...
  • Page 74 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual company request. A global data message can be sent to all LWM 2.0 RPC units on the radio network to place them in the Downtime-Host Mode well state. The LWM 2.0 RPC controls would stop the wells and keep them down until receiving a command to restart.
  • Page 75 Quick Start Feature Select the desired mode from the drop-down list. Note: If the motor is a gas engine, the engine has to be manually restarted by an operator. • Manual Downtime (HH:MM): This value defines the initial downtime period used when the controller is in Manual Downtime mode.
  • Page 76 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Malfunction Setpoint Strokes Allowed: The number of consecutive strokes that the surface malfunction setpoint must be violated before the controller shuts down the pumping unit for one of the consecutive malfunctions allowed.

  • Page 77: Operational Limits 2

    Quick Start Feature The Secondary Pump Fillage parameter uses the following values: • The Allowed Limit value defines the allowed fillage limit described above. Use the keypad to define this value. Note: The Allowed Limit value for the Secondary Pump Fillage parameter must be set below the deadband range in order to function properly.
  • Page 78 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 5-4. Quick Start: Operational Limits 2 Screen The available violation limits are: • Peak Load (lbs): The maximum allowed value for load input. If the load exceeds this limit, the controller instantly shuts down the pumping unit with no consecutive stroke delay.

  • Page 79: Operational Limits 3

    Quick Start Feature Operational Limits 3 The Operational Limits 3 screen is the next screen to be displayed. Figure 5-5. Quick Start: Operational Limits 3 Screen Using the keypad, define the desired values for the following parameters: • Pump-O-Meter: Use this field to clear the counter for rod pump activity. The controller counts and accumulates the number of strokes since the last time pump work was performed.
  • Page 80 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • No Crank Timeout(s): Use the keypad to define this value. • Signal Failure Control: (Not available in DH Pressure control mode.) This parameter provides control options for handling signal failure situations. To enable or disable this parameter, select Enabled or Disabled from the drop-down list and then press <ENTER>.

  • Page 81: Operational Limits 4

    Quick Start Feature Operational Limits 4 The Operational Limits 4 screen is displayed next. Use this screen to configure a downhole gauge. Figure 5-6. Quick Start: Operational Limits 4 Screen Configure the downhole gauge using the following parameters: • DH Gauge Source: Use the arrow keys to select the downhole gauge source from the drop- down list: •...
  • Page 82 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 5-7. Zenith DH Gauge Configuration Screen The following parameters are configured on this screen: • RTU Address: Each downhole gauge must have a different address number. Address numbers of less than 247 are indicated by the standard Modbus guidelines. The address must match the downhole gauge setting.

  • Page 83: Load And Position Configuration

    Quick Start Feature Load and Position Configuration The Load/Position configuration screen is the next screen to be displayed. This screen is used to configure the transducer types and indicate the location of the crank sensor. Figure 5-8. Quick Start: Load/Position Setup Screen The following parameters are configured on this screen: •...

  • Page 84: Prime Mover Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Prime Mover Configuration The Prime Mover configuration screen is the next screen displayed. Figure 5-9. Quick Start: Prime Mover Configuration Screen The following parameters are configured on this screen: • Motor Type: Select the motor type from the drop-down list.

  • Page 85: Pumping Unit Configuration

    Quick Start Feature Pumping Unit Configuration The Pumping Unit Configuration screen is displayed next. Figure 5-10. Quick Start: Pumping Unit Configuration Screen 1. With the Unit Type field highlighted, press <ENTER> to display the drop-down list. Using the down arrow key, select the pumping unit type and press <ENTER> again. 2.
  • Page 86 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 5-11. Pumping Unit Database – Select Unit Type Press Next to continue. 3. The next screen enables you to select the direction of rotation for the pumping unit. Figure 5-12. Pumping Unit Database – Select Direction of Rotation Select the direction of rotation using one of the following methods: •...
  • Page 87 Quick Start Feature Figure 5-13. Pumping Unit Database – Select Manufacturer Code Select the manufacturer code using one of the following methods: • With the Search field highlighted, press <ENTER>. Use the keypad to type the manufacturer’s name into the Search text box. Press the down arrow key to select the search result and then press <ENTER>.
  • Page 88 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • With the Search field highlighted, press <ENTER>. Use the keypad to type the unit ID number into the Search text box. Press the down arrow key to select the search result and then press <ENTER>.

  • Page 89: Rod Taper Configuration

    Quick Start Feature Figure 5-16. Pumping Unit Database – Search Results Press the Save button to save the pumping unit parameters and return to the Pumping Unit Configuration screen. Press the Next button to continue. Rod Taper Configuration The Rod Taper Configuration screen is the next screen displayed. The controller must have rod string and pump diameter data to calculate the downhole pump card for each stroke.
  • Page 90 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 5-18. Quick Start: Rod Design Screen This screen allows the operator to change existing rod data, add new rod data, and delete rod data in the rod string list. These procedures are discussed below.
  • Page 91 Quick Start Feature 9. Press the Save button to save the changed values. Press the ESC button to return to the Rod Taper Configuration screen. Add New Rod Data The Rod Design screen allows the operator to insert new rod data anywhere in the rod string list. Note: A maximum of 12 rods can be used in this system.

  • Page 92: Lwt/Pip Parameters

    Press the Next button to continue. LWT/PIP Parameters The next three screens allow the operator to use Lufkin’s patented algorithms that can calculate pump intake pressure (PIP) and make automated fluid volume adjustments for pump slippage, fluid shrinkage, and tubing movement to determine the pump fluid load (LWT). These screens are described in the following paragraphs.
  • Page 93 Quick Start Feature • Stuffing Box Friction: This factor is used to compensate for surface friction due to tight stuffing box seals. Enter in pounds. • Dampening Factor: If the tubing string is not anchored at all, or if the tubing anchor is more than a few hundred feet above the pump intake, specify Yes.
  • Page 94 Figure 5-20. Quick Start: LWT/PIP Parameters Screen (2 of 3) Details of this screen are discussed below. Lufkin Well Test PIP Configuration Select the desired Lufkin Well Test PIP configuration. The two drop-down list options are Basic or Advanced. These options are discussed below: •...
  • Page 95 Quick Start Feature • Formation Volume Factor (rb/stb): This is the volume of produced fluid will shrink as the ambient pressure decreases and solution gas breaks out of solution. The volume of fluid that passes through the pump barrel reservoir barrel (or rb) may therefore be greater than the volume of fluid production measured at a surface storage unit (stock tank barrel or stb).
  • Page 96 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual LWT/PIP Parameters 3/3 Screen This is the third LWT/PIP Parameters screen. Figure 5-22. Quick Start: LWT/PIP Parameters Screen (3 of 3) The LWM 2.0 RPC is capable of cycling the well based on the calculated PIP. If the calculated PIP falls below the PIP setpoint (described below), the pumping unit will be shut down for a downtime cycle even though the calculated pump fillage is greater than the fillage setpoint.

  • Page 97: Start Motor

    Quick Start Feature Start Motor The Start Motor screen is displayed next. This screen enables the operator to start or stop the pumping unit during the configuration process. Figure 5-23. Quick Start: Start Motor Screen WARNING: Make sure all personnel are clear of the pumping unit before starting the motor.

  • Page 98: Reference Nrev Calibration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Reference NREV Calibration The Reference NREV screen is the next screen displayed as shown in Figure 5-24. Figure 5-24. Reference Revolution Calibration Screen In order for some control features to work properly, the LWM 2.0 RPC needs to know the number of motor revolutions required per pump cycle under normal pumping.

  • Page 99: Dynagraph Configuration

    Quick Start Feature Dynagraph Configuration The Dynagraph configuration screen is the next screen displayed. Figure 5-25. Quick Start – Dynagraph Card Configuration Screen This screen shows a real-time dynagraph of the load and position data recorded during pumping operation. Three dynagraph display options are provided: •...
  • Page 100 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual described above. • Min/Peak Load Allowed: This check box provides the option of displaying the minimum and the maximum allowed values for load input. See “Surface Card Setpoints” on page 5-32 for details on configuring these parameters.
  • Page 101 Quick Start Feature b. Use the keypad to define the parameter value and then press <ENTER> again. Note: The controller automatically scales the dynagraph screen to show both Allowed Peak and Allowed Min Load. If the programmed values are far above or below the actual working peak and minimum loads, the dynagraph trace on the screen will be fairly small.

  • Page 102: Downhole Card

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Downhole Card The Downhole card displays a realtime live trace of the well’s downhole activity. Relevant status data is also displayed at the top and lower left sides of the screen. Figure 5-26 shows an example of this card.

  • Page 103: Both Cards

    Quick Start Feature Both Cards The Both display option shows a split-screen realtime live trace of both surface and downhole activity. Figure 5-27. Both Cards Displayed This screen displays status information only and is not configurable. Press the Next button to display the next screen. Document # 2000300330, Rev.

  • Page 104: Completing The Quick Start Procedure

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Completing the Quick Start Procedure The next screen indicates successful completion of the Quick Start configuration process. Press the Exit Quick Start button to exit Quick Start and return to the Main Menu screen.

  • Page 105: Section 6: Operation

    Section 6: Operation Section Overview ..................... 6-3 System Starting and Stopping................ 6-3 Reset Malfunction .................... 6-4 Log In/Log Out....................6-5 Document # 2000300330, Rev. E...
  • Page 106 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 107: Section Overview

    Operation Section Overview This section discusses operation of the LWM 2.0 controller. The functions discussed in this section are available on the Main Menu screen shown in Figure 6-1 below. Figure 6-1. Main Menu Screen System Starting and Stopping The pumping system can be started or stopped at the controller using the Normal Mode Start/ Stop button on the Main Menu screen.

  • Page 108: Reset Malfunction

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual When the controller starts the pumping system, the system goes through the following sequence of well states: 1. Starting Alert: The system sounds an audible alert and waits a programmed number of seconds before sending the command to start the pump motor.

  • Page 109: Log In/Log Out

    Operation Log In/Log Out The LWM 2.0 controller provides the option of restricting access to system configuration and well control functions. This feature is disabled by default. Refer to the section titled “Manage Users” on page 7-12 for information on setting up user access. From the Main Menu screen, press the Log In/Log Out button to log in or log out of the system.
  • Page 110 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual November 2020...
  • Page 111 Section 7: System Configuration Section Overview ..................... 7-3 System Menu Screens ..................7-3 Date and Time....................7-4 Version and Serial Number ................7-7 Reset Settings ....................7-7 Unit Preferences..................... 7-10 Manage Users....................7-12 Diagnostics..................... 7-19 Sleep Configuration ..................7-21 Advanced Features ..................7-22 USB Card/Register Log .................
  • Page 112 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 113: Section 7: System Configuration

    System Configuration Section Overview This section discusses the system configuration of the LWM 2.0 controller. Basic functions like setting current date and time, units of measurement, password setup, and sleep configuration are all needed to ensure accurate data analysis by the controller. Note: This manual describes the functions included in Version 1.34 of the LWM 2.0 firmware.

  • Page 114: Date And Time

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 7-2. System 2 Menu Screen The options available on these screens are discussed on the following pages. Date and Time From the System 1 screen, press the Date/Time button to display the Date/Time Configuration screen.

  • Page 115: Daylight Savings Time

    System Configuration Daylight Savings Time To enable the Daylight Savings Time feature, use the arrow keys to highlight the Daylight Savings Time field and then press <ENTER>. Press the down arrow to select the Enabled option and then press <ENTER> again. The Edit Timezone button will then become active.

  • Page 116: Greenwich Mean Time (Gmt)

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Greenwich Mean Time (GMT) Use the arrow keys to highlight the GMT drop-down list and then press <ENTER>. Use the down arrow to highlight the desired time zone and then press <ENTER> again.

  • Page 117: Version And Serial Number

    System Configuration Version and Serial Number From the System 1 menu screen, press the Ver and SN button to display the Version and Unit Serial Number screen shown in Figure 7-7. Figure 7-7. Version and Unit Serial Number Screen This screen displays the firmware and software versions and serial numbers for the main components of the controller.

  • Page 118: Resetting Controller Parameters

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 7-8. Reset Configurations Screen Resetting Controller Parameters With the Reset Setting Options field highlighted, press the <ENTER> key to display the drop- down list. There are two options: • Reset to Manufacturer Settings •...

  • Page 119: Reset Event Log

    System Configuration Use the arrow keys to select the desired option and then press <ENTER>. In the pop-up window that appears, use the arrow keys to highlight OK and then press <ENTER> again. See Figure 7-9 for an example. Figure 7-10. Reset Alarm Pop-Up Window Reset Event Log Use the down arrow to highlight the Reset Event Log field and then press <ENTER>...

  • Page 120: Unit Preferences

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Unit Preferences From the first System menu screen, press the Unit Preferences button to display the first of two Unit Preferences screens shown below. These screens enable the operator to set how measured values are displayed.
  • Page 121 System Configuration The table below lists the engineering units available for the following operational parameters. Available Engineering Units Operational Parameter Engineering Units Available Atmospheric Pressure psia, MPa, bar, kg/cm^2, ATM, kPa Bubble Point Pressure psia, MPa, bar, kg/cm^2, ATM, kPa Buoyant Force lbs, N Casing Head Pressure...

  • Page 122: Manage Users

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Available Engineering Units (Continued) Operational Parameter Engineering Units Available psi/ft, MPa/m, bar/m, (kg/cm^2)/m, Tubing Gradient ATM/m Tubing Head Pressure psig, MPa, bar, kg/cm^2, ATM, kPa Tubing Movement in, cm, m Tubing Size...
  • Page 123 System Configuration Figure 7-15. Setup Administrator Screen By default, the controller does not require a password. This screen allows the operator to set up administrator access privileges in order to prevent unauthorized changes being made to the system. To create a new administrator password, perform the following steps: 1.

  • Page 124: Add User

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This password will be used to log in on the main screen. See “Log In/Log Out” on page 6-5 for more information on this function. Note: After the first password setup procedure has been performed, this password will be required to access or change the functions displayed on the System menu screen.

  • Page 125: Remove User

    System Configuration 1. With the Username field highlighted, press <ENTER> to edit the field. Use the keypad to type the username and then press <ENTER>. Note: Press the <ALT> key to switch the keypad input method from numbers to letters. 2.

  • Page 126: Edit User

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 7-17. Remove User Screen With the User field highlighted, press <ENTER> to display the drop-down list. Use the up or down arrow keys to select the user profile you wish to delete and then press <ENTER> again.

  • Page 127: Edit Administrator Functions

    System Configuration 1. Highlight the Change Administrator Password field and then press <ENTER> to display the drop-down list. Use the up or down arrow keys to select Yes then press <ENTER> again. The New Password and Confirm Password fields appear when the Yes option is selected. 2.

  • Page 128: Enable/Disable Users

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Enable/Disable Users Press the Enable/Disable Users button to display the Enable/Disable Users screen shown in Figure 7-20 below. Figure 7-20. Enable/Disable Users Screen This screen allows the administrator to enable or disable user access to the controller. With this feature enabled, user profiles can be created with limited or full access to change system settings.

  • Page 129: Diagnostics

    System Configuration Diagnostics The LWM 2.0 RPC has diagnostic tools available for troubleshooting issues in the controller. From the first System menu screen, press or click the Diagnostics button to display the Diagnostics menu screen shown in Figure 7-21. Figure 7-21. Diagnostics Menu Screen The diagnostic functions are described on the following pages.

  • Page 130: Keypad Diagnostic

    Diagnostic screen lights up. When you press a key and the square representing it does not light up, you need to return the controller to Lufkin Automation for service. To exit this screen, press and hold the <ESC> button for five seconds.

  • Page 131: Sleep Configuration

    System Configuration Sleep Configuration From the second System menu screen, press the Sleep Config button to display the Sleep Configuration screen shown in Figure 7-24. Figure 7-24. Sleep Configuration Screen This screen sets the time period the controller will display a screen before it reverts back to a user- defined default screen.

  • Page 132: Advanced Features

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Advanced Features From the second System menu screen, press the Advanced Features button to display the Advanced Features screen shown in Figure 7-25. Figure 7-25. Advanced Features Screen This screen provides access to the controller’s advanced features. These features require an unlock code in order to be enabled.

  • Page 133: Usb Card/Register Log

    System Configuration USB Card/Register Log From the second System menu screen, press the USB Card/Register Log button to display the USB Card / Register Log screen shown in Figure 7-27. Figure 7-27. USB Card / Register Log Screen This screen enables the user to create and store dynagraph cards and register logs onto a removable USB card.
  • Page 134 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 5. Press the Start Log button to start recording register data. To create a card log, perform the following steps: 1. Use the arrow keys to highlight the Card Log button and then press <ENTER>. The following screen appears: Figure 7-29.

  • Page 135: Section 8: Controller Programming

    Section 8: Controller Programming Section Overview ..................... 8-3 Overview of Parameter Programming............8-3 RPC Programming ................... 8-5 Site Information........................8-5 Pumping System Configuration ..................8-6 Load/Position Configuration.....................8-19 Operational Limits Configuration ..................8-25 VSD Configuration ......................8-34 Gauge-Off Time and Peak Energy Management .............8-34 RPC Miscellaneous I/O .................. 8-35 Advanced RPC Applications.................
  • Page 136 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 137: Section Overview

    This section describes the RPC programming screens for these parameters and how to access them. For information about VSD programming screens and their functions, contact your local Lufkin Automation representative. Note: This manual describes the functions included in Version 1.34 of the LWM 2.0 firmware.
  • Page 138 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual When parameter values are changed, the green Discard and Save buttons will appear at the bottom of the screen as shown in Figure 8-1. Figure 8-1. Menu Bar with Discard and Save Buttons Press the Save button to save the programming change or the Discard button to discard the change.

  • Page 139: Rpc Programming

    Controller Programming RPC Programming From the first Setup screen, press the RPC button to display the RPC menu screen shown in Figure 8-4. Figure 8-4. RPC Menu Screen The RPC configuration options are discussed on the following pages. Site Information From the RPC menu screen, press or click the Site Information button to display the Site Information screen shown in Figure 8-5.

  • Page 140: Pumping System Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Pumping System Configuration Press the Pumping System button to display the Pumping System Configuration screens. These are discussed in the following paragraphs. Prime Mover Configuration The Prime Mover configuration screen is the first screen displayed.
  • Page 141 Controller Programming Pumping Unit Configuration Screen This is the second configuration screen. Figure 8-7. Pumping Unit Configuration Screen The following pumping unit parameters are configured on this screen: • Unit Type: Select the pumping unit type from the drop-down list. •...
  • Page 142 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 8-8. Pumping Unit Database – Select Unit Type Press Next to continue. 3. The next screen enables you to select the direction of rotation for the pumping unit. Figure 8-9. Pumping Unit Database – Select Direction of Rotation Select the direction of rotation using one of the following methods: •...
  • Page 143 Controller Programming 4. The next screen is used to select the pumping unit’s manufacturer code. Figure 8-10. Pumping Unit Database – Select Manufacturer Code Select the manufacturer code using one of the following methods: • With the Search field highlighted, press <ENTER>. Use the keypad to type the manufacturer’s name into the Search text box.
  • Page 144 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Select the unit ID using one of the following methods: • With the Search field highlighted, press <ENTER>. Use the keypad to type the unit ID number into the Search text box. Press the down arrow key to select the search result and then press <ENTER>.
  • Page 145 Controller Programming Figure 8-13. Pumping Unit Database – Search Results Press the Save button to save the pumping unit parameters and return to the Pumping Unit Configuration screen. Press the Next button to continue. Rod Taper Configuration Screen The Rod Taper Configuration screen is the next screen displayed. Figure 8-14.
  • Page 146 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 8-15. Rod Design Screen This screen allows the operator to change existing rod data, add new rod data, and delete rod data in the rod string list. These procedures are discussed on the following pages.
  • Page 147 Controller Programming Press the ESC button to return to the Rod Taper Configuration screen. Add New Rod Data The Rod Design screen allows the operator to insert new rod data anywhere in the rod string list. Note: A maximum of 12 rods can be used in this system. To add new rod data, perform the following steps: 1.
  • Page 148 The first of three LWT/PIP Parameters screens is displayed next. These screens allow the operator to use Lufkin’s patented algorithms that can calculate pump intake pressure (PIP) and make automated fluid volume adjustments for pump slippage, fluid shrinkage, and tubing movement to determine the pump fluid load (LWT).
  • Page 149 Controller Programming • If Basic is selected, the controller calculates fluid load by subtracting the average downstroke load from the average upstroke load without making any attempt to analyze the pump card shape for friction loads. • If Advanced is selected, the controller uses more advanced techniques of PIP calculation theory for calculating fluid load.
  • Page 150 Figure 8-17. LWT/PIP Parameters Screen (2 of 3) Details of this screen are discussed below. Lufkin Well Test PIP Configuration Select the desired Lufkin Well Test PIP configuration. The two drop-down list options are Basic or Advanced. These options are discussed below: •...
  • Page 151 Controller Programming volume factor is a theoretical shrinkage factor when the fluid is at bubble point pressure rather than actual surface pressure. Use the keypad to define this value. • Solution GOR (scf/stb): This is a measure of how much gas is evolved from oil (at or above bubble point) as the oil goes from the reservoir pressure and temperature to separator conditions.
  • Page 152 Figure 8-19. LWT/PIP Parameters Screen (3 of 3) The Lufkin Well Manager 2 is capable of cycling the well based on the calculated PIP. If the calculated PIP falls below the PIP setpoint (described below), the pumping unit will be shut down for a downtime cycle even though the calculated pump fillage is greater than the fillage setpoint.

  • Page 153: Load/Position Configuration

    Controller Programming Figure 8-20. LWT/PIP Parameters Screen (3 of 3) – PIP Control Override Enabled Press the Save button to save the parameter changes. Load/Position Configuration From the RPC screen, press the Load/Position button to display the Load/Position menu screen. Figure 8-21.
  • Page 154 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Load/Position Application Press the Load/Position Application button to display the Load/Position Setup screen. Figure 8-22. Load/Position Setup Screen The user must specify the types of end devices used for load and position inputs. The parameters on this screen are discussed below.
  • Page 155 Controller Programming • Crank Sensor Location: Select the crank sensor location from the drop-down list. Available options are: • Crank at top • Crank at bottom • Crank Sensor Adjustment Direction: Select the crank sensor adjustment direction from the drop-down list. Available options are: •...
  • Page 156 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 8-24. Reference Revolution Calibration Screen In order for some control features to work properly, the controller needs to know the number of motor revolutions required per pump cycle under normal pumping. If the diameter of either drive belt sheave is changed, the pumping speed will change, requiring recalibration of this reference revolution parameter.
  • Page 157 Controller Programming Load Device Configuration From the Load/Position menu screen, press the Load Device button to display the Load Device screen. Figure 8-25. Load Device Screen The load device’s analog input designation and current load are displayed at the top of the screen. The following parameters are configured on this screen: •...
  • Page 158 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Press the Save button to save the new values and then press <ESC> to return to the Load/ Position Setup menu screen. Position Device Configuration From the Load/Position menu screen, press the Position Device button to display the Position Device screen shown in Figure 8-26.

  • Page 159: Operational Limits Configuration

    Controller Programming Operational Limits Configuration From the RPC menu screen, press the Operational Limits button to display the Operational Limits screens. These screens and their functions are discussed in the following paragraphs. Operational Limits 1 Screen This is the first of three Operational Limits screens. The contents of this screen are discussed on the following pages.
  • Page 160 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Normal – The controller performs all of the enabled safety and control functions. This mode takes full advantage of the LWM 2.0 controller’s capabilities. • Host – The controller ignores load and position input and makes no control decisions. The pump or downtime decision is made by the operator and requires operator intervention to change.
  • Page 161 Controller Programming • Pressure downtime mode is selected, the pump restarts when the downhole pressure has built up to a predetermined pressure level. Select the desired mode from the drop-down list. Note: If the motor is a gas engine, the engine has to be manually restarted by an operator.
  • Page 162 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Malfunction Setpoint Strokes Allowed: The number of consecutive strokes that the surface malfunction setpoint must be violated before the controller shuts down the pumping unit for one of the consecutive malfunctions allowed.
  • Page 163 Controller Programming • The Allowed Limit value defines the allowed fillage limit described above. Use the keypad to define this value. Note: The Allowed Limit value must be set below the deadband range in order to function properly. • The Strokes Allowed value defines the number of pump strokes allowed in a limit violation situation before the controller shuts down the pumping unit.
  • Page 164 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Low Motor RPM: The lowest motor RPM at which the controller will continue to run the pumping unit. This is a time delay setpoint, measured in seconds. It is designed to allow the pumping unit time to accelerate up to operating speed.
  • Page 165 Controller Programming Using the keypad, define the desired values for the following parameters: • Pump-O-Meter: Use this field to clear the counter for rod pump activity. The controller counts and accumulates the number of strokes since the last time pump work was performed. These counts give operators a tool to measure pump life.
  • Page 166 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Use the keypad to define the desired on and off periods and then press <ENTER> again. • Timer 2 - % Run Time – since GOT: This option sets a minimum and maximum time period the pumping unit can run since the last gauge-off time event.
  • Page 167 Controller Programming For configuration of other downhole gauges by other manufacturers, press the Analog Input button to display the Analog Input Configuration screen. Figure 8-31. Zenith DH Gauge Configuration Screen The following parameters are configured on this screen: • RTU Address: Each downhole gauge must have a different address number. Address numbers of less than 247 are indicated by the standard Modbus guidelines.

  • Page 168: Vsd Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual VSD Configuration VSD function is only enabled on VSD-equipped controllers. Gauge-Off Time and Peak Energy Management From the RPC screen, press the GOT/PEM button to display the Gauge-Off Time and Peak Energy Management screen shown in Figure 8-32.

  • Page 169: Rpc Miscellaneous I/O

    Controller Programming 2. Press <ENTER> to display the drop-down list. Press the down arrow key to select the Enable option and then press <ENTER> again. 3. Use the down and left arrow keys to highlight the Period (HH:MM) fields. Using the number keys, define the hours and minutes values for the start and stop times.

  • Page 170: Advanced Rpc Applications

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual These optional features are described below: • Motor Control: This channel is enabled by default and cannot be disabled. Motor control uses DO1 as the default output point. • Fault: Fault sensing devices use DO2 as the default output point. Select Enabled to enable this channel.

  • Page 171: Pump Tag Mitigation

    Controller Programming These applications are discussed in the following pages. Pump Tag Mitigation Note: This feature is only available in Normal operation mode and the Downhole control mode with the controller in a “Pumping Normal” well state. Refer to the section titled “Operational Limits 1 Screen”...

  • Page 172: Ptm Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual specified Pump Tag Mitigation Detection Region. When the pump load in this region drops below the defined Pump Tag Mitigation Detection Load setpoint, the controller shuts down the pumping unit after the Consecutive Strokes Allowed setpoint has been violated.

  • Page 173: Pattern Matching

    Controller Programming Pattern Matching From the Advanced RPC Applications menu screen, press or click the Pattern Matching button to display the Pattern Matching screen shown in Figure 8-36. Figure 8-36. Pattern Matching Screen Pattern matching allows the user to analyze patterns in saved downhole cards for troubleshooting purposes.

  • Page 174: Speed Sensor

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Speed Sensor Note: This feature is used for Rotaflex pumping systems only. From the Advanced RPC Applications menu screen, press or click the Speed Sensor button to display the Speed Sensor screen shown in Figure 8-37.
  • Page 175 Controller Programming Note: If a digital input is selected, the Digital Input/Output Configuration screen will be displayed. If a pseudo digital input is selected, the Pseudo Digital Input Configuration screen will be displayed. Refer to “Digital Configuration” on page 8-47 and “Pseudo Digital Input Configuration”...

  • Page 176: General I/O Programming

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual General I/O Programming From the Setup menu screen, press the General I/O button to display the General Input/Output Configuration menu screen shown below. Figure 8-39. General I/O Menu Screen The input and output options available on this screen are discussed on the following pages.

  • Page 177: Analog Input Configuration

    Controller Programming Analog Input Configuration From the General Input/Output Configuration menu screen, press the Analog Input button to display the Analog Input Configuration screen shown in Figure 8-40. Figure 8-40. Analog Input Configuration Screen This screen is used to configure all configurable analog inputs in the system. The top of the screen lists all available analog input points.
  • Page 178 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Select the Custom Name option to create up to five custom device names. Press or click the Update Device Name button, type the desired name, and then press or click Update.

  • Page 179: Analog Output Configuration

    Controller Programming • Alarm Setpoint: Use the keypad to specify the high and low alarm setpoints in engineering units and then press <ENTER>. • Alarm Delay(s): Use the keypad to specify the high and low setpoints for delay time before the alarm is declared.
  • Page 180 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Flowline Pressure • Upstream Pressure • Delta Pressure • Tank Level • Custom Name (1 – 5) Select the Custom Name option to create up to five custom device names. Press or click the Update Device Name button, type the desired name, and then press or click Update.

  • Page 181: Digital Configuration

    Controller Programming Digital Configuration From the General Input/Output Configuration menu screen, press the Digital I/O button to display the Digital Configuration screen. Figure 8-42. Digital Input/Output Configuration Screen This screen is used to configure digital inputs and outputs in the system. The top of the screen lists all digital input/output points.
  • Page 182 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • • Run Status • Output • Stuffing Box Leak Detector • Kill Switch • Flowline Pressure • Tank Level • Casing Pressure • Tubing Pressure • Custom Name (1 – 5) Select the Custom Name option to create up to five custom device names.

  • Page 183: Accumulator Configuration

    Controller Programming • DO Ctrl Port: (This parameter is only visible when the DO Ctrl alarm option is selected.) This parameter allows the user to configure a digital output port to be triggered when an alarm condition is present. • Alarm Type: (This parameter is available for input points only.) Use the up or down arrow keys to select the desired alarm type for the highlighted point.
  • Page 184 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Device Number (0-255): Use the keypad to type a device number in the text field and then press or click the Save button. • Units: The controller offers approximately 29 options for the unit of measurement to be associated with each auxiliary input.

  • Page 185: Pseudo Digital Input Configuration

    Controller Programming Pseudo Digital Input Configuration From the General Input/Output Configuration menu screen, press the Pseudo Digital Input button to display the Pseudo Digital Input Configuration screen shown in Figure 8-44. Figure 8-44. Pseudo Digital Input Configuration Screen Pseudo digital inputs are analog inputs that can be configured to operate like digital inputs. They use the same physical terminal as the analog input channel.
  • Page 186 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Facility Shutdown • • Run Status • Output • Stuffing Box Leak Detector • Kill Switch • Flowline Pressure • Tank Level • Casing Pressure • Tubing Pressure • Custom Name (1 – 5) Select the Custom Name option to create up to five custom device names.

  • Page 187: Pulse Configuration

    Controller Programming • Alarm Type: (This parameter is available for input points only.) Use the up or down arrow keys to select the desired alarm type for the highlighted point. The options are Open or Closed. • State Change Delay: Specify the number of seconds that a digital state change must be observed before the controller acknowledges the change.
  • Page 188 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Units: The controller offers approximately 29 options for the unit of measurement to be associated with each auxiliary input. The units selected will be displayed on the Pulse Status screen. (See “Accumulator Status” on page 9-23.) It is logically related to the PPM field below, but the unit selected does not impact the actual scaling of the pulse input.

  • Page 189: Communication Setup

    Controller Programming Communication Setup From the Setup screen, press the COMM button to display the COMM menu screen shown in Figure 8-46. Figure 8-46. COMM Menu Screen These options are discussed on the following pages. Radio Port Configuration Press the Radio button to display the Radio Port Configuration menu screen shown in Figure 8-47 on page 8-55.

  • Page 190: Serial Port Configuration

    SCADA software. The controller uses standard RTU Modbus protocol for address settings of 247 and below. The Extended Lufkin Automation Modbus (ELAM) protocol is used for addresses of 248 through 2295. ELAM protocol allows for much larger blocks of data to be transmitted, and it also allows standard Modbus messages to be combined together.

  • Page 191: Ethernet Port Configuration

    Controller Programming • RTS Key w/Delays: Select this option if an RTS key with delays is used for the serial port. Use the arrow keys to select Disabled or Enabled and then press <ENTER>. Press the Save button to save the changes. Press <ESC>...

  • Page 192: Network Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Network Configuration From the COMM menu screen, press the Network button to display the Network Configuration screen shown in Figure 8-50. Figure 8-50. Network Configuration Screen This screen allows the operator to change the network settings for the controller.

  • Page 193: Modbus Master Configuration

    Controller Programming Modbus Master Configuration Press the Modbus Master button to display the Modbus Master menu screen shown in Figure 8-51. Figure 8-51. Modbus Master Menu Screen The LWM 2.0 controller can read and store data from other Modbus RTUs on location. This data is stored in the controller’s Modbus register map and can be read on the local LCD and/or with host SCADA software.
  • Page 194 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Polling From the Modbus Master menu screen, press the Polling button to display the Modbus Master Polling screen shown in Figure 8-52. Figure 8-52. Modbus Master Polling Screen Type the desired polling rate in the field provided and then press the Save button.
  • Page 195 Controller Programming Use the arrow keys to highlight this field and then press <ENTER> to display the drop-down list. Press the down arrow key to highlight Enable or Disable and then press <ENTER> again. The following parameters are configured on this screen: •...
  • Page 196 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Read Press the Read button to display the Modbus Master Read screen shown in Figure 8-54 below. Figure 8-54. Modbus Master Read Screen After the type of slave device used is specified as an RTU, and the slave device communication parameters to be used for it are specified, the operators need to configure register addresses to register indices.

  • Page 197: Vsd Communication

    Controller Programming 4. Repeat these steps for each register address. Note: Every slave device that is to be polled by the controller must have an index number assigned to it. Write Press the Write button to display the Write Utility screen shown in Figure 8-55. Figure 8-55.

  • Page 198: Zenith Downhole Gauge

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Zenith Downhole Gauge From the COMM menu screen, press the Zenith DH Gauge button to display the Zenith DH Gauge screen shown in Figure 8-56. Figure 8-56. Zenith Downhole Gauge Configuration Screen The following parameters are configured on this screen: •...

  • Page 199: Function Block Variable Configuration

    Controller Programming Press the Save button to save the changes. Function Block Variable Configuration Press the FB Variable button to display the FB Variable screen shown in Figure 8-57. Figure 8-57. Function Block Variable Screen Use this screen to configure function block programming parameters. •...

  • Page 200: Function Block Variable Command

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Function Block Variable Command From the FB Variable screen, press or click the FB Variable Command button to display the FB Variable Command screen shown in Figure 8-58. Figure 8-58. Function Block Variable Command Screen This screen is used to assign names for up to 25 existing function block variable commands.

  • Page 201: Function Block Variable Alarm

    Controller Programming Function Block Variable Alarm From the FB Variable screen, press or click the FB Variable Alarm button to display the FB Variable Alarm screen shown in Figure 8-58. Figure 8-59. Function Block Variable Alarm Screen This screen is used to assign names to function block variable alarms. Perform the following steps: 1.

  • Page 202: Function Block Variable Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Use the Next and Previous buttons to navigate through the variable list. When finished, press the FB Variable Alarm button to return to the FB Variable Alarm screen. Press the <ESC> button to return to the FB Variable screen.

  • Page 203: Function Block Variable Configuration

    Controller Programming Figure 8-62. Function Block Variable Status Summary Screen Press the FB Variable Status button to return to the FB Variable Status screen. Press the <ESC> button to return to the FB Variable screen. Function Block Variable Configuration From the FB Variable screen, press the FB Variable Config button to display the FB Variable Config screen shown in Figure 8-63.
  • Page 204 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • SIGNED: The next 25 variables (FBS26-FBS50) use a signed number system, which allows positive and negative values. • UNSIGNED: The next 25 variables (FBS51-FBS75) use an unsigned number system, which allows positive values only.

  • Page 205: Aga Configuration

    Controller Programming AGA Configuration From the second Setup menu screen, press the AGA Configuration button to display the AGA Configuration screen shown in Figure 8-65. Figure 8-65. AGA Configuration Screen The following parameters are configured on this page: • AGA Calculation: To enable this feature, select Enabled from the drop-down list and then press <ENTER>.

  • Page 206: Aga Parameter

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual AGA Parameter From the AGA Configuration screen, press the AGA Parameter button to display the AGA Design Parameters screen shown in Figure 8-66. Figure 8-66. AGA Design Parameters Screen The following parameters are configured on this screen: •...

  • Page 207: Nx-19 Parameter

    Controller Programming • Compressible Fluid: Select Yes or No from the drop-down list and then press <ENTER>. Press the Save button to save the new values. NX-19 Parameter From the AGA Configuration screen, press the NX-19 Parameters button to display the NX-19 Design Parameters screen shown in Figure 8-67.
  • Page 208 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Differential Pressure: Select an analog input from the drop-down list and then press <ENTER>. To configure this input, press the AI Config button to display the Analog Input Configuration screen. See “Analog Input Configuration” on page 8-43 for details.
  • Page 209 Section 9: Status Screens Section Overview ..................... 9-3 Main Status Data Screens ................9-3 Well Status..........................9-3 Violation Status ........................9-5 Downhole Gauge Status......................9-7 Stroke Status ........................9-8 Control Override Status.......................9-9 Event Data....................... 9-10 RPC Event Log ........................9-11 Shutdown Event Log ......................9-11 Alarm Event Log.........................9-12 RPC Timestamped Events....................9-13 VSD Status......................
  • Page 210 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. November 2020...

  • Page 211: Section Overview

    Status Screens Section Overview The LWM 2.0 controller has several well status screens that display information about current values for measured process variables, alarms and alerts, and reminders on about how control parameters are configured. This section discusses these screens and the available data. Main Status Data Screens There are four main status data screens available.
  • Page 212 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Control Mode: The control mode field shows which control algorithm is currently being used for well control decisions. In some cases, the controller automatically changes the control method. See “Operational Limits Configuration” on page 10-25 for more information on control modes.

  • Page 213: Violation Status

    Status Screens Press the Status button to return to the Well Status screen. Press Next to display the next screen. Violation Status The Violation Status screen shown in Figure 9-3 is the second status screen displayed. This screen shows all violation occurrences for system setpoints such as weight and fluid loads, motor RPM, and malfunction setpoints.
  • Page 214 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Min Load: The lowest allowed value for load input. If the load falls below this value, the controller instantly shuts down the pumping unit with no consecutive stroke delay. The default value is zero.

  • Page 215: Downhole Gauge Status

    Status Screens Downhole Gauge Status The DH (Downhole) Gauge Status screen is the third status screen displayed. This screen shows realtime and average data for the installed downhole gauge. Figure 9-4. Downhole Gauge Status Screen The available downhole gauge data varies depending on the model installed. •...

  • Page 216: Stroke Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Stroke Status The Stroke Status screen shown in Figure 9-5 is the fourth status screen displayed. This screen shows pump stroke status data including power values, stroke counters, and average stroke speed.

  • Page 217: Control Override Status

    Status Screens Stroke Speed Data The system records the speed of the pump strokes and averages this data for each day of operation. Values displayed on this screen are: • Today’s Average Stroke Speed: This is the average speed calculated for the current day’s pump strokes.

  • Page 218: Event Data

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • ESD (Emergency Shutdown): This field indicates whether the Emergency Shutdown feature is enabled or disabled. See “RPC Miscellaneous I/O” on page 10-51 for details on enabling this feature. Event Data Event data displays the recorded date and time that significant events relating directly to the RPC control processes occurred, including startups/shutdowns and alarms.

  • Page 219: Rpc Event Log

    Status Screens RPC Event Log Press the RPC Event Log button to display the RPC Event Log screen shown in Figure 9-8. Figure 9-8. System Event Log Screen The event log feature displays a record of the last 57 significant RPC events. All events are recorded with a date/time stamp.

  • Page 220: Alarm Event Log

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 9-9. Shutdown Event Log Press the Next or Previous buttons to navigate between the shutdown event log pages. Press <ESC> to return to the Event Status menu screen. Alarm Event Log Press the Alarm Event Log button to display the Alarm Log screen shown in Figure 9-10.

  • Page 221: Rpc Timestamped Events

    Status Screens RPC Timestamped Events Press the RPC Timestamped Events button to display the RPC Event Log screen shown in Figure 9-11 on page 9-13. Figure 9-11. RPC Event Log Screen This log screen is one of three screens that display a list of 23 significant RPC events and a date/time stamp for the last time each event occurred.

  • Page 222: Gearbox Torque

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 9-12. Supplemental Status Menu Screen The supplemental status screens are discussed on the following pages. Gearbox Torque From the Supplemental Status menu screen, press the Gearbox Torque button to display the Gearbox Net Torque screen shown in Figure 9-13.

  • Page 223: Function Block Variable Summary

    Status Screens • CBM_Entered (M in-lbs): This option allows the operator to set a specific counterbalance moment value in the text box. Select the desired option from the drop-down list and then press the Save button. The following peak net torque data is displayed numerically: •...
  • Page 224 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual The function block variable summary screens are discussed in the following pages. Function Block Variable Alarm Summary From the FB Variable Summary menu screen, press the FB Variable Alarm Summary button to view a summary of function block variable alarm data.

  • Page 225: Aga Status

    Status Screens Press the <ESC> button to return to the FB Variable Summary menu screen. Function Block Variable Configuration Summary From the FB Variable Summary menu screen, press the FB Variable Config Summary button to view a summary of function block variable configuration data. Figure 9-17.

  • Page 226: Modbus Master

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Press the Next button to display the AGA Diagnostic screen shown in Figure 9-19. Figure 9-19. AGA Diagnostic Screen This screen displays AGA diagnostic status data. Modbus Master Press the Modbus Master button to display the Modbus Master Status screen shown below.

  • Page 227: Production Status

    Status Screens Production Status Press the Production Status button to display the first of two screens showing production status data. The first screen shown in Figure 9-21 displays inferred production status data. Total fluid, oil, and water amounts are shown along with last stroke data. Figure 9-21.

  • Page 228: Hardware Input/Output Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Hardware Input/Output Status Press the Hardware I/O Status button to display the Hardware Input/Output Status menu screen shown in Figure 9-23. Figure 9-23. Hardware Input/Output Status Menu Screen These screens are discussed in the following pages.

  • Page 229: Analog Input Status

    Status Screens Analog Input Status Press the Analog Input button to display the Analog Input Status screen shown in Figure 9-24. Figure 9-24. Analog Input Status Screen This screen displays status information for all analog inputs in the system. These inputs are configured using the Analog Input Configuration screen.

  • Page 230: Analog Output Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Analog Output Status Press the Analog Output button to display the Analog Output Status screen shown in Figure 9-25. Figure 9-25. Analog Output Status Screen This screen displays status information for all analog outputs in the system. These outputs are configured using the Analog Output Configuration screen.

  • Page 231: Accumulator Status

    Status Screens Accumulator Status Press the Accumulator button to display the first of two Accumulator Status screens. Figure 9-26. Accumulator Status Screen This screen shows the status of the two accumulator inputs. The data fields are described below: • ACCUM: States the location of the accumulator input channel on the controller module. (See “Mark* VIe Controller Module”...

  • Page 232: Digital Input/Output Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Digital Input/Output Status Press the Digital I/O button to display the Digital Input/Output Status screen shown in Figure 9-27. Figure 9-27. Digital Input/Output Status Screen This screen shows status information for all digital inputs and outputs in the system. This information is grouped into input and output sections.

  • Page 233: Pseudo Digital Input Status

    Status Screens Pseudo Digital Input Status Press the Pseudo Digital Input button to display the Pseudo Digital Input Status screen shown in Figure 9-28. Figure 9-28. Pseudo Digital Input Status Screen This screen displays status information for the pseudo digital inputs. The following information is provided: •...

  • Page 234: Rpc I/O Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual RPC I/O Status Press the RPC I/O button to display the RPC Input/Output Status screen shown in Figure 9-29. Figure 9-29. RPC Input/Output Status Screen Realtime status information for all connected RPC inputs and outputs are displayed on this screen.
  • Page 235 Section 10: Dynagraph Screens Section Overview ................... 10-3 Dynagraph Screen ..................10-3 Surface Card........................10-3 Downhole Card........................10-8 Both Cards..........................10-9 Historical Dynagraph Cards................ 10-10 Malfunction Cards......................10-10 Stored Cards........................10-12 Pump Up Cards ........................10-13 Start Cards........................10-14 Shutdown Cards.......................10-15 Document # 2000300330, Rev. E 10-1...
  • Page 236 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. 10-2 November 2020...

  • Page 237: Section Overview

    Dynagraph Screens Section Overview The LWM 2.0 controller displays a live real-time dynagraph trace and stores historical dynagraph cards. Control parameters related to the dynagraph shape analysis are programmed on the dynagraph screens. This section discusses the various dynagraph screens that are available. Dynagraph Screen Press the Dynagraph button (F2) to display the Dynagraph screen shown in Figure 10-1.

  • Page 238: Status Data

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Status Data The following status data is displayed on this screen: • Elapsed Time: This field displays the amount of time (measured in hours, minutes, and seconds) the pumping unit has been running.
  • Page 239 Dynagraph Screens Peak Load Allowed Minimum Load Allowed Figure 10-3. Surface Card with Min/Peak Allowed Display To hide these values, clear the Min/Peak Load Allowed check box using the same method described above. • Malfunction Setpoint: Select this check box to display the Malfunction Setpoint value on the dynagraph as shown in Figure 10-4.
  • Page 240 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Press the down arrow to highlight the POC Setpoint check box and then press <ENTER> to select this option. The POC Setpoint title turns green while active and its value is displayed as a green diamond on the card.
  • Page 241 Dynagraph Screens These values are displayed as colored horizontal lines at the top and bottom of the card. Note: The controller automatically scales the dynagraph screen to show both Allowed Peak and Allowed Min Load. If the programmed values are far above or below the actual working peak and minimum loads, the dynagraph trace on the screen will be fairly small.

  • Page 242: Downhole Card

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Downhole Card The Downhole card displays a realtime live trace of the well’s downhole activity. Figure 10-6 shows an example of this card. Figure 10-6. Downhole Card Status Data The following status data is displayed on this screen: •...

  • Page 243: Both Cards

    Dynagraph Screens • DH Pressure (psi): (Displayed in VSD DH Pressure control mode only.) This value is the current recorded downhole pressure. Downhole Card Setpoints The configurable downhole card parameters are as follows: • Pump Fillage: This value is the pump off shutdown level for the Downhole Control mode. •...

  • Page 244: Historical Dynagraph Cards

    Figure 10-7. Both Cards Displayed Historical Dynagraph Cards The Lufkin Well Manager 2.0 also stores historical dynagraph cards. These cards can be accessed by pressing the menu buttons displayed on the main dynagraph screen. Each option provides saved dynagraph screens for surface, downhole, and a split-screen view of both surface and downhole cards.
  • Page 245 Dynagraph Screens Figure 10-8. Malfunction Card Screen When a malfunction occurs, the controller takes the data obtained during the malfunction and stores it in the malfunction card buffer. A timestamped copy of the dynagraph card is displayed along with the cause of the malfunction and relevant status data. The last ten malfunctions are stored.

  • Page 246: Stored Cards

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Stored Cards From any of the dynagraph screens, press the Stored Cards button to access the Stored Cards screen. Figure 10-9 shows an example of a stored surface card. Figure 10-9. Stored Cards Screen This screen displays the most-recent five strokes.

  • Page 247: Pump Up Cards

    Dynagraph Screens The stored downhole card screen provides the option of analyzing the stored card for troubleshooting purposes. (See Figure 10-10 below.) To start the analysis, use the arrow keys to highlight the Analyze DHC button and then press <ENTER>. The controller then compares the stored card against a database of stored cards and displays the results on the screen.

  • Page 248: Start Cards

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual There are three options for viewing the pump up cards: • Surface: This button displays the stored surface card. • Downhole: This button displays the stored downhole card. • Both: This button displays a combined view of the stored surface and downhole cards.

  • Page 249: Shutdown Cards

    Dynagraph Screens There are three options for viewing the startup cards: • Surface: This button displays the stored surface startup card. • Downhole: This button displays the stored downhole startup card. • Both: This button displays a combined view of the stored surface and downhole startup cards. Use the arrow keys to highlight the desired display option and then press <ENTER>.
  • Page 250 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual There are three options for viewing the shutdown cards: • Surface: This button displays the surface shutdown card. • Downhole: This button displays the downhole shutdown card. • Both: This button displays a combined view of the surface and downhole shutdown cards.

  • Page 251: Section 11: Historical Status Data

    Section 11: Historical Status Data Section Overview ................... 11-3 Historical Data Description ................11-3 RPC Data......................11-4 Previous 60 Days .......................11-5 24 Hour VSD Speed......................11-12 24 Hour On/Off Percentage Runtime................11-12 Last 20 Runtimes ......................11-13 Last 400 Loads .........................11-13 2880 Historical........................11-14 Historical AGA Data ..................
  • Page 252 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. 11-2 November 2020...

  • Page 253: Section Overview

    Historical Status Data Section Overview The LWM 2.0 controller maintains historical status data in various formats to provide useful information about RPC production and performance. This section discusses the different types of available historical data. Historical Data Description The LWM 2.0 controller saves into onboard memory historical data values for process variables, such as RPC production and performance, calculated flow rates and production volumes, VSD performance, and alarm and event logs.

  • Page 254: Rpc Data

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 11-2. Historical Status Menu Screen This screen displays historical data values for process variables such as RPC production and performance, calculated flow rates and production volumes, and input/output data. This data is discussed on the following pages.

  • Page 255: Previous 60 Days

    Historical Status Data Previous 60 Days Press the Previous 60 Days button to display the first Previous 60 Days menu screen shown in Figure 11-4. Figure 11-4. Previous 60 Days Menu Screen 1 of 2 Press the Next button to display the second menu screen shown in Figure 11-5. Figure 11-5.
  • Page 256 This screen shows the calculated production volume (measured in barrels per day) for the previous 60 days using the Lufkin Well Test (LWT) algorithm. Data is displayed as a graph, a table, or a combined view of both formats for the following: •...

  • Page 257: Minimum Load

    Historical Status Data Peak Load From the first Previous 60 Days menu screen, press the Peak Load button to display the Peak Load 60 Day History screen shown in Figure 11-7. Figure 11-7. Peak Load 60 Day History Screen This screen shows the highest value for the peak load recorded for each of the previous 60 days. This data can be displayed in a graph, a table, or a combined view of both formats.
  • Page 258 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This screen displays the lowest value for minimum load (measured in pounds) recorded for each of the previous 60 days. This data can be displayed in a graph, a table, or a combined view of both formats.
  • Page 259 Historical Status Data Figure 11-10. Stroke Total 60 Day History Screen Press the Next or Previous buttons to navigate between the pages of data. Press <ESC> twice to return to the Historical RPC Status menu screen or press the Main Menu button to return to the Main Menu screen.
  • Page 260 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Pump Intake Pressure From the second Previous 60 Days menu screen, press the Pump Intake Pressure button to display the Pump Intake Pressure 60 Day History screen shown in Figure 11-12.
  • Page 261 Historical Status Data This screen displays the highest value for polished rod horsepower recorded for each of the previous 60 days. This data can be displayed in a graph, a table, or a combined view of both formats. Press the appropriate button for the desired display option. Press the Next or Previous buttons to navigate between the pages of data.

  • Page 262: 24 Hour Vsd Speed

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual 24 Hour VSD Speed This feature is not used with this controller. 24 Hour On/Off Percentage Runtime From the Historical RPC Status menu screen, press the 24 Hour On/Off Percentage Runtime button to display the 24 Hr On/Off Percentage Runtime screen shown in Figure 11-15.

  • Page 263: Last 20 Runtimes

    Historical Status Data Last 20 Runtimes From the Historical RPC Status menu screen, press the Last 20 Runtimes button to display the Last 20 Runtimes screen shown in Figure 11-16. Figure 11-16. Last 20 Runtimes History Screen This plot displays the previous 20 runtime periods measured in minutes. The plot shows the runtimes on the x-axis and the runtime on the y-axis.

  • Page 264: 2880 Historical

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure 11-17. Last 400 Loads History Screen This data can be displayed in a graph, a table, or a combined view of both formats. Press the appropriate button for the desired display option.
  • Page 265 Historical Status Data Last 2880 Average PIP From the 2880 Historical menu screen, press the Last 2880 Average PIP button to display the Last 2880 Avg PIP screen shown in Figure 11-19. Every tenth stroke the current PIP value is captured and added to this data buffer. The most recent 2880 values are stored and available for display as a plot or table.

  • Page 266: Historical Aga Data

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Every tenth stroke the current downhole pressure value is captured and added to this data buffer. The most recent 2880 intake and tubing pressure values are stored and available for display as a plot or table.

  • Page 267: Last 24 Hours (8 Minute Averages)

    Historical Status Data Figure 11-22. AGA Previous 60 Days Screen Press the Next or Previous buttons to navigate between the pages of data. Press <ESC> to return to the Historical AGA menu screen. Last 24 Hours (8 Minute Averages) From the Historical AGA menu screen, press the Last 24 Hours (8 Min Avg) button to display the Last 24 Hours (8 Minute Averages) screen shown in Figure 11-23.

  • Page 268: Auxiliary Function Data

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Auxiliary Function Data From the Historical Status menu screen, press the Auxiliary Function button to display the Auxiliary Function Data menu screen shown in Figure 11-24 below Figure 11-24. Auxiliary Function Screen The controller maintains records for configured auxiliary inputs.

  • Page 269: Analog Input 24 Hour

    Historical Status Data Analog Input 24 Hour From the Auxiliary Function menu screen, press the Analog Input 24 Hour button to display the Analog Input 24 Hour screen shown in Figure 11-25 below. Figure 11-25. Analog Input 24 Hour Screen The values of a selected configured auxiliary analog input are collected over the previous 24-hour period and can be displayed as either a graphical plot or as a table.

  • Page 270: Analog Input 60 Day

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Analog Input 60 Day From the Auxiliary Function menu screen, press the Analog Input 60 Day button to display the Analog Input 60 Day screen shown in Figure 11-28 on page 11-22.

  • Page 271: Accumulator 24 Hour

    Historical Status Data Accumulator 24 Hour From the Auxiliary Function menu screen, press the Accumulator 24 Hour button to display the Accumulator 24 Hour screen shown in Figure 11-27. Figure 11-27. Accumulator 24 Hour Screen For each configured accumulator, a history is maintained of the total scaled value accumulated in each of the previous 180 eight-minute sample periods during the previous 24-hour period.

  • Page 272: Accumulator 60 Day

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Accumulator 60 Day From the Auxiliary Function menu screen, press the Accumulator 60 Day button to display the Accumulator 60 Day screen shown in Figure 11-28. Figure 11-28. Accumulator 60 Day Screen A history of the total scaled value for each configured accumulator input is maintained for each of the last 60 days.

  • Page 273: Pulse Accumulator 24 Hour

    Historical Status Data Pulse Accumulator 24 Hour From the Auxiliary Function menu screen, press the Pulse Accumulator 24 Hour button to display the Accumulator 24 Hour screen shown in Figure 11-29. Figure 11-29. Pulse Accumulator 24 Hour Screen For each configured pulse accumulator, a history is maintained of the total scaled value accumulated in each of the previous 180 eight-minute sample periods during the previous 24-hour period.

  • Page 274: Pulse Accumulator 60 Day

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Pulse Accumulator 60 Day From the Auxiliary Function menu screen, press the Pulse Accumulator 60 Day button to display the Accumulator 60 Day screen shown in Figure 11-30. Figure 11-30. Accumulator 60 Day Screen A history of the total scaled value for each configured pulse accumulator input is maintained for each of the last 60 days.
  • Page 275 Section 12: Well States Section Overview ................... 12-3 Types of Well States ..................12-3 Well States Involved in Downtime ..................12-3 Well States Involved in Malfunctions ................12-3 Well States Not Observed ....................12-3 Well State Descriptions ................. 12-4 Document # 2000300330, Rev. E 12-1...
  • Page 276 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. 12-2 November 2020...

  • Page 277: Section Overview

    Well States Section Overview The LWM 2.0 controller will be in only one of a number of well states at any given time. The current well state is displayed on the top line of every screen. A well state can indicate a phase of normal operation, or it may alert the user to a problem with the LWM 2.0 controller’s input devices or the pumping equipment.

  • Page 278: Well State Descriptions

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Well State Descriptions The well states that can be displayed are described in the following tables. Normal Well States While Pumping Well State Definition Controller has pulled digital output low to start the pumping unit and is in the process Starting Unit of checking that the unit actually started.
  • Page 279 Well States Normal Well States While Not Pumping (Continued) Well State Definition Peak Load Allowed Limit in the surface dynagraph has been violated and the controller has successfully stopped the pumping unit. The controller will start the pumping unit after the programmed downtime elapses. If the peak load violation was due to a transient wellbore condition, the Downtime Peak Load consecutive malfunction counter will be cleared, and normal operation will...
  • Page 280 The controller has successfully stopped the pumping unit and will restart after the programmed downtime elapses. The Lufkin Well Test (LWT) Cutoff Control feature has been enabled and the calculated fluid production since the last Gauge Off time has reached Downtime Prod Cutoff the programmed allowed daily production.
  • Page 281 Well States Normal Well States While Not Pumping (Continued) Well State Definition The controller has stopped the pumping unit in response to an IO DT IO Shutdown Vibration Shutdown command triggered by a vibration switch alarm. The pumping Switch unit remains in a downtime state until the alarm condition has been cleared.
  • Page 282 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Normal Well States While Not Pumping (Continued) Well State Definition The controller has stopped the pumping unit in response to an IO DT IO Shutdown Shutdown command triggered by an upstream pressure alarm. The...
  • Page 283 Well States Well States Indicating Equipment Problem or Operator Override (Continued) Well State Definition The controller has detected a problem with the position input and is cycling the Downtime Bad pumping unit base on historical run time and programmed downtime; i.e., an internal Pos Signal percent timer type of control.
  • Page 284 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Well States Indicating Equipment Problem or Operator Override (Continued) Well State Definition Malfunction IO Shutdown Refer to DT IO Shutdown Environmental Pot above. The pumping unit will stay Environmental down until a Reset Malfunctions command is done by the operator.

  • Page 285: Section 13: Troubleshooting

    Section 13: Troubleshooting Section Overview ................... 13-3 Well States ...................... 13-3 Load/Position Data and Dynagraphs ............13-3 Setpoint Violations and Malfunctions ............13-4 Inputs to the LWM 2.0 Controller..............13-5 Load Signal Input .......................13-5 Load Cell and Cable......................13-6 Digital Position Signal Inputs ...................13-7 Diagnostics.....................
  • Page 286 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual This page is intentionally blank. 13-2 November 2020...

  • Page 287: Section Overview

    Troubleshooting Section Overview This section attempts to provide a field technician with sufficient information to help determine the cause of a malfunction or downtime state. Problem well states, setpoint violations, malfunctions, and input problems are discussed. Well States The present well state in many cases will be the first indicator that a problem exists with the LWM 2.0 system.

  • Page 288: Setpoint Violations And Malfunctions

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Setpoint Violations and Malfunctions The LWM 2.0 controller is programmed with a series of setpoints that determine how the controller reacts to situations that occur during pumping operation. The following is a list of setpoint violations that can occur: •...

  • Page 289: Inputs To The Lwm 2.0 Controller

    Troubleshooting • Peak PRHP: This is the value at which the controller will set an alert flag to advise the operator that a paraffin treatment may be required. This value is a high limit. These can be viewed on the Violation Status Data screen shown in Figure 13-1. Figure 13-1.

  • Page 290: Load Cell And Cable

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Signal Voltage: The differential load signal is connected to terminals 2 and 3 on Terminal Block 1 (TB1). Terminal 2 should be a few MVDC positive with respect to terminal 3. The magnitude of the signal depends on the type of load device used.

  • Page 291: Digital Position Signal Inputs

    Troubleshooting For both types of load devices, each wire to earth ground should read greater than 10 M. Note: It is best to make these measurements with the pumping unit in operation, since cable problems may be intermittent and show up at only a certain point in the stroke as the cable flexes.

  • Page 292: Diagnostics

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Diagnostics The LWM 2.0 RPC has diagnostic tools available for troubleshooting issues in the controller. From the first System menu screen, press or click the Diagnostics button to display the Diagnostics menu screen shown in Figure 13-2.

  • Page 293: Appendix A: Pump Intake Pressure And Lufkin Well Test Theory

    Appendix A: Pump Intake Pressure and Lufkin Well Test Theory Appendix Overview..................A-3 Overview of PIP and LWT................A-3 Theory of PIP Calculated from Downhole Card ..........A-3 Theory of LWT Calculated from a Downhole Card ........A-7 Advanced LWT Algorithm ....................A-7 Basic LWT Algorithm......................A-8 Calibration (K) Factor .......................
  • Page 294 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual November 2020...

  • Page 295: Appendix Overview

    Appendix Overview This appendix describes the theory behind the Lufkin Well Test (LWT) feature that is used for calculating pump intake pressure and fluid production through the pump. Overview of PIP and LWT Lufkin Well Manager 2.0 controllers offer a Pump Intake Pressure (PIP) feature. This feature has an algorithm that can determine the pump fluid load by analyzing the downhole pump card.
  • Page 296 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure A-1. Pump Intake Pressure from Dynamometer Data 4. P is estimated, and SCF of free gas per day and SCF of solution gas per day (SCF = standard cubic feet at atmospheric pressure) are calculated.
  • Page 297 Figure A-2. Fluid Load Measured from Pump Card The LWM 2.0 RPC automatically draws load lines after it analyzes the downhole dynagraph card. The upper line is drawn near the top of the pump card to exclude upstroke friction and fluid inertia effects.
  • Page 298 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure A-3. PIP Fluid Load Detection November 2020...

  • Page 299: Theory Of Lwt Calculated From A Downhole Card

    Theory of LWT Calculated from a Downhole Card The Lufkin Well Test algorithm can be configured to work in the Advanced mode or the older Basic mode. Advanced LWT Algorithm The Advanced Lufkin Well Test algorithm is based on analysis of the downhole dynagraph card.

  • Page 300: Basic Lwt Algorithm

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Basic LWT Algorithm The Basic Lufkin Well Test algorithm is based on a much more simplistic analysis of dynagraph cards. The Basic LWT analysis may work from either the surface or downhole dynagraph. The...
  • Page 301 Figure A-5. SP Inferred From Surface Dynagraph Basic LWT from Downhole Pump Card If the Downhole control method is selected, the LWM 2.0 RPC infers the effective plunger stroke by analyzing the downhole pump card (see Figure A-6). The net stroke length value length S selected by the percent pump fillage algorithm is used as S in the fluid volume calculation.

  • Page 302: Calibration (K) Factor

    0.65 to 1.00. If the K factor has to be programmed outside of that range to obtain good agreement between the Basic Lufkin Well Test fluid volumes and other benchmark fluid production test equipment, further investigation is necessary.
  • Page 303 Figure A-7. Illustration Showing Pump Placement Above Perforations Document # 2000300330, Rev. E A-11...

  • Page 304: Case 1

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Case 1 Suppose that the pump is set above mid-perfs. In this situation, the formation producing pressure (FPP) is not the same as PIP. You must consider the gradient of the casing and the difference in depth between the pump and mid-perfs.

  • Page 305: Appendix A: Expanded Io

    Appendix A: Expanded IO Appendix Overview..................A-3 Expanded I/O Configuration................A-3 Expansion Board Analog Input Configuration ..............A-4 Expansion Board Analog Output Configuration .............. A-6 Expansion Board Digital Configuration ................A-7 Expansion Board Accumulator Configuration ..............A-9 Expansion Board Pseudo Digital Input Configuration ..........A-10 Expansion Board Pulse Configuration ................
  • Page 306 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual November 2020...

  • Page 307: Appendix Overview

    Appendix Overview The LWM 2.0 Expanded IO (EIO) option provides the capability to connect up to three additional Mark VIe UCPA controller modules to the existing well controller in an LWM 2.0 unit. These additional UCPA modules are referred to as the EIO modules. Each additional EIO module adds the following IO points to the LWM 2.0 unit: •...

  • Page 308: Expansion Board Analog Input Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Expansion Board Analog Input Configuration From the General Input/Output Configuration menu screen, press the Analog Input button to display the Analog Input Configuration screen shown in Figure A-2. Figure A-2. Analog Input Configuration Screen with EIO When the EIO option is enabled, the Expansion Board 1 button is visible in the bottom right corner of this screen.
  • Page 309 points.) Each point is configurable using the fields at the bottom of the screen. Use the arrow keys to highlight the desired parameter and then press <ENTER> to edit the parameter. Press or click the Alert & Alarm button to display the alert and alarm configuration options for the highlighted analog input point.

  • Page 310: Expansion Board Analog Output Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Expansion Board Analog Output Configuration From the General Input/Output Configuration menu screen, press the Analog Output button to display the Analog Output Configuration screen shown in Figure A-5. Figure A-5. Analog Output Configuration Screen with EIO When the EIO option is enabled, the Expansion Board 1 button is visible in the bottom right corner of this screen.

  • Page 311: Expansion Board Digital Configuration

    Use the arrow keys to highlight the desired parameter and then press <ENTER> to edit the parameter. Use the keypad to change numeric values and then press <ENTER> again. Press the Main Board button to return to the main well controller analog output configuration screen.
  • Page 312 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Use the arrow keys to highlight the digital input or output point to be configured. Status information and available parameters are then displayed as shown in Figure A-8. The Current Value field indicates the present scaled value of the highlighted point.

  • Page 313: Expansion Board Accumulator Configuration

    Expansion Board Accumulator Configuration From the General Input/Output Configuration menu screen, press the Accumulator button to display the Accumulator Configuration screen shown in Figure A-10. Figure A-10. Accumulator Configuration Screen with EIO When the EIO option is enabled, the Expansion Board 1 button is visible in the bottom right corner of this screen.

  • Page 314: Expansion Board Pseudo Digital Input Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual The parameters on this screen are identical to those on the main well controller’s configuration screen. (Refer to “Accumulator Configuration” on page 8-49 for details on configuring accumulator input points.) Each point is configurable using the fields at the bottom of the screen.
  • Page 315 Figure A-13. Expansion Board Pseudo Digital Input/Output Configuration Screen Use the arrow keys to highlight the pseudo digital input or output point to be configured. Status information and available parameters are then displayed as shown above. The Current Value field indicates the present scaled value of the highlighted point. The parameters on this screen are identical to those on the main well controller’s configuration screen.

  • Page 316: Expansion Board Pulse Configuration

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Refer to “Pseudo Digital Input Configuration” on page 8-51 for details on configuring alerts and alarms for digital input points. Use the arrow keys to highlight the desired parameter and then press <ENTER> to edit the parameter.
  • Page 317 Figure A-16. Expansion Board Accumulator Configuration Parameters Use the arrow keys to highlight the pulse input point to be configured and then press <ENTER> to display status information and available parameters for that point. The Current Number Pulses/Sec status field indicates the present value of the highlighted input. The parameters on this screen are identical to those on the main well controller’s configuration screen.

  • Page 318: Expansion Board Input/Output Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Expansion Board Input/Output Status Press the Hardware I/O Status button to display the Hardware Input/Output Status menu screen shown in Figure A-17. Figure A-17. Hardware Input/Output Status Menu Screen There are additional status screens available for expanded input and output status data. These additional screens can be accessed from the standard well controller status screens.

  • Page 319: Expansion Board Analog Input Status

    Expansion Board Analog Input Status From the Hardware Input/Output Status menu screen, press the Analog Input button to display the Analog Input Status screen shown in Figure A-18. Figure A-18. Analog Input Status Screen When the EIO option is enabled, the Expansion Board 1 button is visible in the bottom right corner of this screen.

  • Page 320: Expansion Board Analog Output Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Alarm Status: States whether an alarm is enabled or disabled for the channel. • Scaled Values: States the present value of the analog input in engineering units. • Name/Description: States either the programmed virtual analog input number or the function description.
  • Page 321 Figure A-21. Expansion Board Analog Output Status Screen This screen displays status information for the expansion board’s analog outputs. These outputs are configured using the Analog Output Configuration – Exp. Board 1 screen. For information about this screen, see “Expansion Board Analog Output Configuration” on page A-6. Information about each data field is provided below: •...

  • Page 322: Expansion Board Accumulator Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Expansion Board Accumulator Status Press the Accumulator button to display the Accumulator Status screen shown in Figure A-22. Figure A-22. Accumulator Status Screen When the EIO option is enabled, the Expansion Board 1 button is visible in the bottom right corner of this screen.

  • Page 323: Expansion Board Digital Input/Output Status

    • Unit: States the unit of measurement to be associated with each accumulator input. • Current Rate: States the current recorded pulse rate for each input. • Total Since Reset: States the total accumulation value since the last reset was performed. •...
  • Page 324 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Figure A-25. Expansion Board Digital Input/Output Status Screen This screen displays status information for the expansion board’s digital inputs and outputs. These inputs and outputs are configured using the Digital Input/Output Configuration – Exp. Board 1 screen.

  • Page 325: Expansion Board Pseudo Digital Input Status

    Expansion Board Pseudo Digital Input Status Press the Pseudo Digital Input button to display the Pseudo Digital Input Status screen shown in Figure A-26. Figure A-26. Pseudo Digital Input Status Screen When the EIO option is enabled, the Expansion Board 1 button is visible in the bottom right corner of this screen.

  • Page 326: Expansion Board Pulse Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual • Alarm Status: Indicates the current alarm status for that input point. • Name/Description: States the location of the pseudo digital (analog) input point on the expansion board. Press the Main Board button to return to the main well controller pseudo digital input status screen.
  • Page 327 Figure A-29. Expansion Board Accumulator Status Screen This screen displays status information for the expansion board’s pulse inputs. These inputs are configured using the Pulse Configuration – Exp. Board 1 screen. For information about this screen, see “Expansion Board Pulse Configuration” on page A-12. The data fields on this screen are described below: •...

  • Page 328: Expansion Board Health Status

    Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual Expansion Board Health Status From the second Hardware Input/Output Status menu screen, press the EIO Health Status button to display the Expansion I/O Board Health Status screen shown in Figure A-30.
  • Page 329 5-10, 8-30, 9-6, 13-4 installing belt slippage detection ground rod 4-4 Lufkin Well Manager enclosure dimensions 4-7 Lufkin Well Manager on mounting post 4-5 calibration (K) factor overview A-10 motor control relay 4-9 communication protocol used for Lufkin Well motor transducer assembly for Hall-Effect 4-12 Manager 2.0 RPC...
  • Page 330 5-10, 8-30, 9-6, 13-4 installing belt slippage detection ground rod 4-4 Lufkin Well Manager enclosure dimensions 4-7 Lufkin Well Manager on mounting post 4-5 calibration (K) factor overview A-10 motor control relay 4-9 communication protocol used for Lufkin Well motor transducer assembly for Hall-Effect 4-13 Manager 2.0 RPC...
  • Page 331 Lufkin Well Manager™ 2.0 Rod Pump Controller User Manual programming methods using keypad 2-10, 5-3, Main Menu screen pump intake pressure malfunction control functions description calculated from downhole pump card A-3 malfunction setpoint description formation pressure query A-10 malfunctions resetting...
