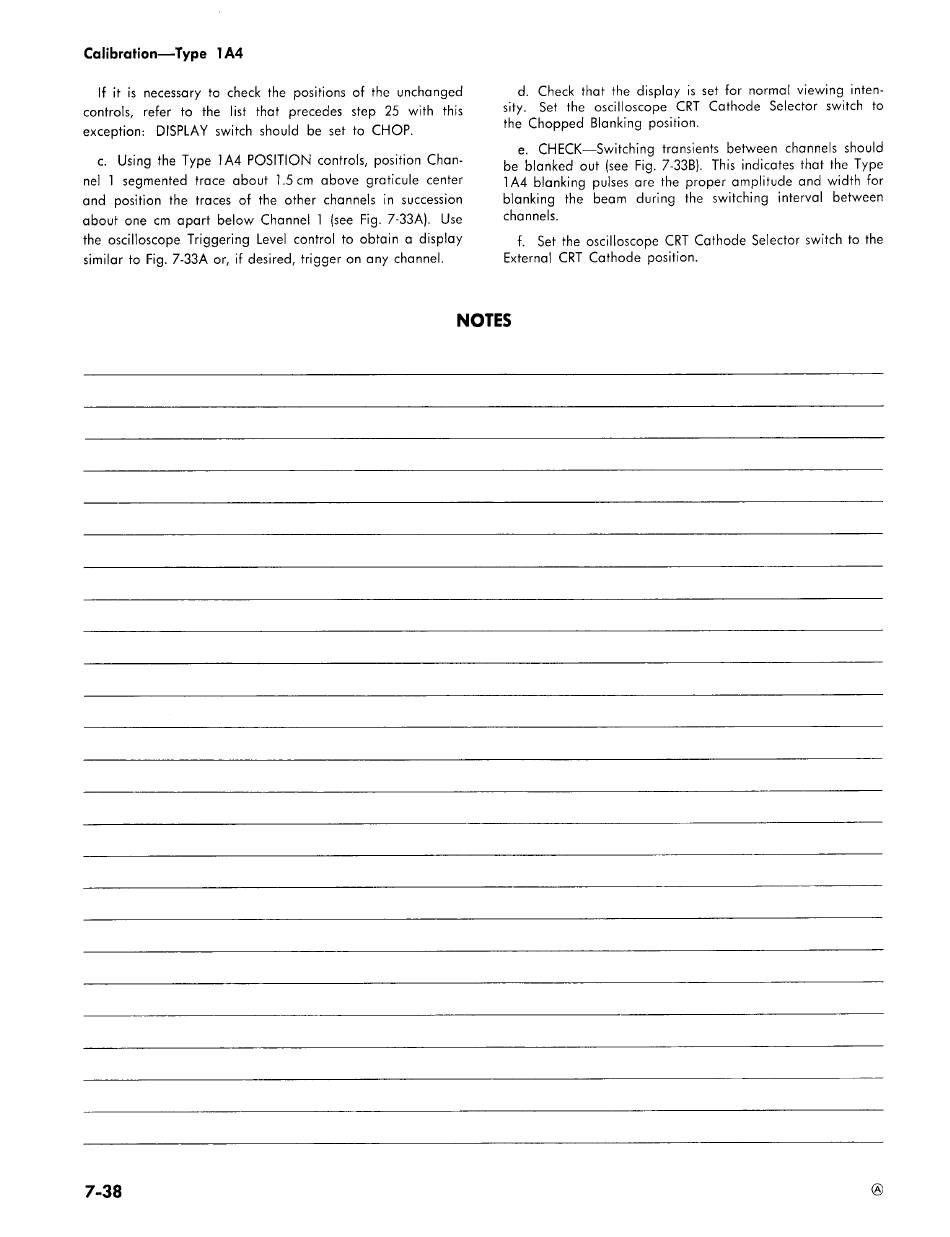

Calibration—Type 1A4
If it is necessary to check the positions of the unchanged
controls, refer to the list that precedes step 25 with this
exception: DISPLAY switch should be set to CHOP.
c. Using the Type 1A4 POSITION controls, position Chan-
nel 1 segmented trace about 1.5cm above graticule center
and position the traces of the other channels in succession
about one cm apart below Channel 1 (see Fig. 7-33A}. Use
the oscilloscope Triggering Level control to obtain a display
similar to Fig. 7-33A or, if desired, trigger on any channel.
channels.
7-38
