LED Dual Mode Type A/B T8 Tubes

Operation on 120-277V AC Mains (UL Type B):

RISK OF FIRE OR ELECTRIC SHOCK: LED Retrofit Kit installation requires knowledge of luminaire electrical systems. If not qualified, do

not attempt installation. Contact a qualified electrician. Install this kit only in luminaries that have the construction features and dimensions

shown in the drawings. Input ratings may need to be determined based on any configuration(s) permitted by the installation instructions.

Regardless of the configuration(s) of the retrofit kit, the input ratings of the overall retrofit kit shall not exceed the marked input ratings of

the host luminaire. To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects. Installers

should not disconnect existing wires from lampholder terminals to make new connections at lampholder terminals. Instead installers

should cut existing lampholder leads away from the lampholder and make new electrical connections to the lampholder lead wires by

employing applicable connectors (or replace with new lamp holders). THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH

THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND

THE HAZARDS INVOLVED. THE RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE

COMBINATION SHALL BE DETERMINED BY AUTHORITIES HAVING JURISDICTION. PRODUCT MUST BE INSTALLED BY A QUALIFIED

ELECTRICIAN IN ACCORDANCE WITH THE APPLICABLE AND APPROPRIATE ELECTRICAL CODES. THE INSTALLATION GUIDE DOES

NOT SUPERSEDE LOCAL OR NATIONAL REGULATIONS FOR ELECTRICAL INSTALLATIONS. Do not make or alter any open holes in

an enclosure of wiring or electrical components during kit installation. Installers should examine all parts that are not intended to be

replaced by the retrofit kit for damage and replace any damaged parts prior to installation of the retrofit kit. This lamp operates directly

from 120V-277V mains. Do not use Ballast or any starting aid. Do not connect to a voltage higher than 277 volts. To reduce risk of

misapplication, Current recommends installing a fuse in series with the Phase or Hot lead per the wiring diagrams below. Ensure the lamp

holders are SHUNTED for Double Ended T8 applications. Prior to installation, review all environmental designation locations in the retrofit

kit installation instructions. Only install in damp locations if so indicated in the installation instructions. Suitable for damp locations.

To protect against future misapplication, Current recommends installing an in-line fuse: Type 2AG, rated at 1 amp, 350 volts, Littlefuse part number

0209001 MXP or equivalent. Available through Current, BT8-1AFUSEKIT. This device is not evaluated for use with emergency exits.

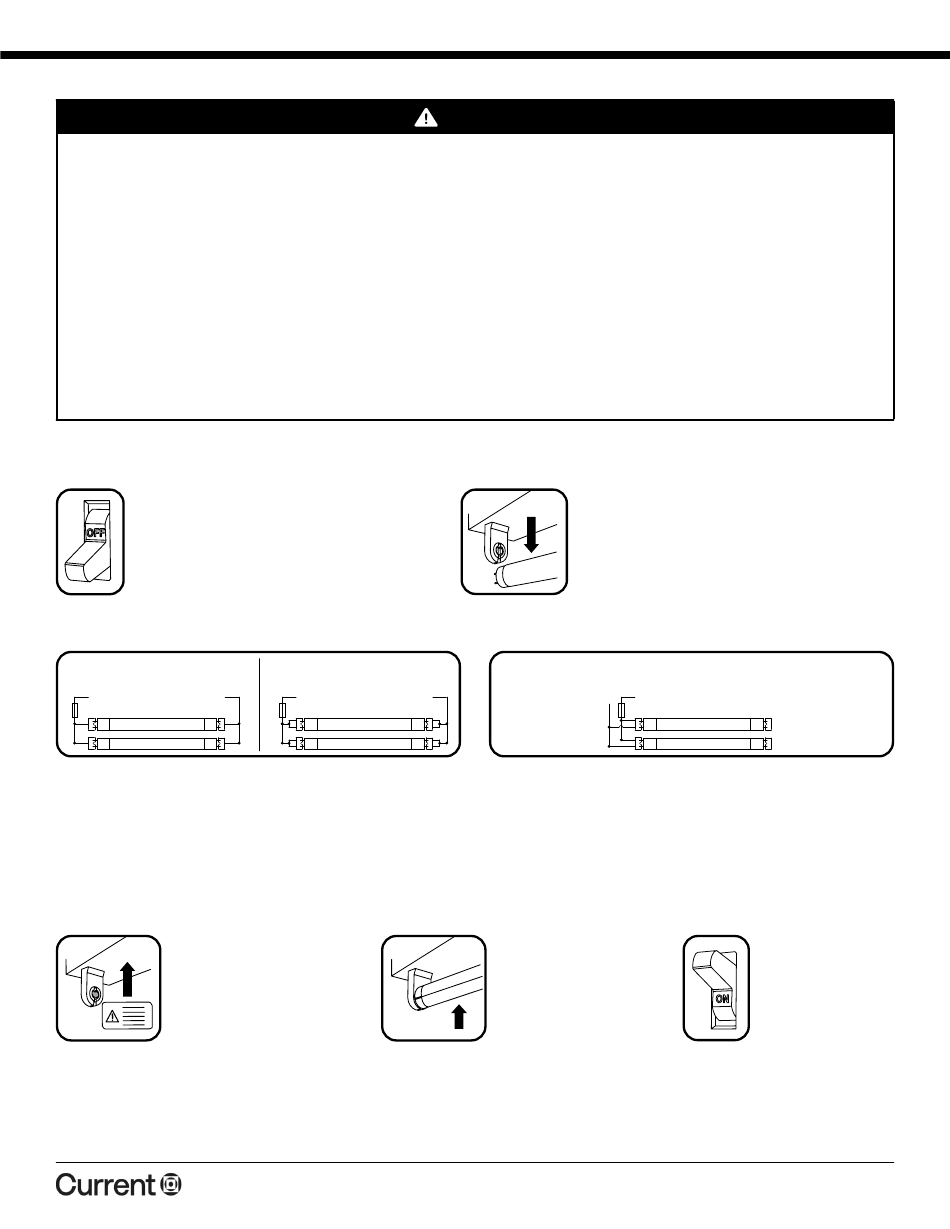

Installation Instructions for Operation on 120-277V AC Mains

1) Ensure power is

off to luminaire by

disconnecting the

supply voltage.

If lamp holders are shunted, follow instructions for double-ended wiring.

If lamp holders are not shunted, single-ended or double-ended wiring may be used.

Double-Ended Wiring with

Shunted Lamp Holders

Double-Ended Wiring with Shunted Lamp Holders

1A Fuse

LED Lamp

Double-ended wiring:

3) If two wires come from an existing lamp holder (rapid start type), these two

wires should be wired or shunted together.

4) Connect the recommended fuse and fuseholder (not supplied) to the

black (hot) wire from the mains.

5) Connect together all of the lamp holder leads on one side and con-

nect to the other side of the recommended fuse with suitable wire.

6) Connect together all of the lamp holder leads on the other side of the

fixture and connect to the white or neutral wire from the mains.

7) Replace the ballast / wiring area cover, ensuring no wires are pinched

between the cover and the fixture.

8) Install the retrofit kit Caution

label in an easy to see location

and mark accordingly to ensure

the user understands the lamps

now operate on mains voltage,

and the use of fluorescent lamps

may result in damage or injury.

This lamp is designed for general lighting service. This lamp may not be suitable for use in all applications where a conventional fluorescent lamp has been used.

This Class A device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate the equipment. This device complies with CAN ICES (A).

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING

Double-Ended Wiring with

Non-Shunted Lamp Holders

Double-Ended Wiring with Non-Shunted Lamp Holders

1A Fuse

LED Lamp

www.LED.com

General Electric Company and are used under license. Information and specifications subject to change without

notice. All values are design or typical values when measured under laboratory conditions.

2) Remove all fluorescent

lamps and ballast/wiring area

cover. Cut the ballast lead
