FCEN-16UP-M12-M Module
----Multiprotocol System Manual
Tianjin ELCO Automation Co., Ltd.
10/2024
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCEN-16UP-M12-M and is the answer not in the manual?

Questions and answers

Related Manuals for elco FCEN-16UP-M12-M

Summary of Contents for elco FCEN-16UP-M12-M

  • Page 1 FCEN-16UP-M12-M Module ----Multiprotocol System Manual Tianjin ELCO Automation Co., Ltd. 10/2024 Version 1.0...

  • Page 2: Preface

     Components  Article numbers  Technical specifications 4. Technical support: Please contact your local ELCO representative or call the hotline if you have any questions about the products described in this manual. Additional information about ELCO products is available: http://www.elco-holding.com/ 5.

  • Page 3: Table Of Contents

    7. Webserver ........................ 69 8. Alarm diagnosis ....................... 73 8.1 LED fault indicator ......................73 8.2 EtherNet/IP address assignment ..................74 8.3 PROFINET address assignment ..................75 8.4 CC-Link IE FB address assignment ..................76 FCEN-16UP-M12-M Manual 3 / 76...

  • Page 4: Product Overview

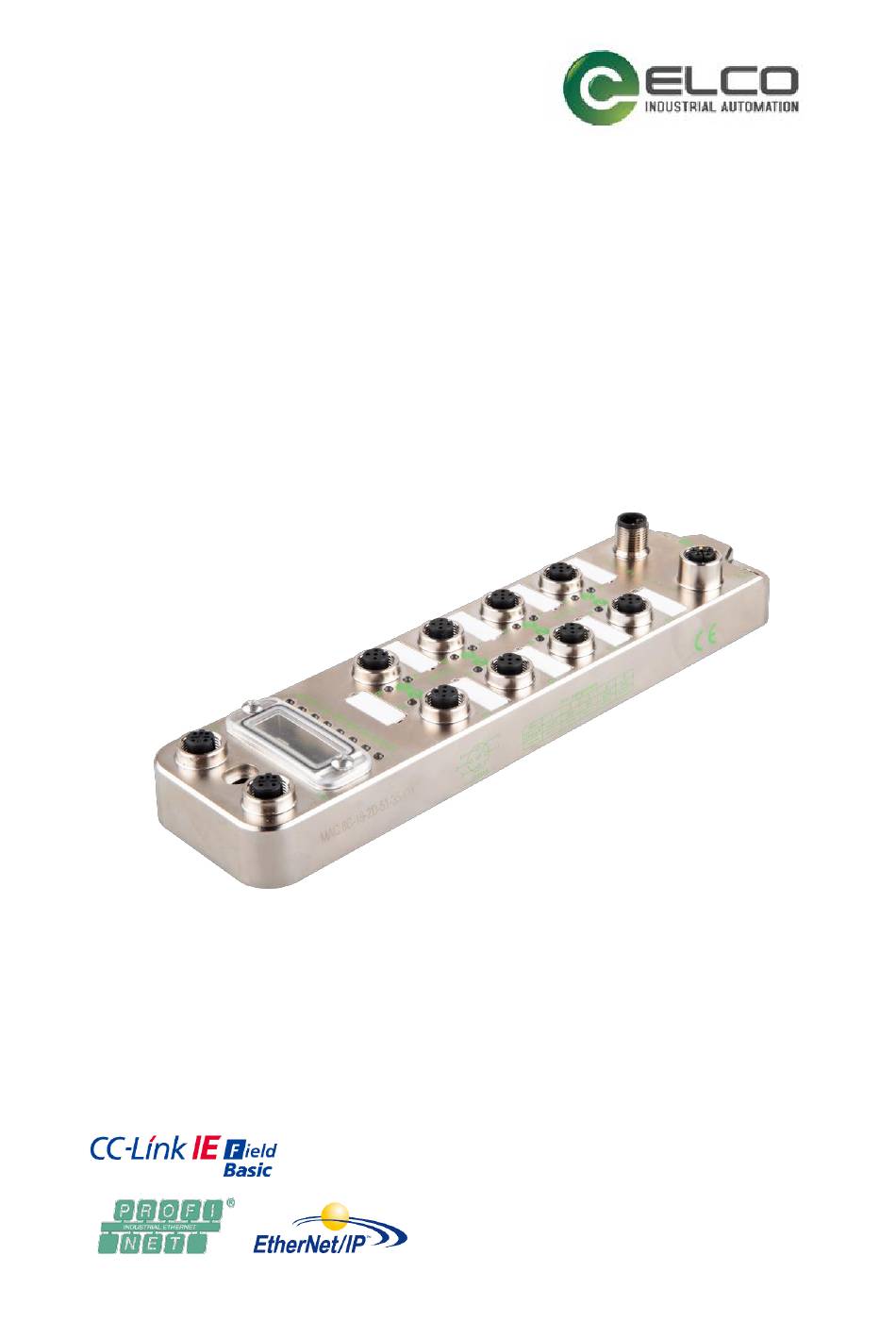

    1. Product overview 1.1 Introduction The FCEN-16UP-M12-M module, which supports switch I/O signals, is a new distributed I/O system with IP67 rating. This series of products adopts a fully sealed design structure and can be directly installed in industrial sites, including harsh working environments where liquids, dust, and vibrations may occur.

  • Page 5: Type

    1.4 Type Type Description Multiprotocol (Profinet or EtherNet/IP or CC-Link IE Field Basic) I/O module FCEN-16UP-M12-M 8 Female, M12 A-Code signal ports 2 Male+Female, M12 L-Code power supply 2 Female, M12 D-Code fieldbus interface FCEN-16UP-M12-M Manual 5 / 76...

  • Page 6: Technical Characteristics

    2. Technical characteristics 2.1 Hardware FCEN-16UP-M12-M Manual 6 / 76...

  • Page 7: Led Indicator

    Section 7.1 “LED Fault Indicator”. I/O module indicator Digital channel indicator Digital channel indicator Bus comm. status EN_In network status System power indicator Module status EN_Out network status Aux. power indicator FCEN-16UP-M12-M Manual 7 / 76...

  • Page 8: Installation And Wiring

    3. Installation and wiring 3.1 Installation dimensions FCEN-16UP-M12-M Manual 8 / 76...

  • Page 9: Installation Position And Size

    Thanks to IP67 high protection class and excellent resistance to vibration and interference, FCEN-16UP-M12-M can be installed in almost any location. The FCEN-16UP-M12-M module adopts a compact design to maximize installation space savings. The following table shows the module installation dimensions:...

  • Page 10: Wiring Guidance

     Always make sure you have a low-impedance connection to protective earth. 3.3.2 Module power supply FCEN-16UP-M12-M module adopts 24VDC power supply and can supply power to the connected sensors or actuators through signal connection lines. The input voltage range is 18-30VDC, standard M12 L-Code connector.
  • Page 11 2）Power out connector (Female) 3）Power definition Terminal Function Power supply System and input power supply Us+ Output power supply Ua- System and input power supply Us- Output power supply Ua+ Function earth FE FCEN-16UP-M12-M Manual 11 / 76...
  • Page 12 3.3.3 Module BUS connection FCEN-16UP-M12-M module, supporting multi-protocol (Profinet and EtherNet/IP and CC-Link IE Field Basic), transmits signals by a shielded cable, M12 D-Code connector. 1）BUS-In (Female) 2）BUS-Out (Female) 3）Bus definition Terminal Function Cable color Transmit Data (TD+) Yellow Receive Data (RD+)
  • Page 13 Us, and the signal output (Pin4 or Pin2) power supply come from the auxiliary power supply Ua. 4）Wiring example a) Dual input signal - one connector is connected to two switch input signals, the FCEN-16UP-M12-M product supports this form of connection. FCEN-16UP-M12-M Manual 13 / 76...
  • Page 14 Dual output signal - one connector is connected to two switch output signals, the FCEN-16UP-M12-M product supports this form of connection. c) Input and output signals - one connector connected to one digital input and one digital output signal, the FCEN-16UP-M12-M product supports this form of connection. FCEN-16UP-M12-M Manual...

  • Page 15: Setting Protocols Of The Module

    The FCEN-16UP-M12-M module supports both Profinet and EtherNet/IP and CC-Link IE Field Basic protocols, users can easily switch them. The FCEN-16UP-M12-M module can set the protocol and network parameters (such as IP address, subnet mask, etc.) through its built-in rotary code switch. The module will read the status of the switch and update the corresponding network parameter operation mode when re-powered on.

  • Page 16: Ethernet/Ip

    4. EtherNet/IP 4.1 Setting the network parameters When the FCEN-16UP-M12-M module powered on, the module will read the rotary switch positions. If the rotary switch position stays 000~299, the module will work in EtherNet/IP protocol. The module supports the DHCP and BOOTP protocols for receiving the required network parameters such as IP address and subnet mask.
  • Page 17 Please operate with caution. 4.1.1 Setting IP through DHCP software (Code: 000) When the rotary code switch is selected as 000, the FCEN-16UP-M12-M module allocates network parameters such as IP addresses and subnet masks through DHCP software. This section takes the BOOTP-DHCP server tool that comes with Rockwell software as an example to demonstrate how to allocate IP addresses.
  • Page 18 Then click Add to Relation List, or double-click MAC address, in the pop-up window, fill in IP address in IP bar, such as 192.168.1.108. As follows: Note: the assigned IP address needs to be in the same IP segment as the local computer. FCEN-16UP-M12-M Manual 18 / 76...
  • Page 19 Command Successful appears in the Status column, the IP address is successfully solidified. If you click the Status column and there is no success message, you need to click again until the command succeeds. As follows: FCEN-16UP-M12-M Manual 19 / 76...
  • Page 20 000 to reassign. 4.1.2 Setting IP through Webserver (Code: 001~254) When the rotary code switch is selected from 001 to 254, the FCEN-16UP-M12-M module accesses the web server through a browser to allocate network parameters such as IP addresses and subnet masks.
  • Page 21 IP address and subnet mask, and click the "Set IP" button. After successful setup, "IP configuration successful" will display under the button, The prompt "effective after board reboot" indicates that the new IP address will take effect after the power reboot. FCEN-16UP-M12-M Manual 21 / 76...

  • Page 22: Module Address Assignment

    4.2 Module address assignment This section mainly introduces the signal point arrangement order and address assignment of the FCEN-16UP-M12-M module, mainly to indicate the clear sequence of signals. Due to the different addressing methods in different PLC systems, this article explains them in Bytes, and systems in Word or DWord units can be arranged in the same order.

  • Page 23: Input Data Address Assignment

    Pin2 Pin4 Pin2 Pin4 Pin2 Pin4 Byte 2~3（Short Circuit Diagnosis） When a short circuit fault occurs between pins Pin1 and Pin3 of the signal port, the corresponding point indicates 1, otherwise the point indicates 0. FCEN-16UP-M12-M Manual 23 / 76...
  • Page 24 1, otherwise the point is 0. Byte 3 Power Supply Diagnosis Bit_7 Bit_6 Bit_5 Bit_4 Bit_3 Bit_2 Bit_1 Bit_0 Mean Ua_H Ua_L Us_H Us_L Ua_S High High Short voltage voltage voltage voltage circuit FCEN-16UP-M12-M Manual 24 / 76...

  • Page 25: Output Data Address Assignment

    4.4 OUTPUT data address assignment The FCEN-16UP-M12-M module occupies a total of 6 bytes (Bytes 0-5) of output data. The following table lists the mapping of output data occupied by the I/O module respectively: INPUT Description Byte 0 Output Signal Data of Port 1~4...

  • Page 26: Config Data Address Assignment

    4.5 CONFIG data address assignment The FCEN-16UP-M12-M module occupies a total of 34 bytes (Bytes 0-33) of config data. The following table lists the mapping of config data: CONFIG Description Byte 0 Process Data Layout Byte 1…16 Pin4&Pin2 Type of Port 1~8 Byte 17…32...
  • Page 27 Can be set to 1, which means the output is turned on in case of an exception; It can be set to 2, which means the output will maintain the last value in case of an exception. FCEN-16UP-M12-M Manual 27 / 76...
  • Page 28 (0=SetTo0, 1=SetTo1, 2=HoldLast) Byte 30 Pin2 safe state of Port 6 (0=SetTo0, 1=SetTo1, 2=HoldLast) Byte 31 Pin4 safe state of Port 7 (0=SetTo0, 1=SetTo1, 2=HoldLast) Byte 32 Pin2 safe state of Port 7 (0=SetTo0, 1=SetTo1, 2=HoldLast) FCEN-16UP-M12-M Manual 28 / 76...
  • Page 29 The smaller the value, the weaker the filtering strength; The larger the value, the stronger the filtering strength. The default value is 1. 0: extremely weak; 1: weak; 2: medium; 3: strong; 4: extremely strong FCEN-16UP-M12-M Manual 29 / 76...

  • Page 30: Configuration Commissioning (Ab Plc)

    Use EDS files to configure the EtherNet/IP protocol I/O module, which is used to integrate the EtherNet/IP protocol module as a standard EtherNet/IP slave into your system. You can visit the ELCO company website to obtain the latest EDS files or call the customer service hotline to contact technical personnel.
  • Page 31 3） The newly installed I/O module can be found when adding network devices and is displayed in the "New Module" interface. By filtering the "Module Type Vendor Filter" and selecting "Elco (Tianjin) Electronic", this module can be found and added in the Catalog.
  • Page 32 1）Create a new Studio5000 project. a）Open the “Logix Designer” software and click "File>New...". b）In the pop-up interface, select the PLC type to use and click "Next". c）Select PLC version, rack, slot number, etc., and click "Finish". FCEN-16UP-M12-M Manual 32 / 76...
  • Page 33 “New Module...”, select “1756-EN2TR” in the open interface, and click "Create". b）In the pop-up interface, fill in the IP address 192.168.0.5 of the module and provide the required name for the module, such as EN2TR. Click "OK" to complete the network adapter configuration. FCEN-16UP-M12-M Manual 33 / 76...
  • Page 34 3）Add the FCEN-16UP-M12-M module and set the IP address. a）In the left Controller Organizer navigation bar, right-click on Ethernet under 1756-EN2TR, select "New Module...", filter ELCO in the open interface, select module model FCEN-16UP-M12-M, and click "Create". b）In the pop-up interface, fill in the IP address 192.168.0.11 of the module and provide the required name for the module, such as “CP67_M”.
  • Page 35 Note: If the value of the CONFIG parameter is modified after network connection, the I/O module must be re-powered on or connected back to the network in order for the newly modified parameters to take effect. FCEN-16UP-M12-M Manual 35 / 76...
  • Page 36 PLC is successful. The input and output signals of the control module can be read and controlled through the Controller Tags variable table or by programming. 7）All configuration work has been completed and can be used normally. FCEN-16UP-M12-M Manual 36 / 76...

  • Page 37: Profinet

    5. PROFINET 5.1 Setting the network parameters When the FCEN-16UP-M12-M module powered on, the module will read the rotary switch positions. If the rotary switch position stays 300~399, the module will work in PROFINET protocol. The factory default IP address is 0.0.0.0 and the default device name is empty. You can set them by the Siemens programming software Portal.
  • Page 38 Under the “Functions”, you can assign IP address and PROFINET device name to the module. 1）The “device name” will be used in the programming steps. 2）The “IP address” can be used for accessing the Webserver. FCEN-16UP-M12-M Manual 38 / 76...

  • Page 39: Module Address Assignment

    5.2 Module address assignment This section mainly introduces the signal point arrangement order and address assignment of the FCEN-16UP-M12-M module, mainly to indicate the clear sequence of signals. This picture shows the I/O signal and status of the I/O module: 5.2.1 I/O signal of the module...
  • Page 40 1, otherwise the point is 0. Byte 4 Power Supply Diagnosis Bit_7 Bit_6 Bit_5 Bit_4 Bit_3 Bit_2 Bit_1 Bit_0 Mean Ua_H Ua_L Us_H Us_L Ua_S High High Short voltage voltage voltage voltage circuit FCEN-16UP-M12-M Manual 40 / 76...
  • Page 41 1, otherwise the point indicates 0. Byte 5 Short Circuit Diagnosis of Port 1~8 Bit_7 Bit_6 Bit_5 Bit_4 Bit_3 Bit_2 Bit_1 Bit_0 Port Port8 Port7 Port6 Port5 Port4 Port3 Port2 Port1 FCEN-16UP-M12-M Manual 41 / 76...

  • Page 42: Setting Parameters Of The Module

    The smaller the value, the weaker the filtering strength; The larger the value, the stronger the filtering strength. The default value is 1. 0: extremely weak; 1: weak; 2: medium; 3: strong; 4: extremely strong FCEN-16UP-M12-M Manual 42 / 76...
  • Page 43 This section used to set the function of the I/O module ports Pin4/Pin2, and the status of Pin4/Pin2 output in case of network disconnection or other abnormalities. For a detailed description of port settings, please refer to the following: FCEN-16UP-M12-M Manual 43 / 76...
  • Page 44 Can be set to “Set to 1”, which means the output is turned on in case of an exception; Can be set to “Hold the last value”, which means the output will maintain the last value in case of an exception. FCEN-16UP-M12-M Manual 44 / 76...

  • Page 45: Module Configuration By Portal (Siemens Plc)

    This section, through a case of connection configuration in a current operation process, will let the users fully understand how to use the FCEN-16UP-M12-M module. In this case, using the FCEN-16UP-M12-M as PROFINET slave to connect the Siemens controller CPU1511 under the condition that all power and bus connections have been completed, the device name of I/O module is assigned as CP67.
  • Page 46 2）Install GSD files for the FCEN-16UP-M12-M module. a）Select "Options"->"Manage General Station Description File (GSD)" in the menu bar, click to open a new window. b）Select the version of the GSD file to be imported and click “Install”. FCEN-16UP-M12-M Manual 46 / 76...
  • Page 47 3）Double-click "Add New Device" on the left and select the PLC model in the "Controller" window. 4）Double-click the "Device Configuration" window on the left, and in the "Network View" window, select "Properties"->"PROFINET Interface [X1]" -> "Ethernet Address" and set the IP address of the PLC. FCEN-16UP-M12-M Manual 47 / 76...
  • Page 48 "Devices & Networks" on the left to enter the "Network View" interface and select FCPN-16UP-M12-M through "Other Field Devices-> PROFINET IO-> I / O-> ELCO-> FCEN" in "Hardware Catalog", double-click or drag to add to the network. b）Click the "Not assigned" hyperlink and click to select “PLC_1.PROFINET Interface_1”...
  • Page 49 FCEN-16UP-M12-M and PLC complete communication connection. 6）Modify the device name and IP address settings of the I/O module a）Click the FCEN-16UP-M12-M module in the "Network View", select "Properties-> PROFINET Interface-> Ethernet Addresses", set the I/O module device name “CP67” in the window.
  • Page 50 Note: The name of the module must be the same as the device name modified in the previous step. 7）The FCEN-16UP-M12-M module has a total of 16 switch signal points, which can be used as inputs or outputs as needed. After configuration, it can be seen that the default allocation is 2 bytes for input and 2 bytes for output, which are used to represent the status of input and output signals.
  • Page 51 For specific instructions on the status, please refer to section 5.2.2. 9）After saving and compiling, download the configuration to the PLC. 10）When the NET indicator light of FCEN-16UP-M12-M module is constantly green, the configuration is successful. FCEN-16UP-M12-M Manual...

  • Page 52: Cc-Link Ie Field Basic

    6. CC-Link IE Field Basic 6.1 Setting the network parameters When the FCEN-16UP-M12-M module powered on, the module will read the rotary switch positions. If the rotary switch position stays 400~699, the module will work in CC-Link IE Field Basic protocol.
  • Page 53 When the rotary code switch is selected as 401~654, subtracting 400 from this value will result in the last 3 bits of the module IP address being 1~254. Meanwhile, the FCEN-16UP-M12-M module can access the Webserver through a browser to allocate network parameters such as IP addresses and subnet masks.
  • Page 54 IP address and subnet mask, and click the "Set IP" button. After successful setup, "IP configuration successful" will display under the button, The prompt "effective after board reboot" indicates that the new IP address will take effect after the power reboot. FCEN-16UP-M12-M Manual 54 / 76...

  • Page 55: Module Address Assignment

    6.2 Module address assignment This section mainly introduces the signal point arrangement order and address allocation of the FCEN-16UP-M12-M module, which is used to clarify the signal arrangement order. This figure shows the occupancy information of software components in the FCEN module: 6.2.1 I/O signal of the module...
  • Page 56 Bit_7 Bit_6 Bit_5 Bit_4 Bit_3 Bit_2 Bit_1 Bit_0 Port4 Port4 Port3 Port3 Port2 Port2 Port1 Port1 Pin2 Pin4 Pin2 Pin4 Pin2 Pin4 Pin2 Pin4 RWr 1 Reserved Bit_15 Bit_14 Bit_13 Bit_12 Bit_11 Bit_10 Bit_9 Bit_8 FCEN-16UP-M12-M Manual 56 / 76...
  • Page 57 Power Supply Diagnosis Bit_7 Bit_6 Bit_5 Bit_4 Bit_3 Bit_2 Bit_1 Bit_0 Mean Ua_H Ua_L Us_H Us_L Ua_S High High Short voltage voltage voltage voltage circuit RWr 3 Reserved Bit_15 Bit_14 Bit_13 Bit_12 Bit_11 Bit_10 Bit_9 Bit_8 Mean FCEN-16UP-M12-M Manual 57 / 76...

  • Page 58: Setting Parameters Of The Module

    Port1 Pin4 Port1 Pin2 Port1 Pin2 …… …… …… Port4 Pin4 Port4 Pin4 Port4 Pin2 Port4 Pin2 Port5 Pin4 Port5 Pin4 Port5 Pin2 Port5 Pin2 …… …… …… Port8 Pin4 Port8 Pin4 Port8 Pin2 Port8 Pin2 FCEN-16UP-M12-M Manual 58 / 76...
  • Page 59 The default is “Universal”, which means the Pin4/Pin2 can be used as input or output by wiring; Can be set to “Input”, which means only as input; Can be set to “Output”, which means only as output. FCEN-16UP-M12-M Manual 59 / 76...
  • Page 60 The smaller the value, the weaker the filtering strength; The larger the value, the stronger the filtering strength. The default value is 2-medium. 0: extremely weak; 1: weak; 2: medium; 3: strong; 4: extremely strong FCEN-16UP-M12-M Manual 60 / 76...

  • Page 61: Module Configuration By Melsoft (Mitsubishi Plc)

    6.4 Module configuration by MELSOFT (Mitsubishi PLC) This section provides users with a comprehensive understanding of how to use the FCEN-16UP-M12-M module through a practical operation process of configuring connections. In this case, with all power and bus connections completed, use FCEN- 16UP-M12-M as the CC Link IE Field Basic slave to connect the Mitsubishi controller FX5U, where the IP address of the I/O module is specified as 192.168.3.11.
  • Page 62 Open the MELSOFT software, click "Project>New...", select the PLC series "FX5CPU" and model "FX5U" in the pop-up dialog box, choose the programming language according to your habits, and then click "OK" to create the project. FCEN-16UP-M12-M Manual 62 / 76...
  • Page 63 4）In the newly opened window, set the IP address of the PLC to "192.168.3.250" and the subnet mask to "255.255.255.0". Users can also set according to their own needs, please note that the PLC and module need to be on the same IP network segment. FCEN-16UP-M12-M Manual 63 / 76...
  • Page 64 "Detailed Setting" option. b）In the newly opened "CC Link IE FB Configuration" window, click the "Detect Now" button to automatically scan the FCEN module connected to the PLC, as shown in the figure. FCEN-16UP-M12-M Manual 64 / 76...
  • Page 65 IP address and other network information of FCEN- 16UP-M12-M. Please confirm the correspondence between the IP address and the module MAC address. d）Right click on the FCEN-16UP-M12-M module and select "Parameter Processing of Slave Station..." under the "Online" option to enter the module parameter settings page.
  • Page 66 "Parameter Write", click "Cancel All Selections" to cancel all selections and check the parameters that need to be changed. After setting, click the "Execute" button to write the module parameters that you want to change. FCEN-16UP-M12-M Manual 66 / 76...
  • Page 67 “Detailed Setting” option. b）In the newly opened "Setting Item" interface, assign mapping addresses for RX, RY, RWr, and RWw in the PLC as needed, and then click the "Apply" button as shown in the figure. FCEN-16UP-M12-M Manual 67 / 76...
  • Page 68 "Select All" and click the "Execute" button to execute the download. 9）When the NET indicator light of FCEN-16UP-M12-M module is green and constantly on, it indicates that the configuration is successful and the module has established communication connection with the PLC.

  • Page 69: Webserver

    (xxx. xxx. xxx. xxx is the IP address assigned by the module) In this example, the IP of FCEN-16UP-M12-M module has been pre assigned to 192.168.0.15. Without connecting the PLC, showing how to read and control signal points, upgrade module firmware programs, etc.
  • Page 70 3）To upgrade the firmware program of the module, click on the “Main-device” project under the “Upload” column to enter the “Main Device Upload” interface. Click the “upload page” button to enter the “Firmware Upload” page. FCEN-16UP-M12-M Manual 70 / 76...
  • Page 71 At this point, click the “Send file” button, and the module will start upgrading the program. After about 15 seconds, you can see a prompt in the “Event Log” on the right that the upgrade was successful, indicating that the upgrade was successful. FCEN-16UP-M12-M Manual 71 / 76...
  • Page 72 6）Click the “Reset” button and the module will restart, completing the entire upgrade process. FCEN-16UP-M12-M Manual 72 / 76...

  • Page 73: Alarm Diagnosis

    8. Alarm diagnosis 8.1 LED fault indicator With the LED indicator on the FCEN-16UP-M12-M module, users can easily and quickly determine the current working status of the module. (For the appearance of the indicator, please refer to Section 2.2 "LED Indicator ")

  • Page 74: Ethernet/Ip Address Assignment

    8.2 EtherNet/IP address assignment The default connection name for the FCEN-16UP-M12-M module is “I/O Connection Point”. This connection contains the input and output signals and status of the I/O module. It contains 8 bytes of INPUT, 6 bytes of OUTPUT, and 34 bytes of CONFIG.

  • Page 75: Profinet Address Assignment

    8.3 PROFINET address assignment This section mainly introduces the signal point arrangement sequence and address allocation of FCEN-16UP-M12-M module, mainly explaining the clear order of signals. This diagram shows the input/output signals and diagnostic status of the I/O module. For details, please refer to Section 5.2:...

  • Page 76: Cc-Link Ie Fb Address Assignment

    8.4 CC-Link IE FB address assignment This section mainly introduces the signal point arrangement order and address allocation of the FCEN-16UP-M12-M module, which is used to clarify the signal arrangement order. This figure shows the occupancy information of software components in the FCEN module:...
