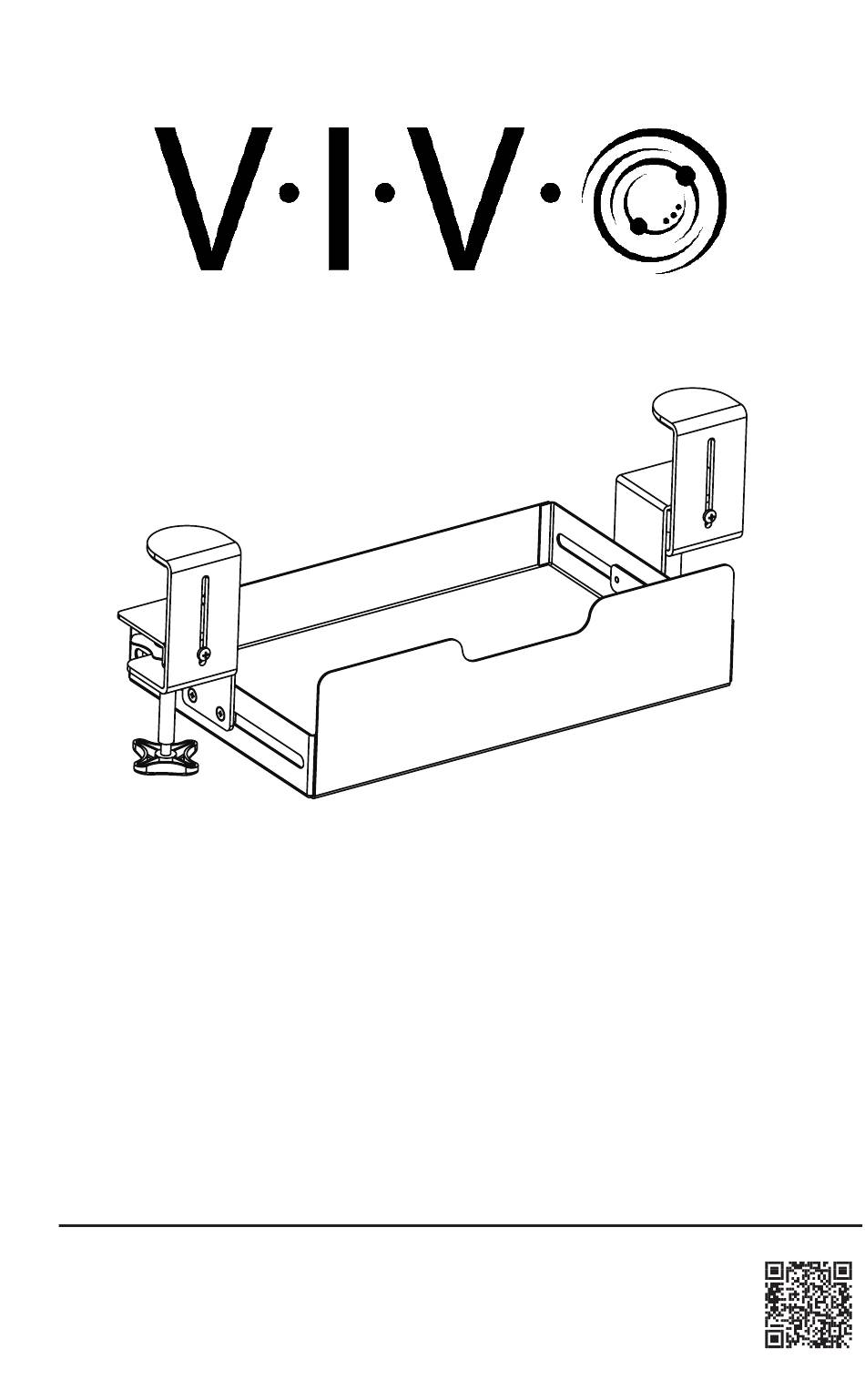

- Page 1 Black Flush Clamp-on Desk Drawer SKU: DESK-DR15C-B Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-dr15c-b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Assembly Steps
STEP 2 ASSEMBLY STEPS Loosen the knobs on Clamps (B). STEP 1 Assemble Clamps (B) to Drawer (A) using Threaded Plates (C), Spacers (D), and M5x8mm Screws (S-A). Tighten the screws using a Phillips screwdriver. NOTE: The embossed cylinders on Spacers (D) should be installed where they are sitting in the slots of Drawer (A). - Page 4 STEP 3 STEP 4 Loosen the single screws on the front of Clamps (B) using a Phillips screwdriver. Adjust the Place Pads (E) on the desk surface and slide the assembled Drawer onto the desktop. Ensure Pads (E) clamp so that the screw is close to the bottom of the slot. are below the top of the clamp and tighten the knobs on Clamps (B).
- Page 5 LAST UPDATED: 10/18/2023 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
