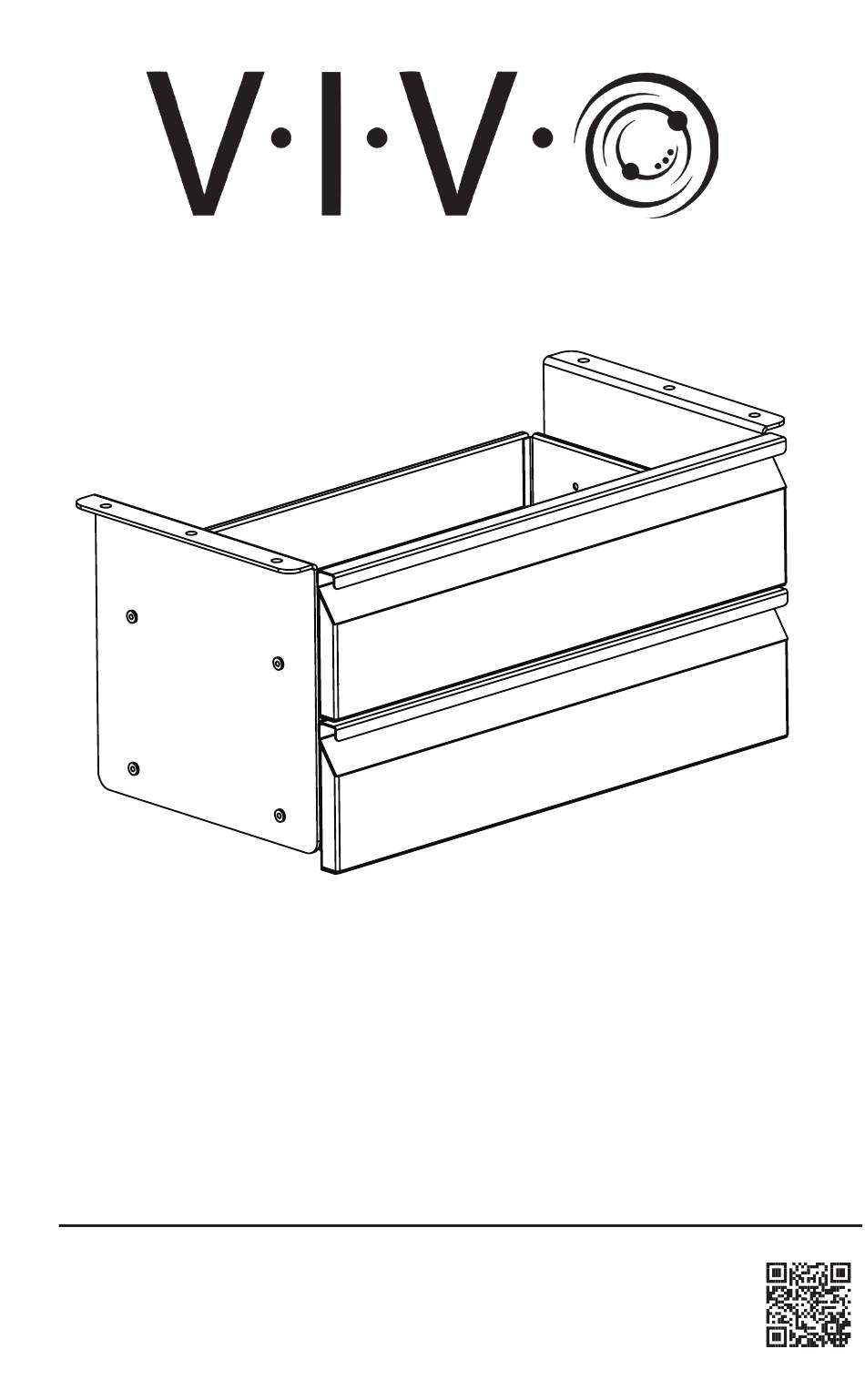

- Page 1 Pull Out Dual Level Under Desk Drawer SKU: DESK-DR02,W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-dr02...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x2) B (x1) Drawer Left Bracket C (x1) D (x1) Right Bracket Template Included Hardware & Tools S-A (x6) S-B (x6) ST5x16mm Screw M5 Washer Tools Needed: Phillips Pencil Drill 9/64” (3.5mm) Screwdriver Drill Bit Weight Capacity: 22lbs 11lbs (10kg)
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Align Template (C) on the bottom of your desktop. With the arrow point toward the edge of the desktop, mark drilling locations using a pencil. Bottom of Desk... - Page 5 Pre-Drilling Instructions Drill mounting holes using illustration below. 9/64” (3.5mm) Drill Bit 0.6” (15mm) Hole Depth STEP 2 Secure Left and Right Brackets (B,C) to the underside of desktop using ST5x16mm (S-A), M5 Washers (S-B) and a Phillips screwdriver. NOTE Ensure the Brackets are installed so that the rails slide outwards.
- Page 6 STEP 3 Insert the Drawers (A) into the Brackets (B,C).
- Page 7 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 8 LAST UPDATED: 6/27/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
