QZONE102

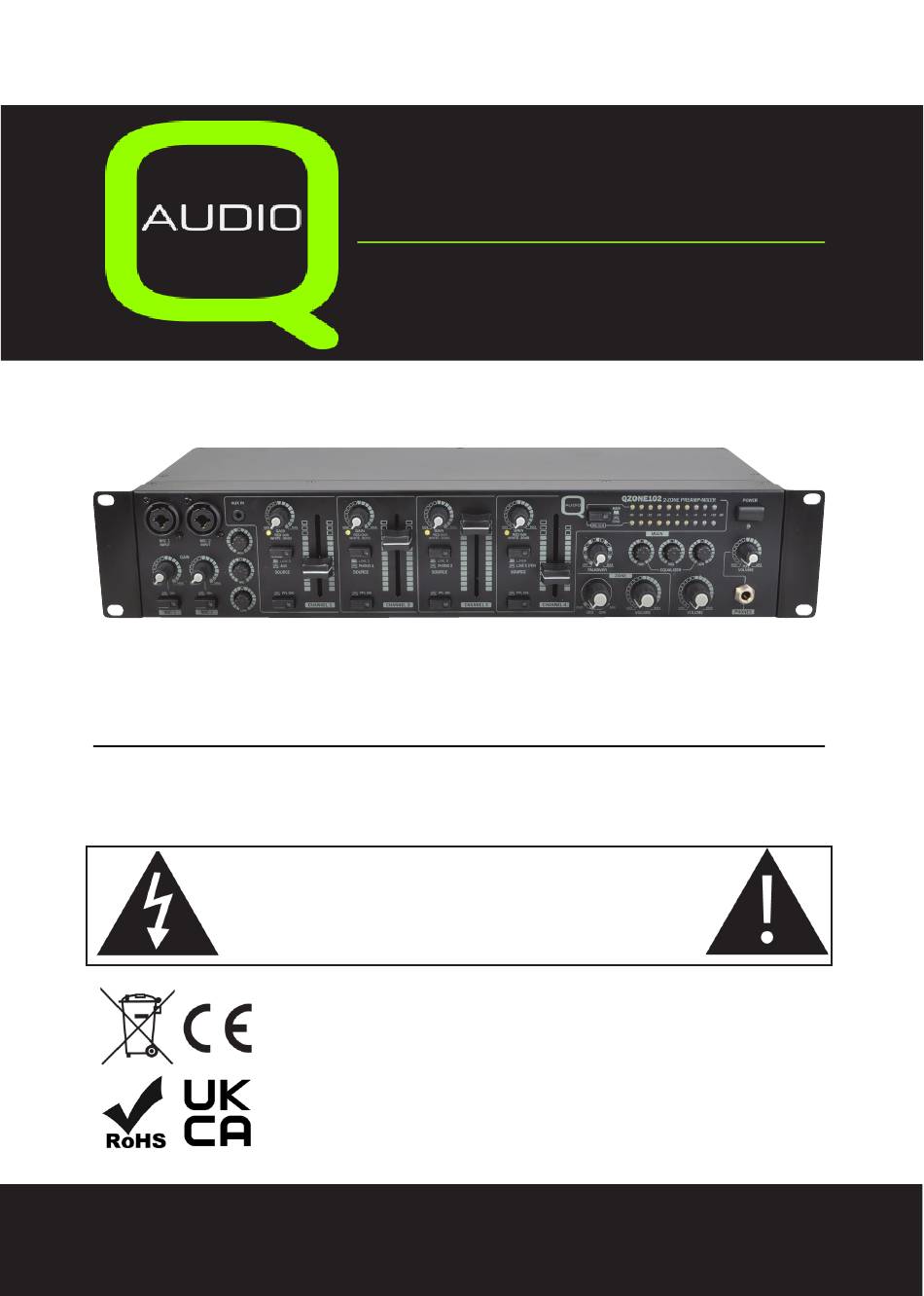

Instruction Manual
QZONE102 Instruction Manual
Version 1.0
CAUTION - ATTENTION - VORSICHT
RISK OF ELECTRIC SHOCK- DO NOT OPEN
RISQUE D'ELECTROCUTION- NE PAS OUVRIR
STROMSCHLAGGEFAHR- NICHT OFFNEN
In Compliance with the following directives: RoHS Directive
(2002/95/EU) and WEEE Directive (2002/96/EU)
If this product is no longer functional or reaches the end of its
usable life, please take it to an approved recycling plant.
www.q-audio.co.uk
Advertisement
Table of Contents
Related Manuals for Q-Audio QZONE102
Summary of Contents for Q-Audio QZONE102
- Page 1 QZONE102 Instruction Manual QZONE102 Instruction Manual Version 1.0 CAUTION - ATTENTION - VORSICHT RISK OF ELECTRIC SHOCK- DO NOT OPEN RISQUE D’ELECTROCUTION- NE PAS OUVRIR STROMSCHLAGGEFAHR- NICHT OFFNEN In Compliance with the following directives: RoHS Directive (2002/95/EU) and WEEE Directive (2002/96/EU) If this product is no longer functional or reaches the end of its usable life, please take it to an approved recycling plant.
-
Page 2: Safety Advice

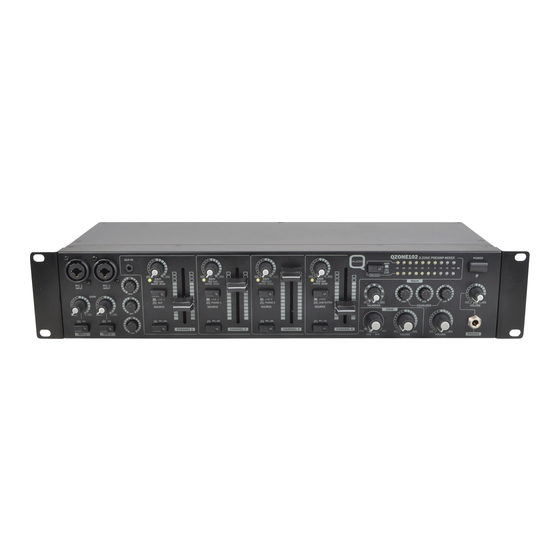

Introduction: Dear Customer, Thank you for purchasing the QZONE102 2 Zone Installation Mixer. For your safety and to ensure you make full use of the product’s features, please make sure you read this manual in full. Safety Advice: • Read this manual in full before operating this product. - Page 3 1 piece Introduction: The Q Audio QZONE102 is a purpose-built mixer, ideal for small installations in venues such as bars, restaurants, and gyms. It is especially effective in setups where two zones require either distinct music sources or the same audio at different volume levels.
-
Page 4: Cleaning And Maintenance
Technical Specifications: Product QZONE102 Signal/ Noise > 82dB (Line) Crosstalk Damping > 65dB (Line) < 0.05% (Line) Frequency Response (LoZ w/o HPF) 20Hz - 20kHz AC IN 115V/ 230 ~ 50/ 60Hz Power Consumption max. 20W Dimensions 483mm x 88mm x 162mm (H x W x D) Weight 3.1kg... - Page 5 JP305 HPF Filter ON OFF JP306 MIC Emergency Emergency Mic Settings Emergency Mic Settings OFF ON Internal Settings: To change the internal settings, the unit will need to be opened. All work must be carried out by a qualified technician. The unit must be unplugged from the AC mains before work is carried out. Remove the top cover to gain access to the internal PCBs, then set the switches and jumpers and arrange connections as shown.
- Page 6 Controls and Connections: Connections - Rear:...
- Page 8 Controls and Connections: Controls - Front:...
- Page 10 Connections: This unit uses the connector types shown in the table below. To ensure proper operation, make sure to use good connectors and cables. Balanced operations are preferable over unbalanced connections, where applicable. If unbalanced connections are used, avoid exceeding 2m of cable length for this connection.
- Page 11 This product should not be mixed with other commercial wastes for disposal. Thank you for taking the time to read this manual. For further enquiries, please contact us at: Q-Audio (Products) Limited, Unit 15, Rochester Airport Industrial Estate, Laker Road, Rochester, Kent, ME1 3QX.
- Page 12 www.q-audio.co.uk...
