Sonoff NSPanel Pro-120 Manual

Introduction

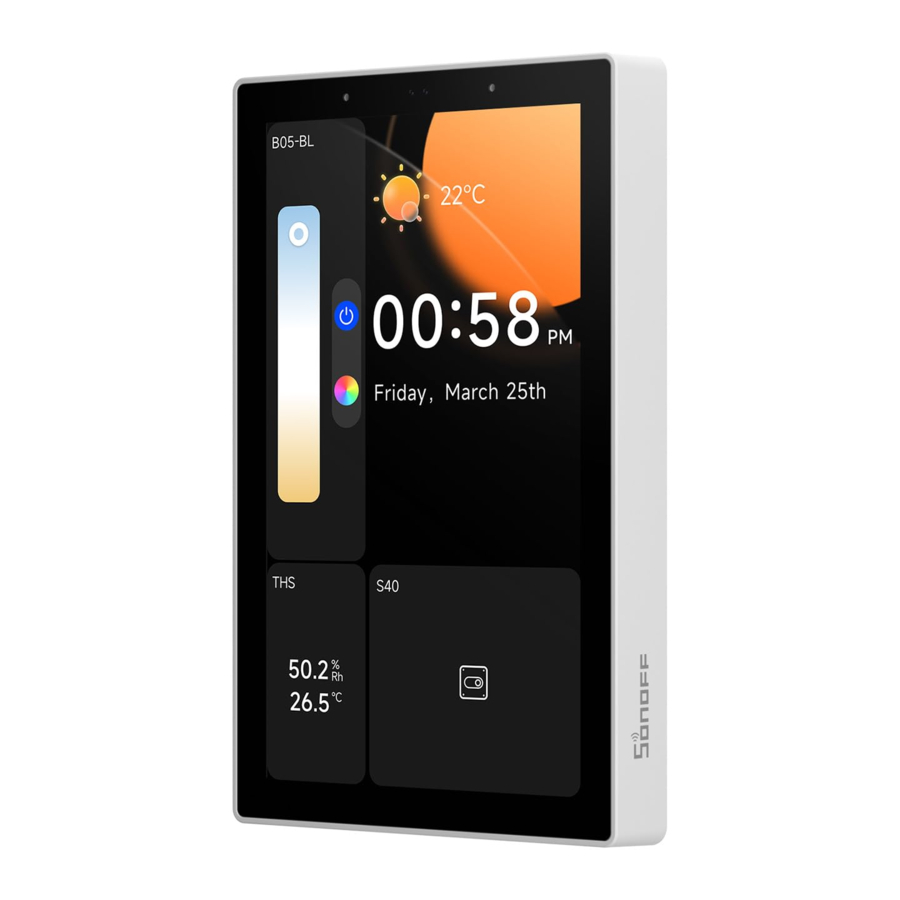

NSPanel Pro is a smart scene control panel integrating touch screen, Zigbee hub and smart security feature. You can control the devices by adding them as widgets on the panel, add various Zigbee sub-devices through the built-in Zigbee gateway, set 3 security modes to guard your home and view the live view on the panel through an added camera.

1. Microphone
2. Light sensor
3. Screen
4. Speaker

Compatible Voice Assistants

Specification

* This product is only suitable for safe use at altitudes below 2000m.

Installation

1. Power off


   Please install and maintain the device by a professional electrician. To avoid electric shock hazards, do not operate any connection or contact the terminal connector while the device is powered on!
2. Wiring instruction

   • Make sure all wires are connected correctly.
3. Installation

   • The product should be installed in the concrete wall or other non-combustible location.
   • A suitable circuit breaker in accordance with Annex L of standard IEC/UL/CSA/EN 62368-1 shall be incorporated in the electrical installation of the building. A suitable circuit breaker shall be provided as part of the building installation.

Log In to eWeLink Account

1. Download the "eWeLink" App
   Please download the "eWeLink" App from Google Play Store or Apple App Store.

2. Power on
   After powering on, click "Start," choose the language and region, and then select Wi-Fi and input the password to enter the device's main interface.

3. Log in
   Tap "Log in" on the device and tap "+" on the eWeLink App to select "Scan", then scan the QR code on the device screen by your App.


Add Zigbee Devices

1. Pairing mode entry
   Method 1: Entry on the central control panel.

   Method 2: Entry on the eWeLink App.

2. Set the Zigbee device into the pairing mode and complete the adding by following the prompts.

Add Wi-Fi Devices

1. Add Wi-Fi devices on the eWeLink App.
2. In the main interface of NSPanel Pro on the App, select "Extended Screen Settings" and synchronize the connected Wi-Fi devices to the NSPanel Pro.

   • After adding the devices, they can be checked and controlled on the panel.

View Camera

Add the camera on the App and configure it on the NSPanel Pro page, then tap "Camera" and select the added camera like "CAM Slim" on the panel to view the live view on the panel through the camera.

• You can also drop down the screen to select "Add camera" and add PTSP camera or DIY camera by following the prompts

Smart Security

There are 3 modes of Smart Security, home mode, away mode and sleep mode. Select the mode on the App to enable the triggerable sub-devices and set the alarm sound.

• Smart security functions can only be used after adding security sub-devices.

Factory Reset

Method 1: Deleting the device on the eWeLink App indicates you restore it to factory setting.
Method 2: Complete the factory reset follow the prompts on the panel.

Manufacturer: Shenzhen Sonoff Technologies Co., Ltd.
Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China
ZIP code: 518000
Service email: support@itead.cc
Website: sonoff.tech
