Introduction

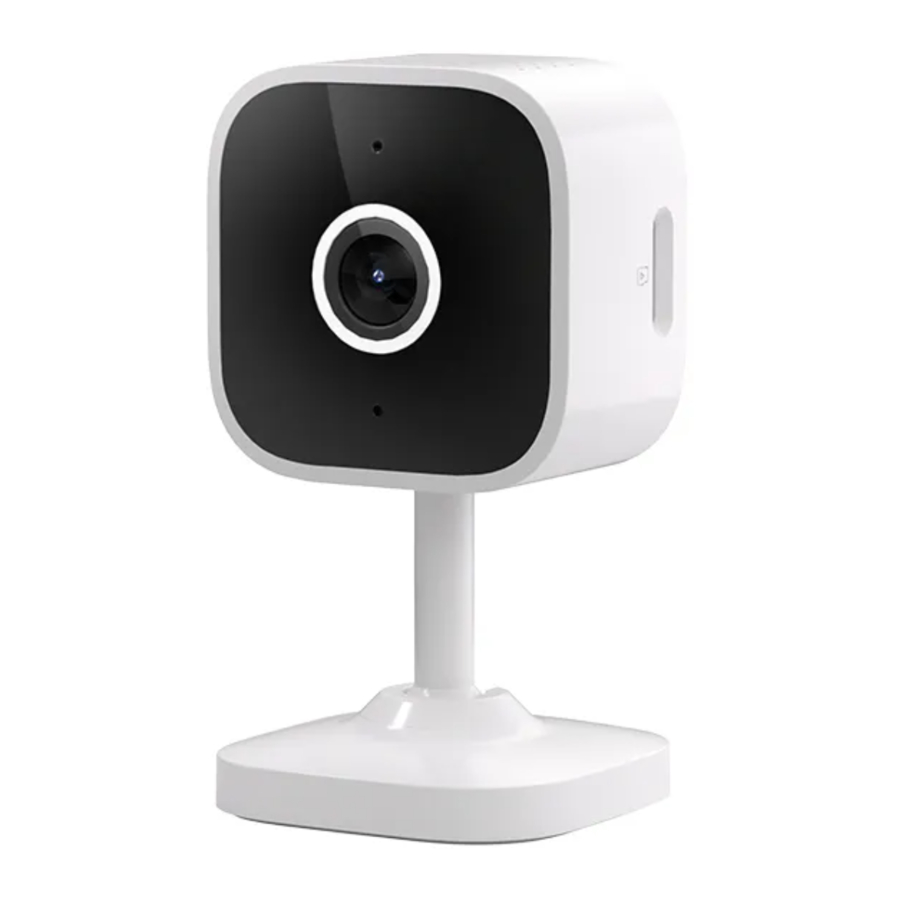

The CAM Slim Gen2 is a Wi-Fi security camera with 1080P resolution, capable of capturing every detail clearly. It supports real-time viewing of home situations and remote conversations on the app. You can push messages to the app in time by setting motion detection messages, and share them with your family.

Overview

LED indicator
Camera lens
Microphone
TF card slot
Base
Reset button
- Long press the button for 5 seconds (device emits a "beep" sound): The device enters pairing mode (pairing duration: 30 minutes).
Power input interface (Type-C)

Instruction of LED Indicator Status

LED indicator status	Status instruction
Flashes two short and one long	Device is in pairing mode (Single press reset button to exit pairing mode).
Keeps on	Online
Flashes once quickly and lights up strongly at the same time	Device exits the network configuration state after being offline, network exception, or failure to connect to the network.
Flashes twice rapidly	Device detects TF card (device will emit two "beep" sounds).
Flashes once rapidly	Device being watched

Audio Alerts

Audio Alerts	Device Status
Single "beep" sound (Press and hold reset button for 5 seconds)	Device is in pairing mode.
Double "beep beep" sounds	Device detects TF card.

Compatible Voice Assistants

Specification

Model	CAM-S2
Input	5V ⎓ 1A
Interface type	Type-C
Lens aperture	F2.0
Resolution	1920x1080
Camera pixels	2 million pixels
Lens focal length	3.8mm
Video compression standard	H.264
Camera lens angle	100°
Storage methods	Cloud storage and TF card (Max.128GB for TF card)
Wireless connection	Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Net weight	65g (Accessories not included)
Product dimension	48x46x86.5mm
Colour	White
Casing materials	PC+ABS
Applicable place	Indoor
Working temperature	-10°C~40°C
Working humidity	5%~95% RH, non-condensing
Certification	CE/FCC/RoHS
Executive standard	IEC/EN 62368-1

Download the eWeLink App

Please download the "eWeLink" app from Google Play Store or Apple App Store.

Scan QR Code to Add Device

Enter "Scan".
Scan the QR code on the device.
Select "Add Device".
Power on the device
Long press the reset button for 5 seconds.
Check Wi-Fi LED indicator flashing status
(Two short and one long flashes).
Wait for the device to be found and connected.
Select the "Wi-Fi" network and enter the password.
Device was added completely.

Installation

This device can be placed on a desktop (Figure ①), mounted on a wall (Figure ②), or installed on the ceiling (Figure ③).
Installation

Manufacturer: Shenzhen Sonoff Technologies Co., Ltd.
Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China
ZIP code: 518000
Service email: support@itead.cc
Website: sonoff.tech
